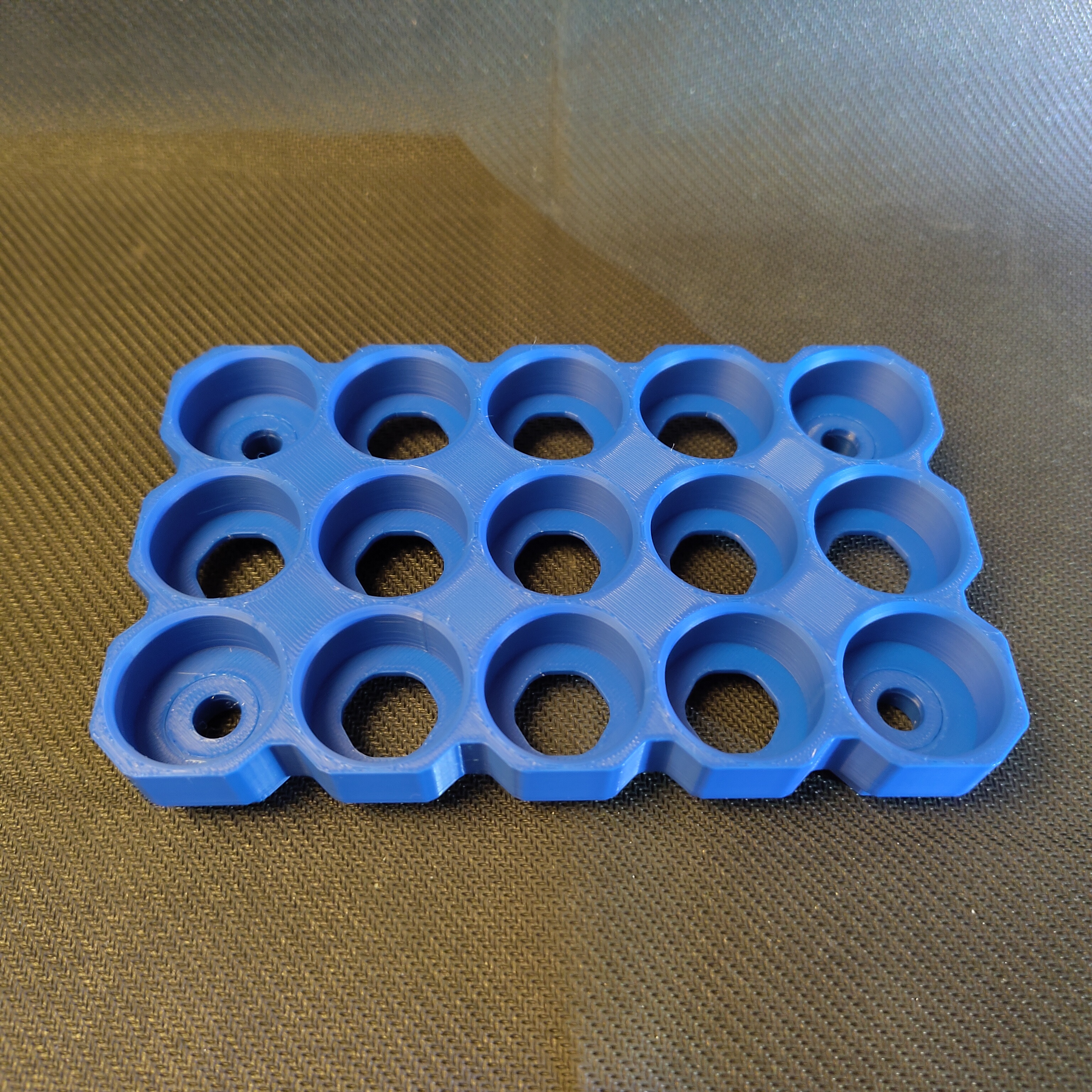

Tray for 12, 15 or 18 Armypainter bottles that you can stack on top of eachother.

The feet screw on and are only needed for the upper trays since the top of the bottles on the bottom tray slots in to the feet on the top tray.

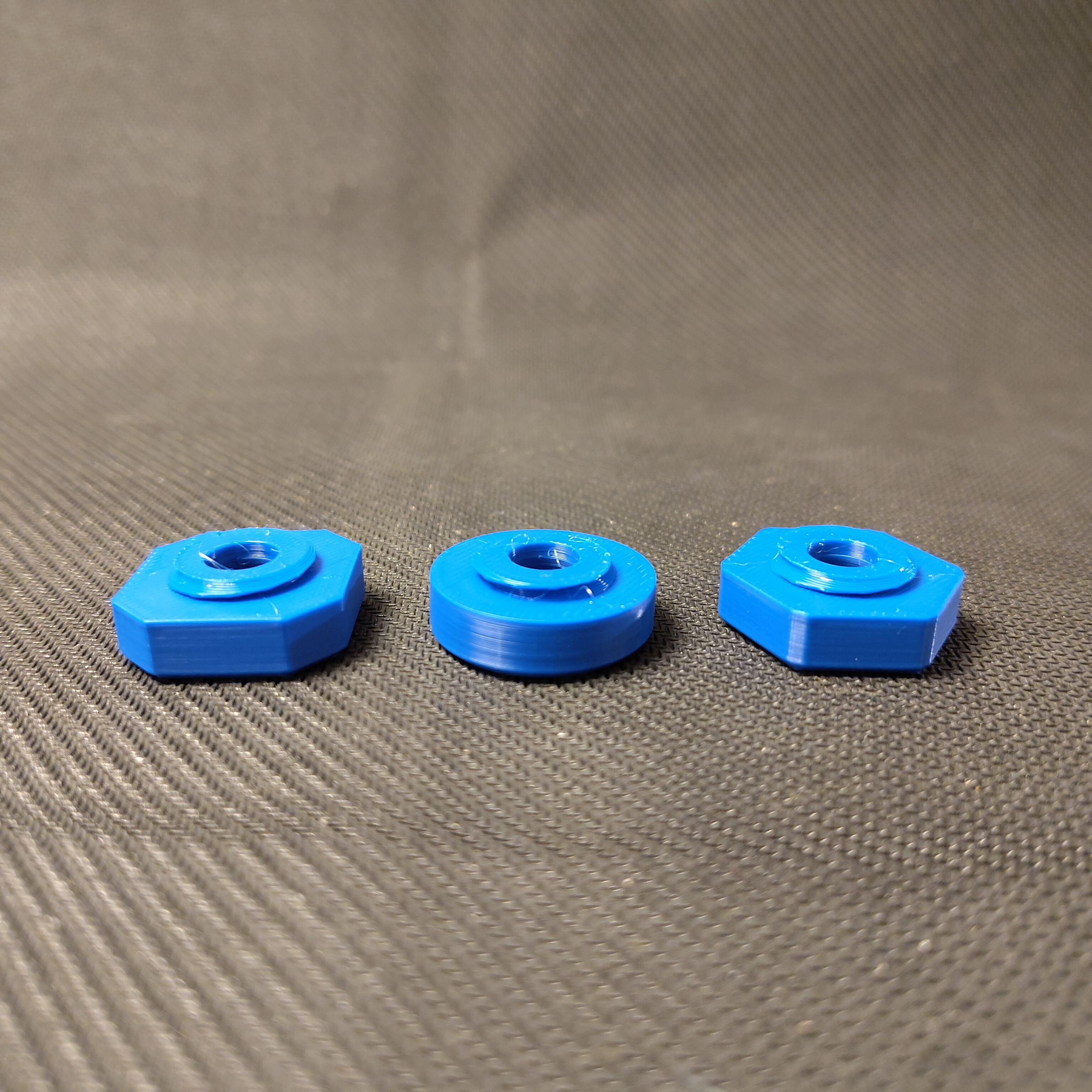

I made 3 different feet, but prefer the 'Octa' one, it matches the style of the tray.

With a tray upside down on top of the bottles and a couple of rubberbands, they keep everythin in place for transport.

Onshape CAD model:
[https://cad.onshape.com/documents/aba5b84ea1bb2822acfd0eb2/w/0eab23ed1893b8bbaacc57d4/e/544cb9884b5d28b205af309b?renderMode=0&uiState=65ad63ac49d4b7366f7576eb](https://cad.onshape.com/documents/aba5b84ea1bb2822acfd0eb2/w/0eab23ed1893b8bbaacc57d4/e/544cb9884b5d28b205af309b?renderMode=0&uiState=65ad63ac49d4b7366f7576eb)

Inspired by [https://www.thingiverse.com/thing:4696460](https://www.thingiverse.com/thing:4696460)

Version 3.5 has slightly wider slots for the bottles (+0.2mm) since i Found an Armypainter bottle that did not fit the 3.4 version. This makes the trays a bit wider and longer than v3.4.
