Protect your microphone signal from part of the echo of the room.

Print :

• 2xSidePanel
• 1xFrontPanel
• 1xMicrophoneHolder

Buy :

• 4xM4 10mm screw
• 4xM4 self-locking nuts
• 3x25x25cm soundproof panels

I printed the panels on their round side, with support enabled.

Assemble the panels with 10mm M4 screws and self-locking nuts.

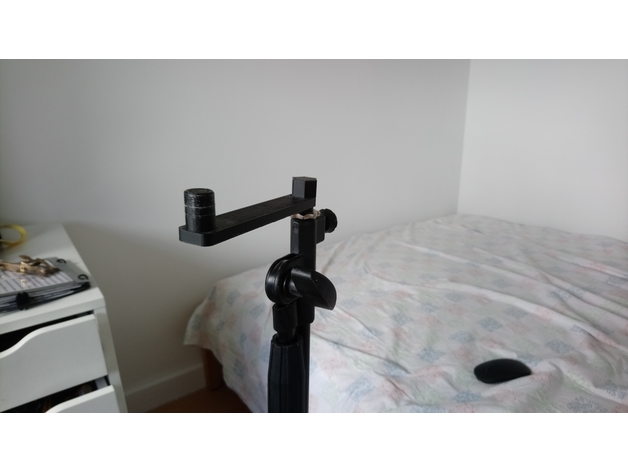

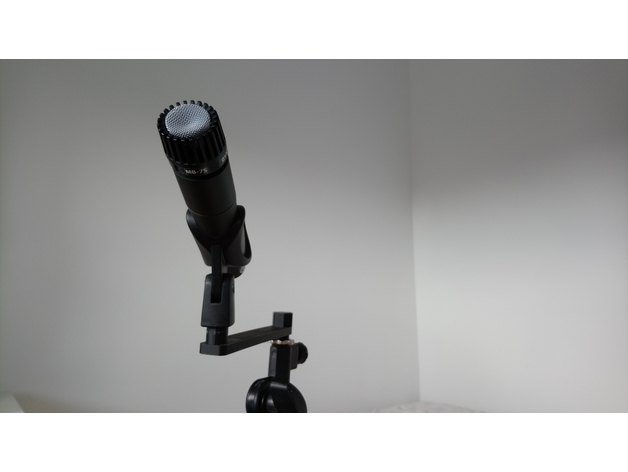

The holes in the MicrophoneHolder piece are designed to have standard 5/8" threads. If you don't have a proper 5/8" tap, you can do as I did, and use your microphone stand as a tap to create the threads. If using PLA, the plastic is soft enough for this to work.

For the sound proof material, I used 25x25cm panels from Aliexpress : [http://a.aliexpress.com/_vKiKO8](http://a.aliexpress.com/_vKiKO8)
Cut 173x157mm rectangles in the panels and it will fit right into the panels, no need to glue them. (You need to make a groove in the sound proof material for the center panel).
