Modelo 3D Raspberry Pi Camera Holder Module 3 (CM3) (Adjustable) por The Random Maker no Printables

Descrição

 WHAT THIS IS:

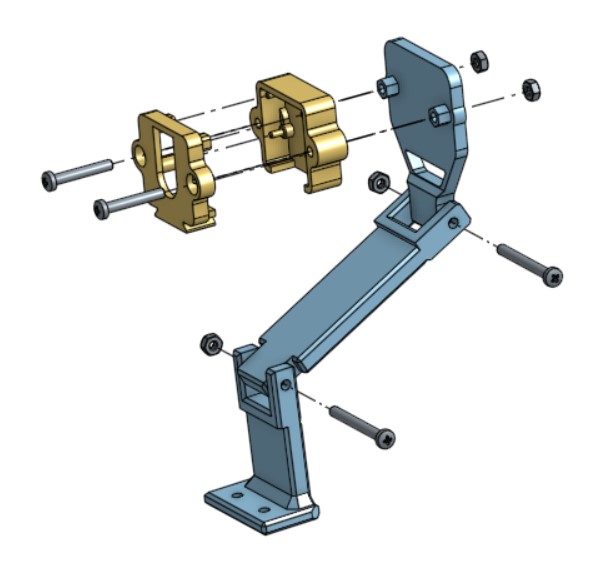

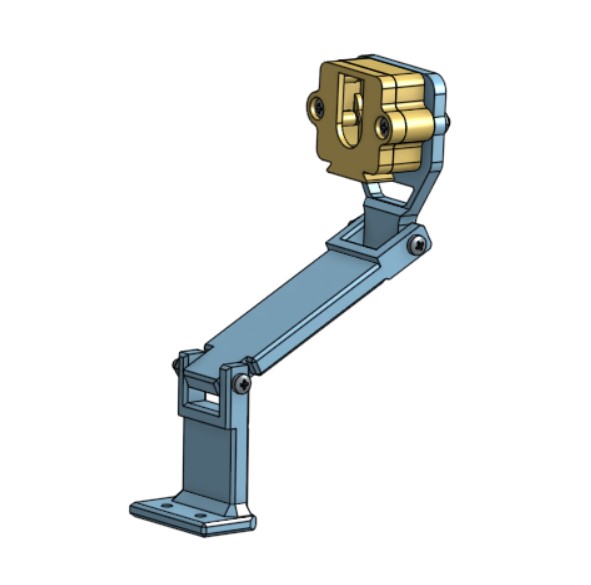

I wanted a raspberry pi camera module 3 (or CM3) holder for my robot. Most models uploaded on printables were made for 3D printers, so I couldn't get a design to fit my robot as they were all supposed to be directly connected on the printer. So, I used a design for the cover for the camera module 3 and made an adjustable holder so that I could adjust the position of the camera vertically, as well as move it backward and forward.

DETAILS AND SPECIFICATIONS:

This model is made to be fitted with screws. IT USES M3 BOLTS AND NUTS.

ONSHAPE LINK:

I designed this model on Onshape.

The link for this model in Onshape:
camera module 3 | Main Assembly (onshape.com)



Printables

Raspberry Pi Camera Holder Module 3 (CM3) (Adjustable)

The Random Maker The Random Maker (abre em nova aba)

Publicado em 22 de jan de 2024

19
Curtidas
225
Downloads
5
Impressões
Categoria RC & Robotics
Tags
holder mount adjustable raspberry pi robotics raspberrypi raspberrypicamera picam picamera cameraholder raspberrypicam picameramount picamv3 module3 picam3 picameraholder picamholder adjustablemount
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (8)
Head for CM3 holder.stl 127 KB
Body for CM3 holder.stl 91.1 KB
Leg for CM3 holder.stl 121.4 KB
Front cover.stl 191.6 KB
bottom cover.stl 517.5 KB
Head for CM3 holder.step 66.5 KB
Body for CM3 holder.step 60.4 KB
Leg for CM3 holder.step 78.2 KB
