Modelo 3D Watch screwdriver sharpening jig por WallK no Printables

Descrição

Being disappointed in the lack of printable screwdriver sharpening jigs and time it takes to ship one from China – I made my own

This model accepts screwdrivers up to 6mm in diameter
Side screw allows easy flipping to sharpen evenly

Use 608 bearings (usual skateboard or fidget bearings)
Polygonal axis allows easier bearing installation

Use at least 20mm M3 screw (25mm on photo) to clamp your screwdriver from the side



Printing:

There are 4 models with different size of bearing axis (8.0, 8.1, 8.2 and 8.3mm)
I use 8.3mm one, but it requires pressing bearings on with some force
If you want – print ScrewdriverSharpeningJig_FitTest and testfit your bearing before printing the main model (if the polygon with “1” on it is still tight – print the 8_0 model)

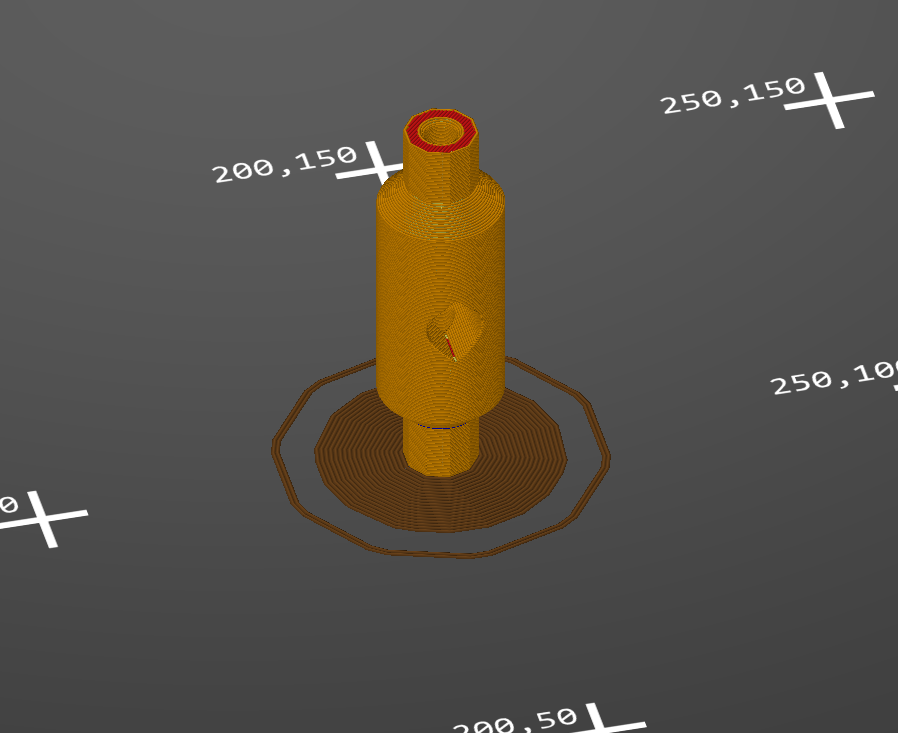

Print standing up with a big brim (see slicer screenshot)

I used 0.2mm layers and 3 perimeters
Infill doesn't really matter, so 15% is fine, for example
No supports are required

Printables

Watch screwdriver sharpening jig

Publicado em 18 de jan de 2024

35
Curtidas
129
Downloads
2
Impressões
Categoria Tools
Tags
jig sharpening screwdriver watchmakertools watchmaking
Licença Creative Commons — Attribution — Share Alike
Arquivos (5)
ScrewdriverSharpeningJig_8_3.3mf 22.4 KB
ScrewdriverSharpeningJig_8_2.3mf 22.4 KB
ScrewdriverSharpeningJig_8_1.3mf 22.4 KB
ScrewdriverSharpeningJig_8_0.3mf 22.4 KB
ScrewdriverSharpeningJig_FitTest.3mf 18.8 KB
