Modelo 3D Gridfinity Stack Printing Baseplate por Stu142 no Printables

Descrição

If you get value from my work, consider supporting me at stu142.com/supportme

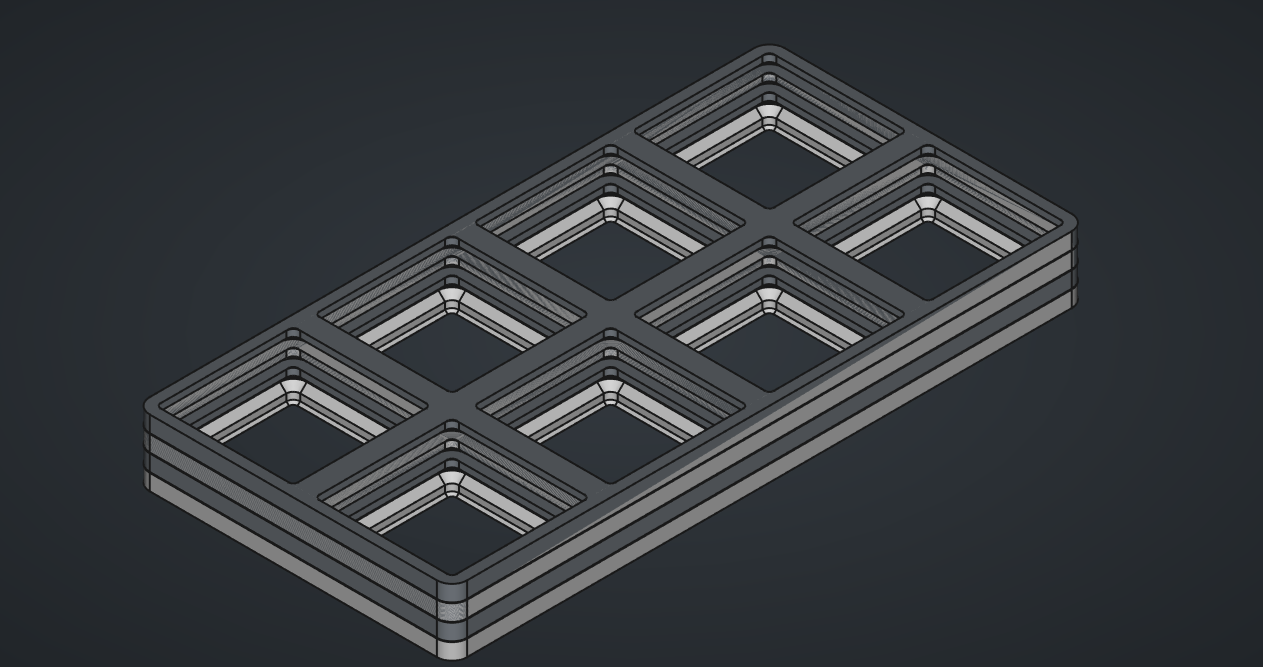

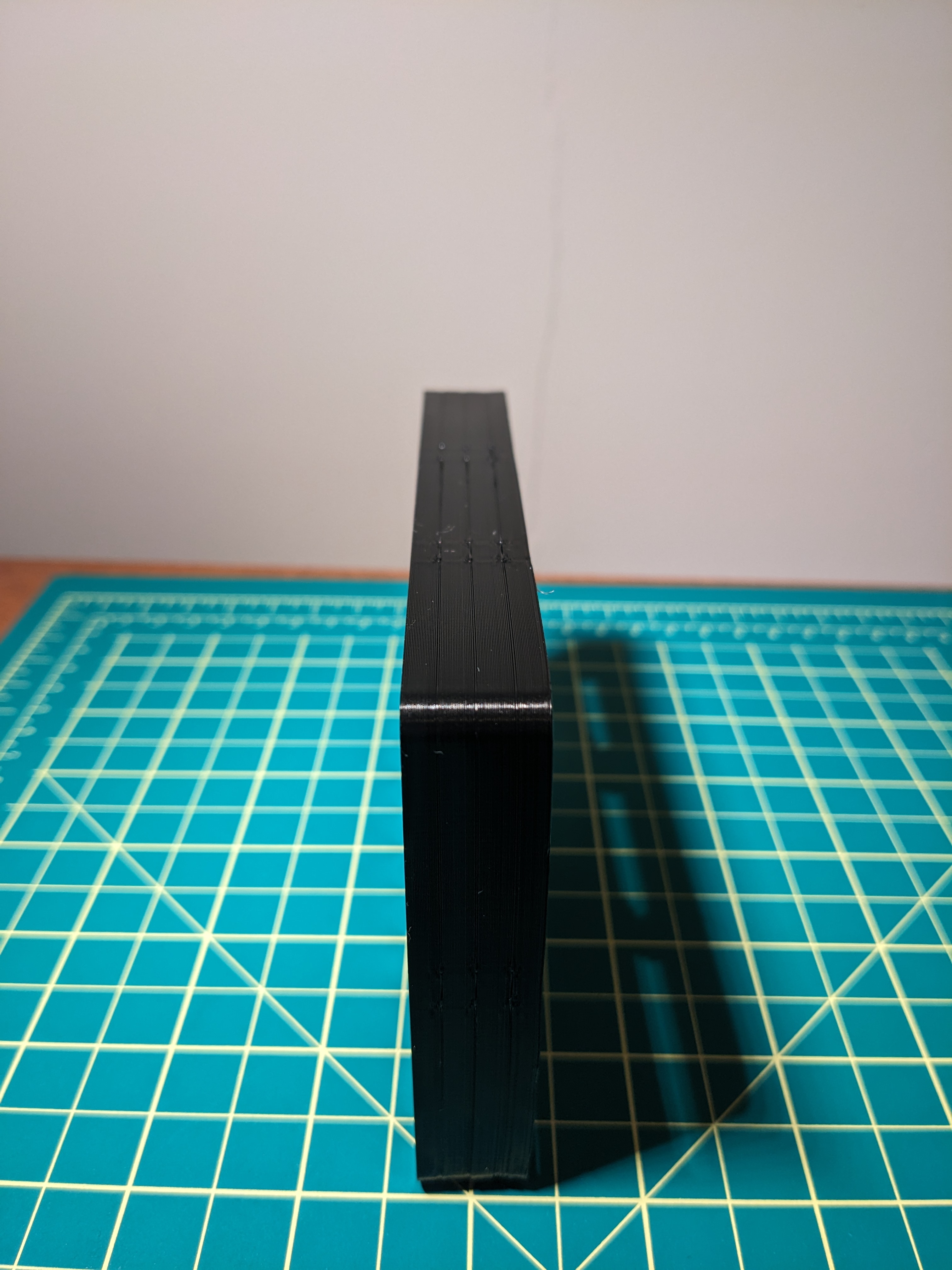

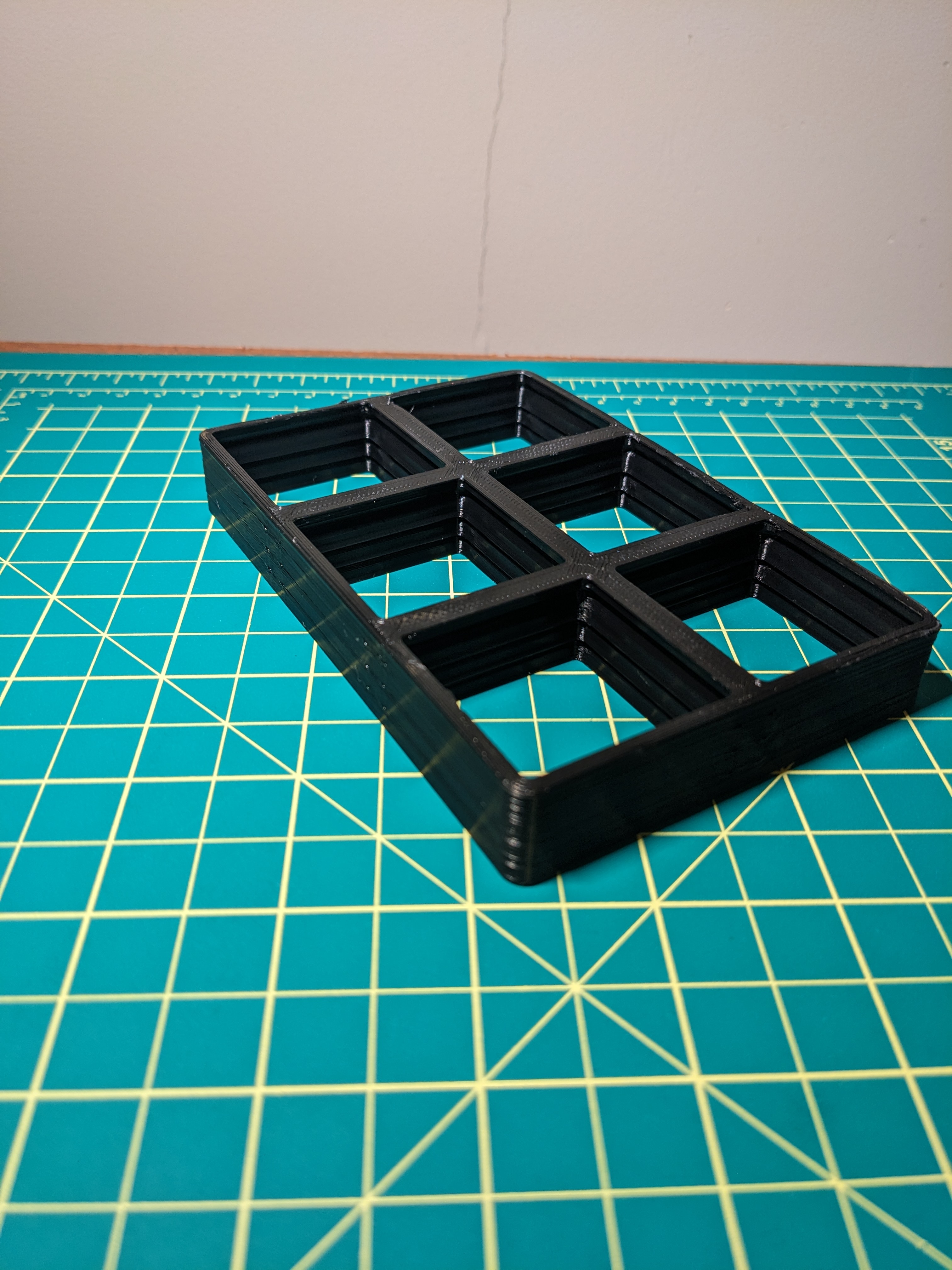

These Gridfinity baseplates are stacked and oriented so that you can print multiple at a time with no support. The baseplates easily break apart after printing.

The first is right side up then the rest are upside down to eliminate overhangs.

Important Note:

The success of this print can be heavily dependent on slicer and printer factors and may take some trial and error to get it right. The model has been designed for 0.2 mm layers and 0.4 mm nozzles with a one-layer gap between pieces to help break them apart after printing.

A flat head screwdriver can help separate parts but be gentle.

These baseplates deviate slightly from the original Gridfinity spec (0.1 mm wider bin slot), but that will have no effect, and they are fully compatible.

Gridfinity Documentation if interested: [https://stu142.com/Gridfinity-Documentation/](https://stu142.com/Gridfinity-Documentation/)

My Print Settings:

NO Supports
Ironing Set to all Top Surfaces
3 perimeters
0.2 mm layer height
0.4 mm nozzle
Brim if having bed adhesion troubles

Materials Used (Affiliate):

Polymaker Polylite PETG Teal: Amazon

Polymaker Polylite PETG Purple: Amazon

Alternative Material Options:

Polymaker Polyterra PLA: Amazon

Update 2024/01/25

Reuploaded all models with a slight dimension fix.

Printables

Gridfinity Stack Printing Baseplate

Stu142

Publicado em 25 de jan de 2024

427

Curtidas

4,982

Downloads

Impressões

Categoria Organizers

Tags

storage organization tools organizing stack multiple gridfinity stackprinting

Licença Creative Commons — Attribution — Noncommercial — Share Alike
