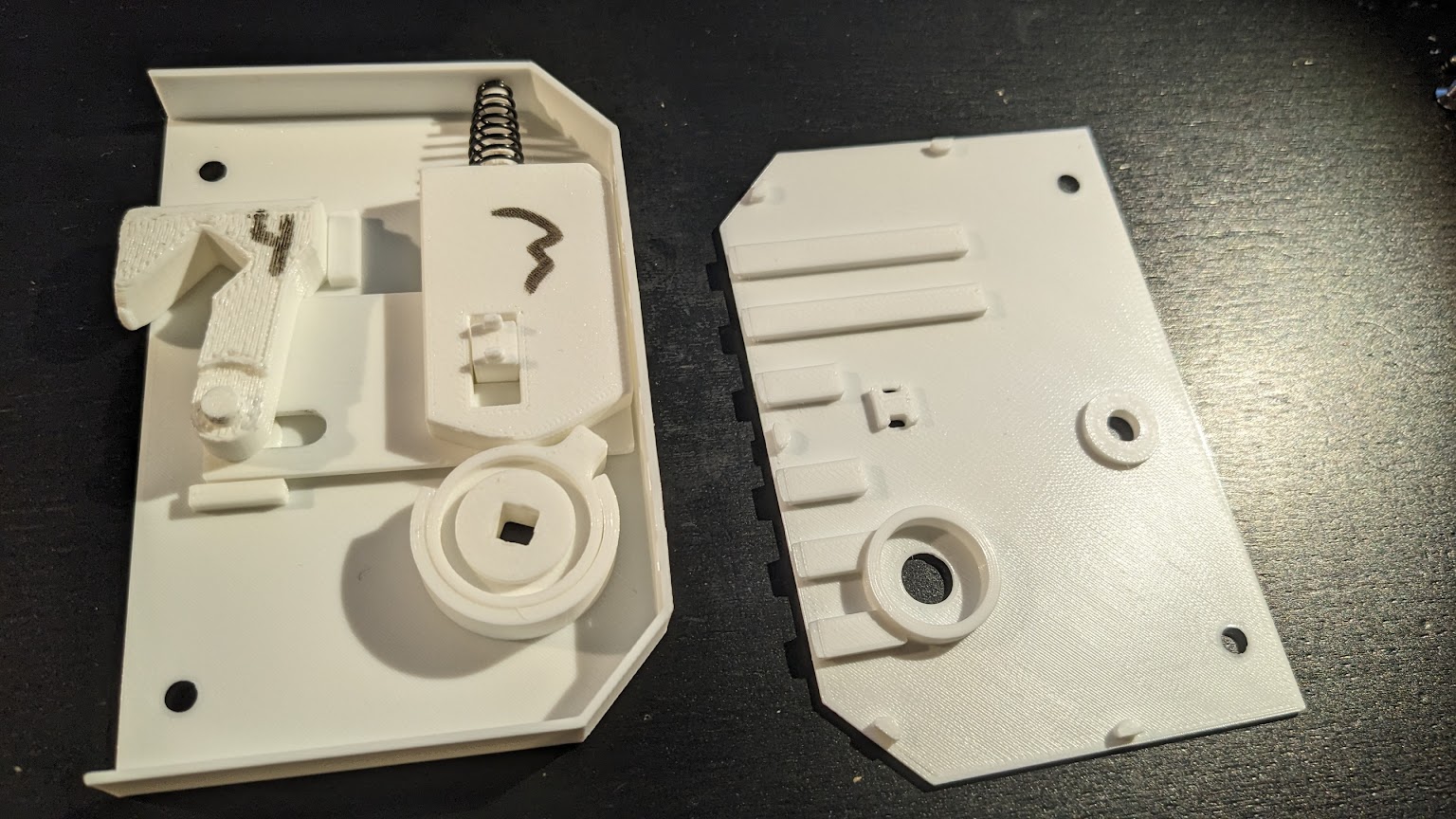

I wasn't happy with the locks on our sliding doors at home so I modelled the existing lock and made the necessary modifications so it better fit our use case.

All the parts except the key are the same and and be used interchangeably.

When using all printed parts together it works but it could be improved to work more smoothly.

[https://cad.onshape.com/documents/ce9cce1e7dc2be72559af6de/w/eec5bc193419c800286e7972/e/27b5efd65d6a4b372f30ccf6?renderMode=0&uiState=65a42b373f099e1e333ce3a3](https://cad.onshape.com/documents/ce9cce1e7dc2be72559af6de/w/eec5bc193419c800286e7972/e/27b5efd65d6a4b372f30ccf6?renderMode=0&uiState=65a42b373f099e1e333ce3a3)
