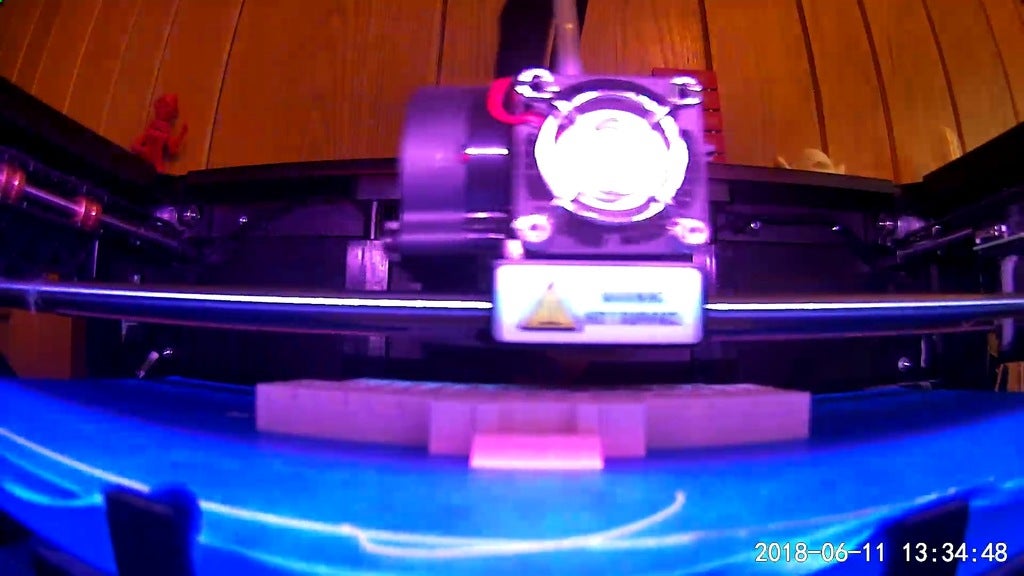

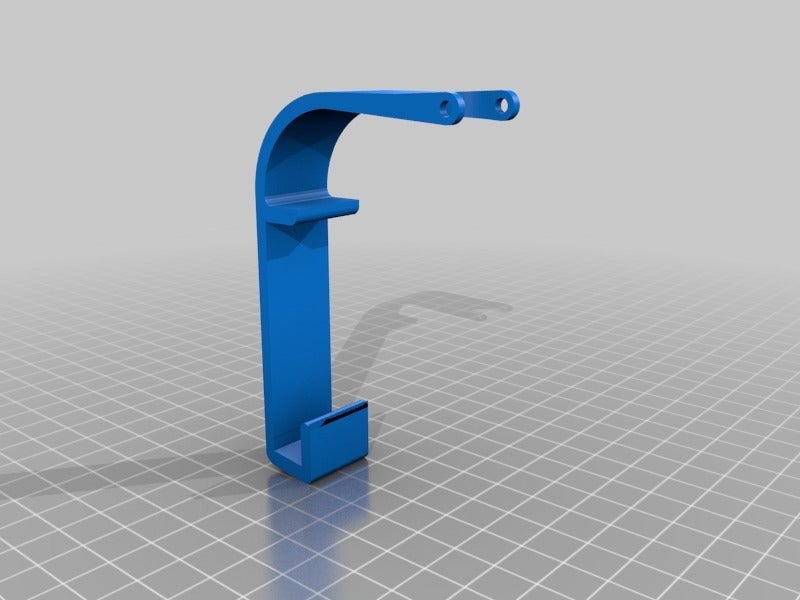

I found these $20 Wyzecam webcams online and they seemed like a great way to keep an eye on 3D prints for cheap. Of course, I had to make a custom mount. I based my design on the great "Dropcam Webcam Replicator 2/2X Mount" designed by dmpmassive.

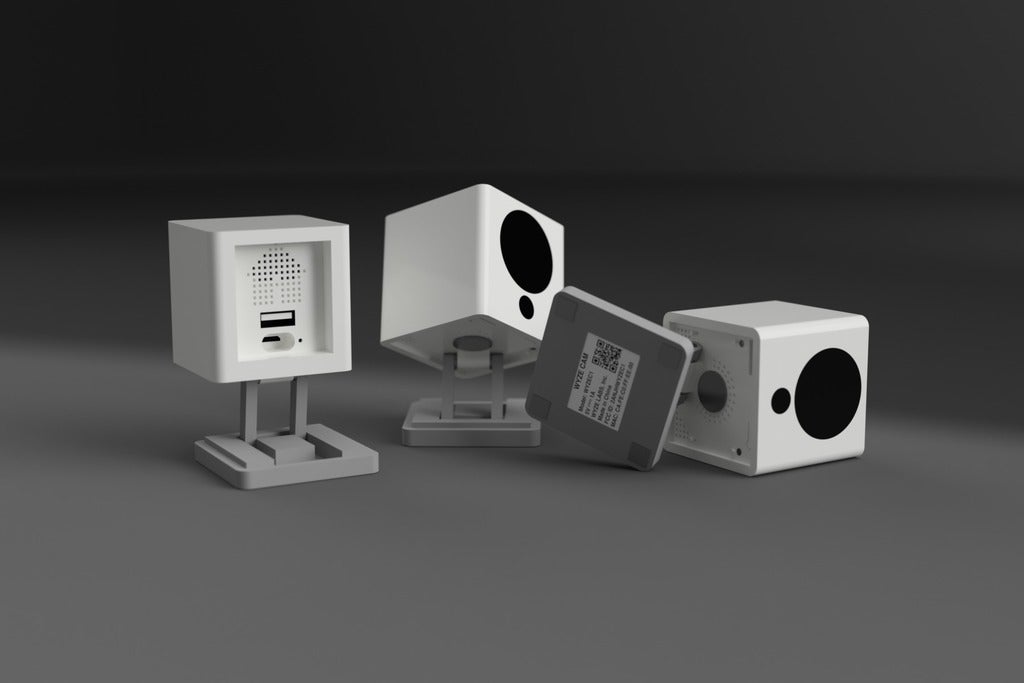

This mount design replaces the grey base that comes with the Wyzecam 2.0 webcam, I haven't tried it, but I believe it should also work with the 1.0 camera.

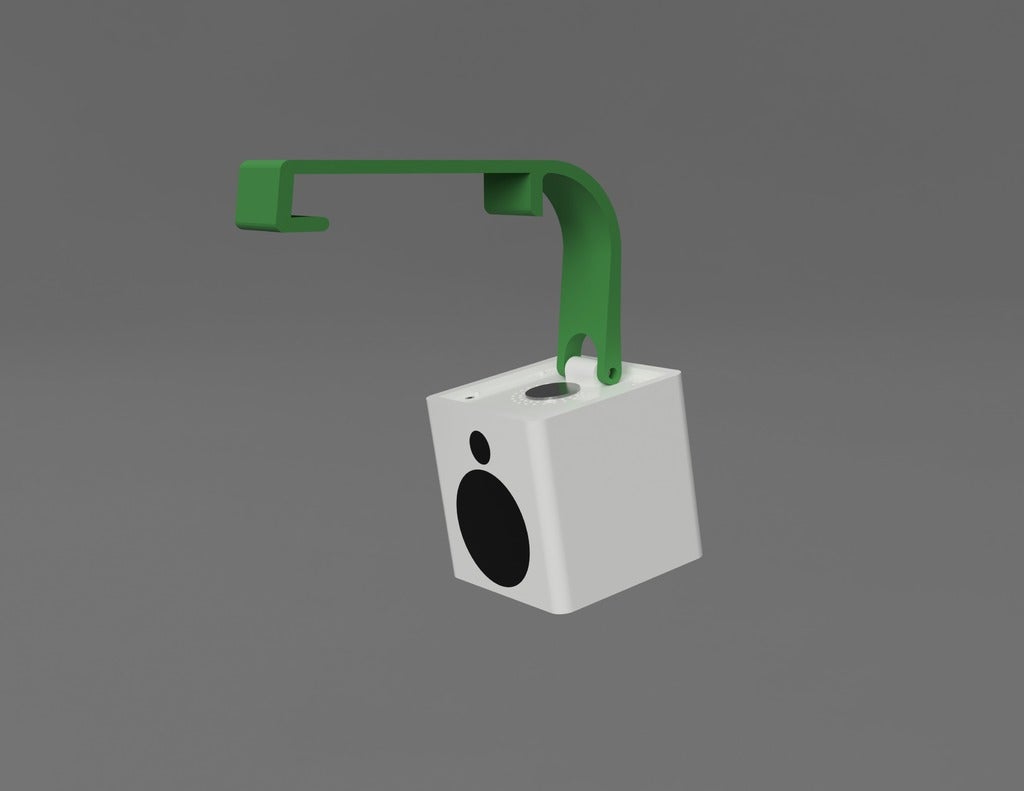

Once printed, remove the original base from your Wyzecam, you'll reuse the screw and nut that to attach your new mount (upside down). Once the mount is attached to the camera, slide it onto the front of the Replicator and adjust the angle of the mount by tightening the screw.

You'll also have to select "Rotate image 180" in the Wyze app settings for the camera, then you're all set.

Happy Printing!

Print Settings

Printer Brand:

MakerBot

Printer:

No

Supports:

0.2mm

Infill:

Notes:

There will be a tiny piece of support required to fill the bridge between the two camera mount points.

Category: 3D Printer Accessories
