Modelo 3D Deburring Tool Handle por lual no Printables

Descrição

Because i bought a set of some different blades but just one handle, i made my own handles.

Print
  • Chip

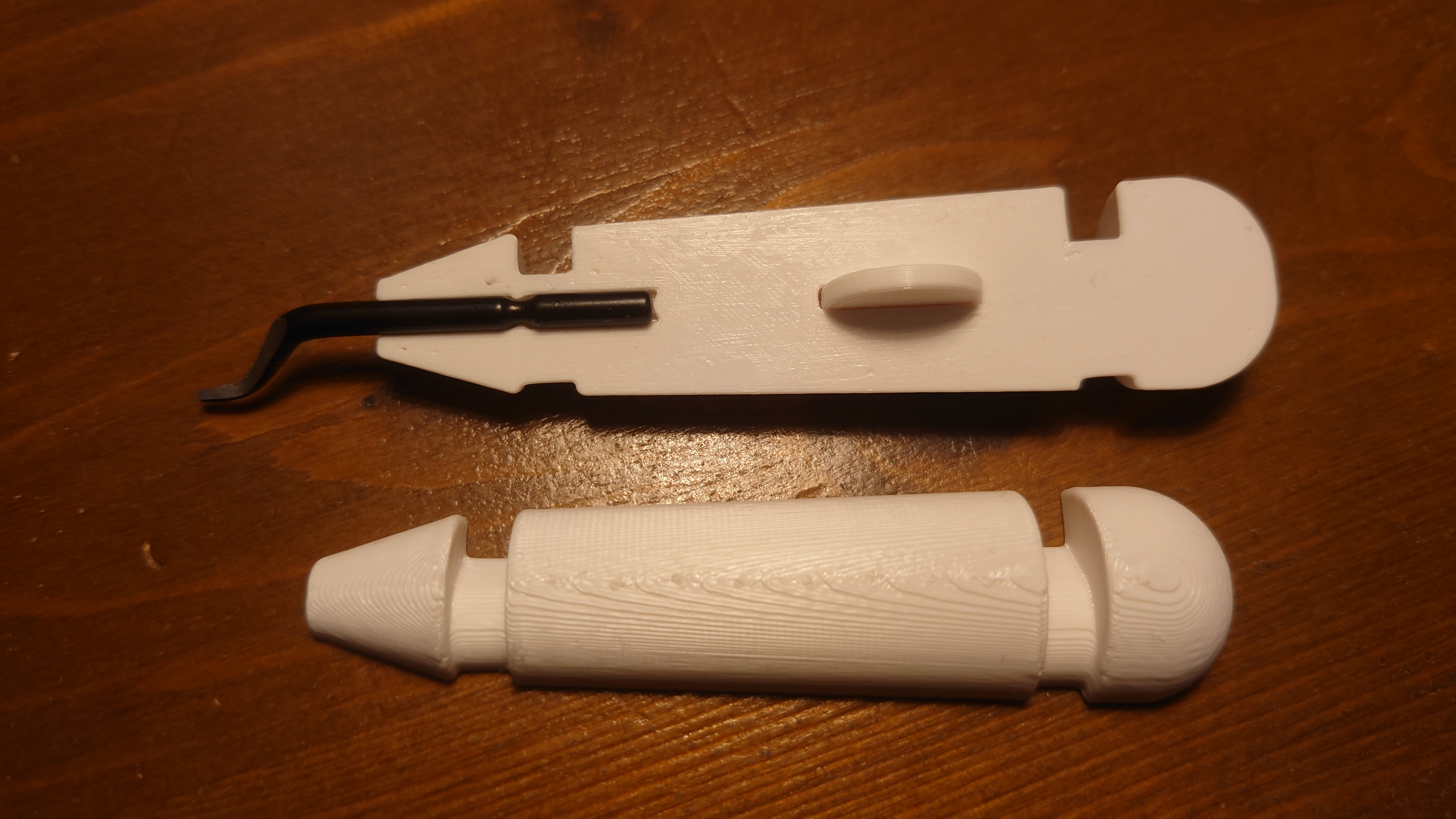

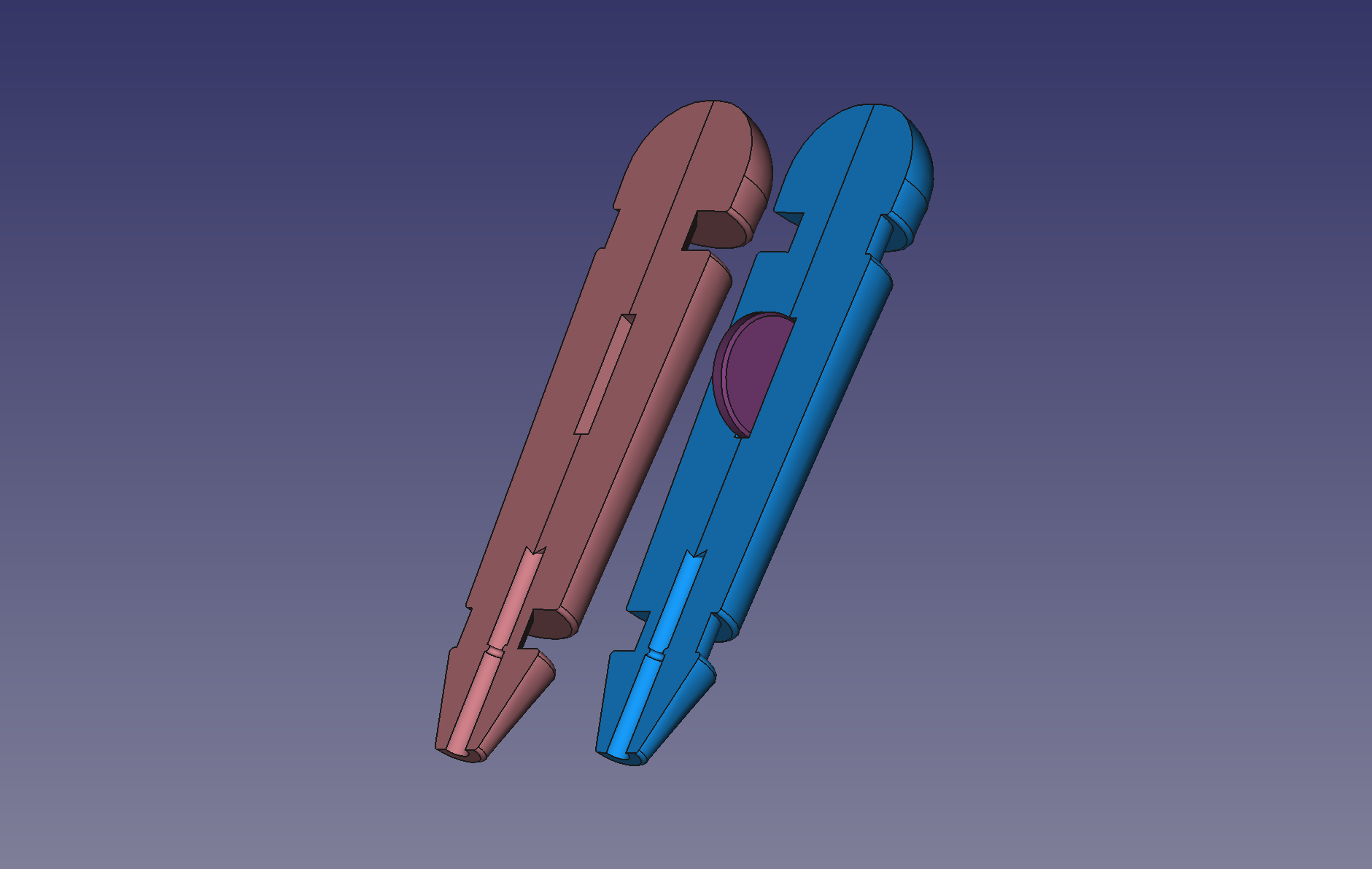

  • The 2 halfs are mirrored. Print both without support.

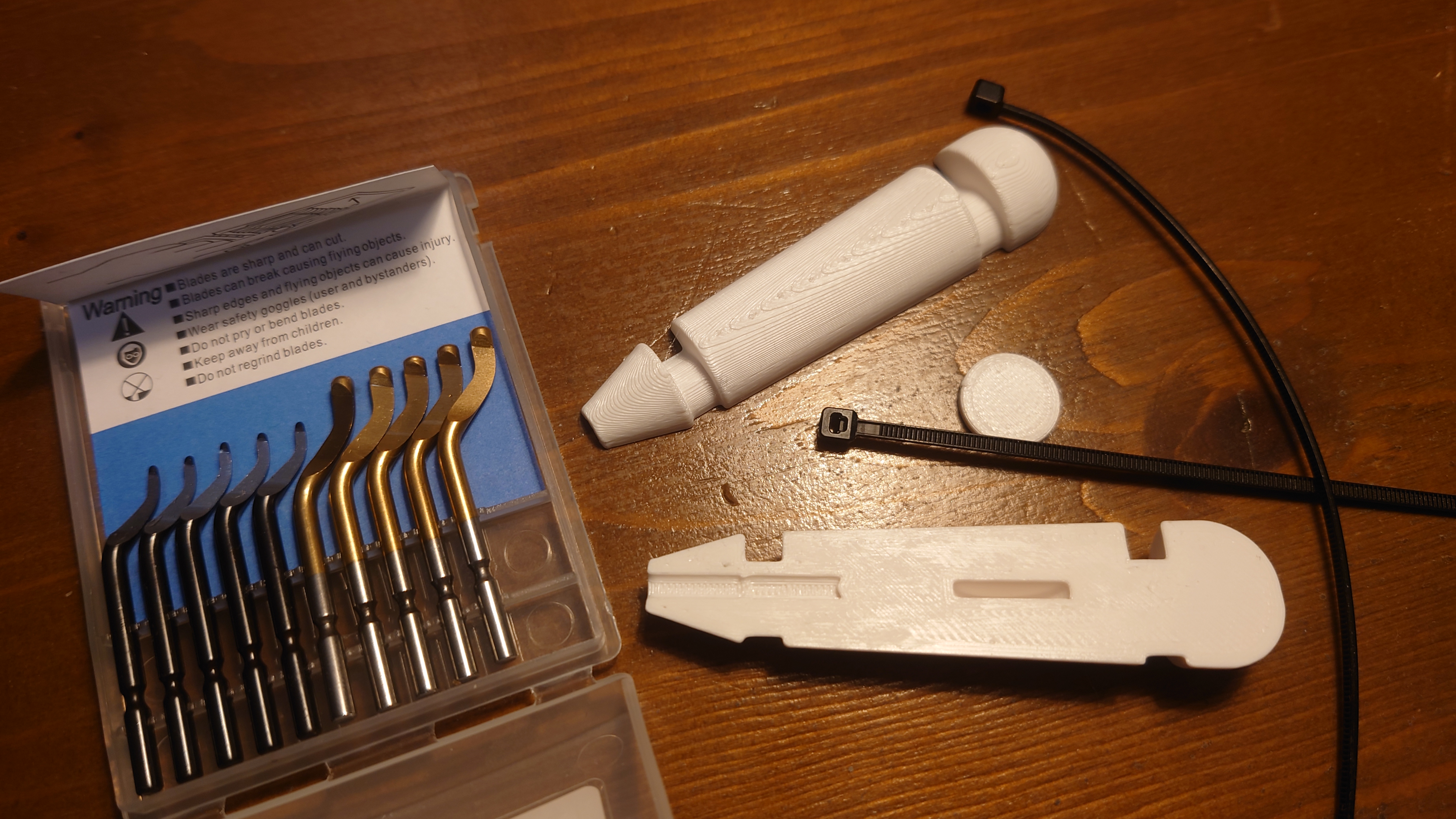

Additional Parts
  • A deburring tool blade (e.g. BS1010, BS1018, BS1012, BK3010, …)
  • 2 * zip ties (cable ties) width ~2.5mm (head width max. 5mm)

Assemble

  • Use the chip to join both handle parts aligned.
  • Insert a blade.

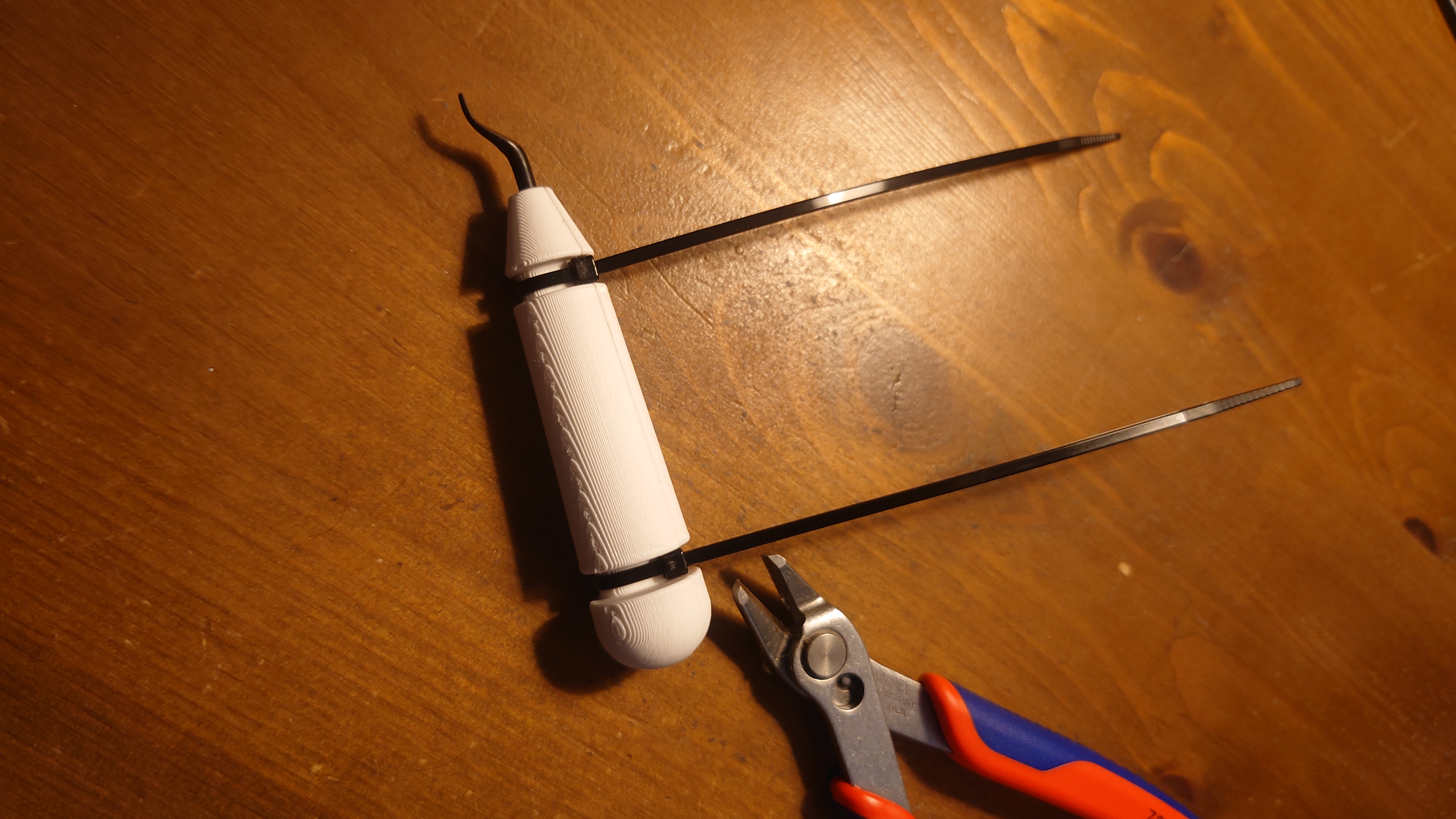

  • Wrap the ties around. The blade should rotate easy. If there is to much friction, clean the half pipes from print-leavings and don't pull the front tie to tight.
  • Cut the zip tie (e.g. with a nail clipper)

Printables

Deburring Tool Handle

Publicado em 14 de jan de 2024

13
Curtidas
92
Downloads
1
Impressões
Categoria Tools
Tags
deburring deburrer
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (3)
entgrater_deburrer_tool_joint_chip$lual.stl 29 KB
entgrater_deburrer_tool_handle_2_halfs$lual.stl 3.2 MB
entgrater_deburrer_tool_handle$lual.3mf 812.1 KB
