Descrição
16x32 LED Matrix Frame
- No glue*, tape or screws needed
- Accessible USB port
- Wall- or desk-mounted

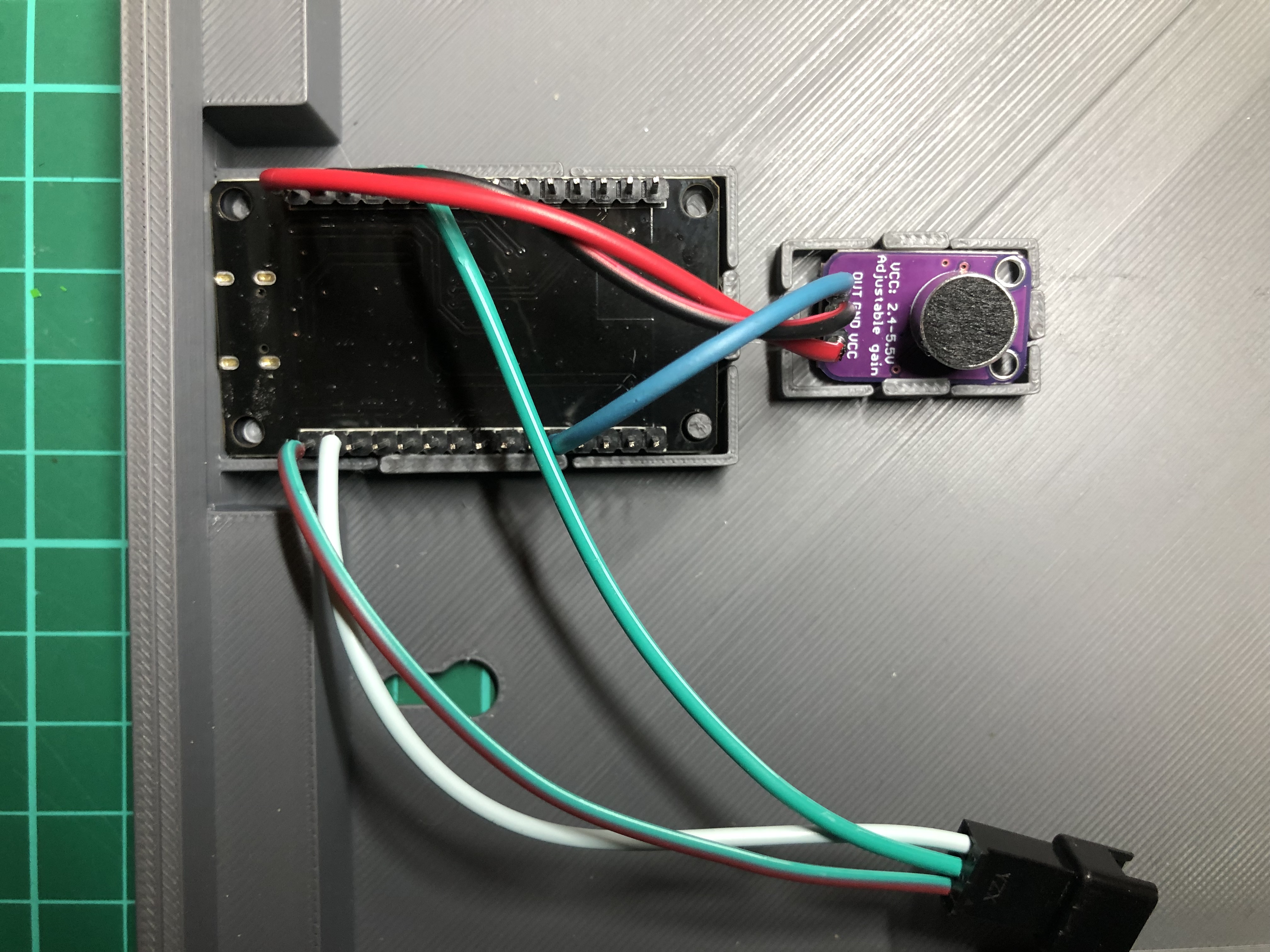

- Snap-fit sockets for ESP-WROOM-32, MAX4466 or MAX9814 microphone and DC Power Connector
- Optional socket-less version
* I suggest gluing the two front frame pieces together
Instructions

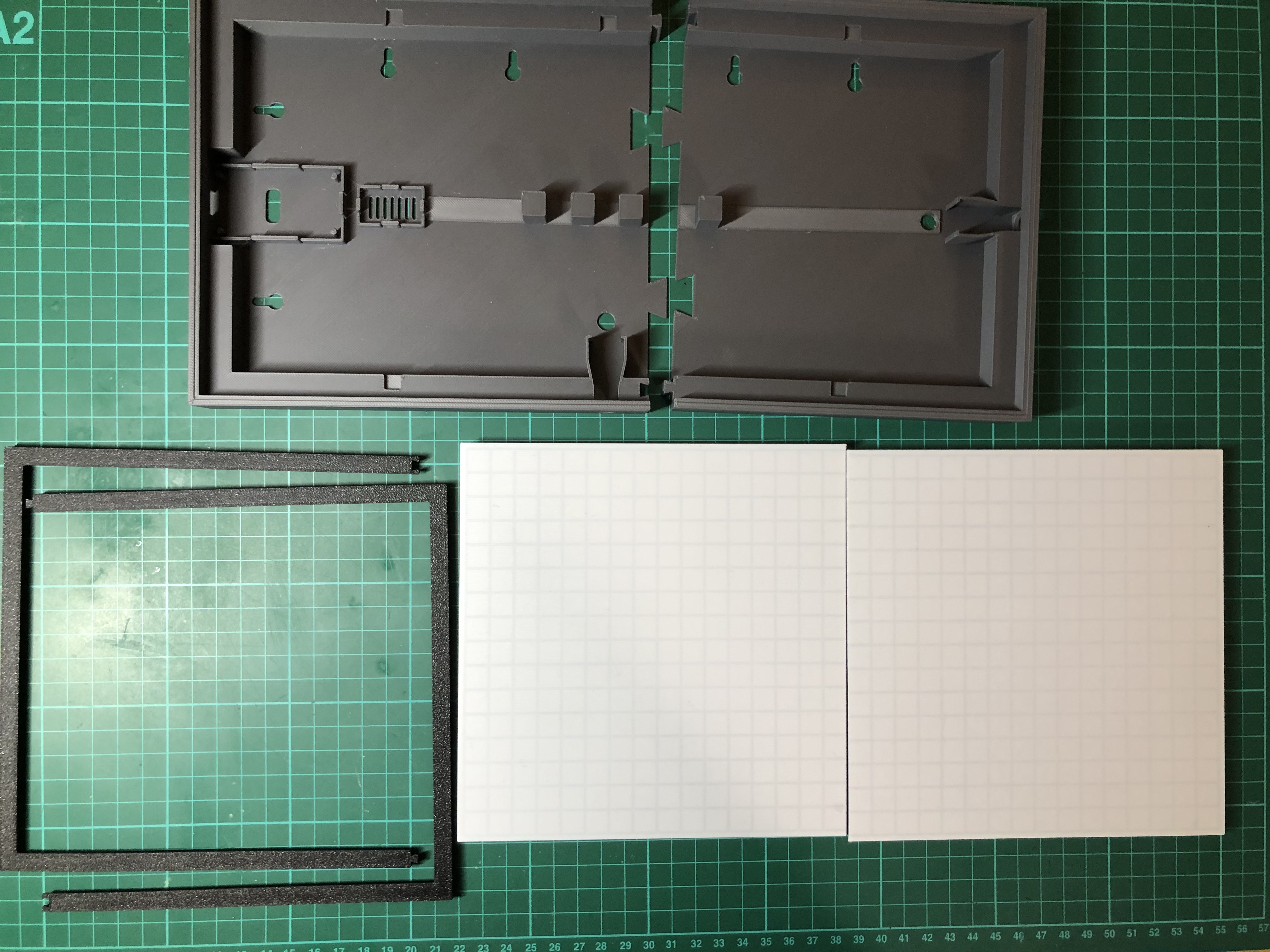

Print:
- 2xFront SPLIT
- 2xDiffuser SPLIT
- 1xBackL SPLIT
- 1xBackR SPLIT
Print the Diffuser Screens with these settings to give the screen a horizontal “scanline” texture:
- Top/Bottom surface pattern: ALIGNED RECTILINEAR
- Internal solid infill pattern: ALIGNED RECTILINEAR
- Sparse infill pattern: ALIGNED RECTILINEAR
- Infill direction: 0
If using white filament for the Diffuser Screen, printing it on a textured plate will make it scatter more light and be dimmer. Use a smooth plate for best results. A textured plate will work great for clear filament though :)
For the LED matrix, you'll need:
- Two 8x32 or two 16x16 LED Matrices - e.g. [https://aliexpress.com/item/4000544411175.html](https://aliexpress.com/item/4000544411175.html)
- ESP-Wroom-32 - e.g. [https://aliexpress.com/item/1005005972312714.html](https://aliexpress.com/item/1005005972312714.html)
- MAX4466 microphone - e.g. [https://aliexpress.com/item/3256803608057399.html](https://aliexpress.com/item/3256803608057399.html)
or
MAX9814 microphone - e.g. [https://aliexpress.com/item/3256805923391884.html](https://aliexpress.com/item/3256805923391884.html) - Power Supply 5V 15~60A (~15-20A will do for most uses) - e.g. [https://aliexpress.com/item/1005006126703620.html](https://aliexpress.com/item/1005006126703620.html)
LED Matrix/ESP32/WLED Assembly Guide:
Some useful resources:
- WLED Project: [https://kno.wled.ge/](https://kno.wled.ge/)
- Chris Maher WLED tutorials playlist: [https://www.youtube.com/playlist?list=PLur8dX5PE-4pk838s_gZAdm-98-sf0f0Z](https://www.youtube.com/playlist?list=PLur8dX5PE-4pk838s_gZAdm-98-sf0f0Z)
- Make It Work WLED tutorials playlist: [https://www.youtube.com/playlist?list=PLUTKOGJvdIQ8WYfG6TDJ_c8_WlPovWbL9](https://www.youtube.com/playlist?list=PLUTKOGJvdIQ8WYfG6TDJ_c8_WlPovWbL9)
