Modelo 3D ULTIMATE Tic Tac Toe (Complete Game Set) por MAKERTEAM® no Printables

Descrição

ULTIMATE version of the well known TIC TAC TOE game.

  • Board size: ~10x10cm

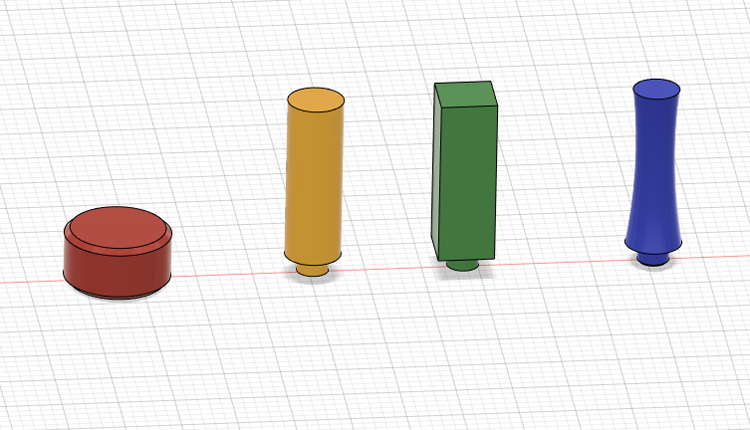

  • Different game pins/markers available

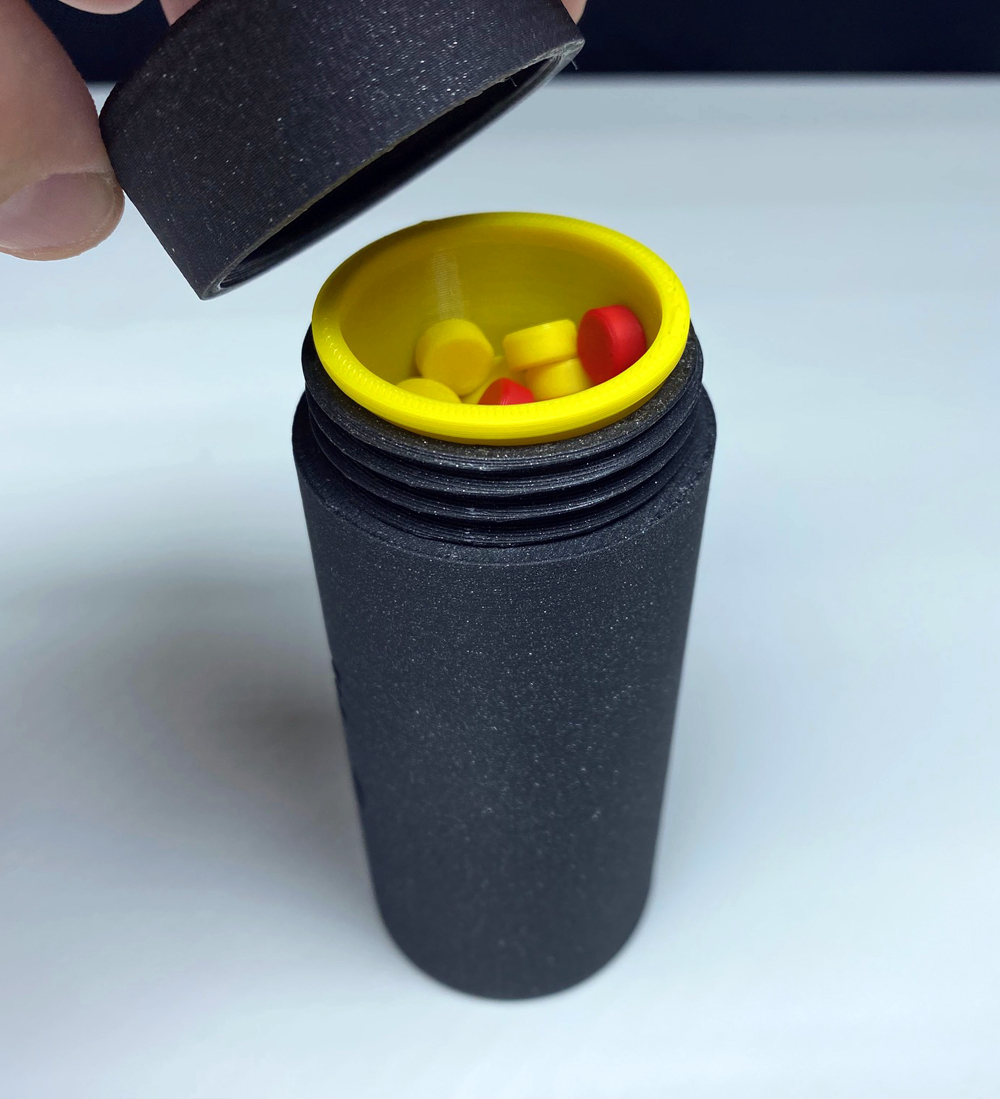

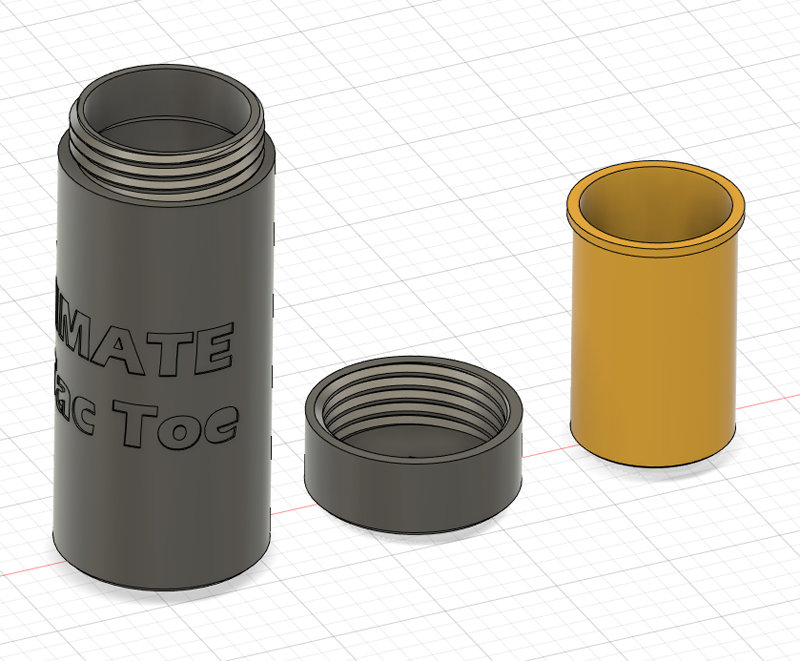

  • Pin box with screw cap for player stuff
  • Pin box inlay to pre-assort the player items

You need at least 2x 41 pins or markers to play. The pins have been designed for use while traveling. The round markers are nicer to play with when at home or on a game night.

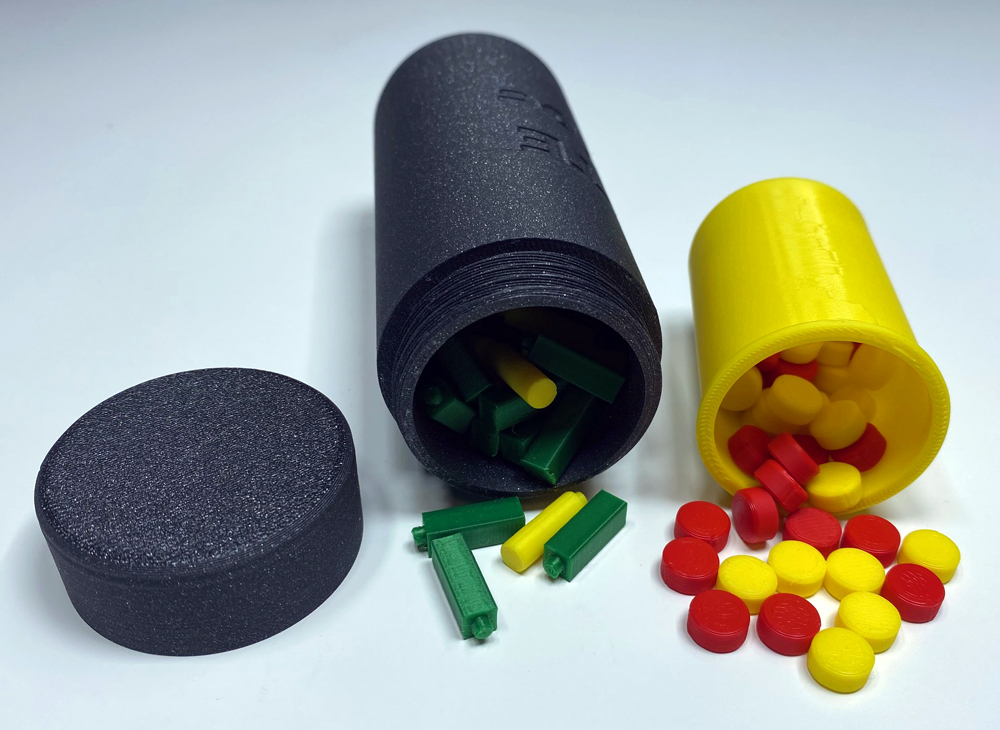

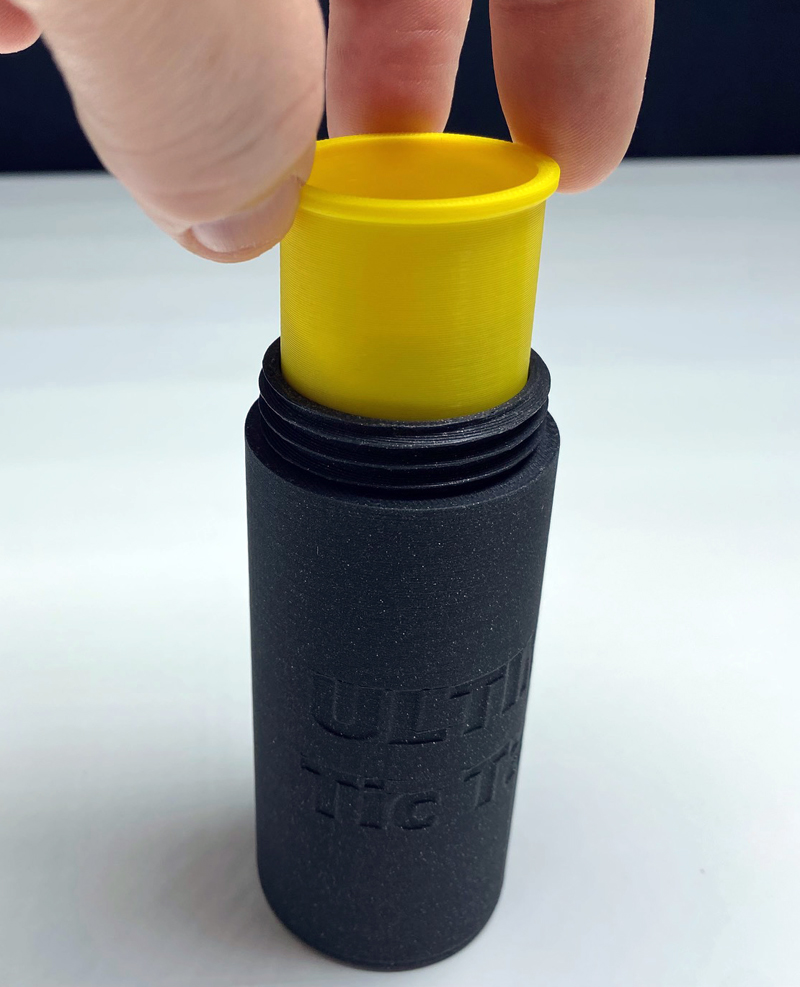

Anyway: The pin box is big enough to carry 2 sets of pins AND 2 sets of round markers as you can see on the pictures. If you play with different kinds of pins/markers and colours, you can use the pin box INLAY to pre-assort your players stuff.

English and German rules can be found below. It is all about winning three small TTT games in a row. Much more ambitious than the classic tiny version!

Have fun!

Material: PLA
Layerheight: 0.2mm
Infill: 20%

Tipp 1: It is recommended to print the last top 4 layers in a different color as shown on the pics. It helps a lot to differ the 9 smaller TTTs.

Tipp 2: Print pins with brim.



Rules ENGLISH:

Just like in regular tic-tac-toe, the two players (X and O) take turns, starting with X. The game starts with X playing wherever they want in any of the 81 empty spots. Next the opponent plays, however they are forced to play in the small board indicated by the relative location of the previous move. For example, if X plays in the top right square of a small (3 × 3) board, then O has to play in the small board located at the top right of the larger board. Playing any of the available spots decides in which small board the next player plays.

If a move is played so that it is to win a small board by the rules of normal tic-tac-toe, then the entire small board is marked as won by the player in the larger board. Once a small board is won by a player or it is filled completely, no more moves may be played in that board. If a player is sent to such a board, then that player may play in any other board. Game play ends when either a player wins the larger board or there are no legal moves remaining, in which case the game is a draw. (source: wikipedia)

Rules GERMAN:

Es wird auf einem Brett mit 9×9 Feldern gespielt, das in neun kleinere lokale Bretter von 3×3 Feldern eingeteilt ist. Die Spieler, X und O, ziehen abwechselnd, X beginnt. Der Spieler am Zug trägt sein Symbol in ein noch freies Feld ein (setzt in dieses Feld).

Der Startspieler kann sein erstes Symbol in ein beliebiges Feld eintragen. Danach muss jeder Zug in dem lokalen Brett gesetzt werden, das durch die Position des vorhergehenden Zuges in dessen lokalem Brett gegeben ist. Wenn z. B. in das obere rechte Feld eines lokalen Bretts gesetzt wird, muss der nächste Zug im oberen rechten lokalen Brett erfolgen. Der ziehende Spieler kann also nur wählen, in welches freie Feld des gegebenen lokalen Bretts er setzt.

Wenn ein Spieler in einem lokalen Brett eine Dreierreihe seiner Symbole (waagerecht, senkrecht oder diagonal) bildet, hat er damit dieses lokale Brett gewonnen, und in dieses darf dann nicht mehr gesetzt werden. Wenn das durch den vorhergehenden Zug gegebene lokale Brett bereits von einem Spieler gewonnen wurde oder voll besetzt ist, kann der Folgezug in ein beliebiges anderes noch nicht gewonnenes lokales Brett gesetzt werden.

Ziel des Spiels ist es, drei lokale Bretter zu gewinnen, die ihrerseits auf dem globalen Brett eine waagerechte, senkrechte oder diagonale Reihe bilden. Wenn keine Züge mehr möglich sind und kein Spieler die Siegbedingung erfüllt hat, endet das Spiel unentschieden. (Quelle: wikipedia)

Printables

ULTIMATE Tic Tac Toe (Complete Game Set)

Publicado em 17 de jan de 2024

18
Curtidas
70
Downloads
Categoria Board Games
Tags
game pin boardgame toe set travel ultimate classic tictactoe tac tic travelgame spiel brettspiel meta reise reisespiel
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (8)
ultimate_tic_tac_toe.stl 865.5 KB
square_pin.stl 14.3 KB
round_pin.stl 39.3 KB
curved_pin.stl 615.7 KB
round_marker.stl 38.8 KB
pin_box.stl 477.6 KB
pin_box_screw_cap.stl 301 KB
pin_box_inlay.stl 82.7 KB
