MIDI Mixer Control Panel

This is a MIDI control panel designed to work with MIDI-Mixer some software that is used to control application volume in windows. Using plugins, it can also be used to control live streams or home assistant.

Everything was designed in Fusion 360 and I have provided the files for anyone who wants to make changes.

Parts List

13x OUTEMU Blue or other cherry compatible key switches
5x 60mm linear potentiometer
13x ws2812b strip leds 100 leds/m is recommended 144 leds/m will probably also work
2x PCF8574T Digital IO expansion
1x Arduino Leonardo
1x micro usb breakout
14x m3x8mm button head screws
22AWG stranded wire I bought this kit

Programming

The code for the control panel and assembly instructions can be found at [https://github.com/Theo428/Arduino-Midi-Control-Panel/tree/dev](https://github.com/Theo428/Arduino-Midi-Control-Panel/tree/dev)

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Doesn't Matter

Filament:

N/A PLA

Notes:

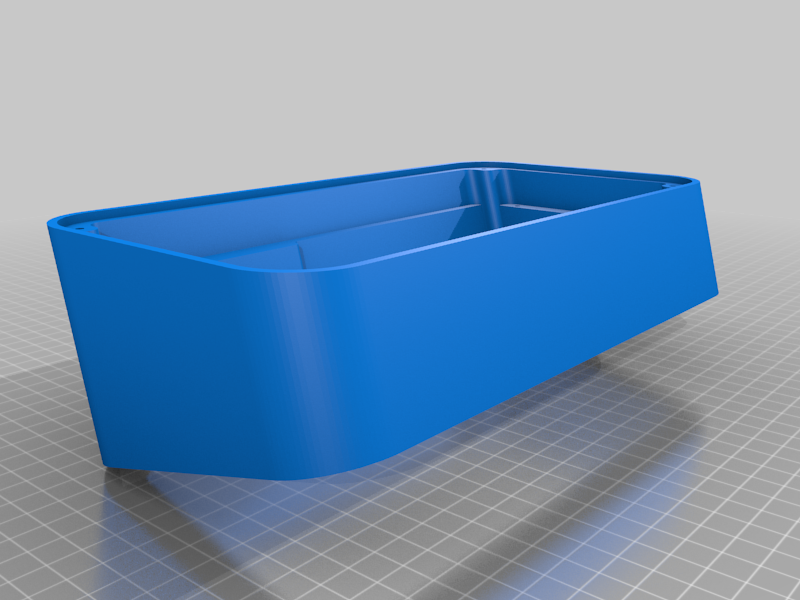

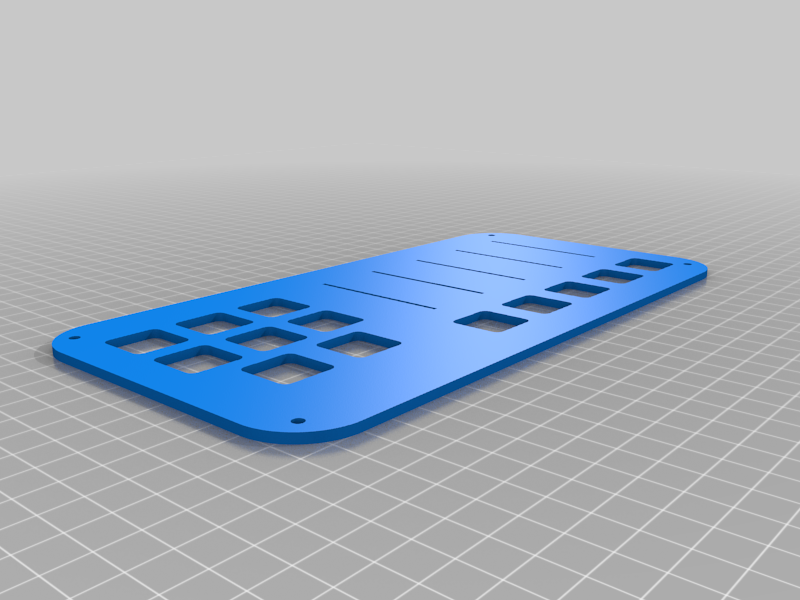

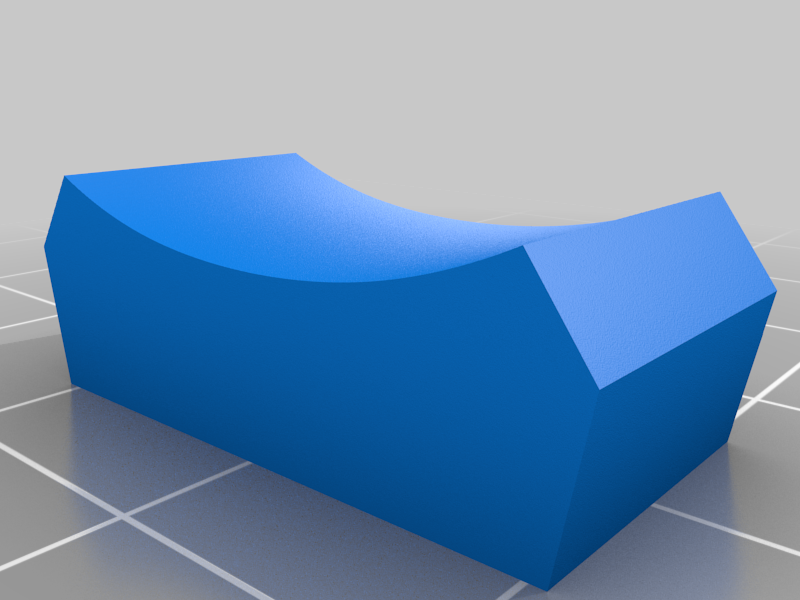

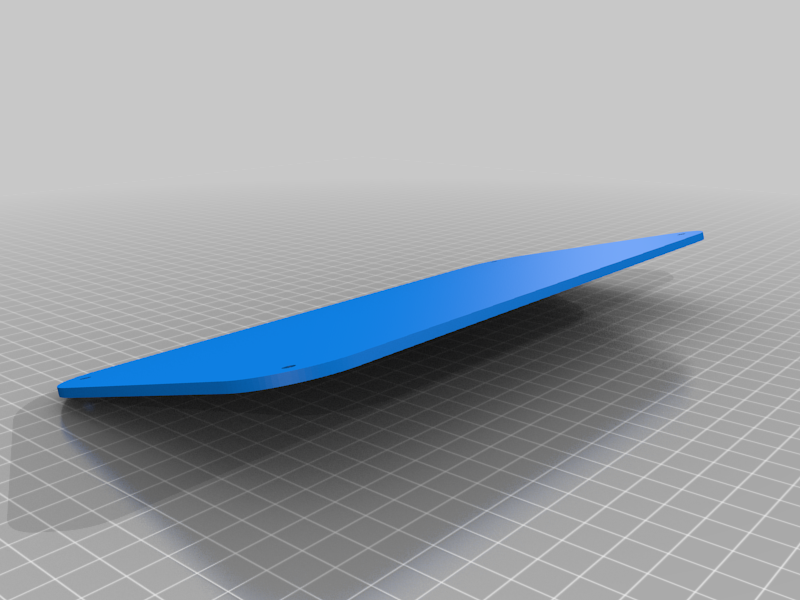

Everything is designed to fit on a Prusa i3 MK3s bed. All pieces can be printed without supports but I printed the body upside down to get the top surface flat and therefore had to use supports.

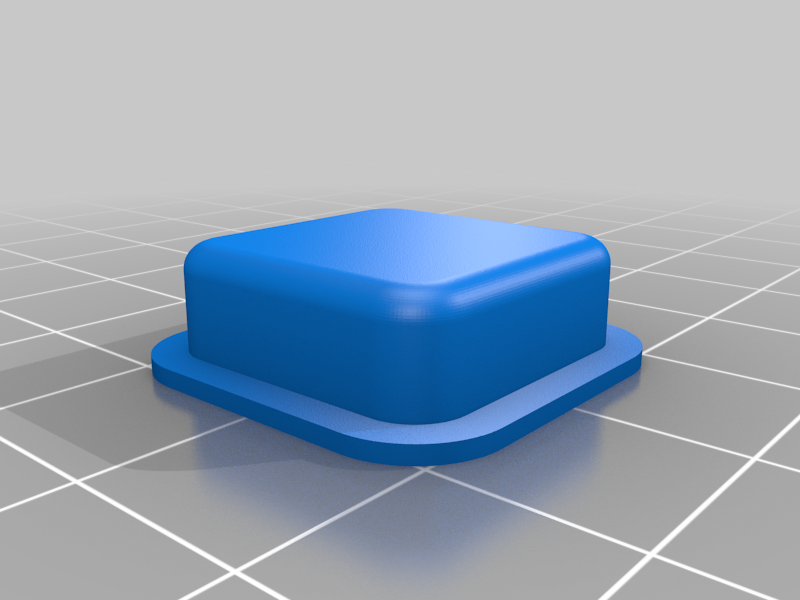

Everything was printed in PLA. Color doesn't really matter except the key caps witch will need to be printed in white or other light color so that the LED can shine through.
