Modelo 3D Lockable Hinged Emergency Box por Apheli0n no Printables

Descrição

The box was designed to be used with @fechnert's tamper evident lock remix (to be printed with 0.4mm nozzle max!).

Inner dimensions: H 174mm x W 144mm x D 77mm

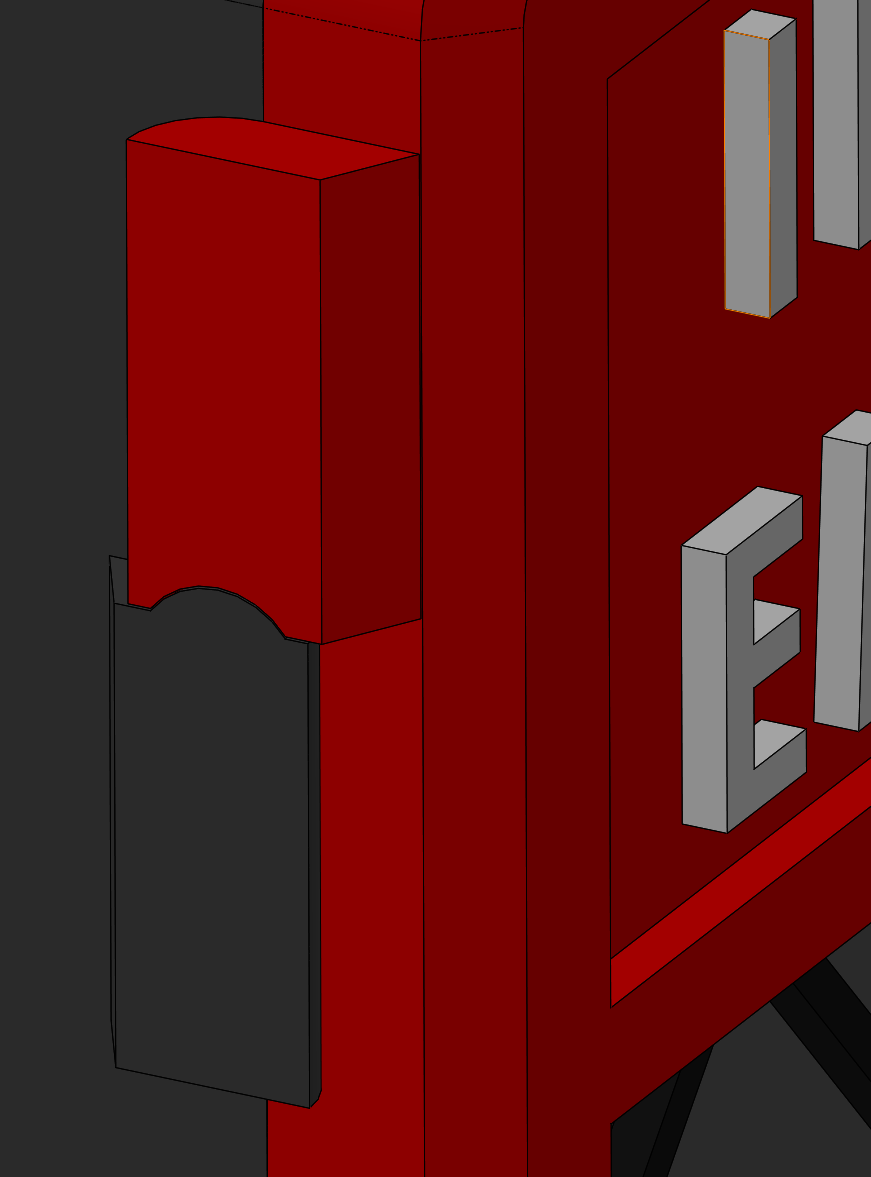

The lid in my model has to be glued together, because I wanted the letters on it to be flush with the outer surface and I do not own an MMU or similar.

I printed it in PLA, but feel free to choose other material if required.

Assembly Instructions:

  • Put the lid on a flat surface facing down.
  • Insert_Top goes into the upper hole of the lid, Insert_Bottom goes into the lower hole, and finally the grate covers the middle hole. Use your preferred polymer adhesive to glue them together. Let it dry sufficiently.
  • Next, put the Case on a flat surface, so the opening is facing up. Place the lid on top of it, and firmly press the hinges into place one after the other.
  • Thread the lock through the opening and seal it
  • DONE (Haribo time?)

Disclaimer

This box was simply designed as a gag item. That's why some otherwise maybe common features, such as wall mount holes, are missing.



UPDATE v1.1 / 15.01.2024:

Slightly optimised design of the inserts and the grid, mainly to be able to print everything with a 0.6mm nozzle. Also added .3mf slicer files with some suggested tweaks. Removed the Gcode files.

Printables

Lockable Hinged Emergency Box

Publicado em 18 de jan de 2024

35
Curtidas
127
Downloads
3
Impressões
Categoria Other House Equipment
Tags
box case lid hinge seal emergency hingedbox emergencybox
Licença Creative Commons — Attribution
Arquivos (14)
Emergency Box_Case.STL 292.5 KB
Emergency Box_Lid.STL 70 KB
Grate.STL 25.9 KB
Insert_top.STL 231 KB
Insert_bottom.STL 132.3 KB
Emergency Box_Case.3mf 83.8 KB
Emergency Box_Lid.3mf 55.7 KB
Grate.3mf 57.8 KB
Insert_top_bottom.3mf 129.2 KB
Emergency Box_Case.STL 75.5 KB
Emergency Box_Lid.STL 70 KB
Insert_top.STL 130 KB
Insert_bottom.STL 74.3 KB
Insert_Grate.stl 24.3 KB
