Small Cable Spool

Design Features:

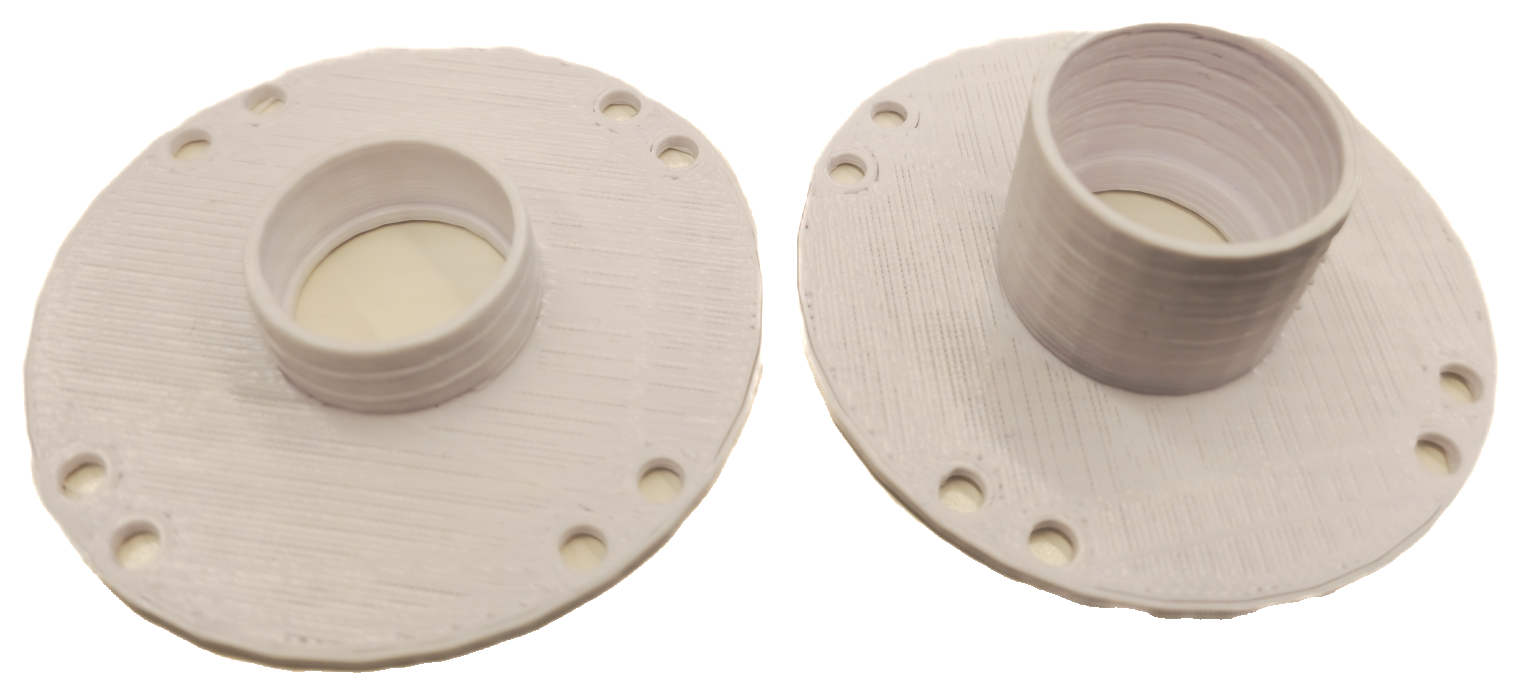

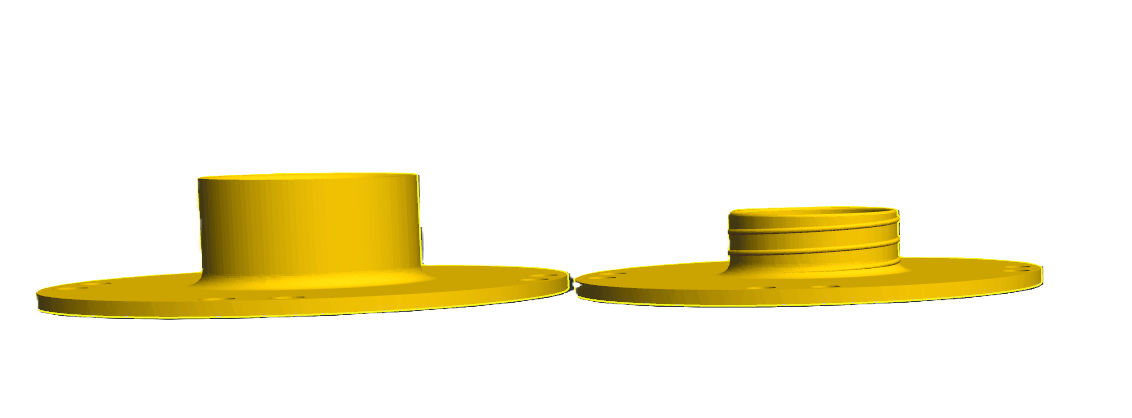

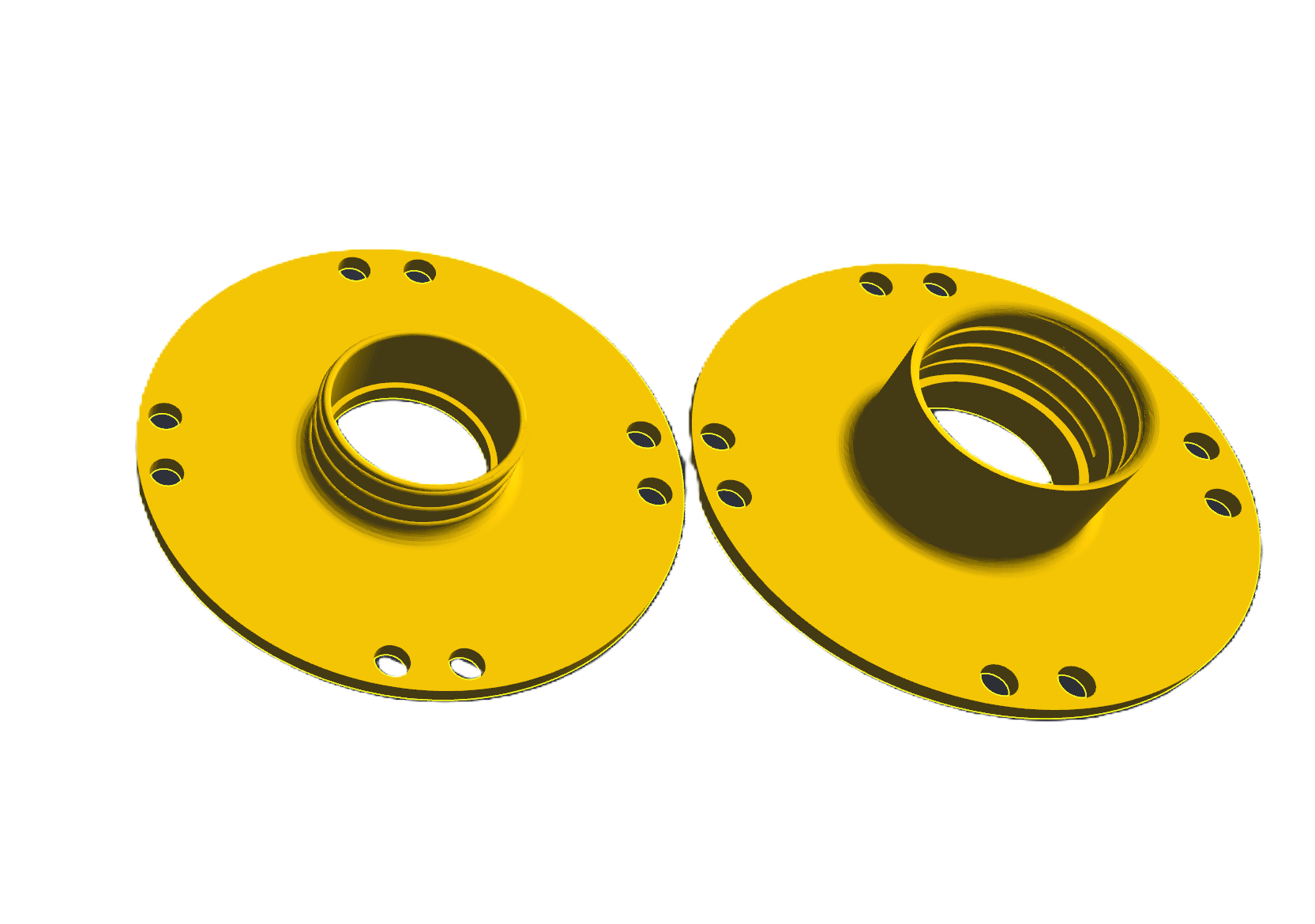

Shape: Two-part spool with a threaded connection.
Dimensions: 21mm central hole, 63mm outer diameter, and 15mm gap.
Holes: Around the edge for securing cables or other materials.

Print Settings:

Layer Height: 0.2 mm.
Infill: 20-100% for maximum durability.
Supports: Not required.

Material:

Recommended materials are PLA, PETG, or other durable 3D printing materials.

Usage:

Primary Use: Designed for 22-18AWG silicon cables.
Other Uses: Suitable for holding fishing lines, thread, wire, or other small flexible materials.
Function: Organizes and stores various types of cables and materials.
Installation: Easy to assemble with a threaded connection.

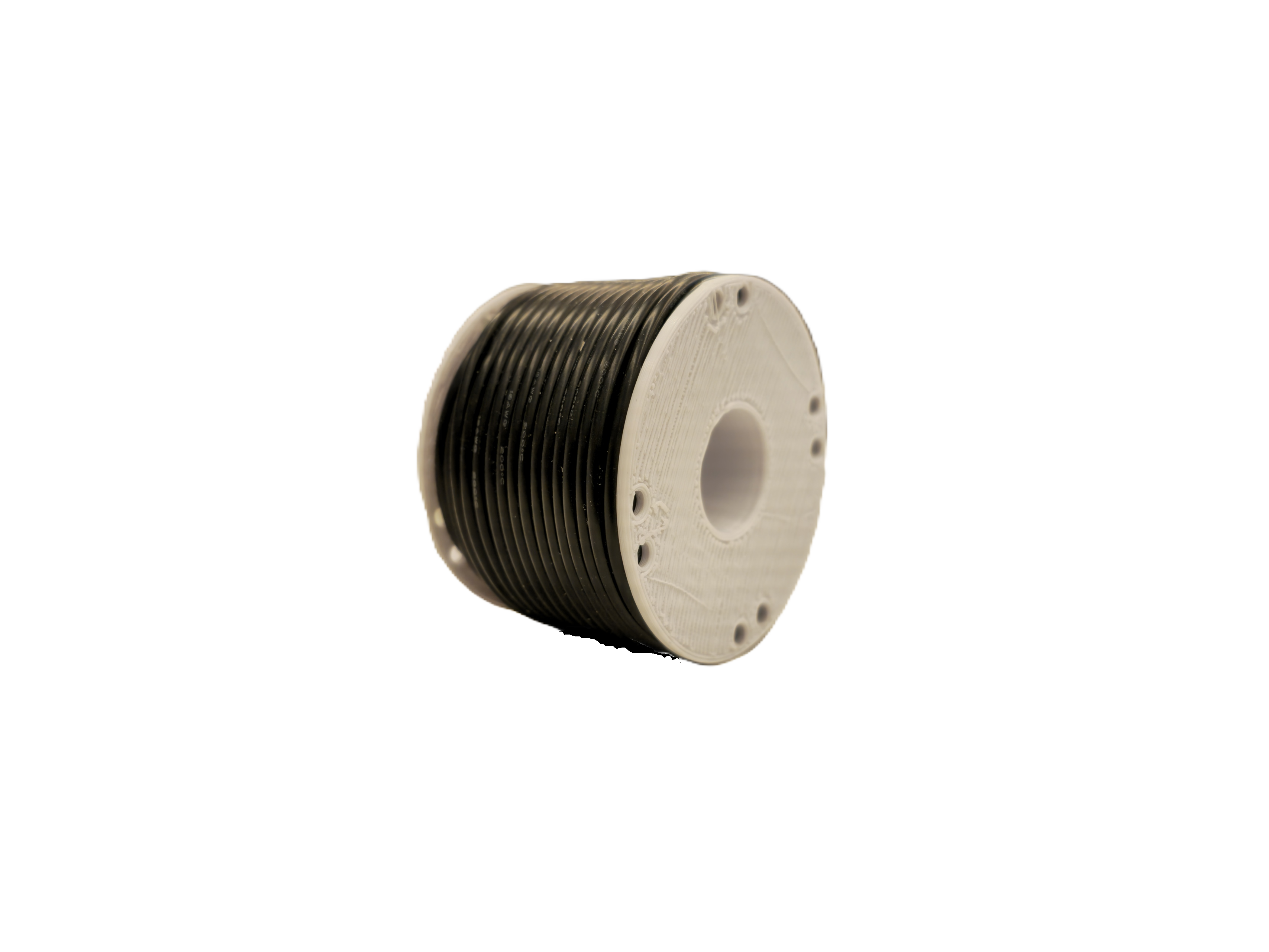

This small cable spool is a versatile solution for organizing and storing various materials. While it is designed primarily for 22-18AWG silicon cables, it can also be used for fishing lines, thread, wire, and other small flexible materials. The spool consists of two parts that screw together using a threaded connection, ensuring a secure fit. With a central hole diameter of 21mm, an outer diameter of 63mm, and a height/gap of 15mm, this spool is both practical and efficient for various organizational needs.
