Raspberry Pi Camera V2.1 case

This is a design of a Raspberry v2.1 camera (8Mpx) case I did it for the fun of designing with Fusion 360.

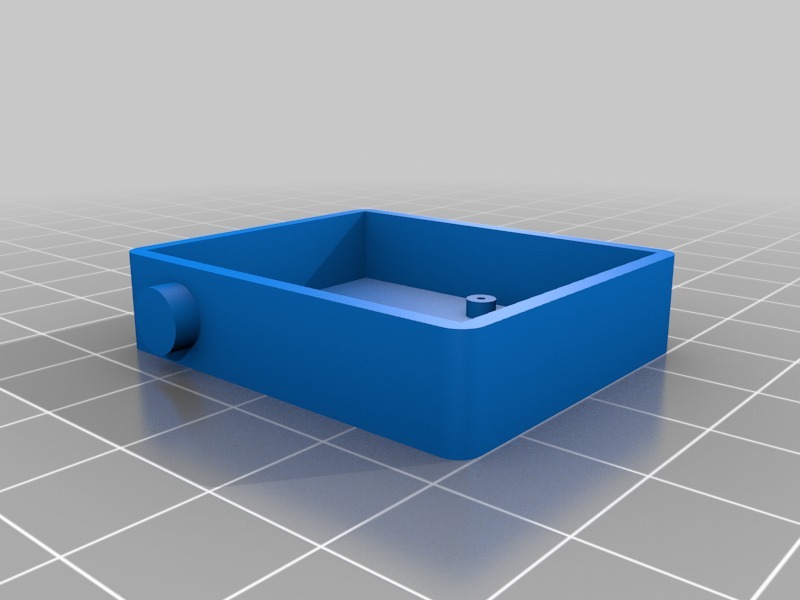

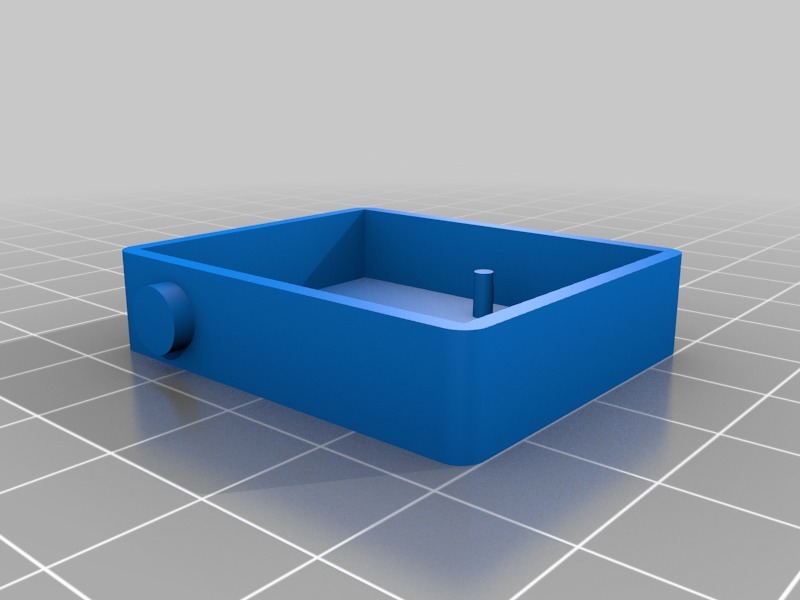

There are two versions of the front cover. A pinned one that holds the camera with bars, and another one that allows to use 1.5mm screws (suitable for smartphones and the like) for permanently holding the camera into the case.

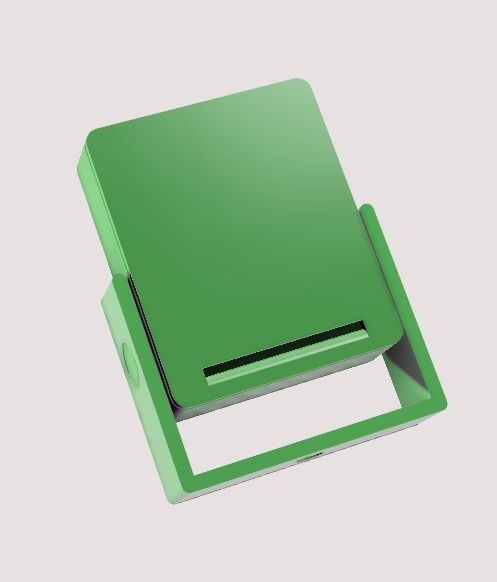

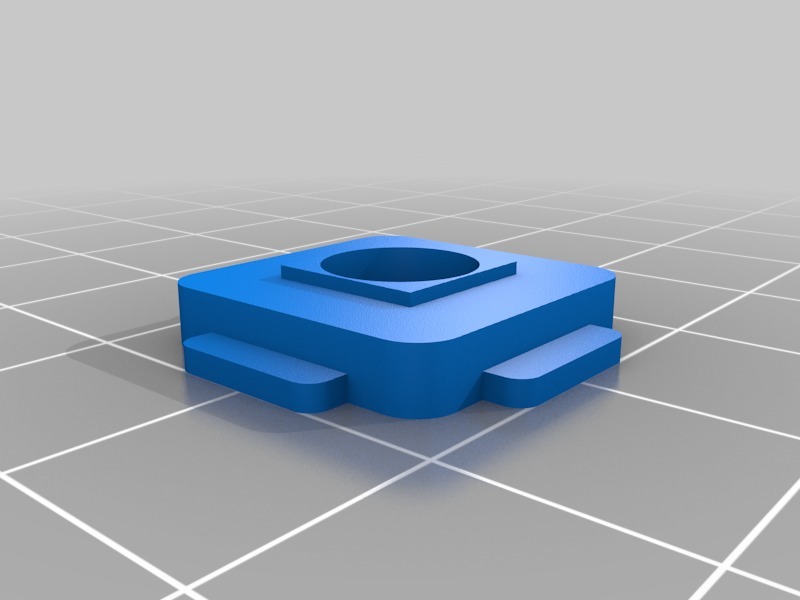

I also include a support with a 4mm threaded hole that can be used to fix the case any other supports, and a lens cap to keep the lens clean and protected when not in use

Print Settings

Printer:

Tevo Tarantula

Rafts:

Supports:

Resolution:

0.1 mm / 0.2mm

Infill:

10-20%

Notes:

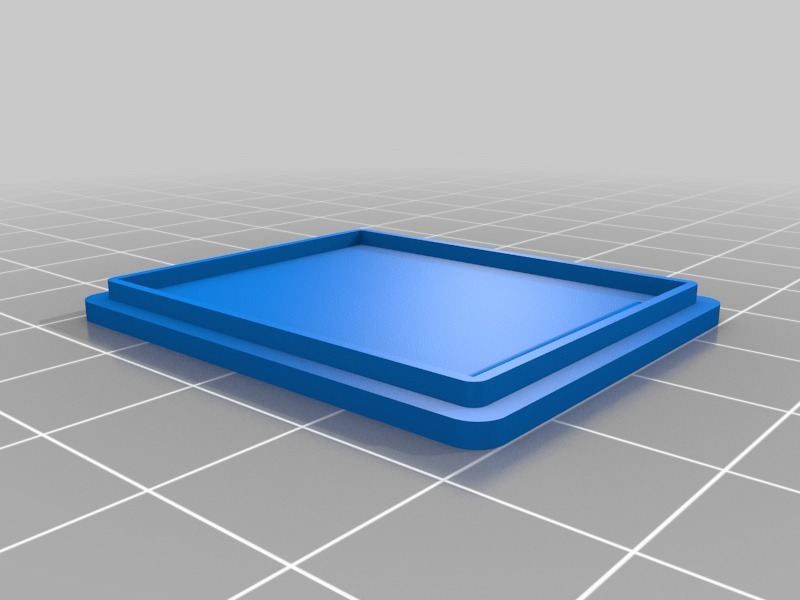

I used 0.1mm layer height at least for the external support because it contains a threaded hole for a 4mm screw. For the rest you can use the same or a 0.15 to 0.2mm layer height. I printed the back cover with a -0.1mm Simplify3D Other / Dimensional adjustment / Horizontal size compensation to allow this back cover to fit into the front cover.
Notice the back cover groove fillet designed to protect the flat raspberry cable

Category: 3D Printer Accessories
