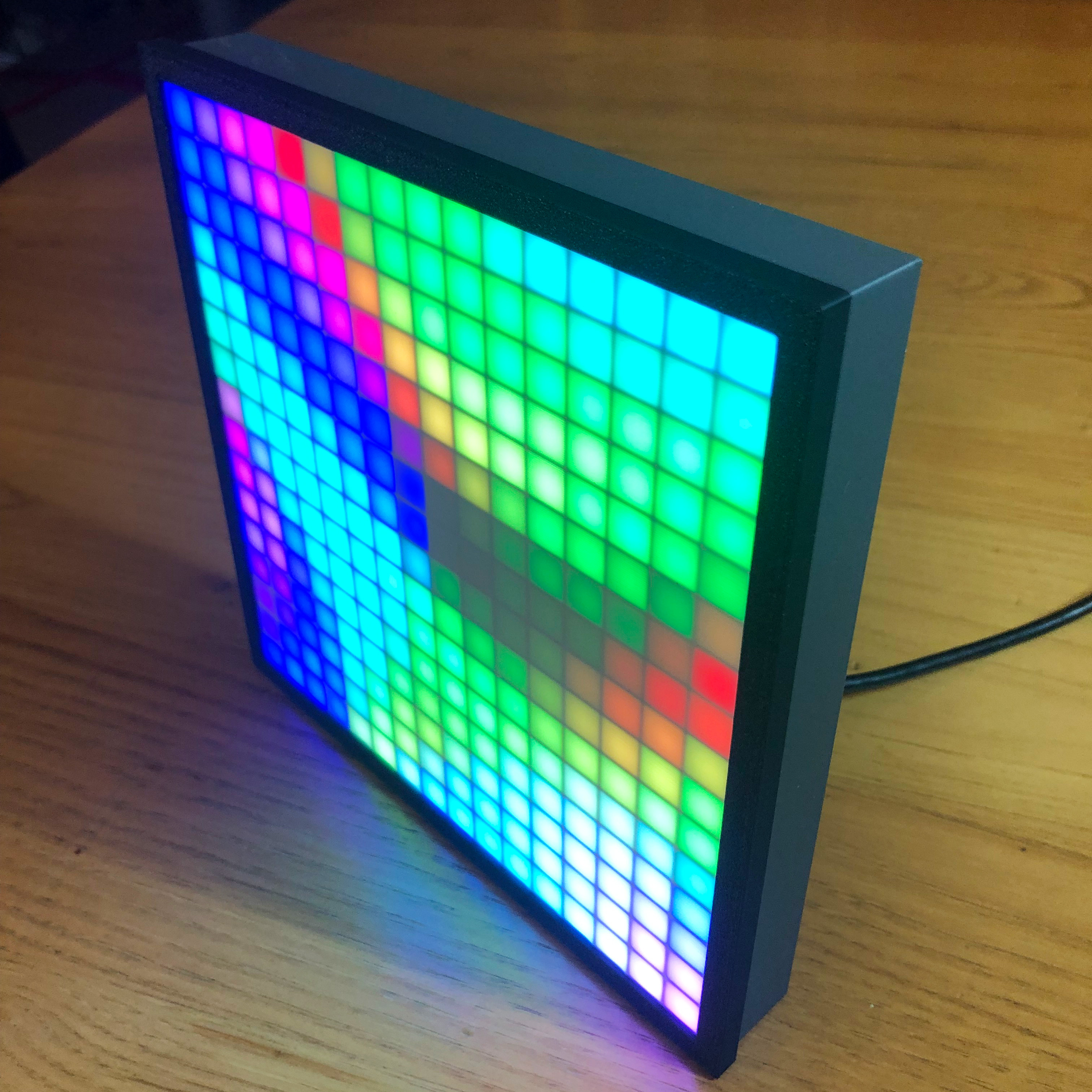

16x16 LED Matrix Frame

• No glue, tape or screws needed
• Accessible USB port
• Wall- or desk-mounted
• Snap-fit sockets for ESP-WROOM-32, MAX4466 or MAX9814 microphone and DC Power Connector for easy installation
• Optional socket-less version

Instructions

Print:

Print the Diffuser Screen with these settings  to give the screen a horizontal “scanline” texture:

• Top/Bottom surface pattern: ALIGNED RECTILINEAR
• Internal solid infill pattern: ALIGNED RECTILINEAR
• Sparse infill pattern: ALIGNED RECTILINEAR
• Infill direction: 0

If using white filament for the Diffuser Screen, printing it on a textured plate will make it scatter more light and be dimmer. Use a smooth plate for best results. A textured plate will work great for clear filament though :)

For the LED matrix, you'll need:

• 16x16 LED Matrx - e.g. [https://aliexpress.com/item/4000544411175.html](https://aliexpress.com/item/4000544411175.html)
• ESP-Wroom-32 - e.g. [https://aliexpress.com/item/1005005972312714.html](https://aliexpress.com/item/1005005972312714.html)
• MAX4466 microphone - e.g. [https://aliexpress.com/item/3256803608057399.html](https://aliexpress.com/item/3256803608057399.html)
  or
  MAX9814 microphone - e.g. [https://aliexpress.com/item/3256805923391884.html](https://aliexpress.com/item/3256805923391884.html)
• Power Supply 5V 1.5A-15A (~2-5A will do for most uses) - e.g. [https://aliexpress.com/item/32844702891.html](https://aliexpress.com/item/32844702891.html) or  [https://aliexpress.com/item/1005006126703620.html](https://aliexpress.com/item/1005006126703620.html)
  or an old USB cable (cut one end and connect the + and - to the LED matrix)

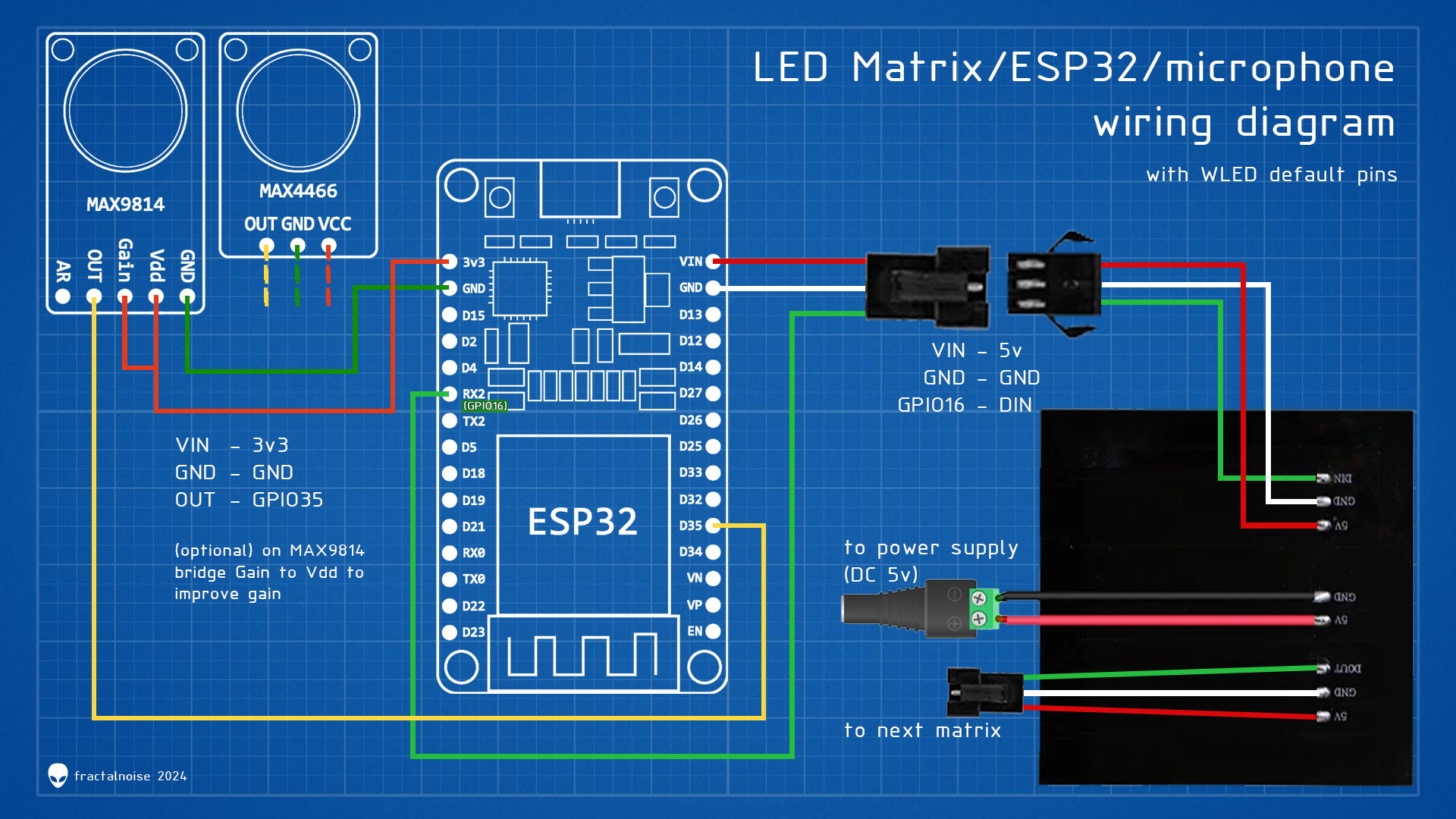

LED Matrix/ESP32/WLED Assembly Guide:

Some useful resources:

• WLED Project: [https://kno.wled.ge/](https://kno.wled.ge/)
• Chris Maher WLED tutorials playlist: [https://www.youtube.com/playlist?list=PLur8dX5PE-4pk838s_gZAdm-98-sf0f0Z](https://www.youtube.com/playlist?list=PLur8dX5PE-4pk838s_gZAdm-98-sf0f0Z)
• Make It Work WLED tutorials playlist: [https://www.youtube.com/playlist?list=PLUTKOGJvdIQ8WYfG6TDJ_c8_WlPovWbL9](https://www.youtube.com/playlist?list=PLUTKOGJvdIQ8WYfG6TDJ_c8_WlPovWbL9)
