Case for the Agon modern 8-bit computer by Bernardo Kastrup et al.

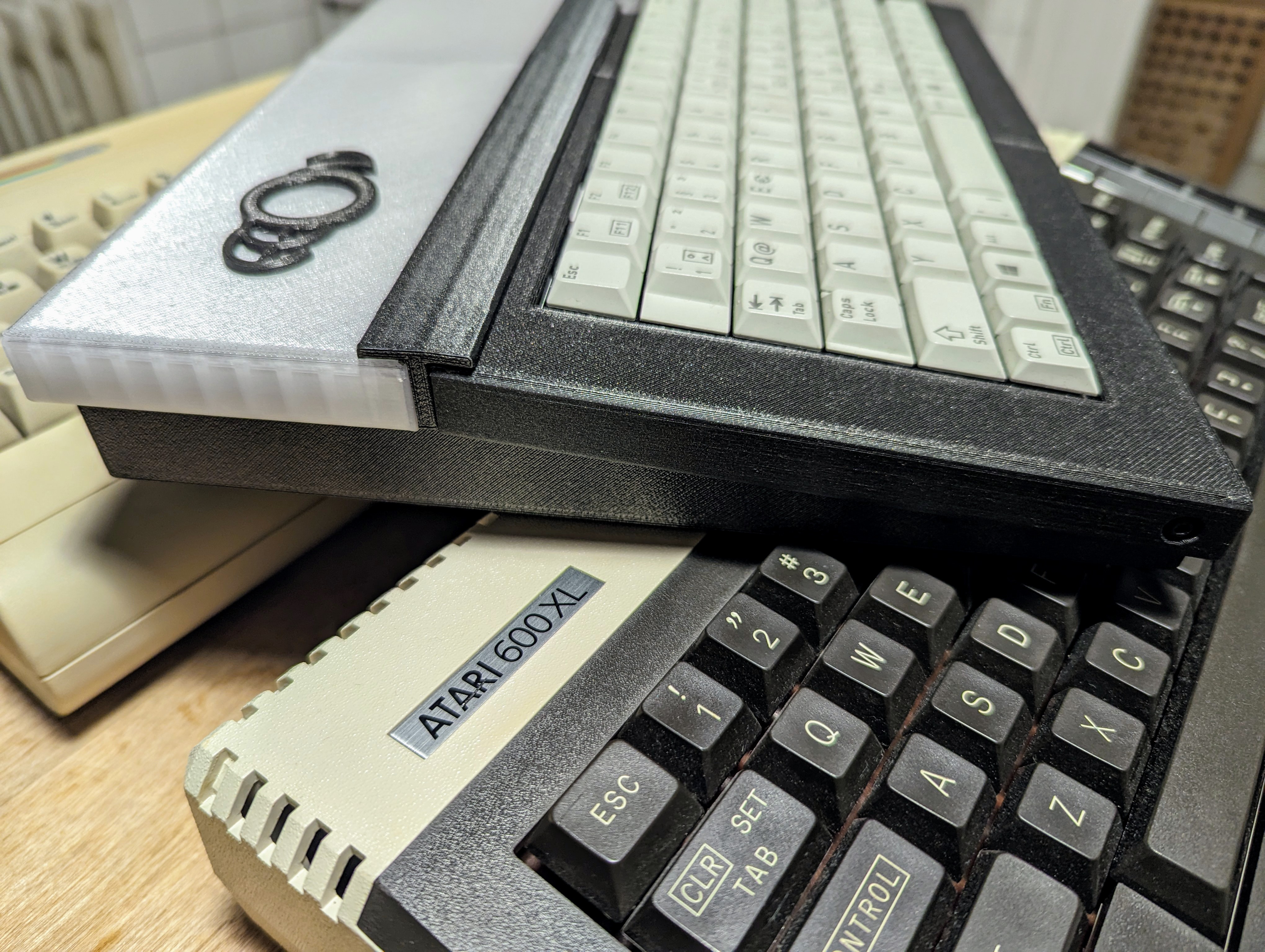

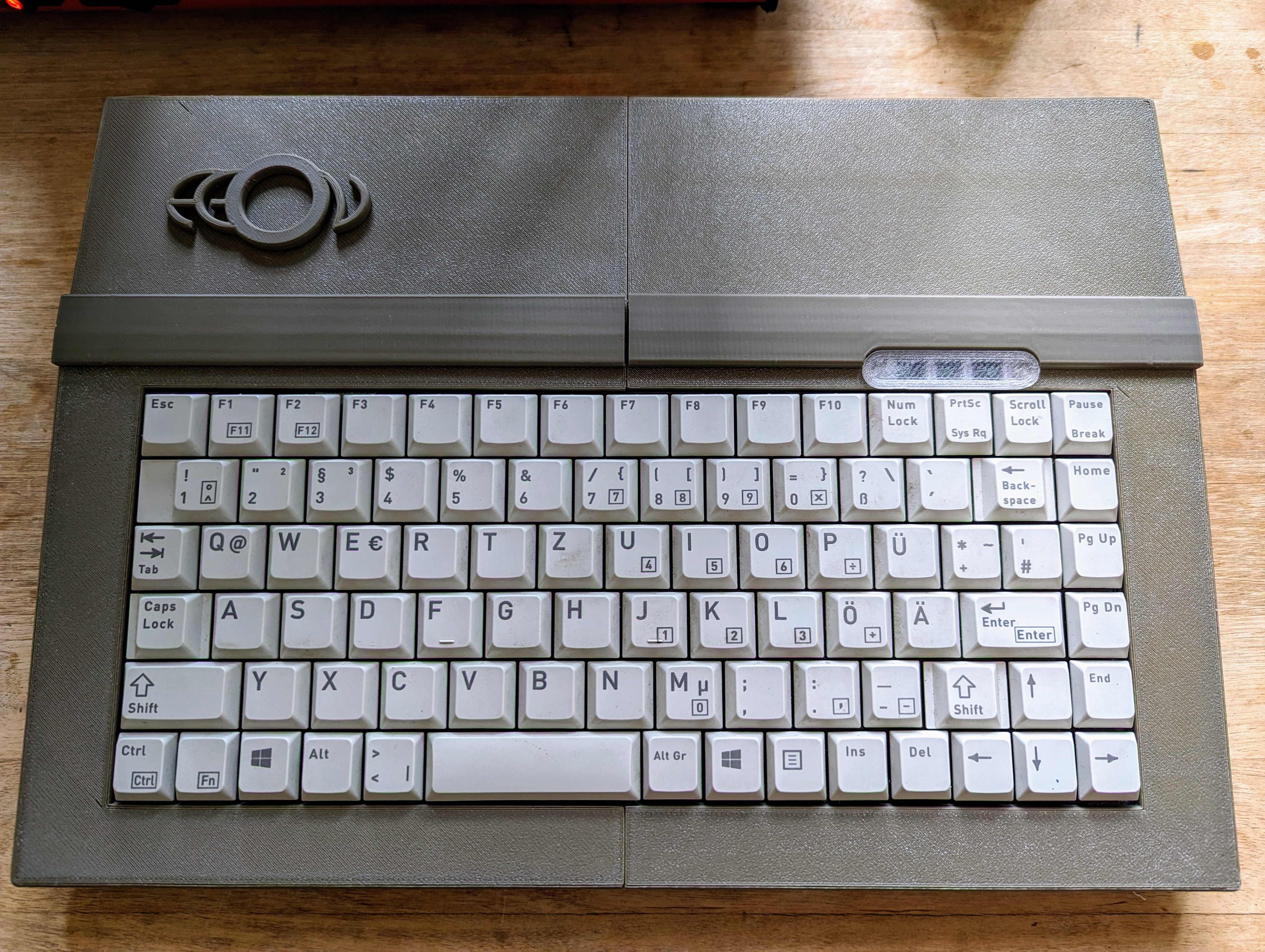

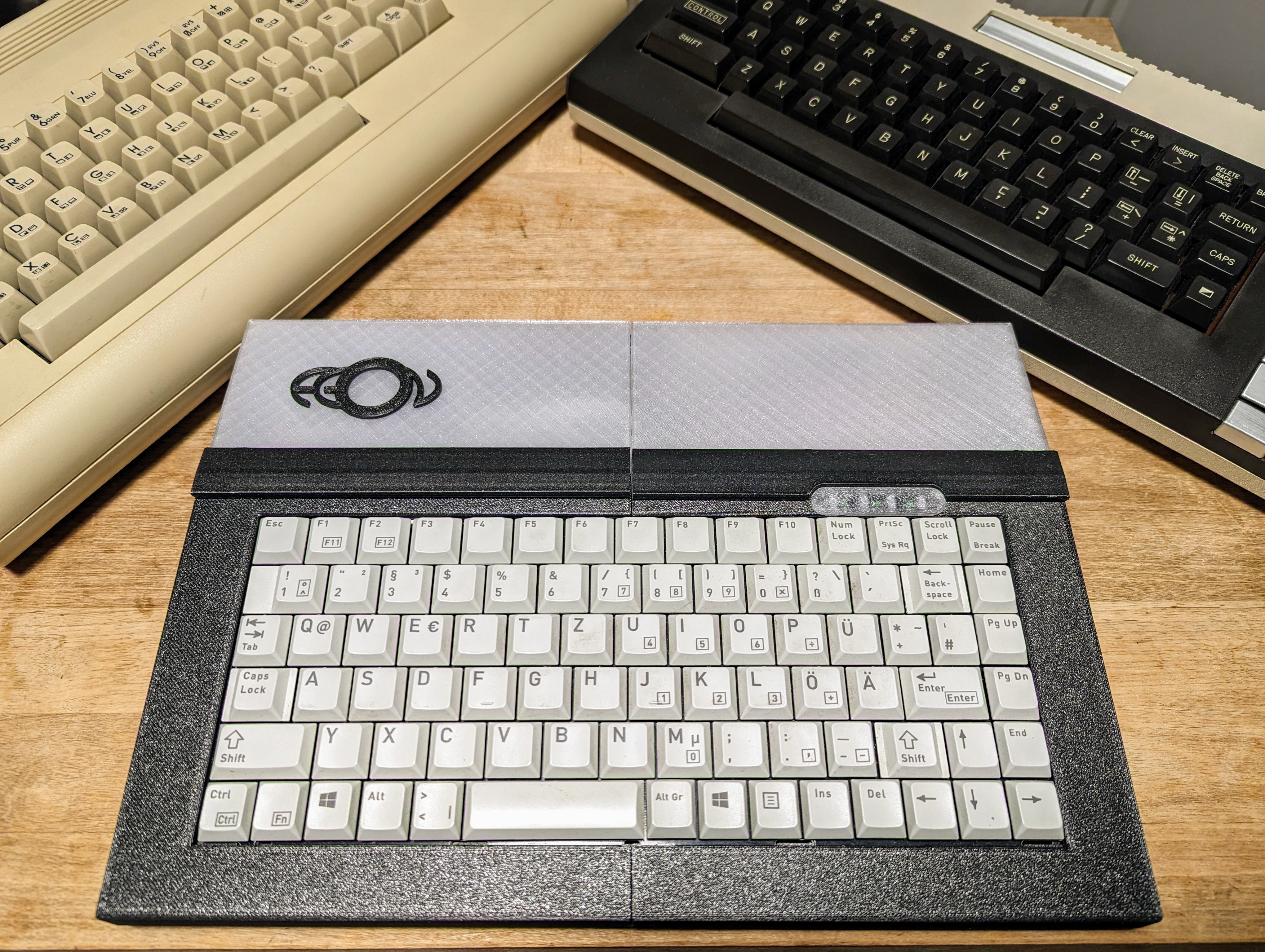

I wanted to create a case in the style of the home computers of the 1980s.

The parts can be printed on a normal-sized printer. Some assembly is required.

There is a newer version of the case on Github.

Bill of materials

• 1x Cherry G84-4100 mini keyboard. The keyboard is relatively expensive, but it's also available used or as B-stock. Mine cost 19 euros on eBay.
• 1x QIANRENON USB A U-shaped adapter. You can also omit the adapter, but then the keyboard cable will be visible outside the case.
• 14x M3x10 screws.
• 15x M3x12 screws.
• 29x M3 screw nuts.

Assembly instructions

• Keyboard
  • Disassemble the keyboard. Only the keyboard PCB, the daughterboard beneath it, and the cable are needed. You can shorten the cable. I was lazy and kept it in the case coiled up.
  • Fit the isolator on the daughterboard so that it sits between it and the keyboard PCB.

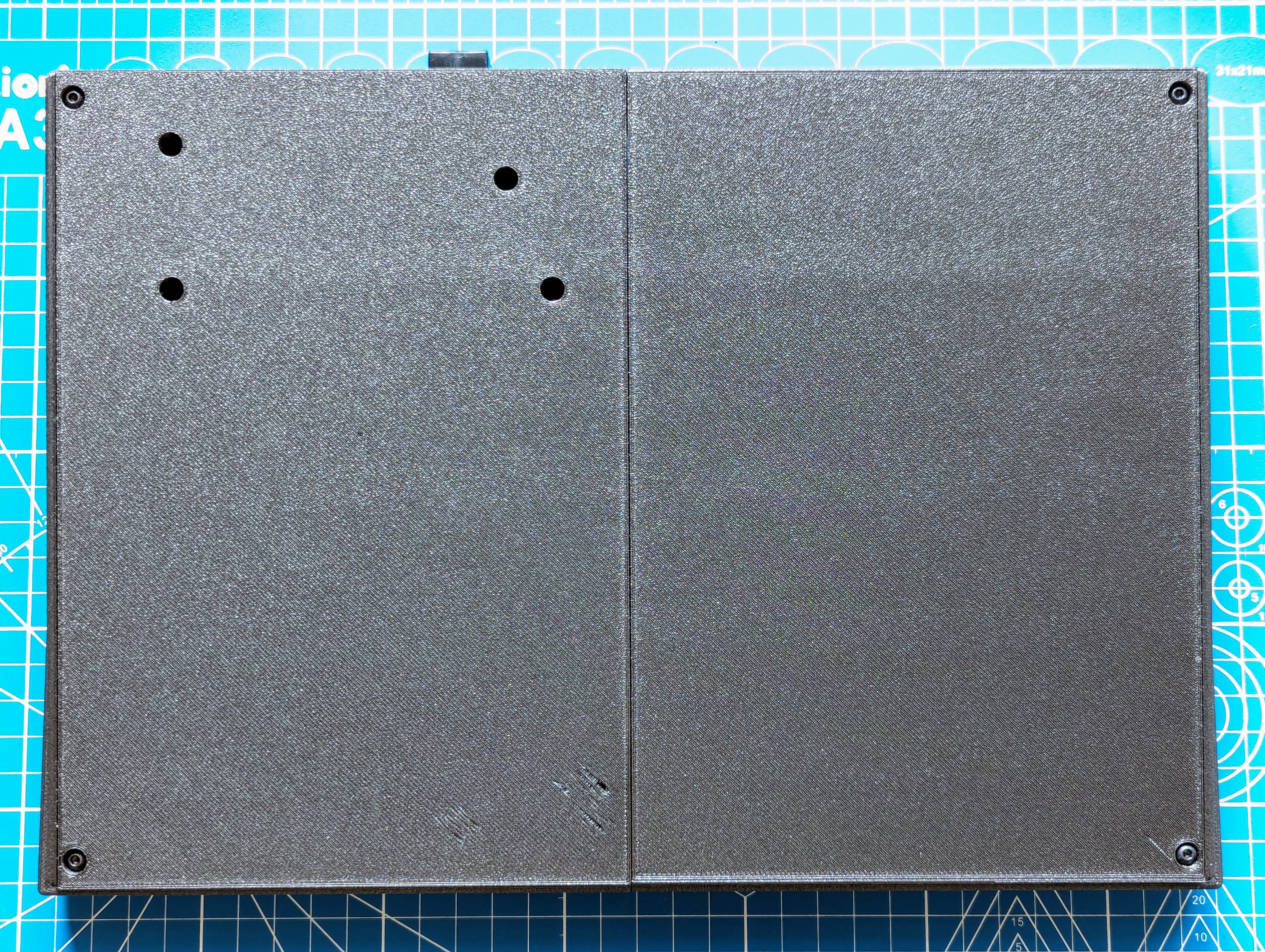

• Undercarriage
  • Fit the nuts (1x M3 each) into the slots in the rear lower corners. The remaining nuts are inserted in the same manner.
  • Insert screws for the Agon board (4x M3x10).
  • Connect parts (6x M3x12 with nuts).
  • Secure the board (4x M3 nuts).
  • Place the keyboard on the supports so that it rests against the horizontal stops.
  • Guide the keyboard cable beneath the Agon board towards the back.
• Side walls
  • Fit nuts (6x M3 nuts each). Should be a tight fit. I used small pliers with gentle pressure.
  • Attach to the undercarriage (2x M3x10 each).
• Back wall
  • Connect parts (1x M3x12 with nut).
  • Attach to the undercarriage (2x M3x10).
  • Connect keyboard cable, USB adapter, and board.
• Top cover
  • Press the logo into the left cover part.
  • Connect parts (2x M3x12 with nuts).
  • Secure to side walls (2x M3x10) and back wall (2x M3x12).
• Keyboard frame
  • Connect parts (2x M3x12 with nuts).
  • Secure to side walls (2x M3x12 side, 2x M3x10 top).

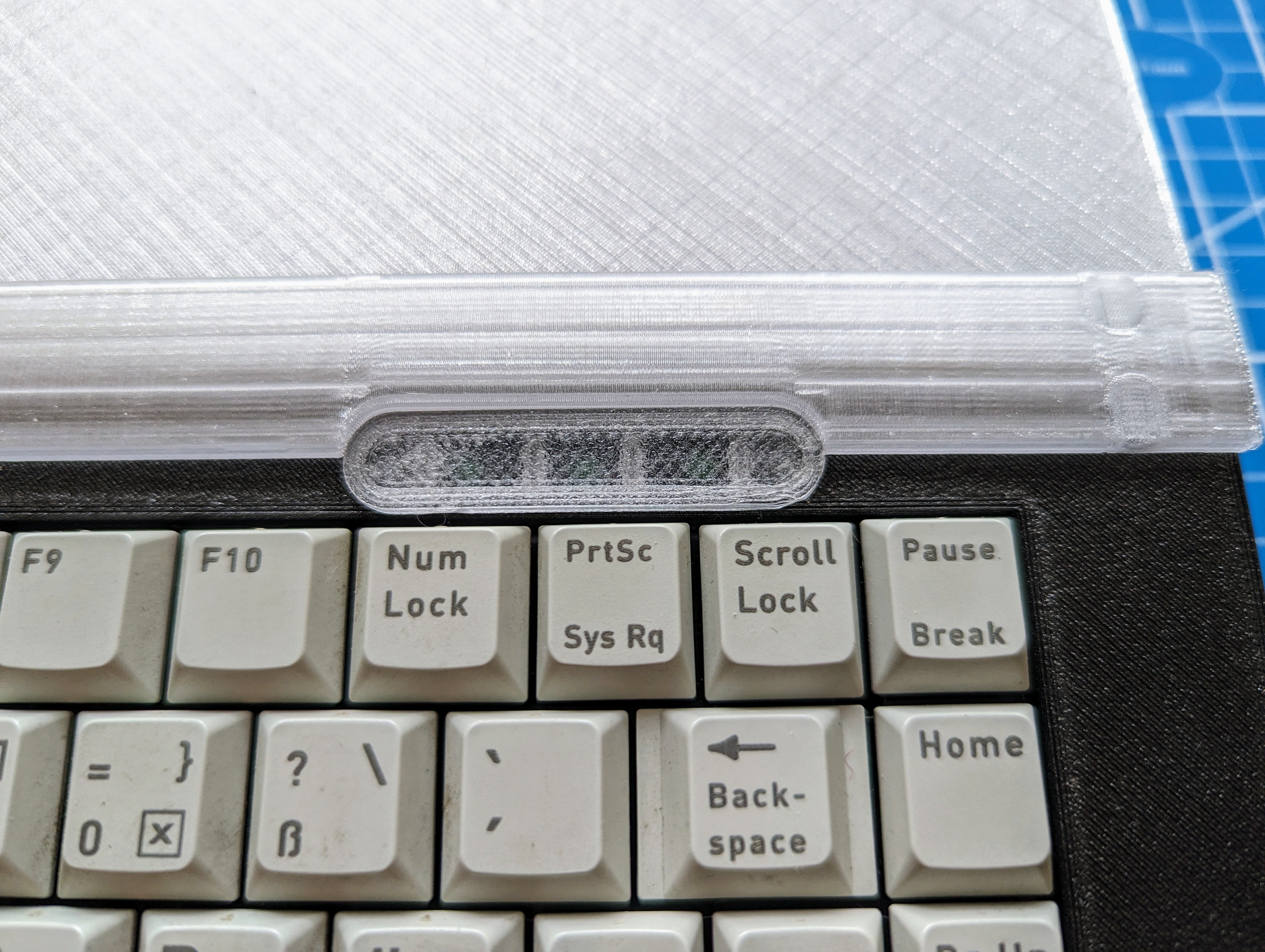

  • Insert LED cover.
• Blinds

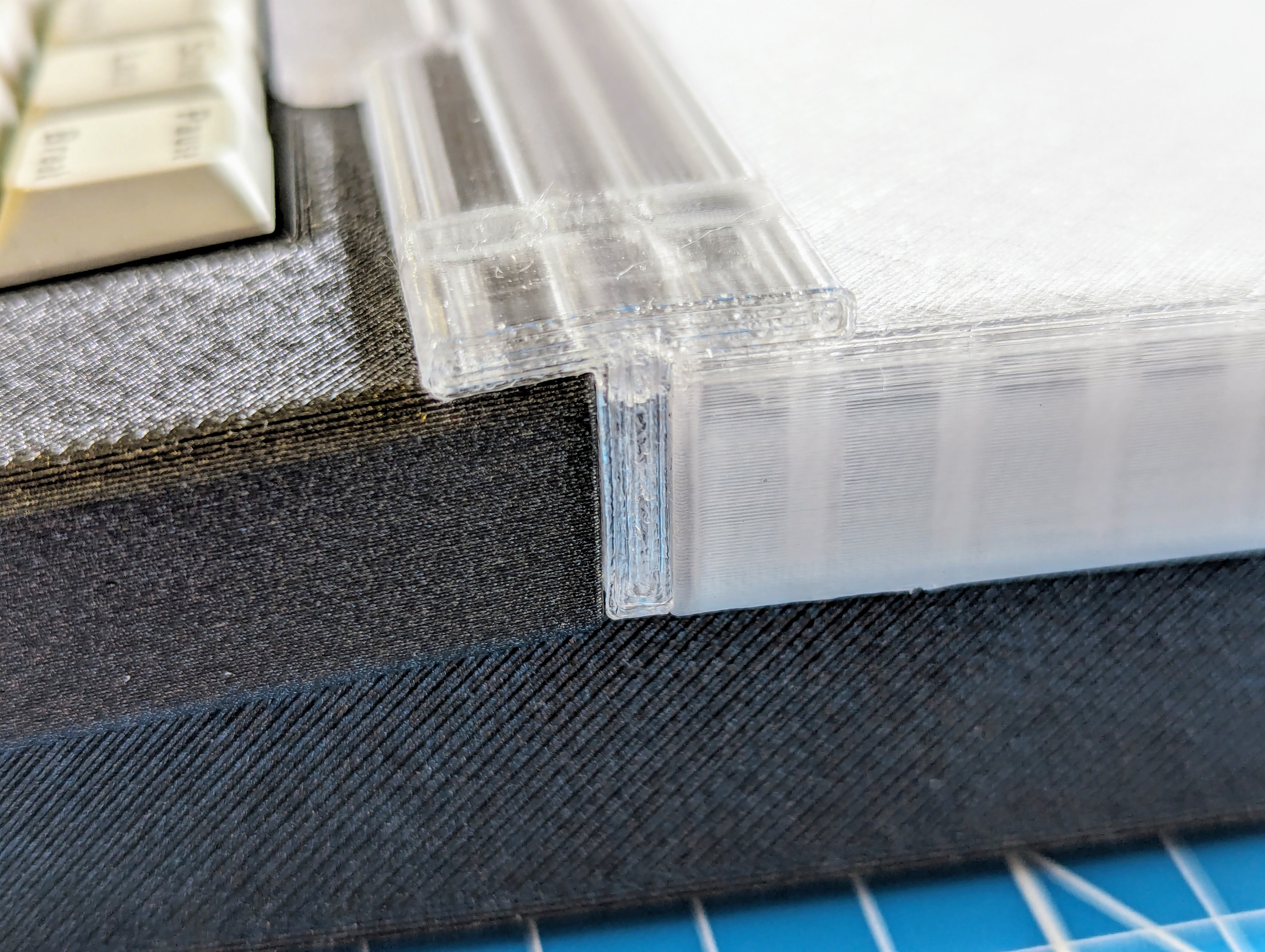

  • Insert both panels into the gap between the keyboard frame and the cover. Depending on your 3D printer's tolerance, the fit between the panel and side wall can be tight. I slightly oversized the panels, so some sanding may be necessary.

Shortcomings

• Made for the AgonLight2 by Olimex only. I will add base plates for the other variants if there's demand for it.

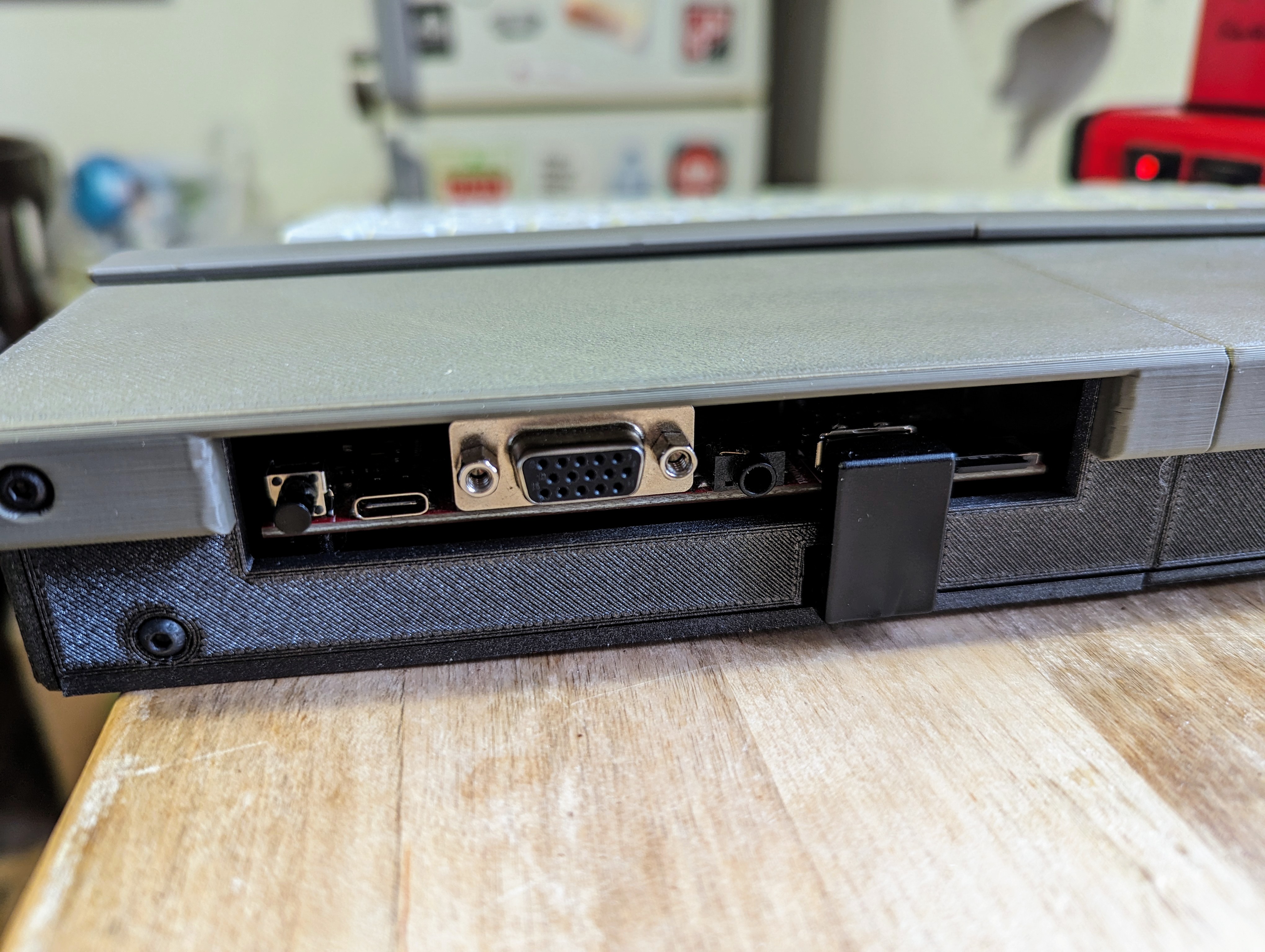

• The front ports of the board are unusable because of the way it is mounted.
• The attachment of the panels is unsatisfactory. Depending on the print tolerance, they raise in the middle. Hot glue helps, but still, a better mounting is needed.
• No case feet.

Printing

• PLA 20% grid infill.
• Most parts can be printed without support, but with support, the scew holes look better.
• The blinds should be printed standing upright on the outer side with support.
• I printed the LED cover in transparent PETG.
• Approximate filament amount: 380g
