Modelo 3D RaspberryPI CSI camera stand por OnlyCurves no Printables

Descrição

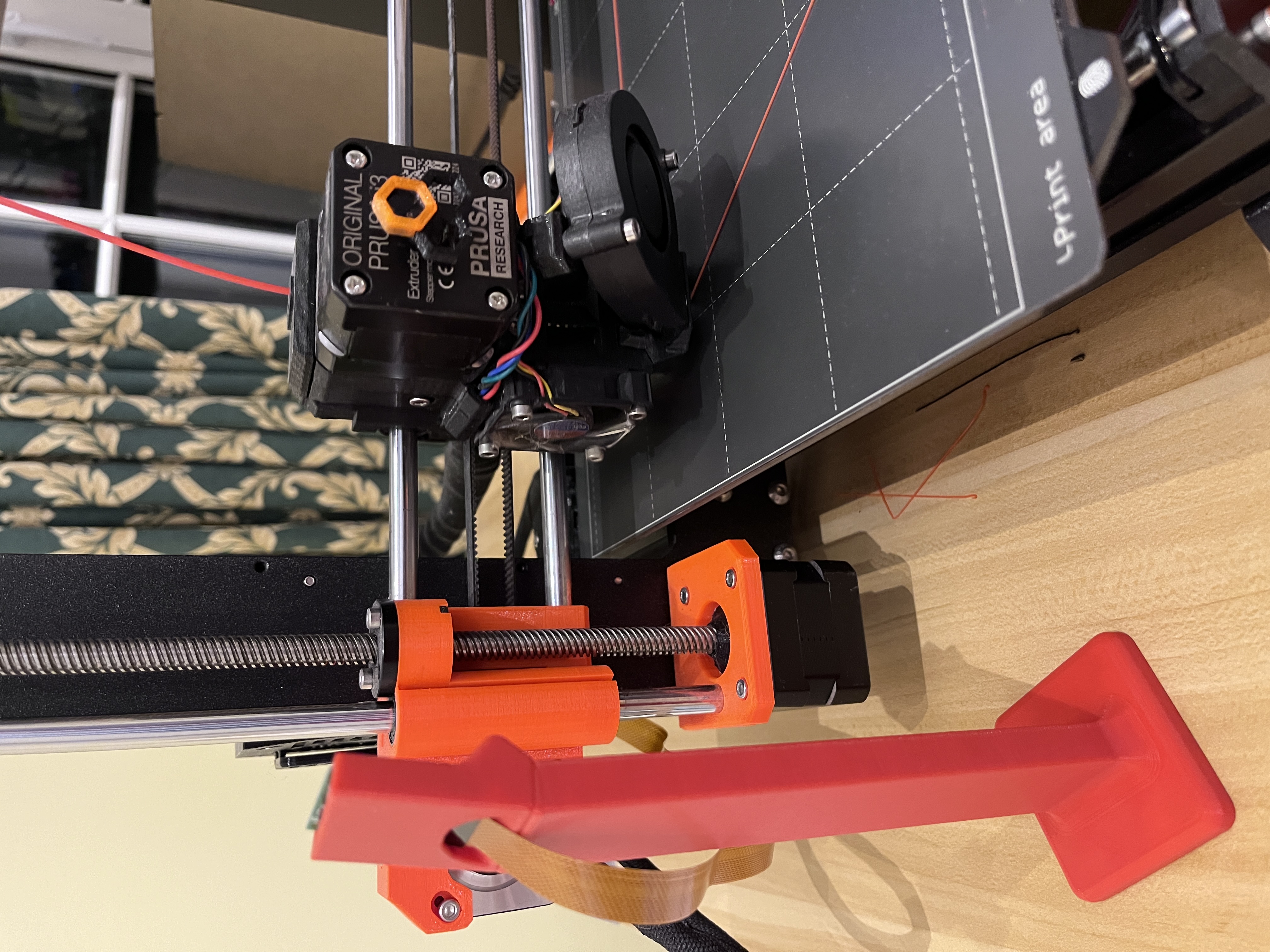

The CSI camera for a Raspberry PI will slot into the camera mount which then sits tilted forward 15cm above the surface. It is intended for a camera connected by the CSI ribbon cable to a rPI Zero on a MK3 Prusa. The CSI cable exits from the rear.

The angle of tilt is intended to be variable.

To use this model you need to print:

CameraHolder
Tower150

And a matching pair of:
Join
Wedge


The different join and wedge tilt the camera and different angles.
A Join/Wedge of 70 learns forward 20degress
(80 → 10 degress lean in)



(If you do download and print, please do leave a make/ review good or bad; it takes time to post stuff on printables and its nice to know people have made use of that effort.
And if you do leave a bad review as something is wrong or your don't like it I get to learn from you and possibly fix it for other people. So don't hold back.)

Printables

RaspberryPI CSI camera stand

Publicado em 19 de jan de 2025

2
Curtidas
20
Downloads
1
Impressões
Categoria Accessories
Tags
raspberrypicamera prusalink prusaconnect
Licença Creative Commons — Attribution
Arquivos (6)
CameraHolder.3mf 85.7 KB
Tower150.3mf 123 KB
Join80.3mf 52.5 KB
Wedge80.3mf 10.3 KB
Join70.3mf 53 KB
Wedge70.3mf 17.8 KB
