Modelo 3D Square Mounts for Wall Control por poprhythm no Printables

Descrição

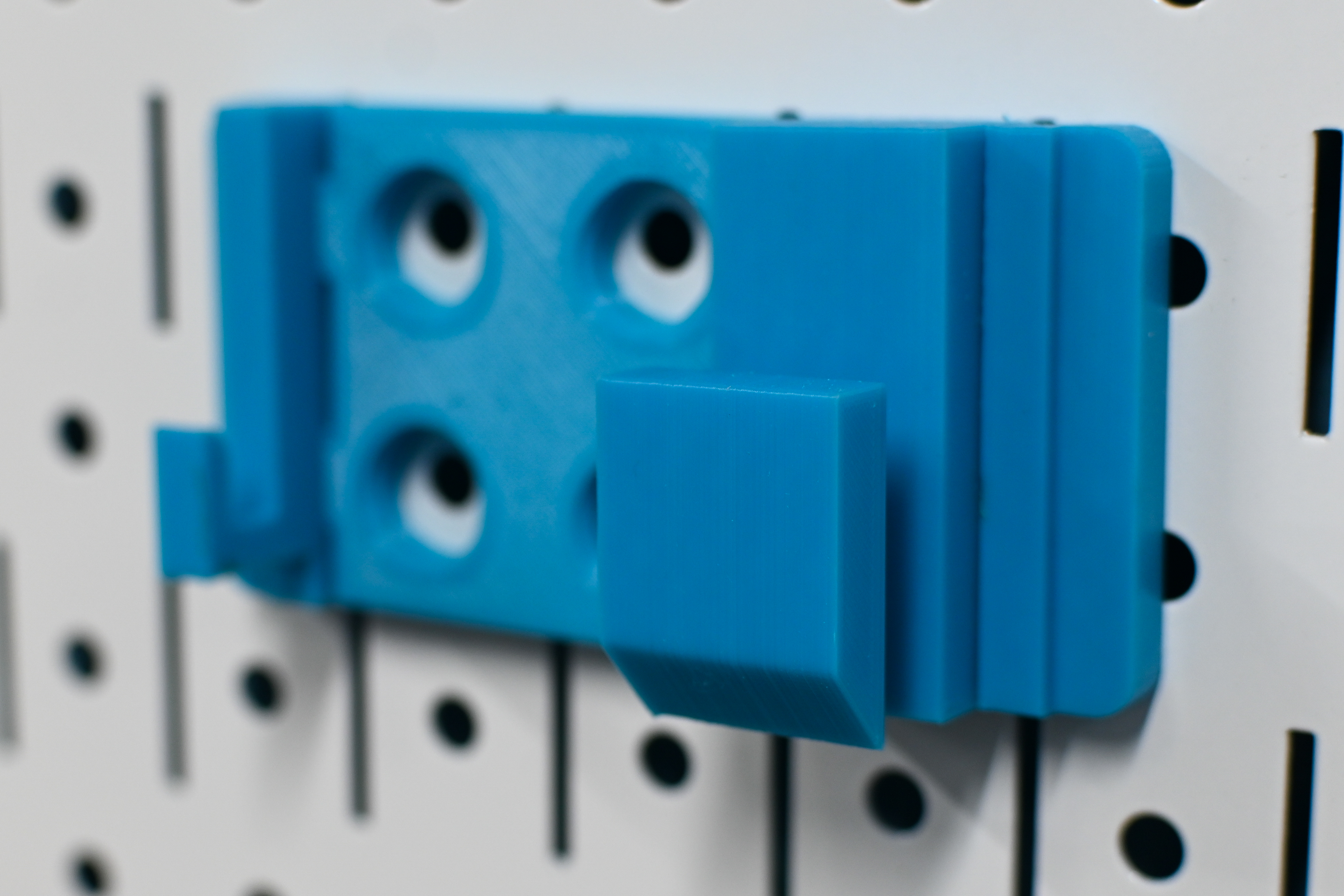

This uses the DDD Printable Wall Control System (github) to mount the squares.

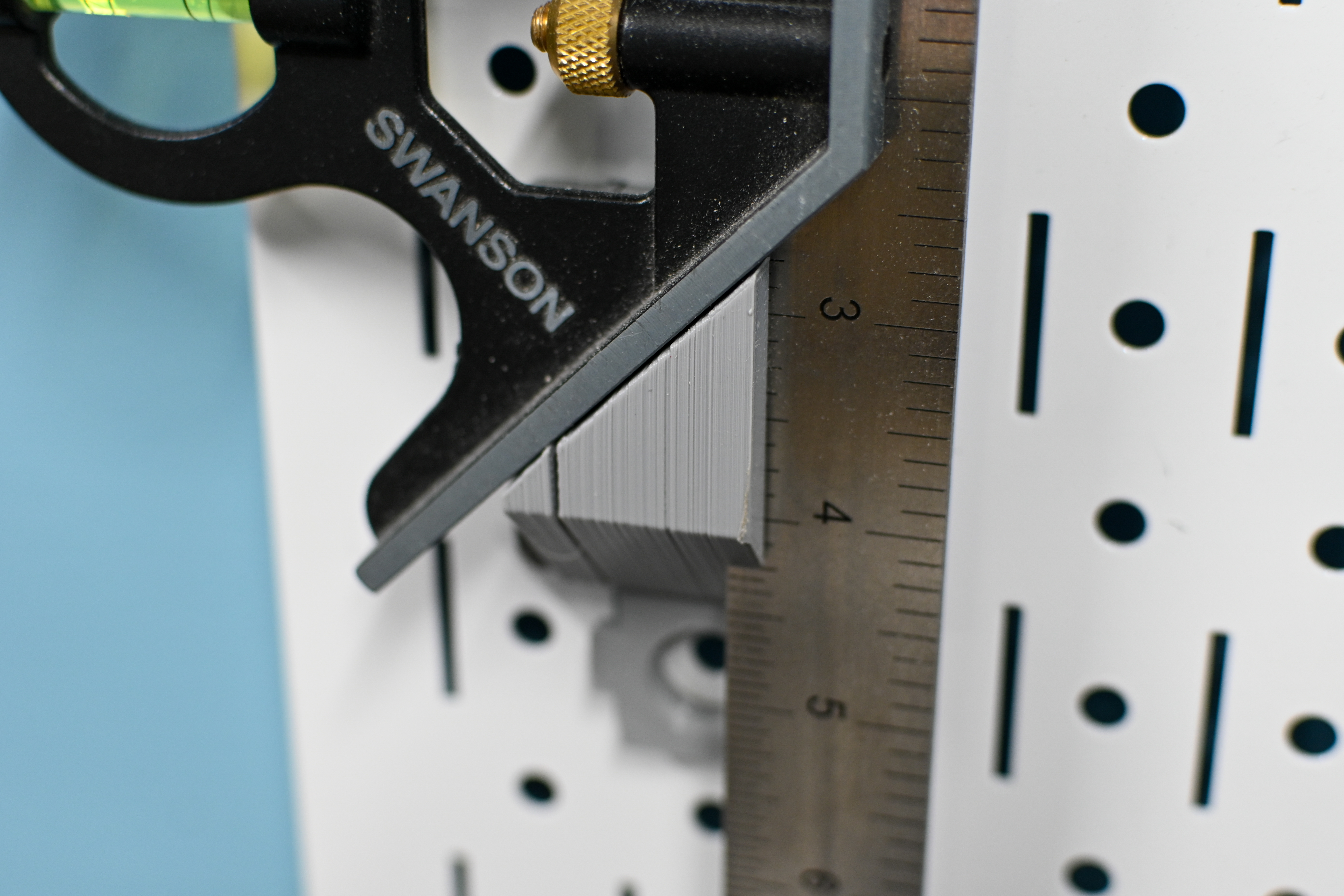

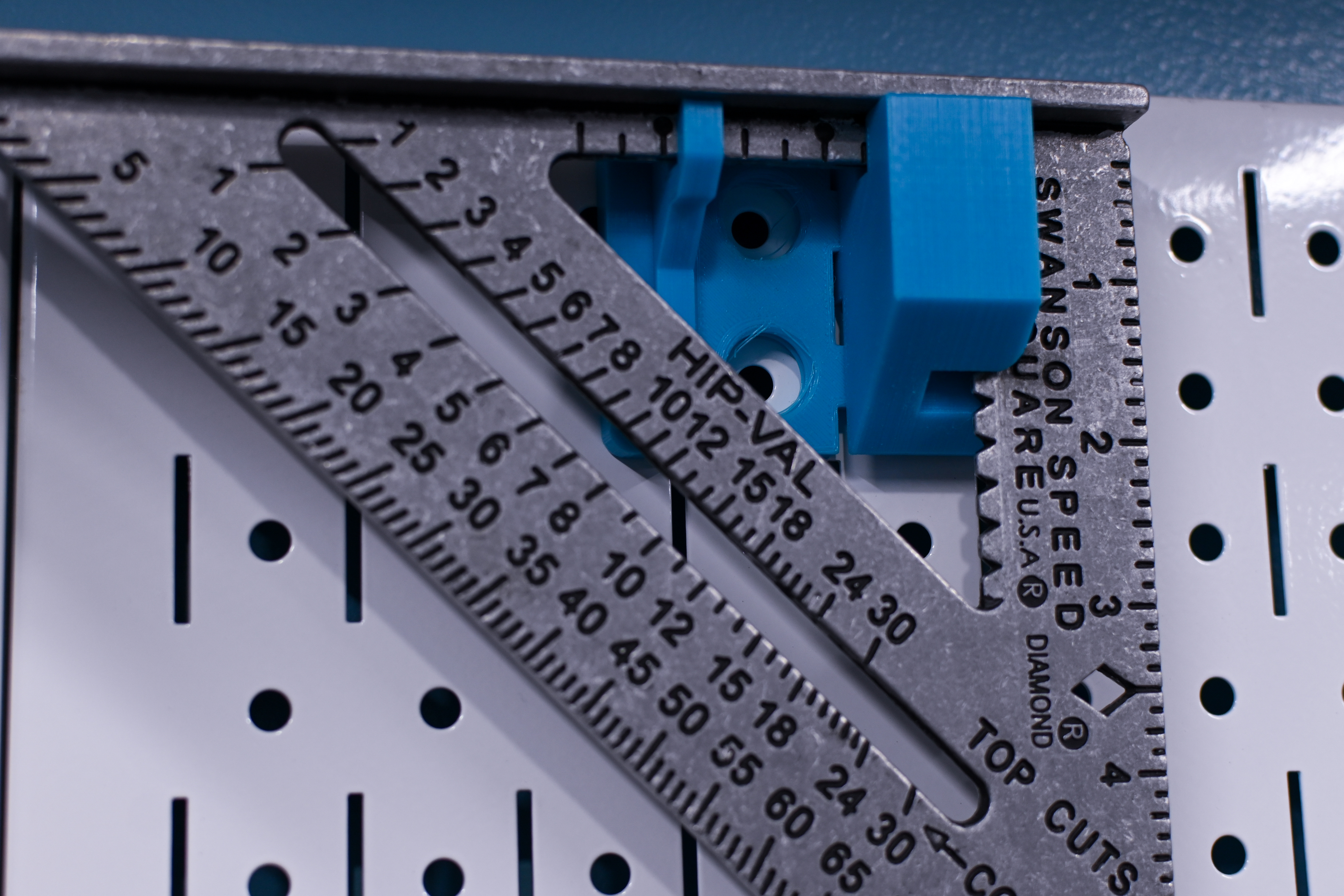

Squares that I've mounted:

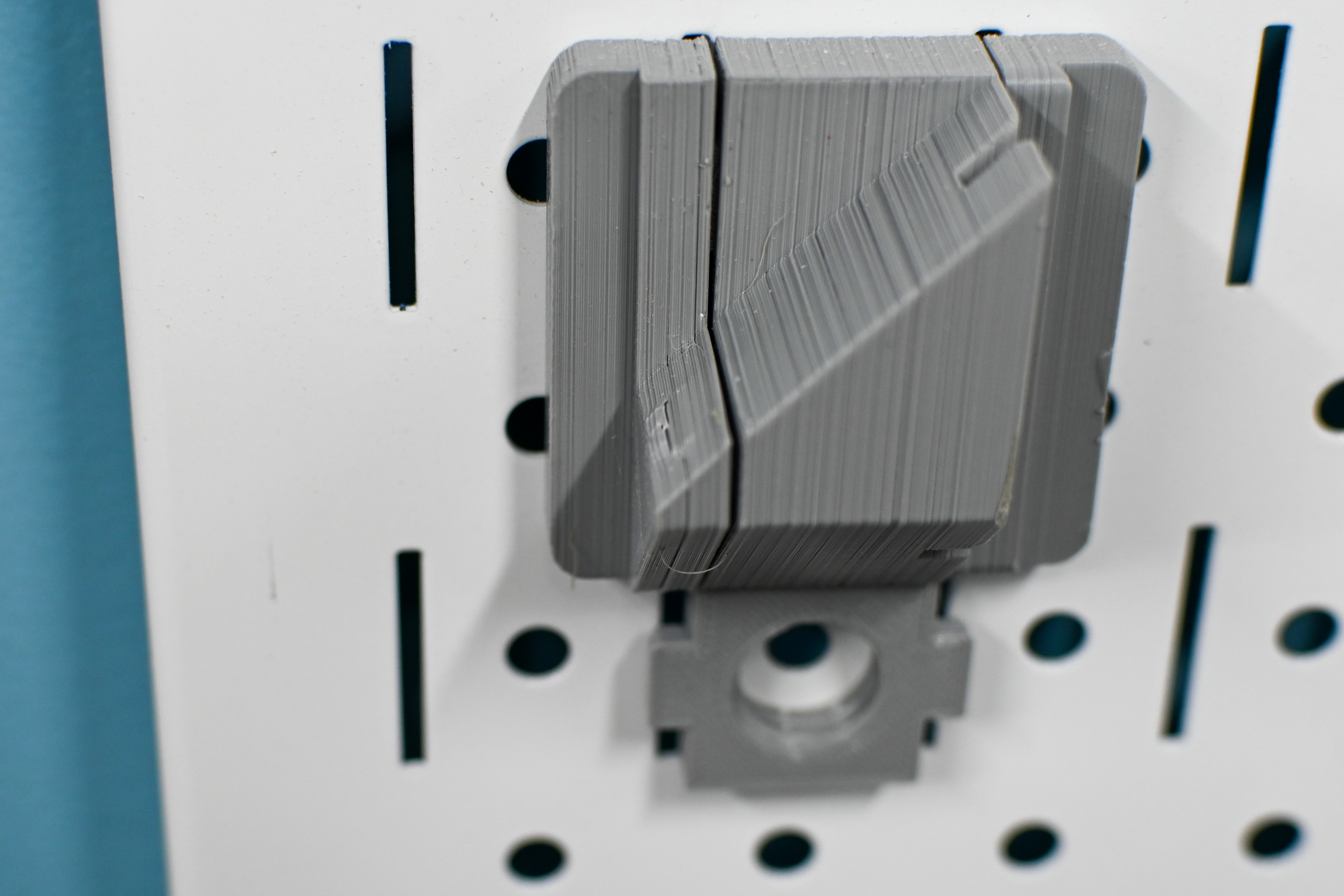

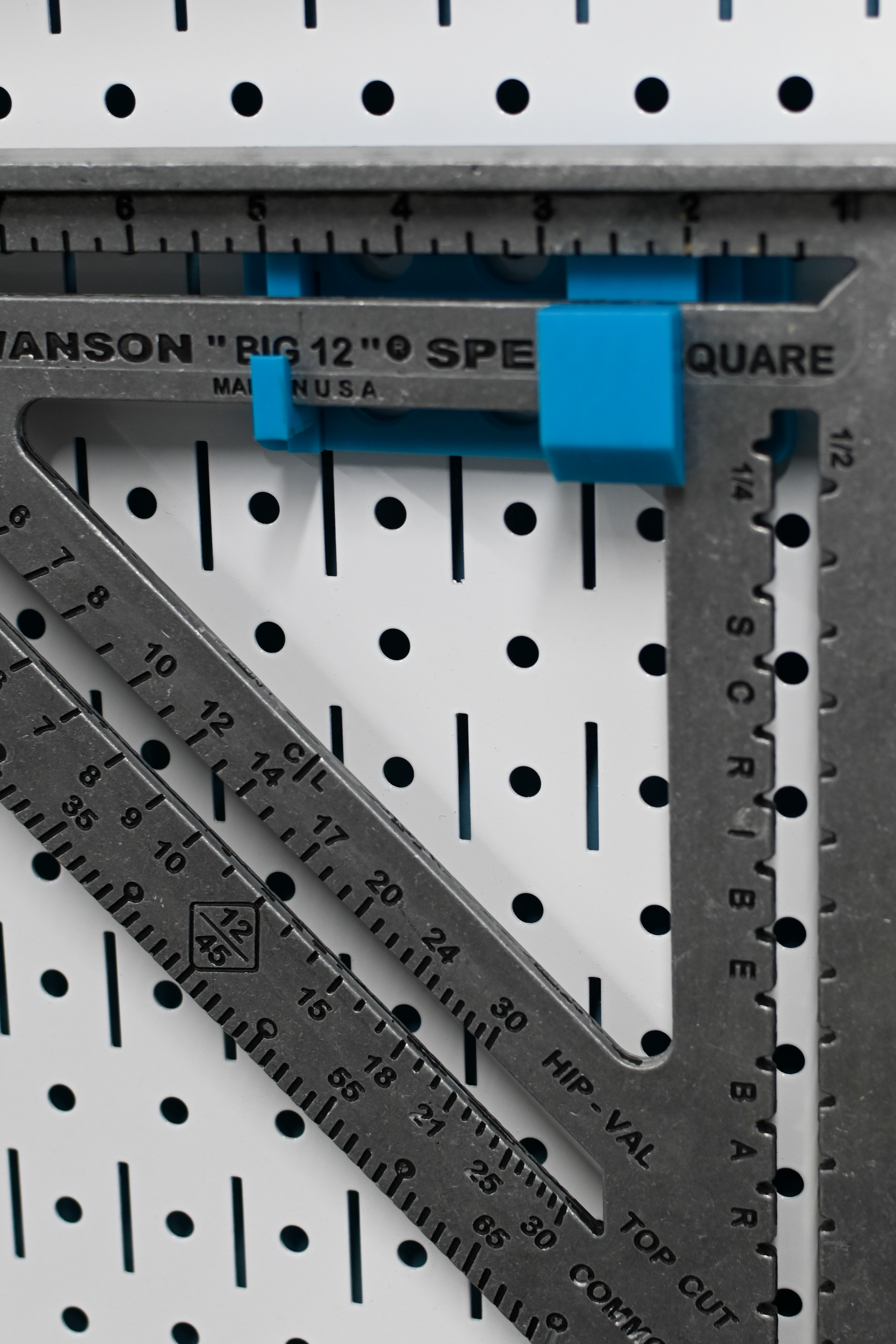

I'd recommend using the locking spacers facing the wall mount, the 2x1 will work for behind all of these except the large 12" speed square - use the 2x2 for that one.  These can be used to lock in the mount using the threaded pin. Use the standard pin to connect any other joints.

If you have another similar square that you'd like to mount, contact me with dimensions and I can probably make a version for you.

Printables

Square Mounts for Wall Control

poprhythm poprhythm (abre em nova aba)

Publicado em 4 de jan de 2024

29
Curtidas
108
Downloads
2
Impressões
Categoria Tools
Tags
wallmount wallcontrol square woodworkingtools
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (13)
Combination Square Center.stl 10.8 KB
Combination Square Right.stl 15.7 KB
Combination Square Left.stl 16.5 KB
Double Machinist Square Side Left.stl 15.7 KB
Double Machinist Square Side Right.stl 15.7 KB
Double Machinist Square Center Right.stl 19.7 KB
Double Machinist Square Center Left.stl 27.1 KB
Speed Square 7in Right.stl 15.7 KB
Speed Square 7in Center.stl 13.3 KB
Speed Square 7in Left.stl 20.6 KB
Speed Square 12in Center.stl 11.8 KB
Speed Square 12in Right.stl 15.7 KB
Speed Square 12in Left.stl 18.1 KB
