Modelo 3D Toroid Coil Winder por prouting no Printables

Descrição

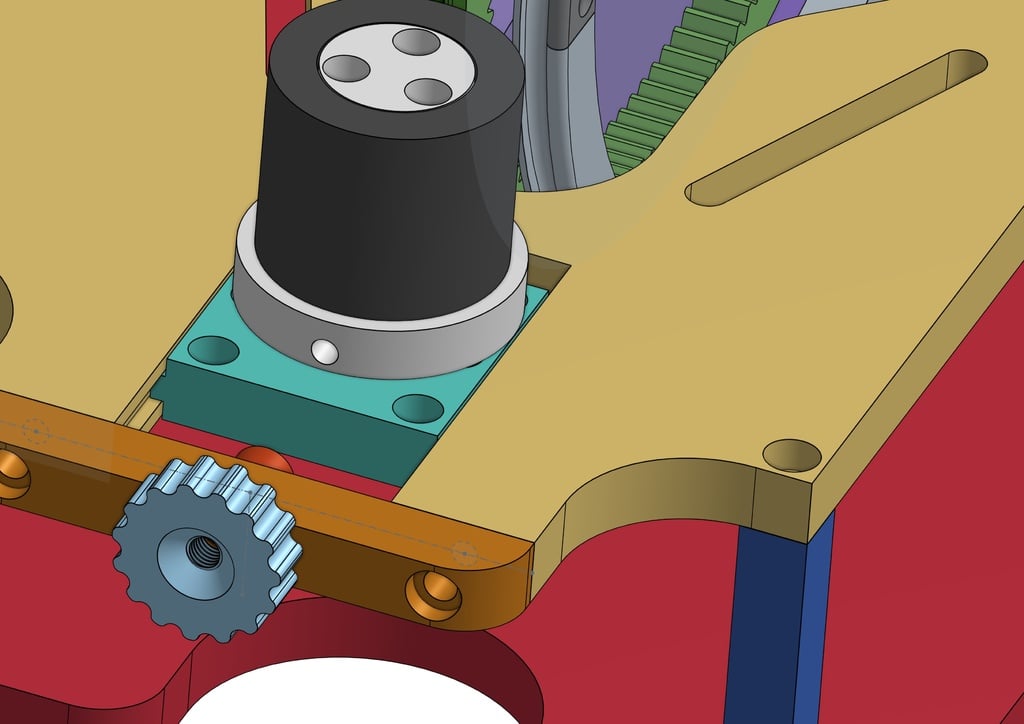

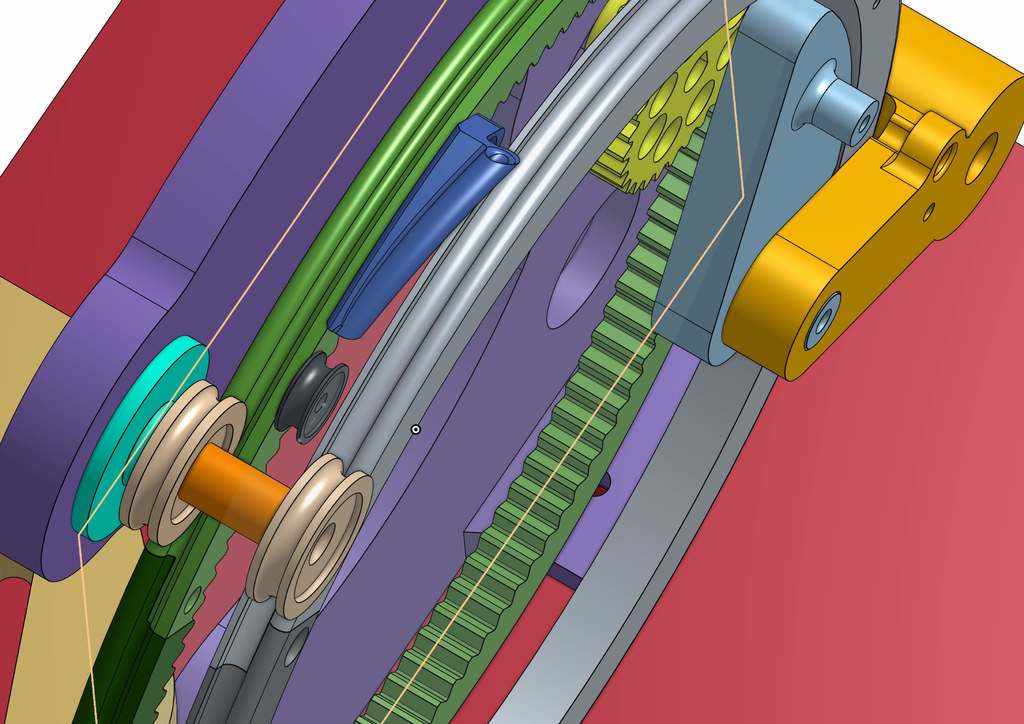

Two rings Toroid coil winder machine

Slider version here:

[https://www.printables.com/model/1296274-slider-type-toroidal-winder](https://www.printables.com/model/1296274-slider-type-toroidal-winder)

Compact version with electronics control schematic: (electronics compatible with this)

[https://www.printables.com/es/model/702311-compact-toroidal-winder](https://www.printables.com/es/model/702311-compact-toroidal-winder)

This Video is for compact version but show work processes: [https://youtu.be/7a5Gduhjt5c](https://youtu.be/7a5Gduhjt5c)

This is a functional equipment, watch video working

Test working with 0.15mm wire: [https://www.youtube.com/shorts/so5y3pX8wWY](https://www.youtube.com/shorts/so5y3pX8wWY)

Material:

1x JGB37 geared dc motor at 7rpm for rotate toroid

1x JGB37 geared dc motor at 500rpm for geared ring

3x Polyurethane flat roller (6x30x30mm) with two bearings

6x U0524 (5x24x7mm) nylon bearings (Rings guides)

1x V623ZZ (3x12x4mm) bearing (Wire guide)

4mm cylindrical neodymium magnet for lap counter

M3 Nut heat brass insert Length 3mm (OD 4.5mm)

M3 Button head screws, washer

M3 Grub screws

M4 Screws

M5 Screws, nuts and washer

M6 Screws, nuts and wide washers

1.5mm nail as pin to lock both rings

Felt for friction tensioner

Elastic ring for tensioner

It would be great if someone adapted nema17 stepper motors and made free software and shared it to synchronize the movement of both motors

Enjoy

Print Settings

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2

Filament:

PLA

Category: Tools

Printables

Toroid Coil Winder

prouting

Publicado em 23 de mai de 2025

65

Curtidas

454

Downloads

Categoria Tools

Tags

machine winder wire coil coilwinder toroid enamelled toroidal toroide

Licença Creative Commons — Attribution — Share Alike

Arquivos (25)

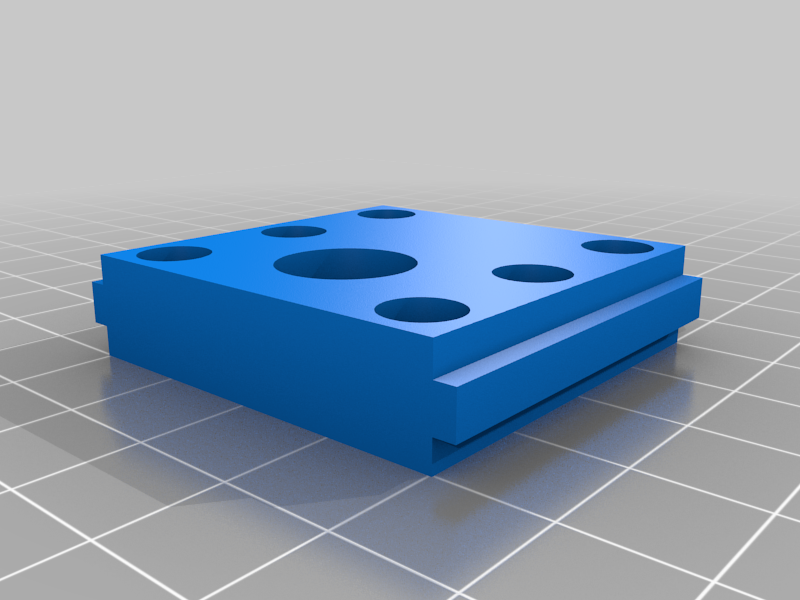

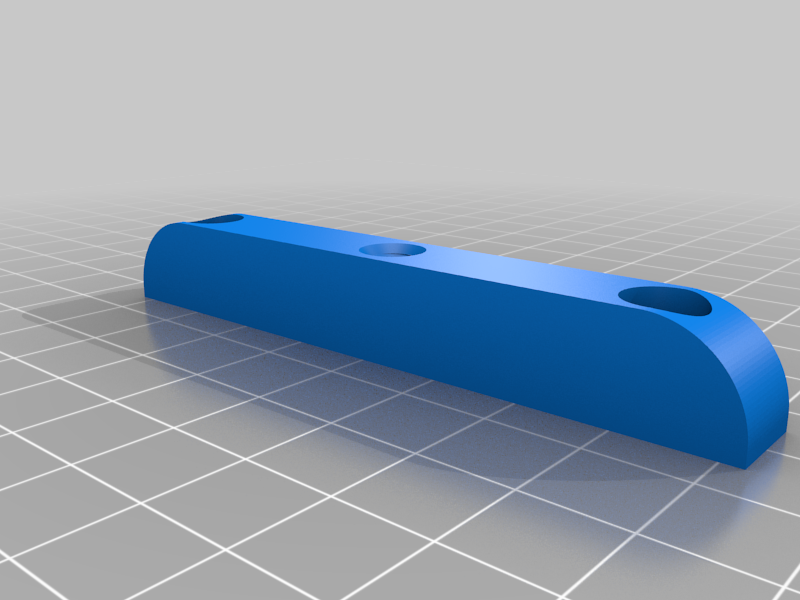

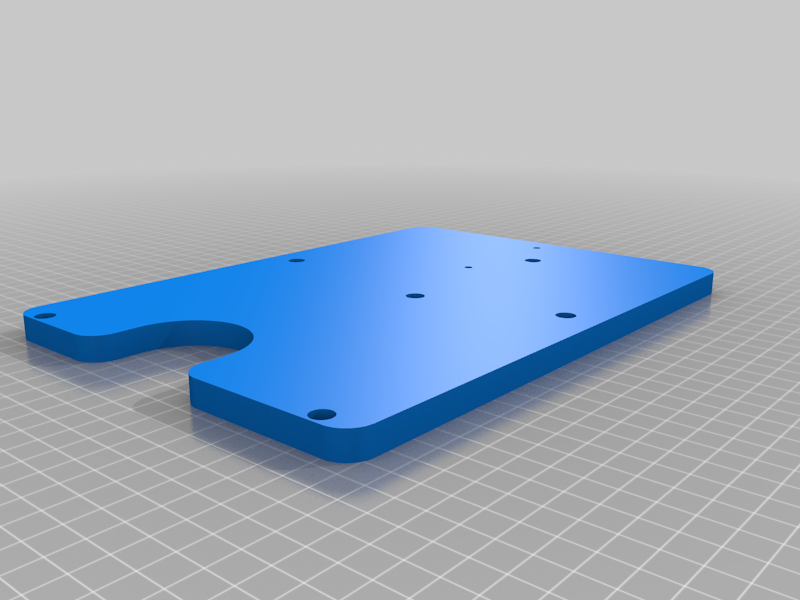

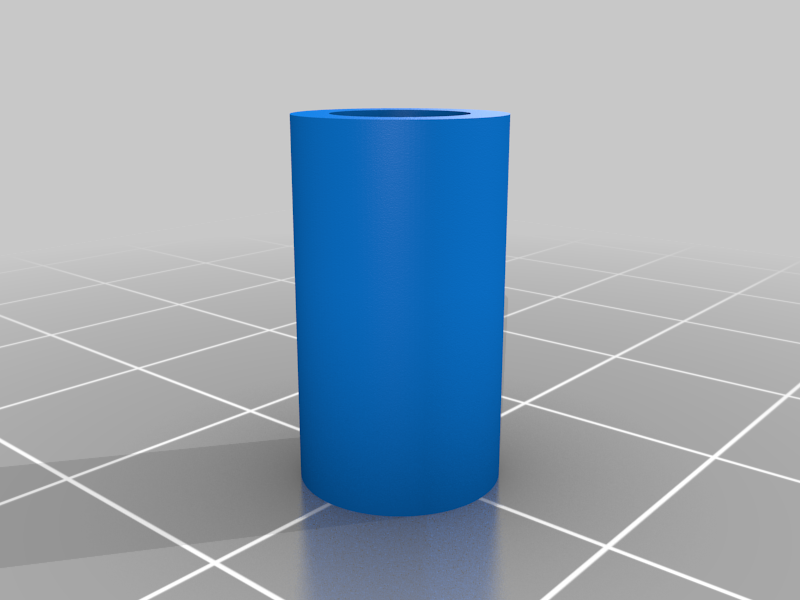

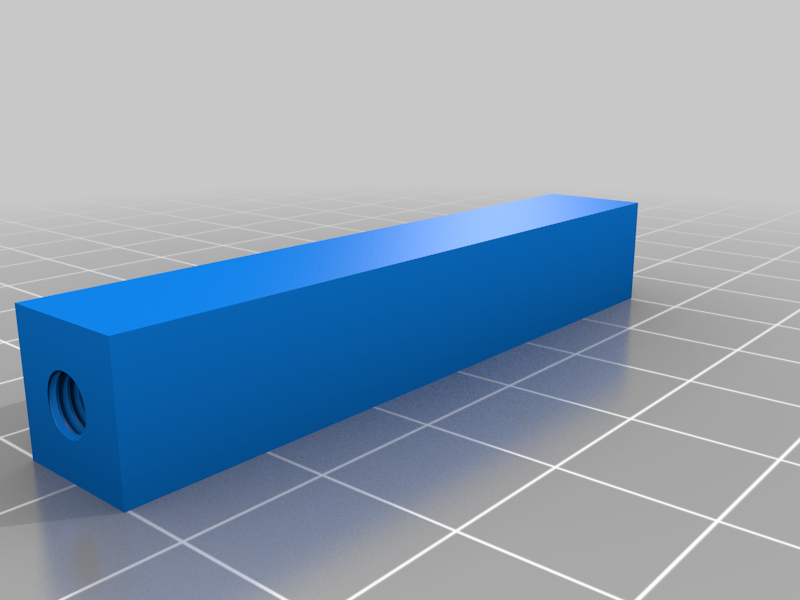

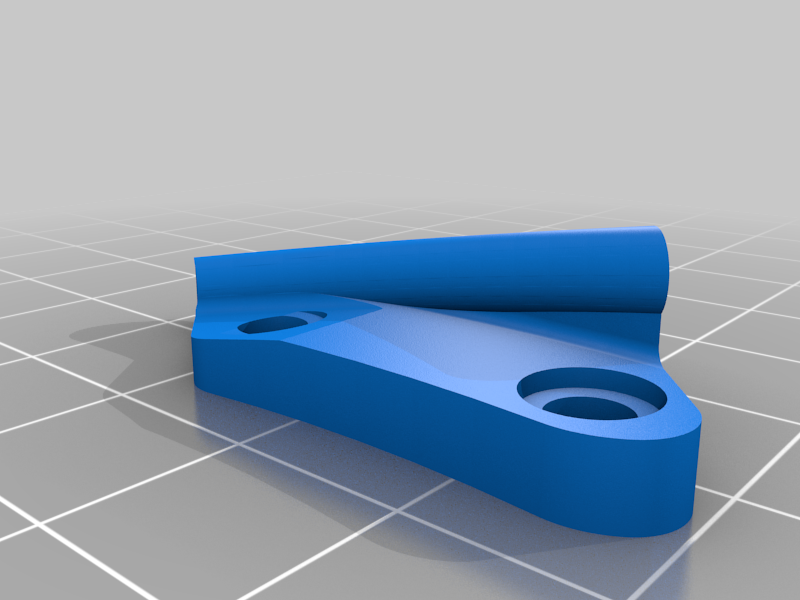

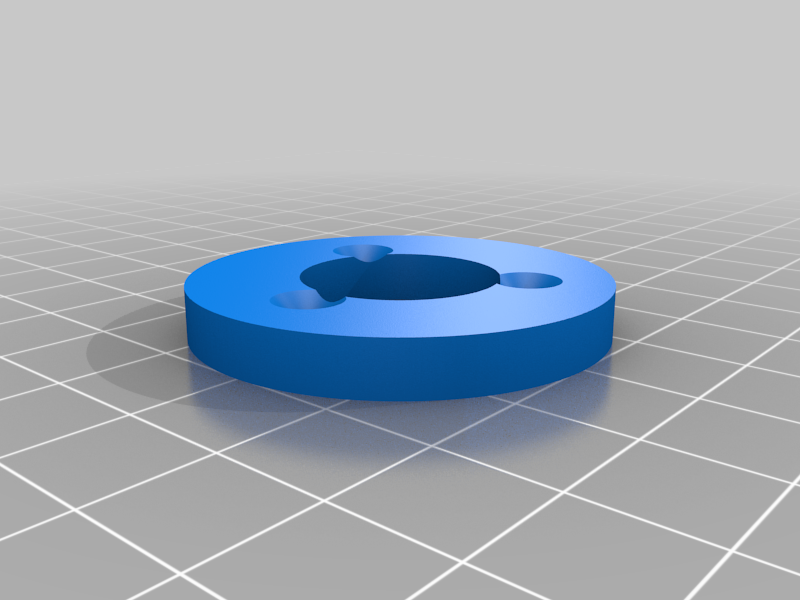

TWinderR_-_portacorona.stl 658.7 KB

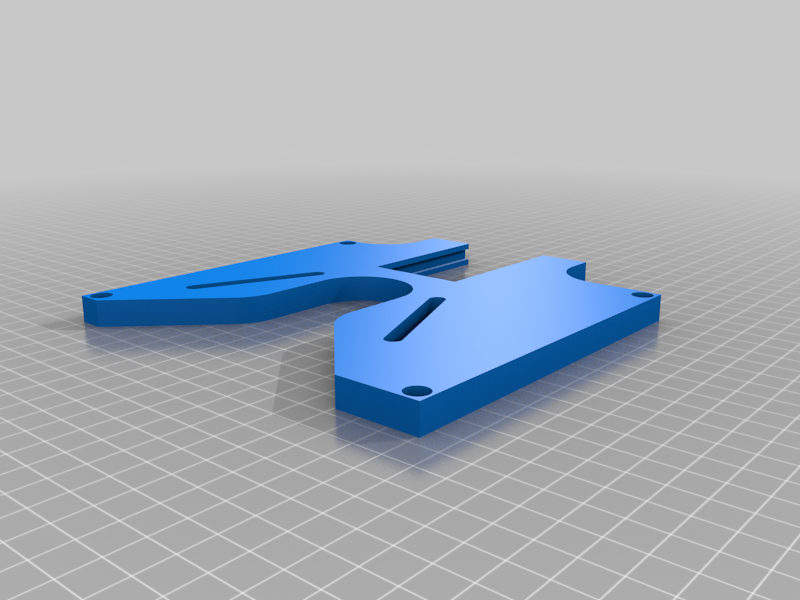

TWinderR_-_Base.stl 459 KB

TWinderR_-_mesatoroide.stl 384.5 KB

TWinderR_-_mesatoroidebarpie.stl 7.7 MB

TWinderR_-_mesatoroidebar.stl 2.5 MB

TWinderR_-_ruedam5.stl 1.5 MB

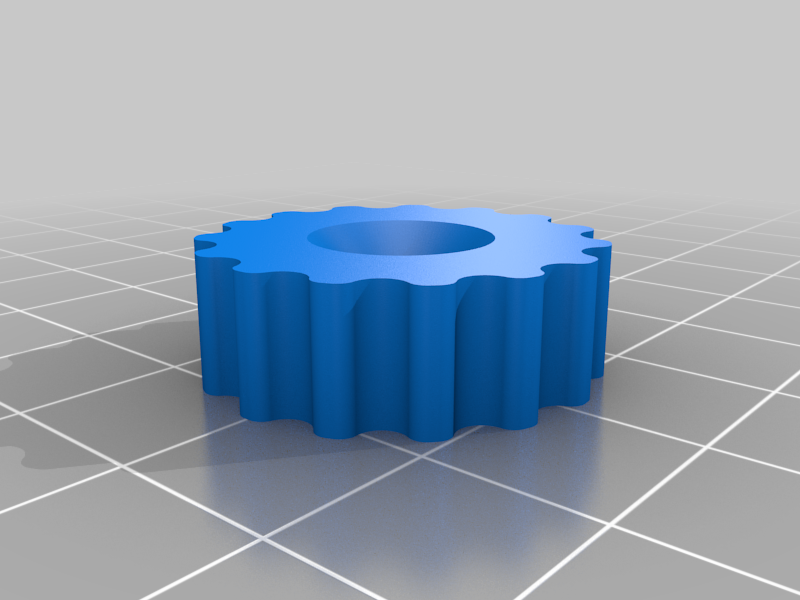

TWinderR_-_topscrew.stl 955.5 KB

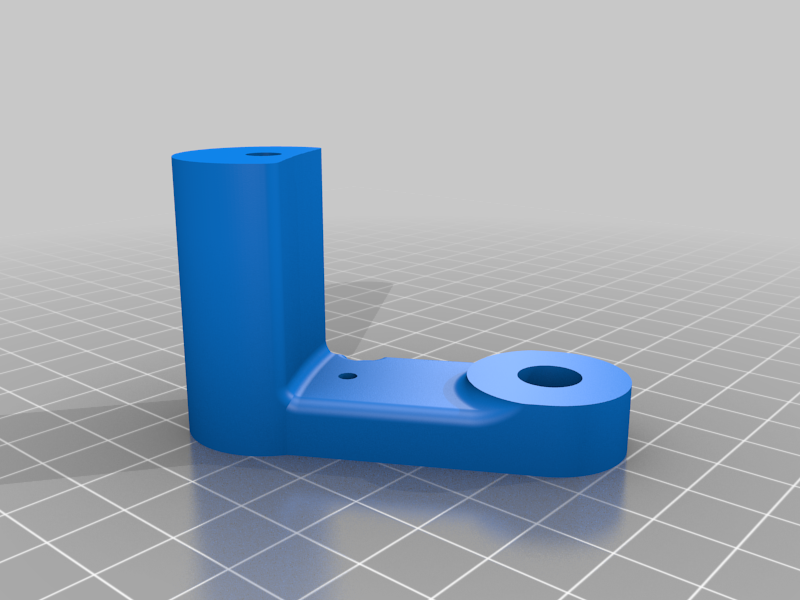

TWinderR_-_tensor.stl 660.1 KB

TWinderR_-_portatensor2.stl 3.2 MB

rodillos_-_topebajorodillomotor.stl 273.3 KB

rodillos_-_topebajorodillo.stl 187 KB

rodillos_-_casquillobajorodillo.stl 84.5 KB

rodillos_-_separadorrollerinner.stl 56.3 KB

TWinderR_-_casquillodesliza.stl 84.5 KB

TWinderR_-_separadorrodamientos.stl 56.3 KB

TWinderR_-_interiorcoronasplit.stl 496.2 KB

TWinderR_-_InteriorCorona.stl 2.1 MB

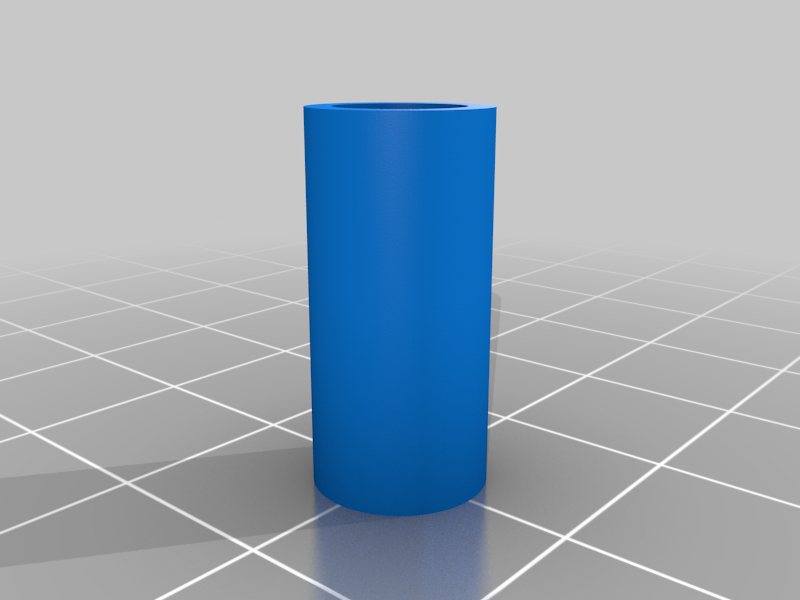

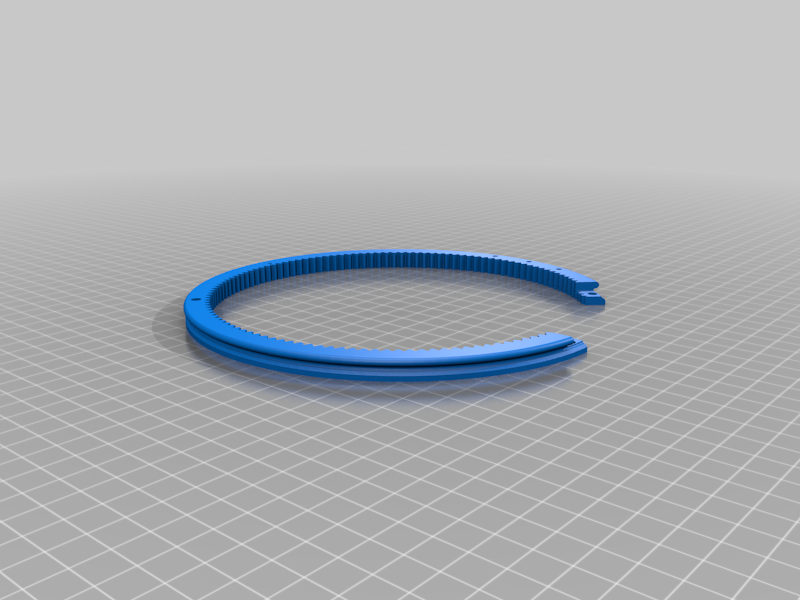

TWinderR_-_Coronabobina.stl 1.9 MB
