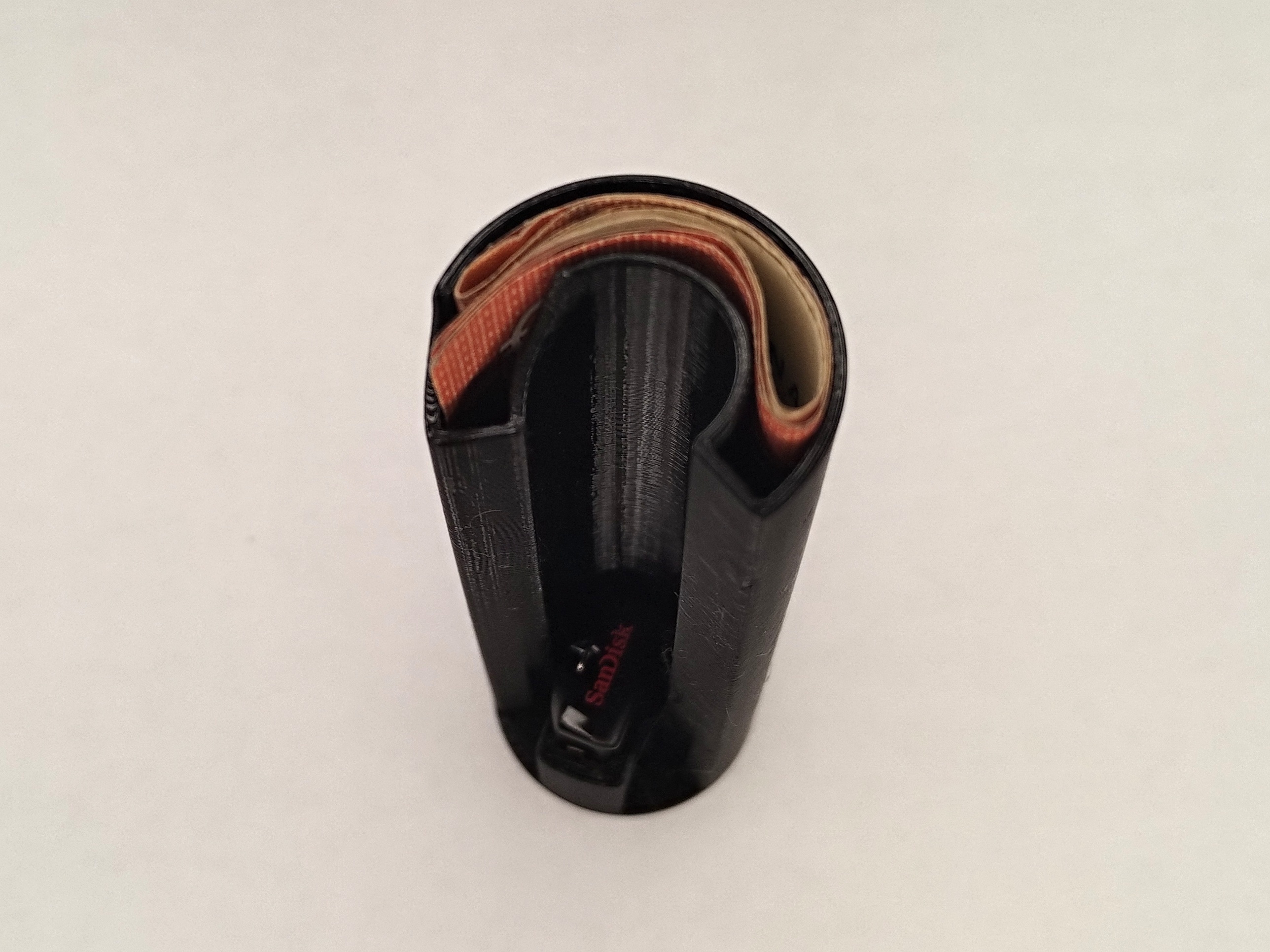

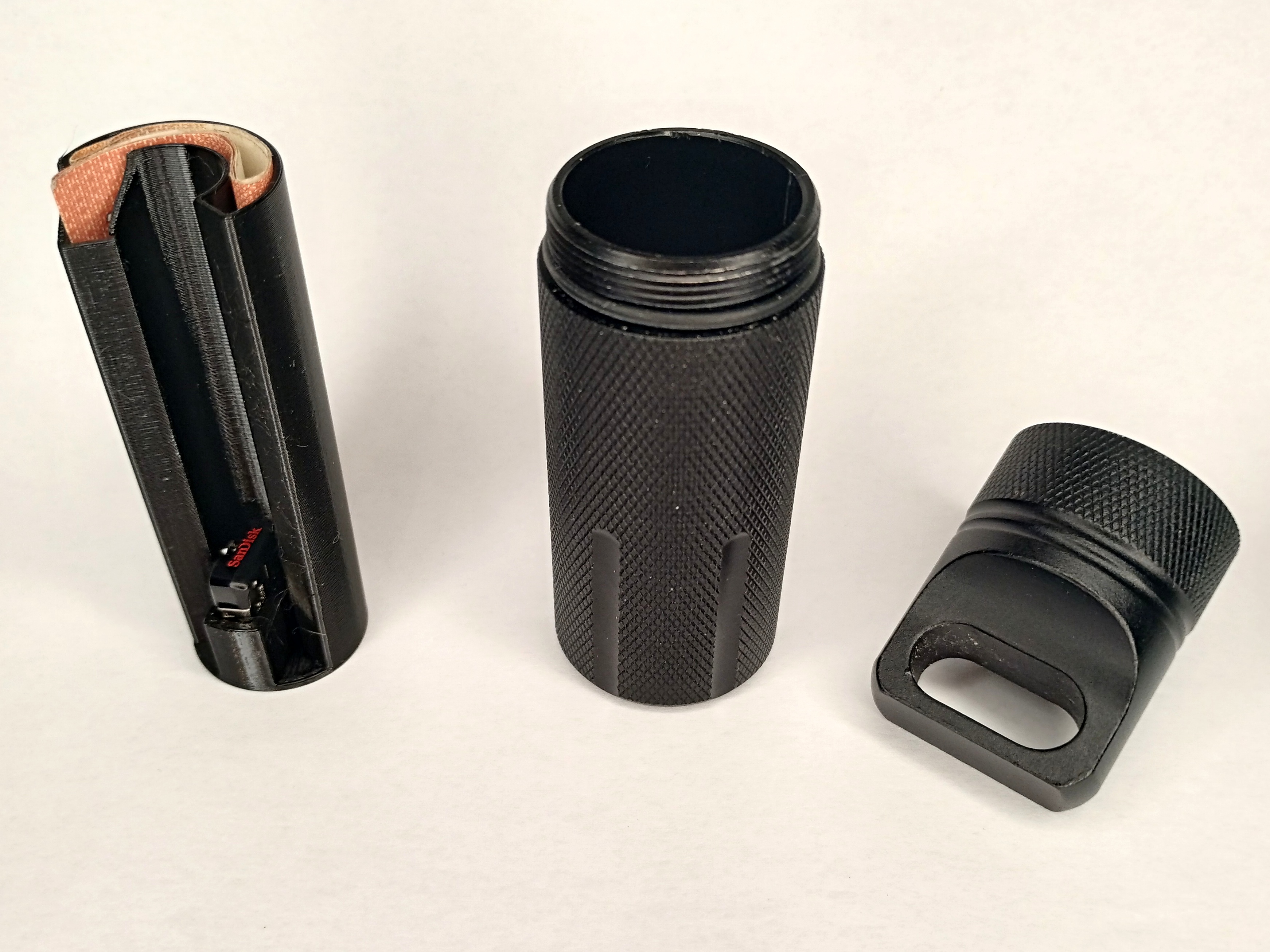

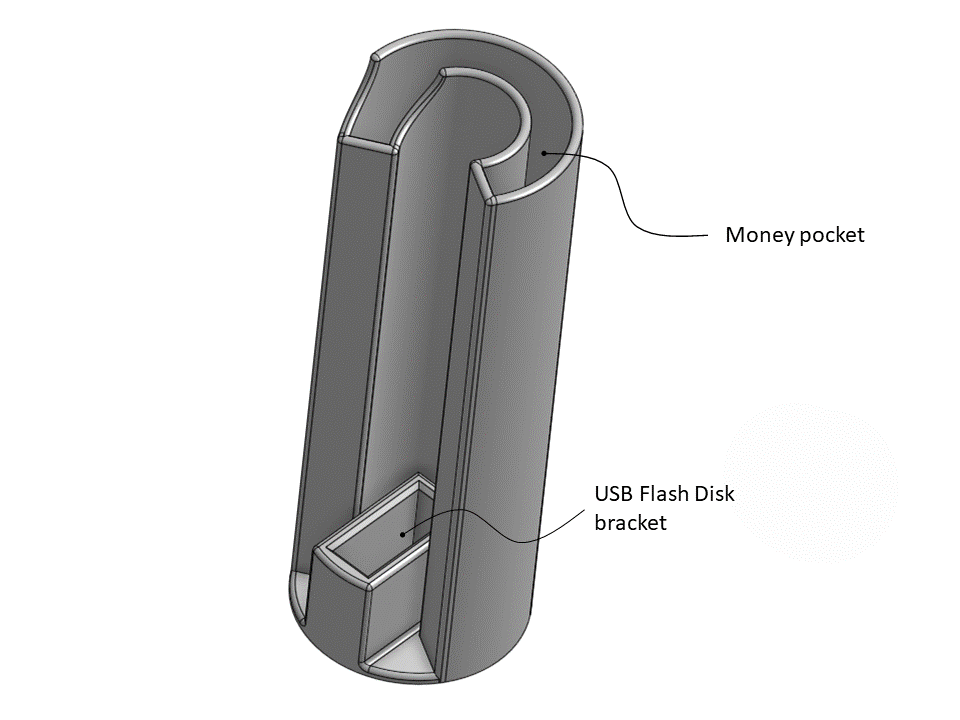

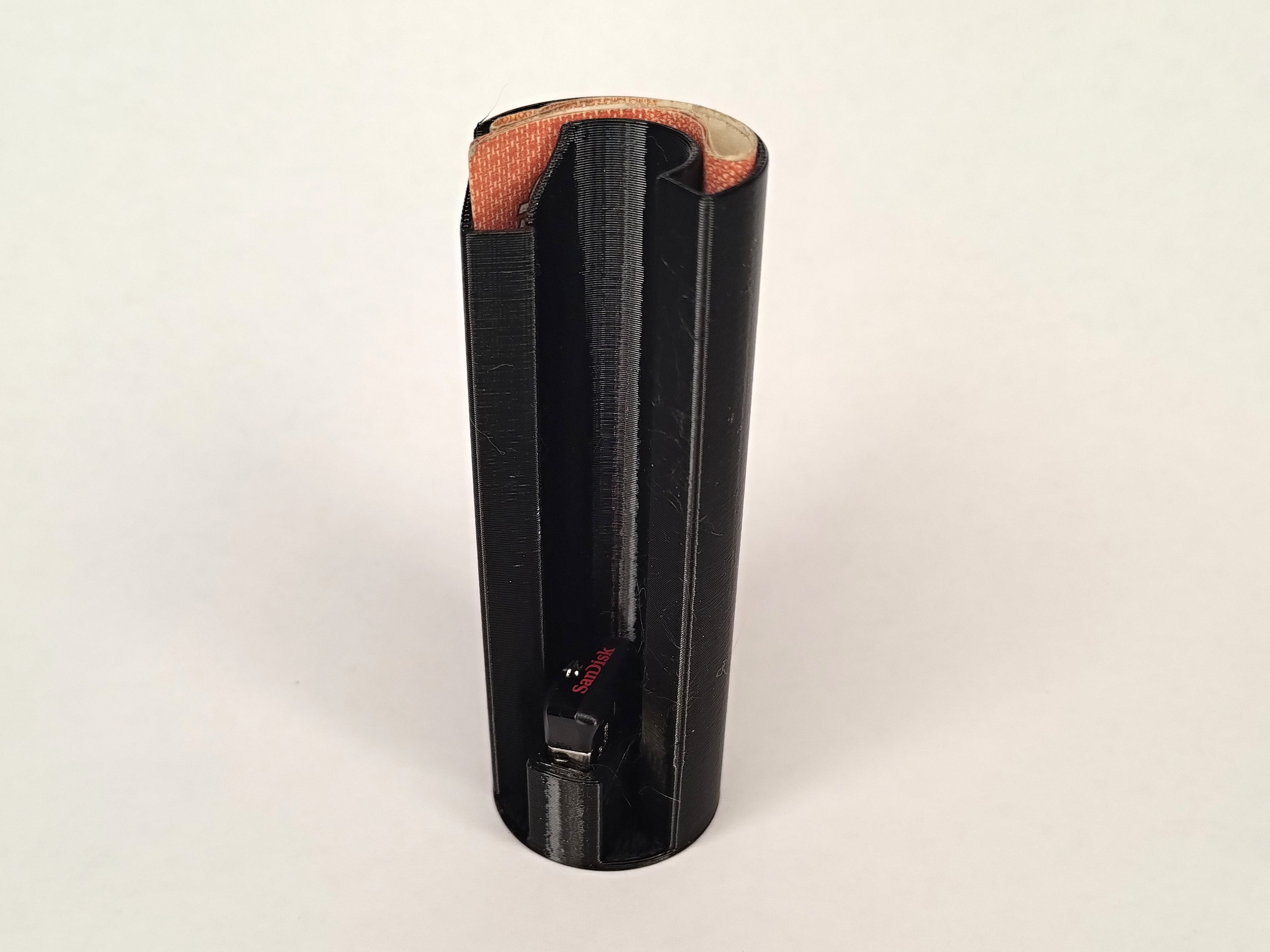

In many Chinese stores you can buy a cheap 100x30mm aluminium waterproof case, ideal as an EDC case. So, for better order in the case, I created a simple insert, intended primarily for better placement of banknotes and also a USB Flash Disk.

This model is tested for 100, 200 and 500 CZK banknotes and for 5 and 10 EUR banknotes.

Banknotes higher than 67mm unfortunately do not fit into the case without possible damage.

If you need to customize it for your currency, you can easily do so by changing the "banknote_height" variable in OnShape, link bellow. These are mainly banknotes with a smaller height.

If you don't dare, send me please a message and I'll be happy to change it for you.

Print instructions:

• Material: PETG
• Layer: 0,2
• Perimeters: 2
• Infill: 15%
• Supports: No
• Brim: No

This model does not require any special settings, more details in the attached 3MF file.

Part list:

Printed insert [x1]

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape. You can simply customize the model by changing variables.

OnShape Link

Update 2024/01/05:

Added "banknote height" variable to source model in OnShape, for easier customisation.

Note:

Please don't forget to leave a rating or a comment. I will be glad for any feedback, so I can correct any mistakes in the design. Thank you very much.

Print visions, create reality!
