Descrição

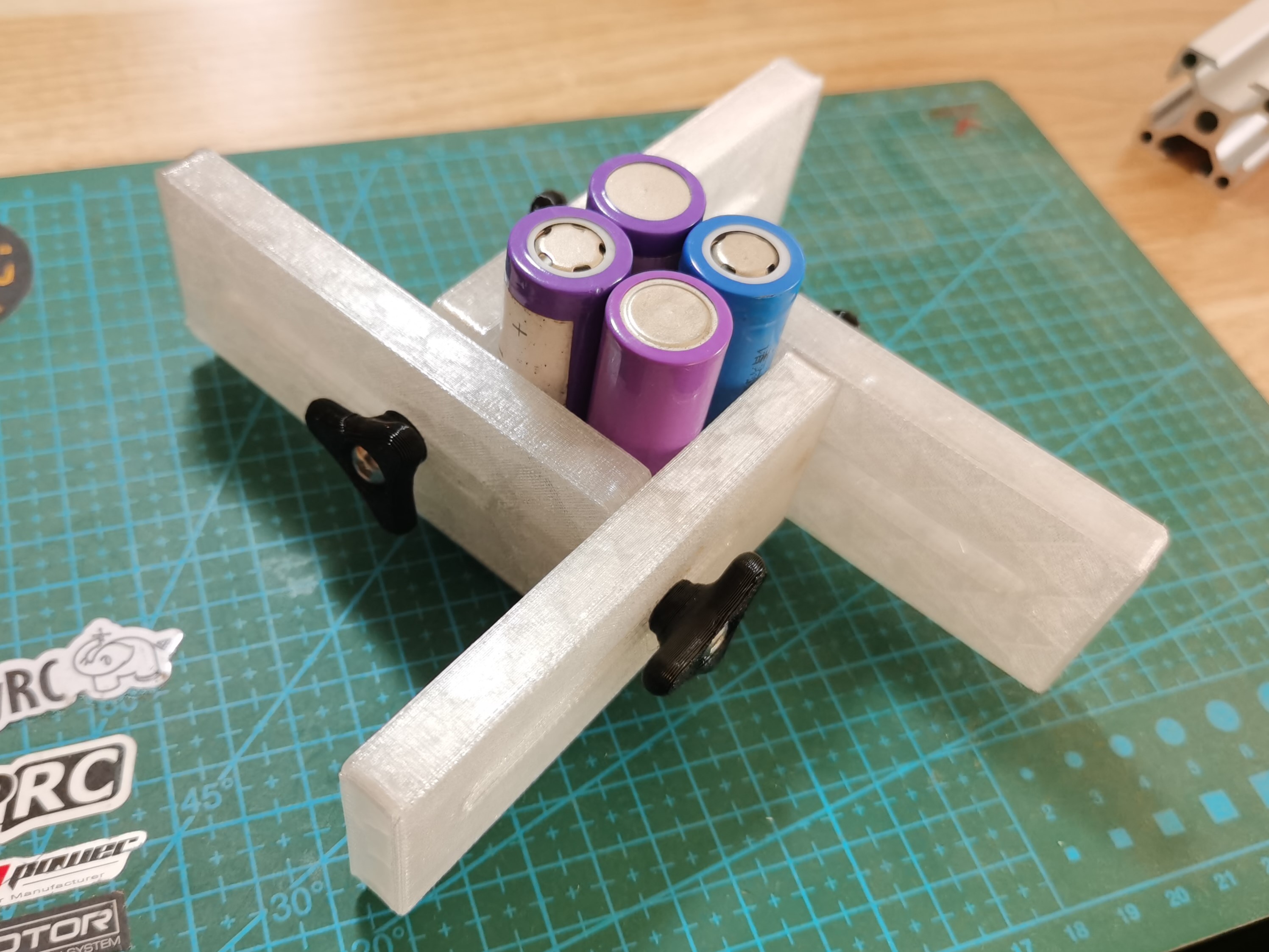

This model is designed as a clamp for spot welding lithium batteries.
You need to print four fixed plates and four knobs each.
In addition to printing the model, you also need to have the following items.
BOM:Eight M5*5*7 Heat Set Inserts
Eight M5 screws, 20mm,22cm or 25mm
There are STEP drawings in the file, which can be modified as needed.
81
Curtidas
497
Downloads
4
Impressões
Categoria
Electronics
Tags
18650
fixture
18650cell
welding
21700
fixation
21700battery
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (5)
fixture board.STL
48.2 KB
knob.STL
449.3 KB
fixture board.STEP
100.1 KB
knob.STEP
252.4 KB
assembly-body.STEP
617.7 KB
