Descrição

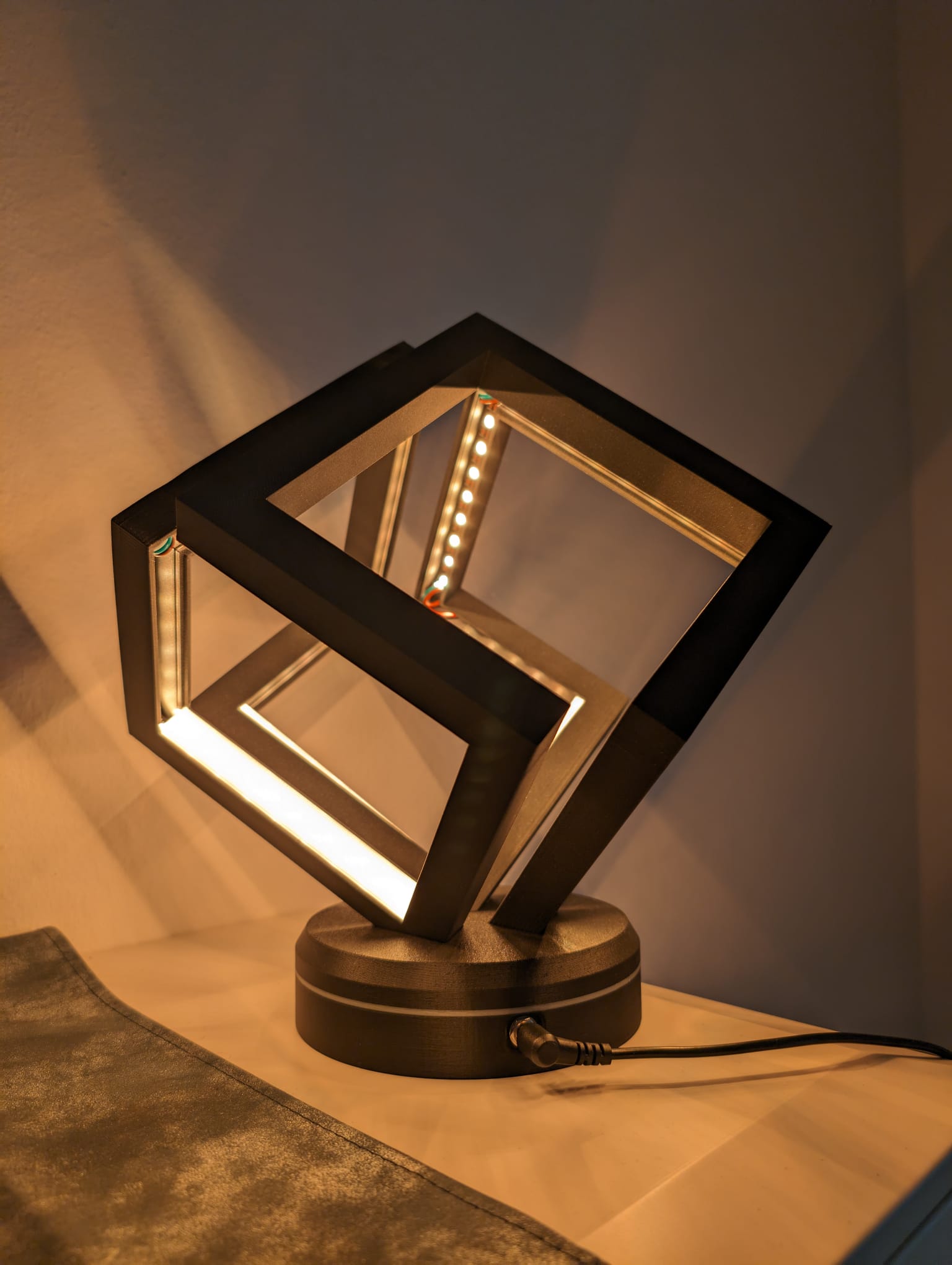

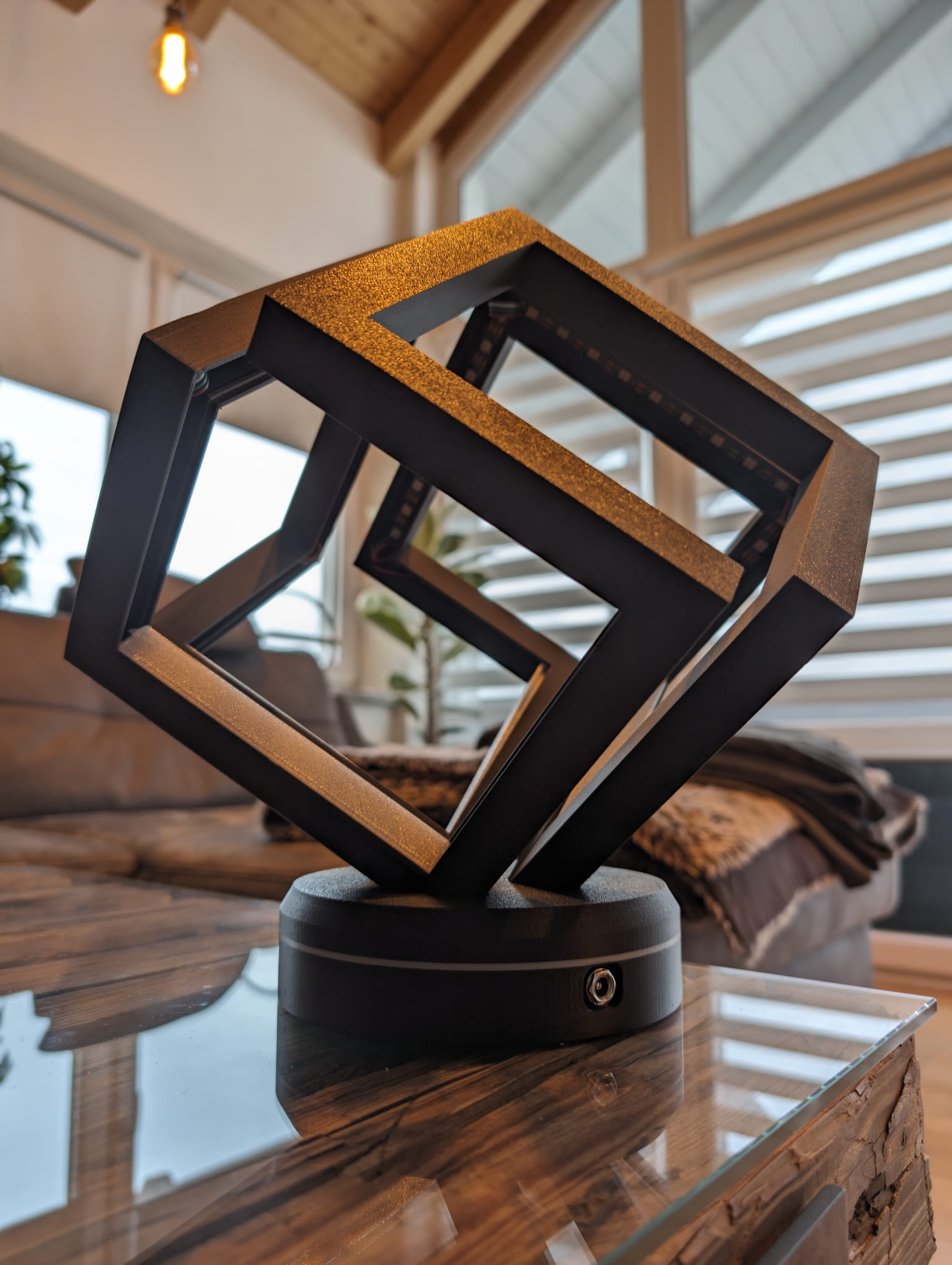

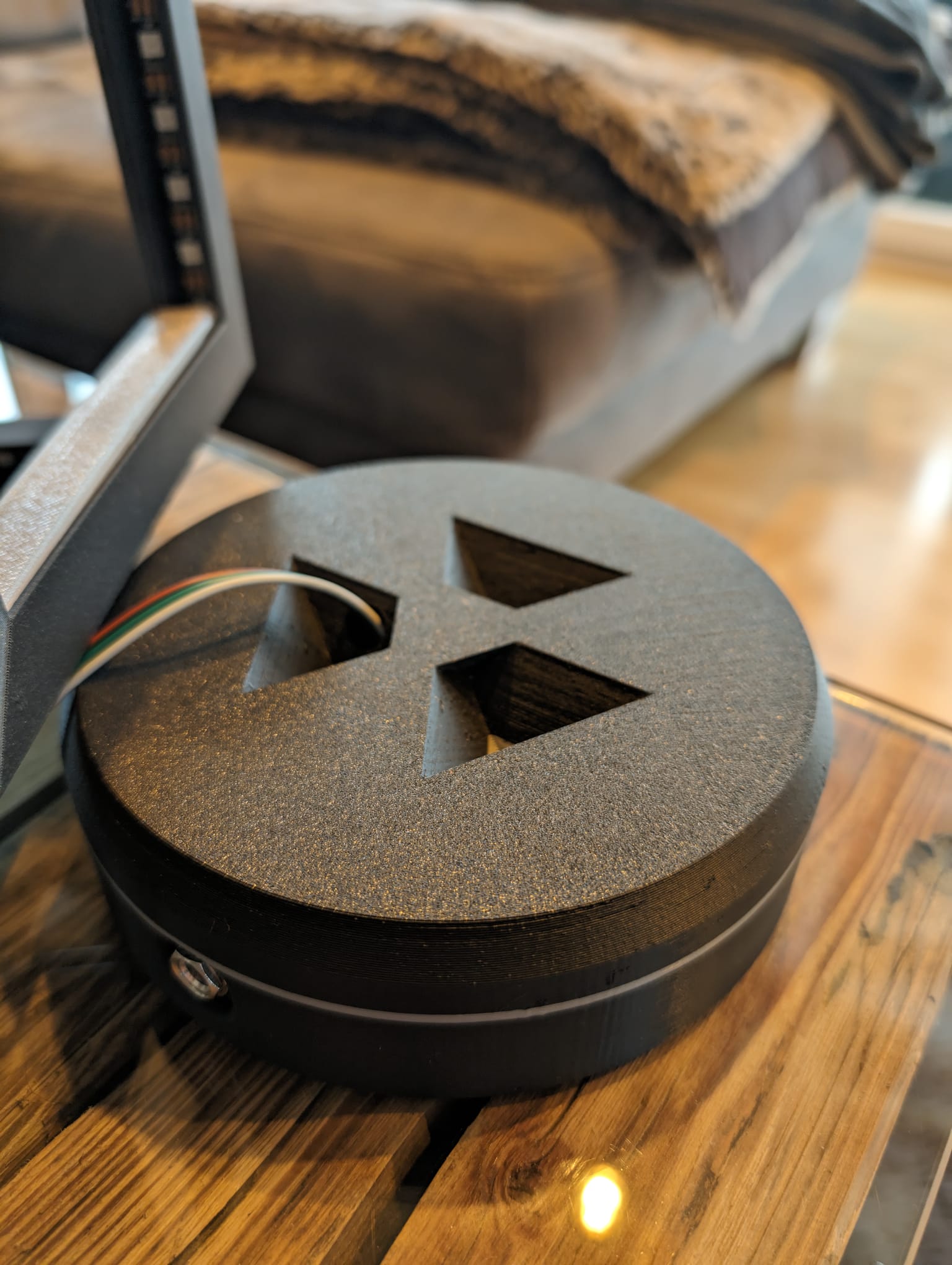

A base for the Infinity Cube Lamp (i used the Snap-fit Infinity Cube Light (No Glue)
von DieselRabbit) and WEMOS D1 mini.

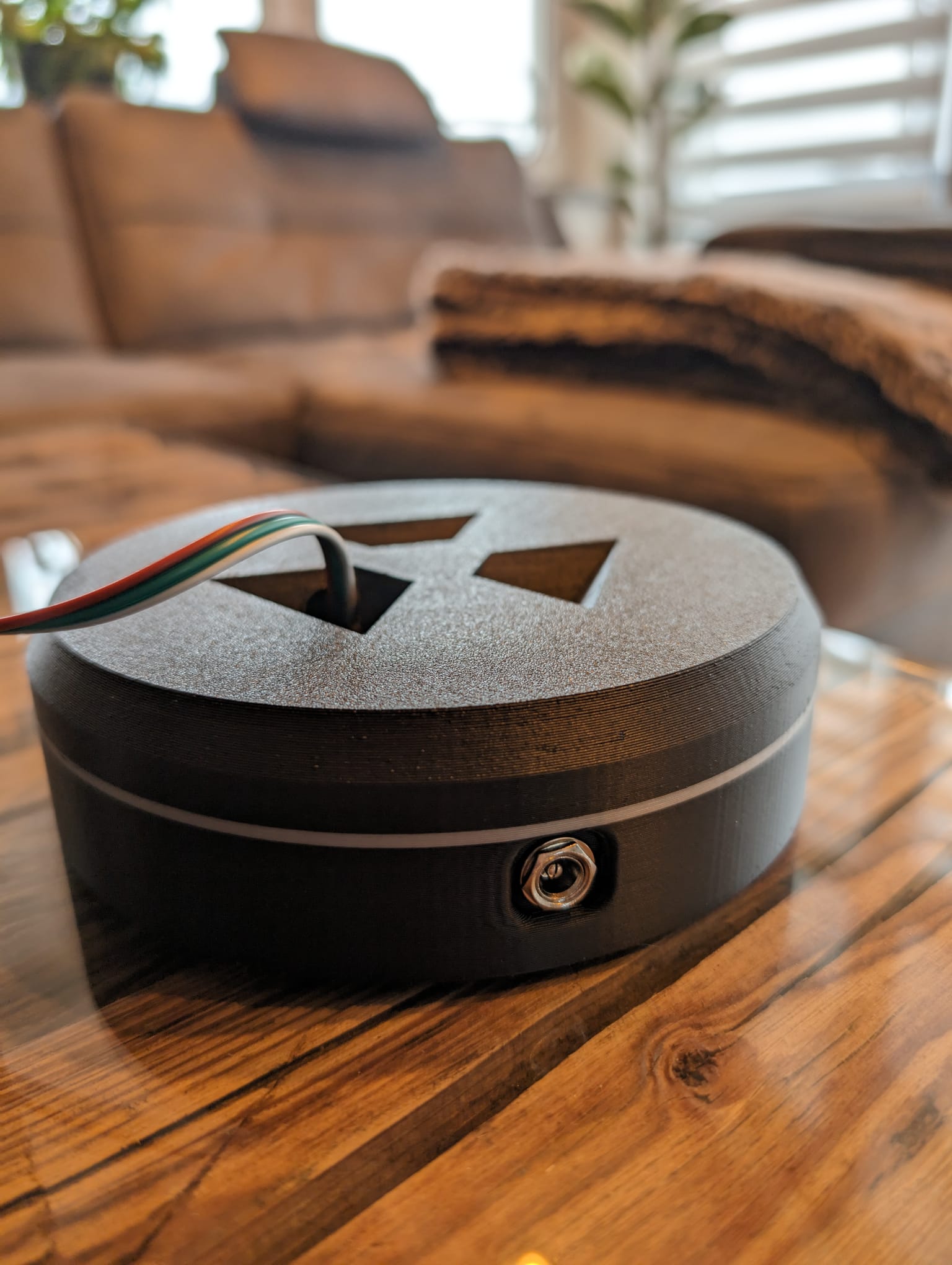

I implemented a 5V connector because my lamp has 156 LED, which needs approx. 50W for full brightness. Which equals in 10A. The max. power output of the controller is 850mW/1W.
For full brightness you have to adjust the maximum current value in the wled interface.

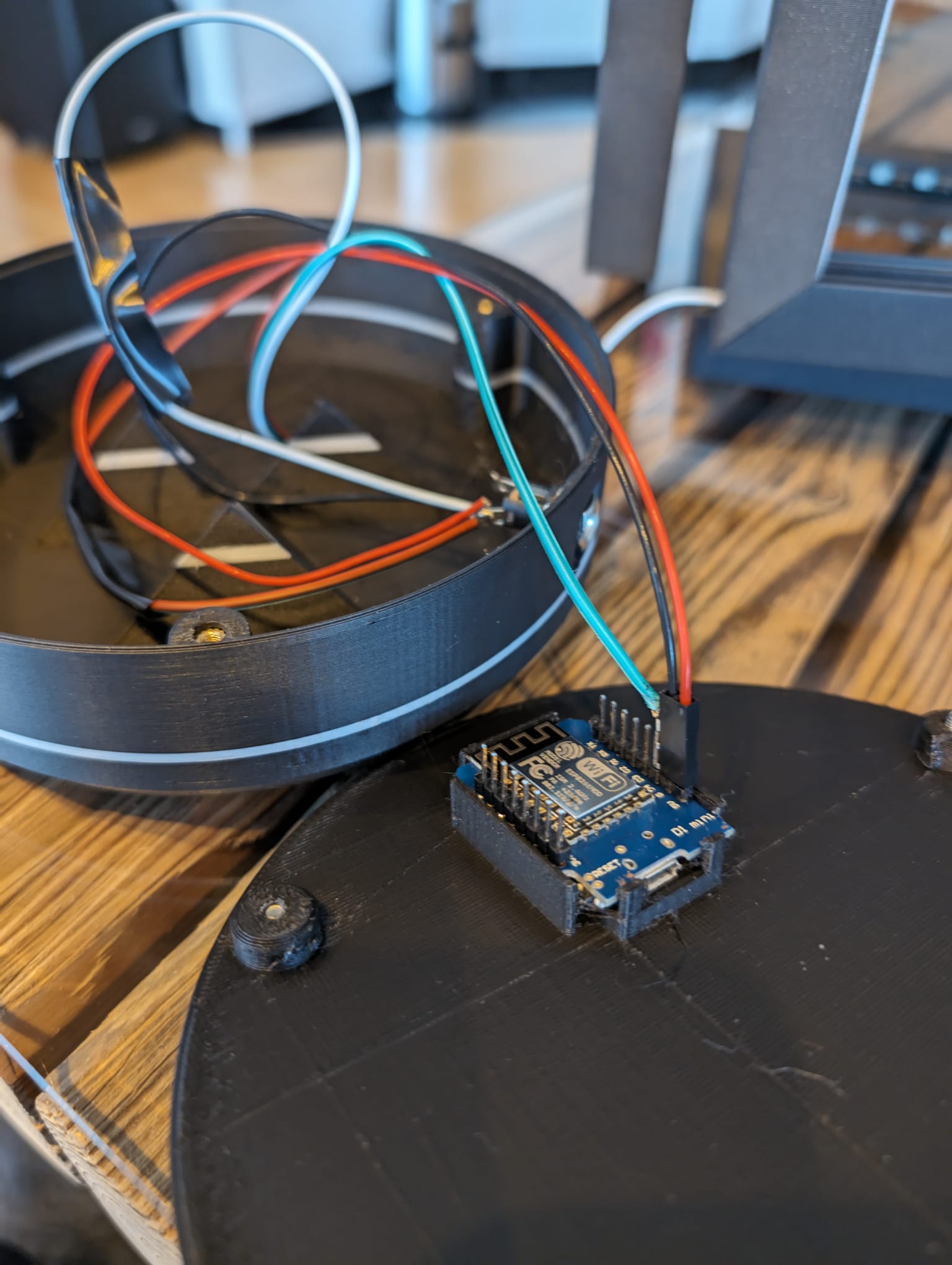

The controller is a Wemos D1 mini, which you can place onto the Bottom Part of the base.

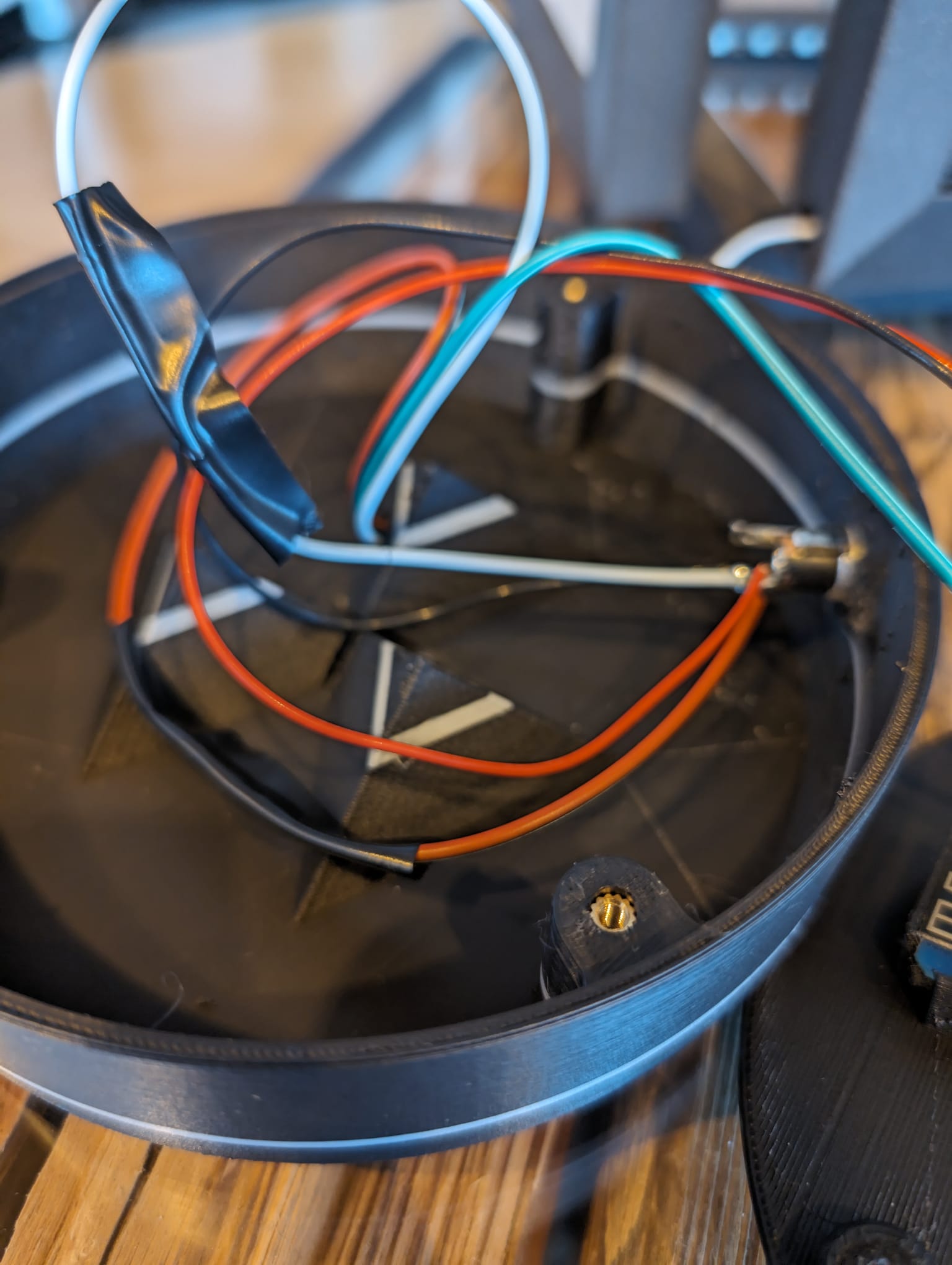

The base is screwed together with 3 M3x16 screws. Inside of the box there are M3 heated inserts.
I also added the .f3d file if you want to change something. Or write a comment i can remix it :)
Infinity Cube Light Flat Electronic Base
Publicado em 28 de dez de 2023
