Modelo 3D Orange Pi Zero 3 Case por Gerber no Printables

Descrição

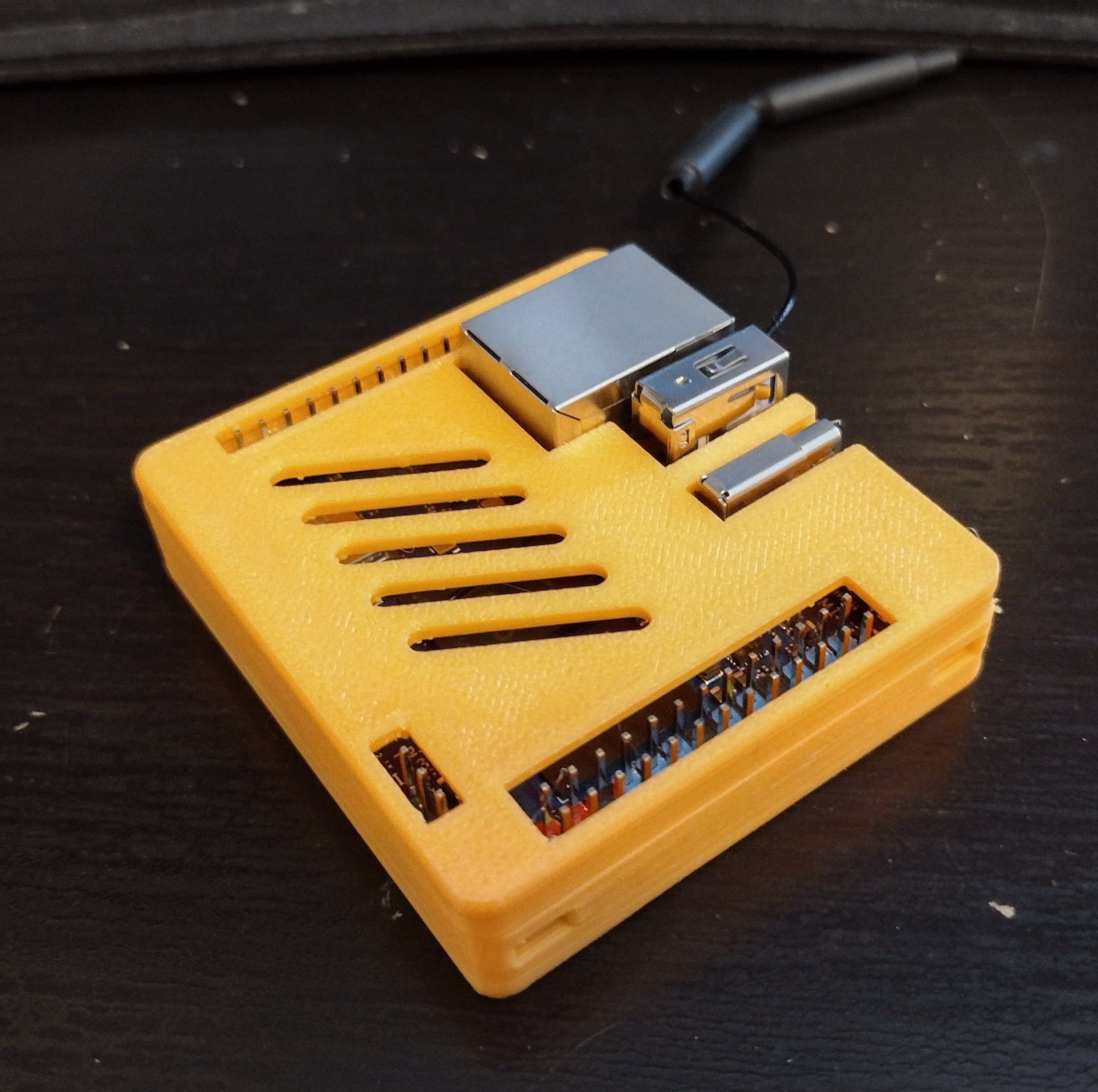

his is a slim case that requires no screws for assembly. In fact, the clips on my printed version were so tight that I believe they are 'forever'.

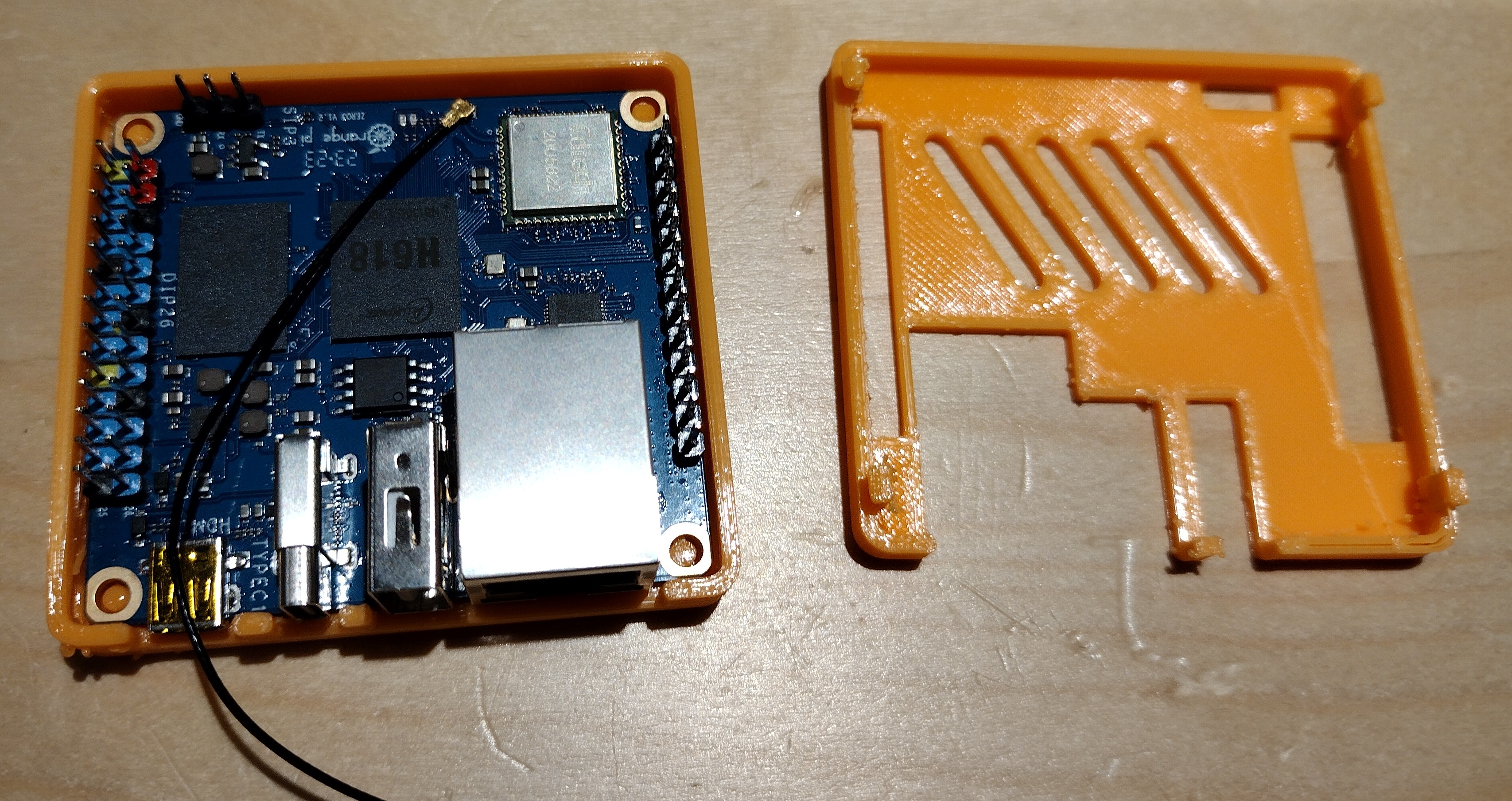

Added some vents for heat, and I routed my antenna cable between the RJ-45 and USB ports. Wouldn't be difficult to disconnect the antenna and push it through a vent if desired.

Printing requires no supports, just place the flat side of each half on the print bed. To assembly, carefully guide the 4 clips to their slots.

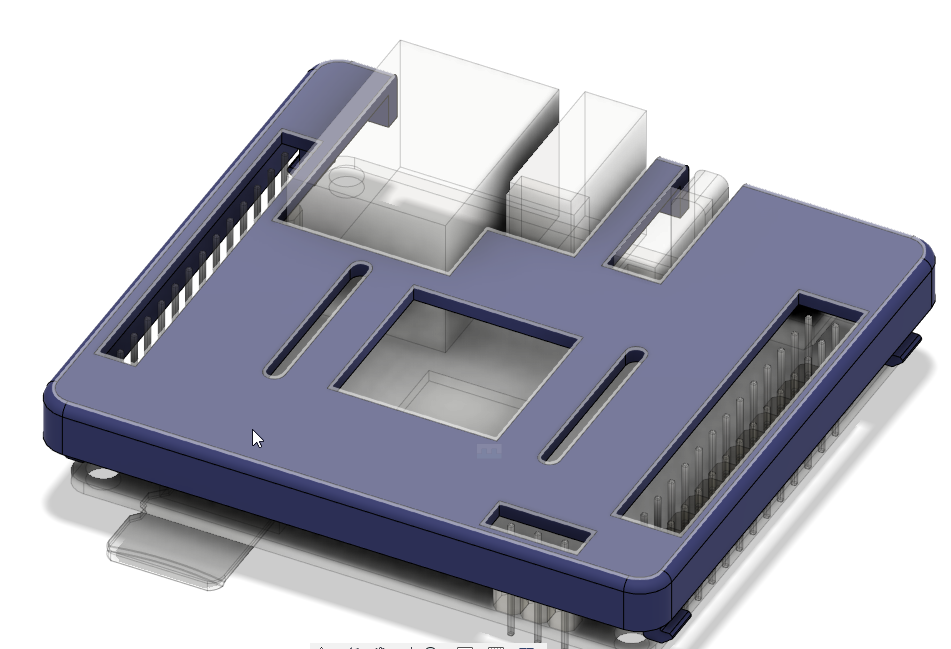

Update 08-23-2023 - added a version of the case top with a 16x16mm heatsink opening

Printables

Orange Pi Zero 3 Case

Publicado em 27 de dez de 2023

47
Curtidas
412
Downloads
3
Impressões
Categoria Electronics
Tags
orangepi
Licença Creative Commons — Attribution
Arquivos (4)
OpiZ3CaseTopHeatsink.stl 90.4 KB
OpiZ3CaseBottom.stl 114.5 KB
OpiZ3CaseTop.stl 112.7 KB
OrangePiZero3Case.step 3.1 MB
