Warning:

This is a very old model I created in 2016 and imported from my Thingyverse profile ([https://www.thingiverse.com/TheZerschmetterling](https://www.thingiverse.com/TheZerschmetterling)). Maybe some links are broken or not up to date. If you have any questions do not hesistate to ask.

Summary

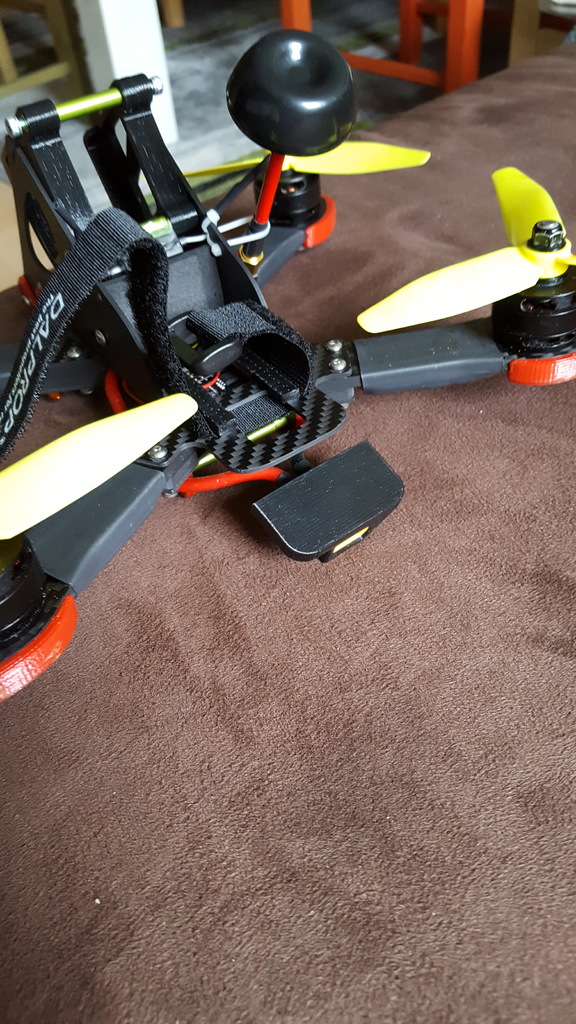

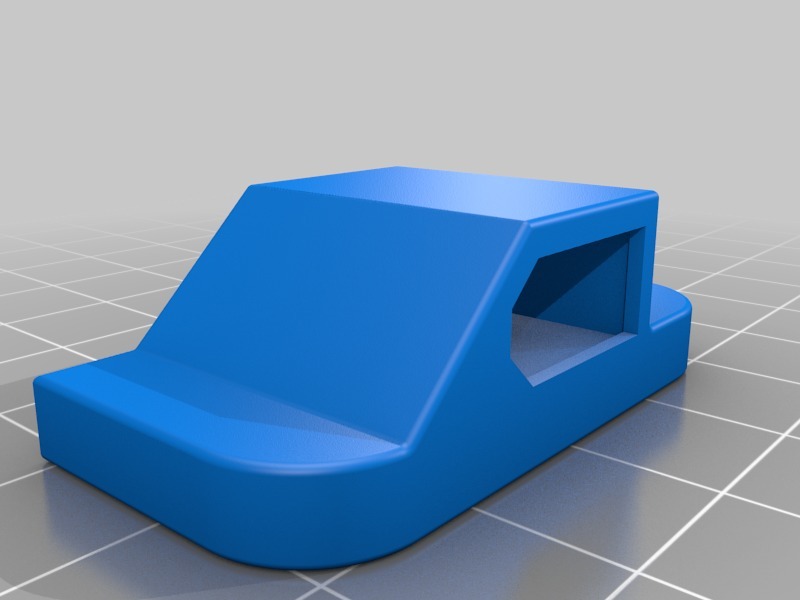

This is a XT60 mount for the Shendrones Corgi.

Good to know:

• It is designed to be printed in flexible material!
• The plug may already be soldered!
• It needs to be printed in flexible material to fit inside otherwise it won't because the mold is smaller then the plug.
• You can use the top side as an anti-slip mat

How to print flexible material:

• There is a Bambu Guide on how to print TPU, i recommend reading this:
  [https://wiki.bambulab.com/en/knowledge-sharing/tpu-printing-guide](https://wiki.bambulab.com/en/knowledge-sharing/tpu-printing-guide)
• DO NOT USE AN AMS TO PRINT TPU if its not TPU with a hardness of 77D or 55D!
• You can print on a Cool plate, PLA plate, engineering plate, high-temperature plate or textured PEI plate, just make sure the temperature is low (30°-35°).
• Use a 0.4 Nozzle.

How to mount it to the Frame:

1. Just pull your XT60 inside the flex mount from behind.
2. There is a 1mm edge on the frontside of the mount to hold the plug in position while connecting or disconnecting a lipo
3. Now just slide the mount over the bottom plate of the battery tray. Because it is flex it should fit and sit tight!
