Kallax Drawer - Lock Pack

Design by R_vdk

A lock for my ‘too-curious-to-care’ toddler

Got a very nosy toddler, so long story short:

• Simple turning locks for Kallax drawer system
• Prevents opening the drawers without turning the lock first

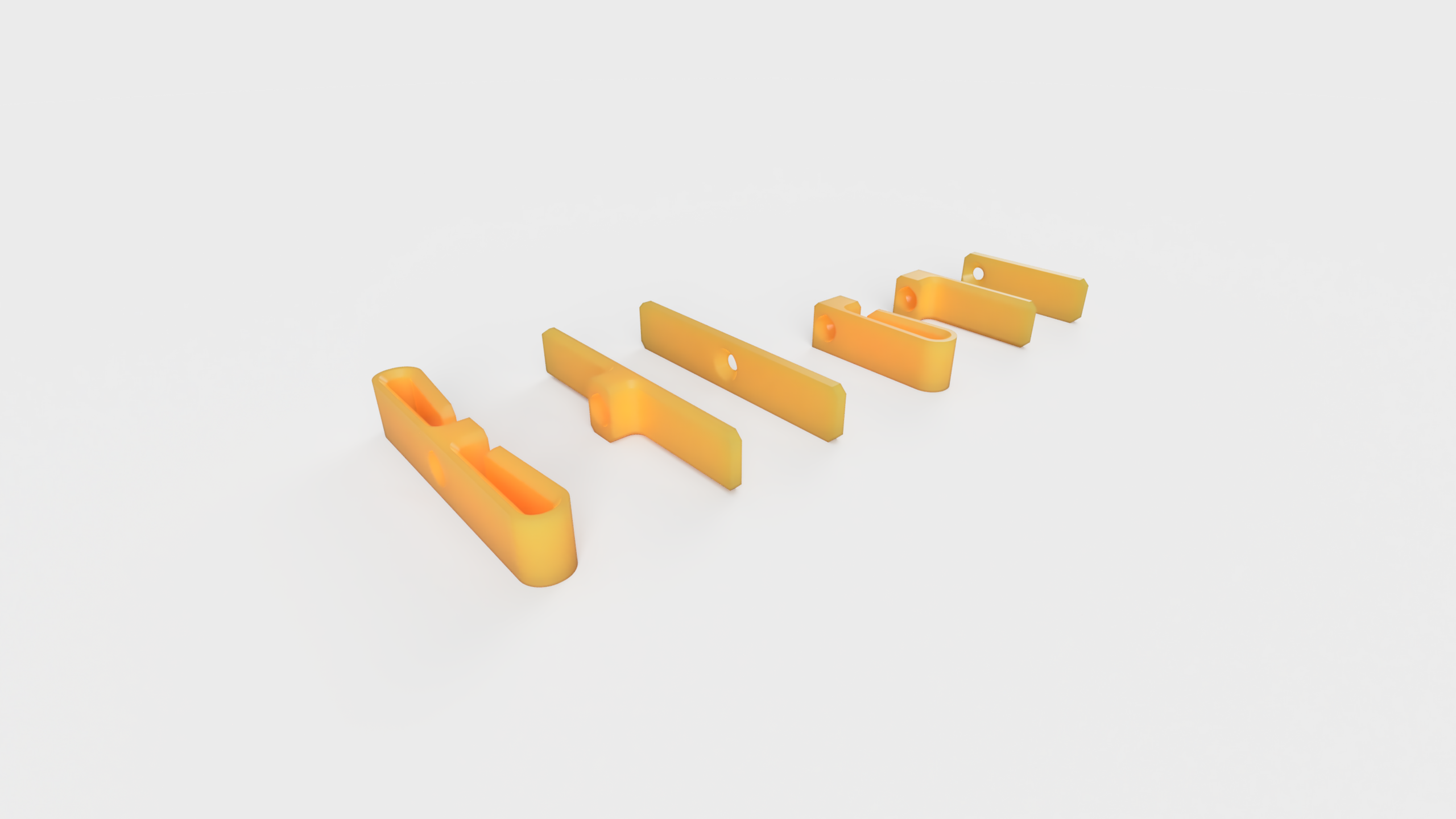

• Multiple versions
  • ‘Dampened’ Range: integrated dampening system to soften the impact when useing with the lock closed
  • ‘Not Dampened’ Range: do integreted damper, simple lock with handle
  • ‘Stealth’ Range: slim, sleak design with most minimalistic impact
• Double and single sided use
• Multiple srechole dimensions so you can use what you have laying around

Installing instructions

• Search for some wood-screws you have laying around (preferrably countersunk between 3 & 5 mm diameter)
• Download preferred locks (off course ;) )
• Measure center of the Kallax vertical wall in relation to the specific drawer (or where you cant to, really)
• Remember to always pre-drill your wood to avoid splitting it!

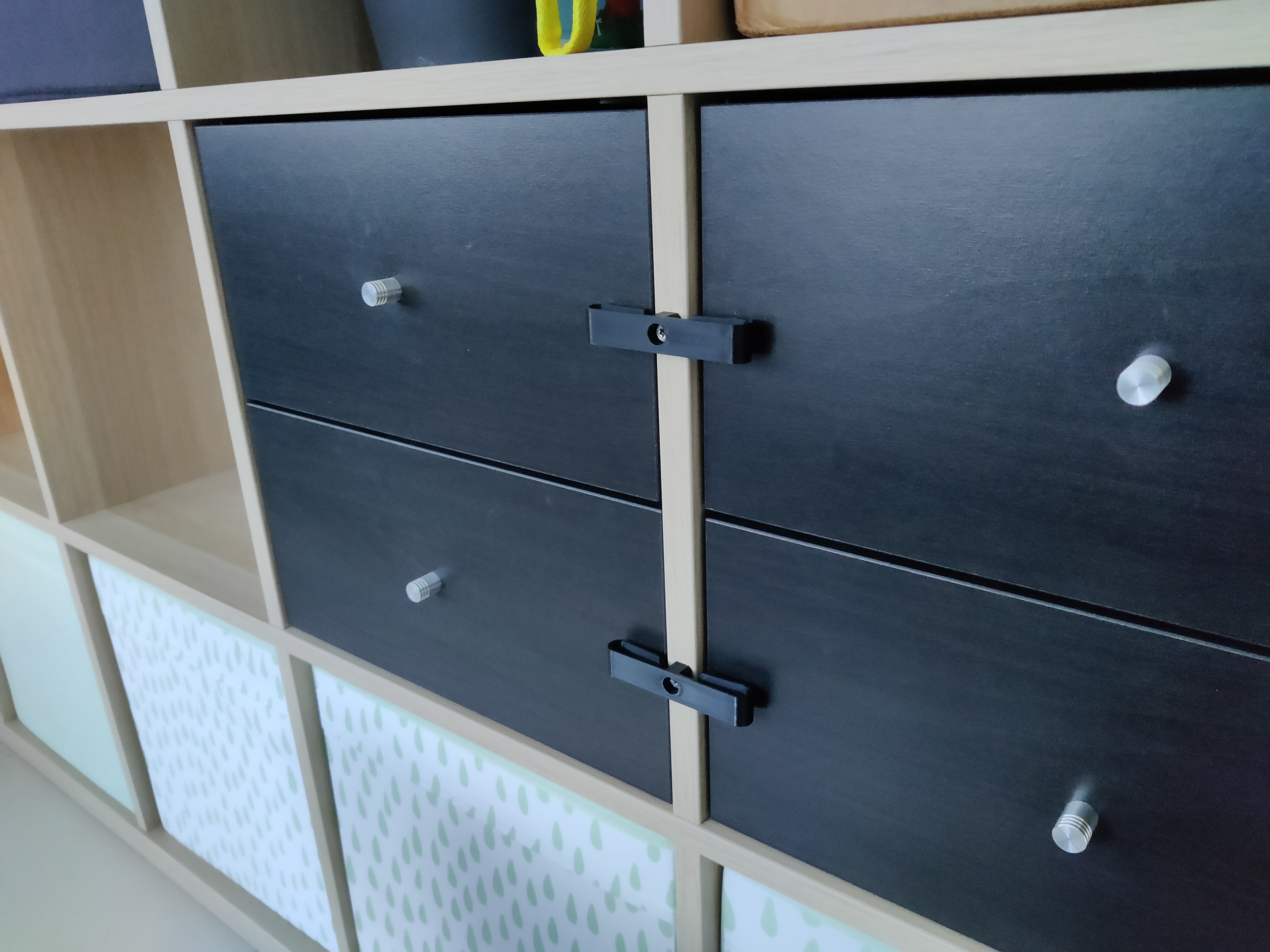

• screw in your screw into the wall with the lock in between

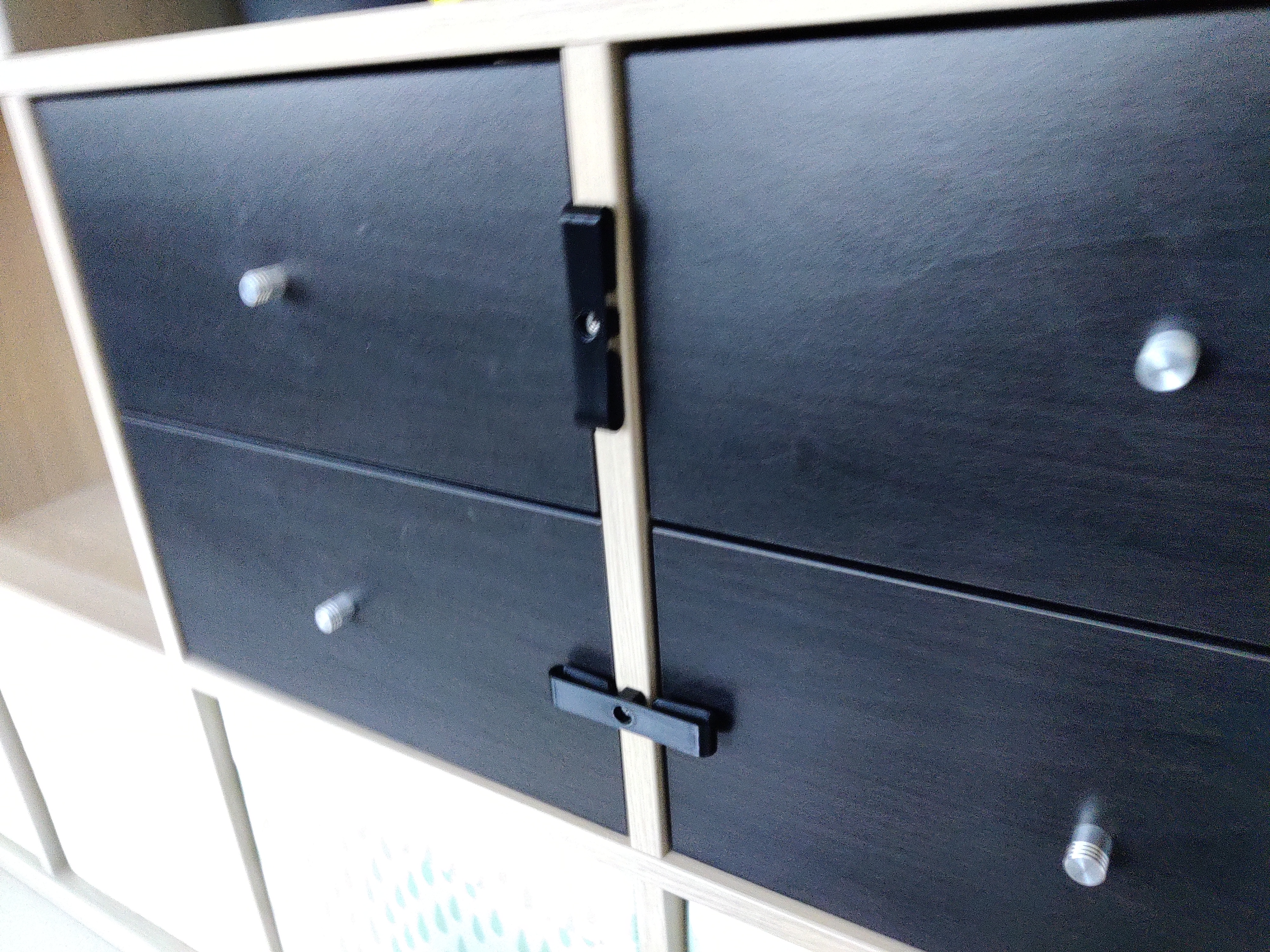

• Screw it in as tight or loose as you like, increasing or decerasing difficulty of opening the lock.

Features

• Easy to print without any support;
• Holes designed for ideal printing with minimal geometry loss;;
• Chamfered sides to eliminate sharp edges;
• Countersunk holes for better force transfer;
• Multiple sizes of screw holes available;
• Double and single sided versions;

Download file legend

• First digit - Double or single sided lock (D, S)
• Second Digit - Damper, No Damper or stealth (D, ND, S)
• Third Digit - Diameter of hole in mm (3, 4, 5)

For example, a double sided dampened lock with a 4mm hole has the following name: “D - D - 4”

Printer settings used for samples – Prusa Mini+
