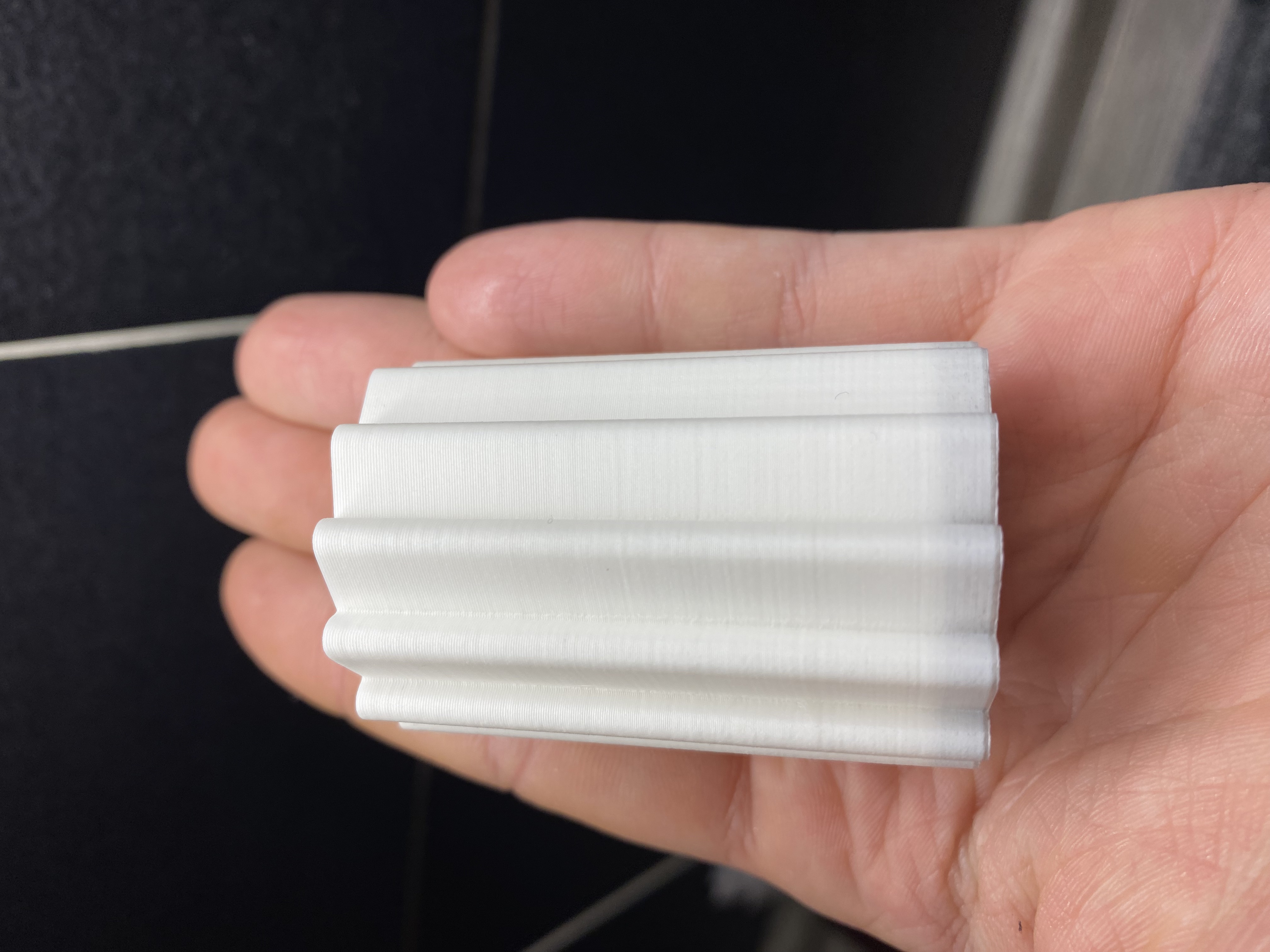

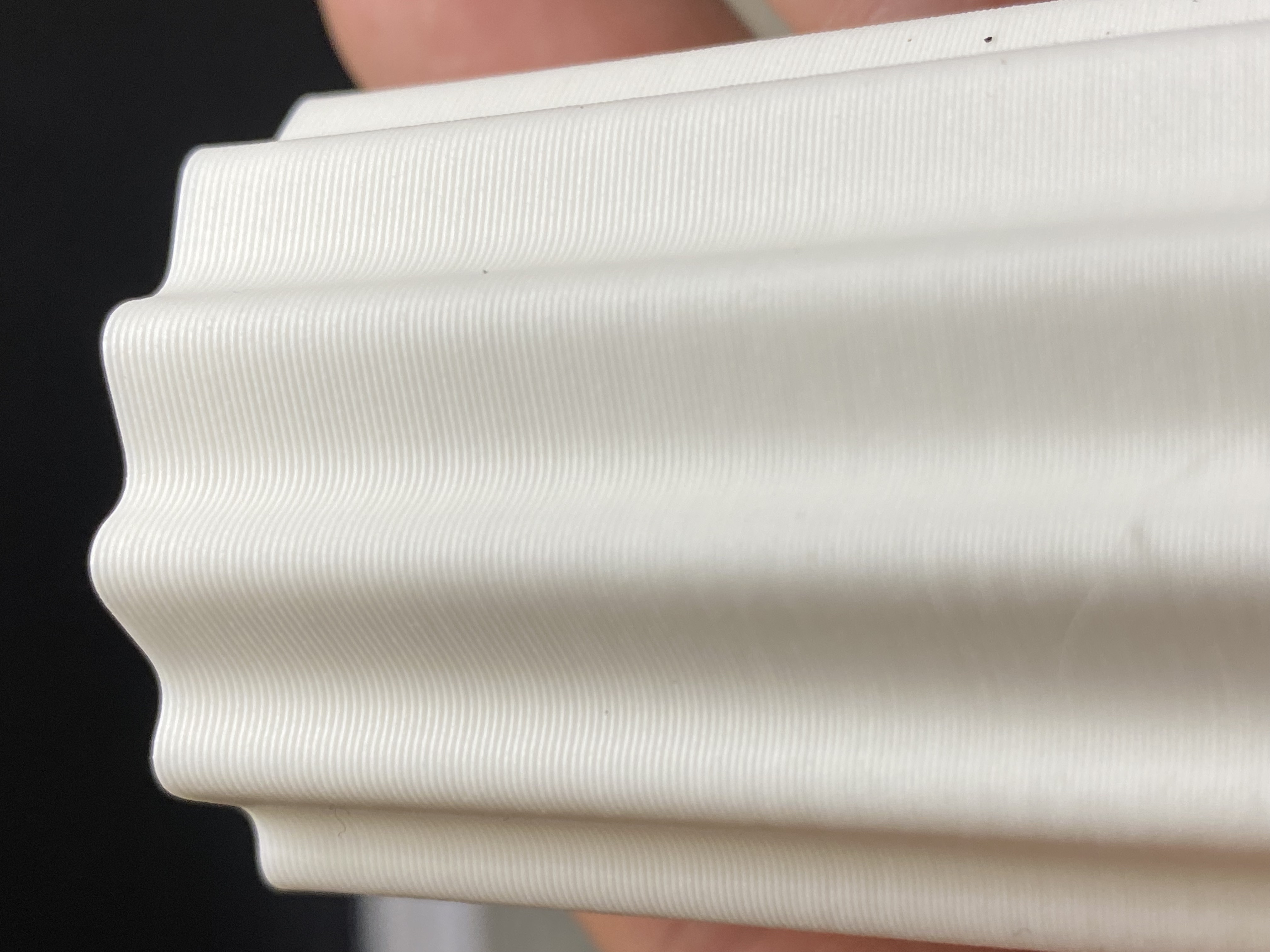

Here are some test models to visualize different layer heights using 5mm steps.

The layer height increases by 0.02mm per 5mm step using the height range modifier.

Outter and inner wall speeds were set to 80mm/s (0.4 Nozzle), but feel free to use any other speeds.

There are two raw model files included, so feel free to use the files for more ideas like testing fuzzy skin settings or so.

Ill edit this post to share more height ranges and tests soon…

-Useful Informations-

0.08-0.28mm was designed for Bambu Lab 0.4mm Nozzles.

0.12-0.42mm was designed for Bambu Lab 0.6mm Nozzles

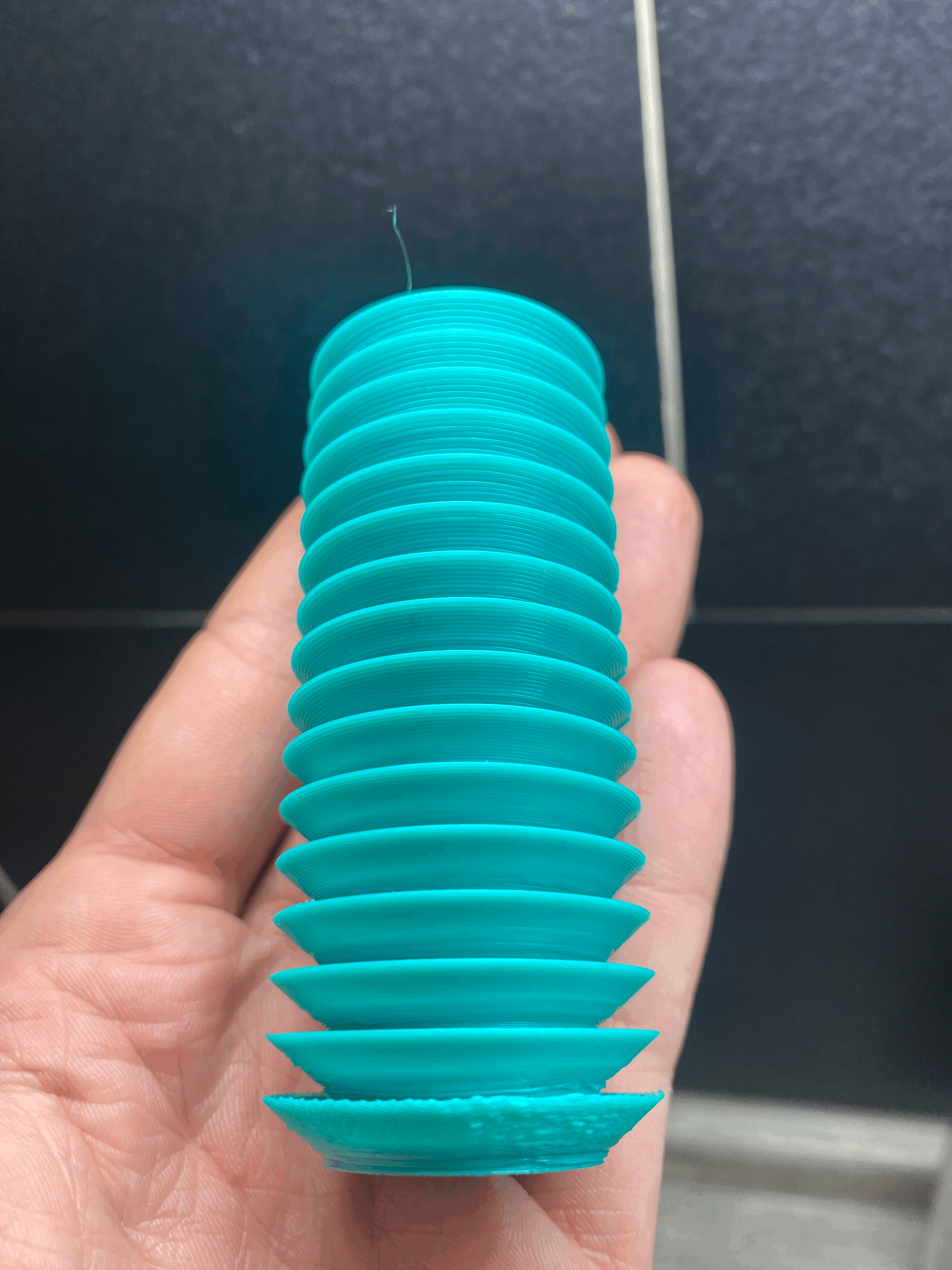

Overhang Test 0.6 & Overhang Test 0.4 were designed for 0.6mm Nozzles & 0.4mm Nozzles as well. Find out how layer heights affect the quality of 40 degree overhangs.
