Modelo 3D SMT Solder Paste Stencil Printer Table por SamuelCui no Printables

Descrição

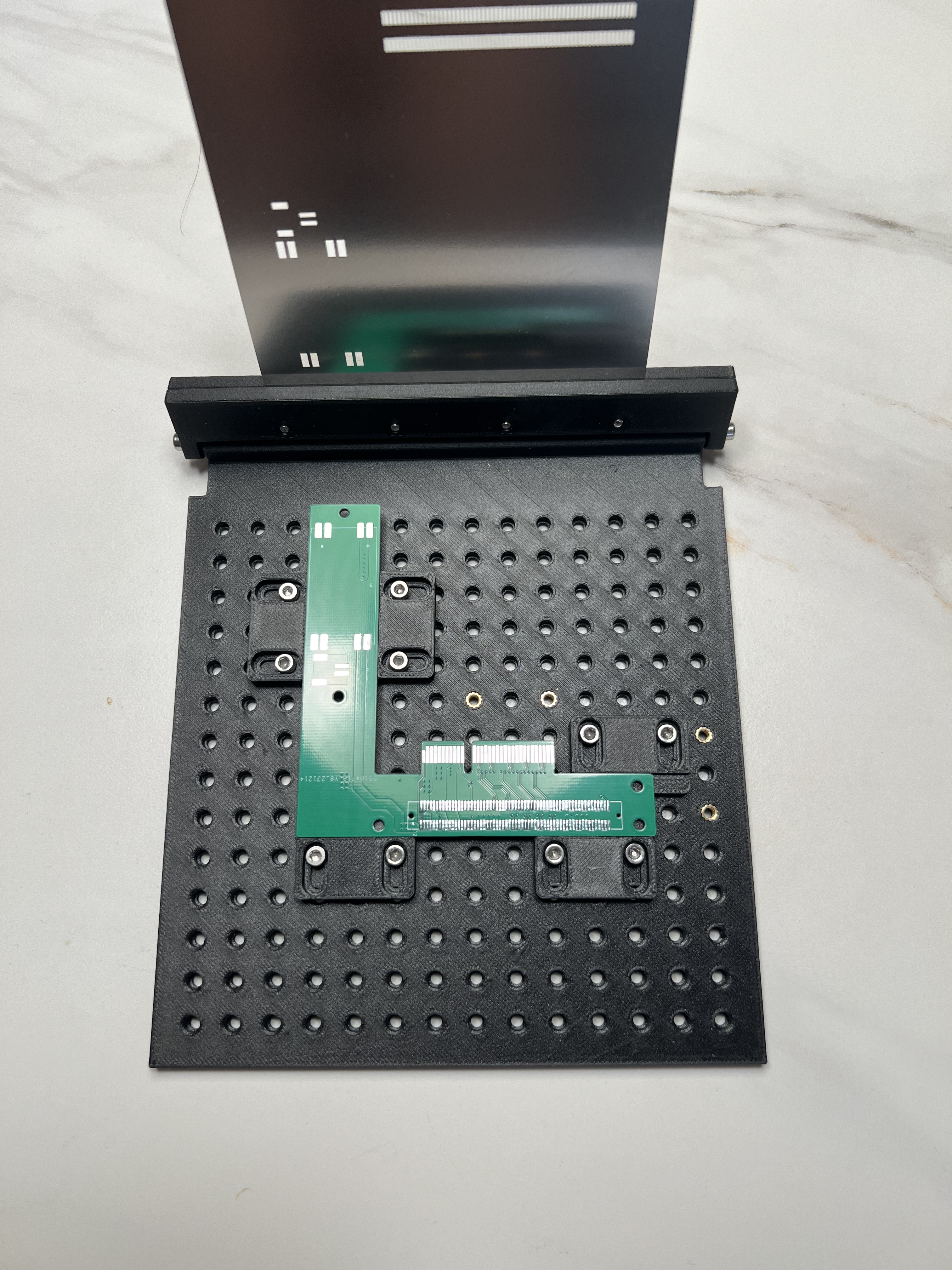

SMT Solder Paste Stencil Printer Table, no support is needed, but with lots of heat insert nut. I don't insert all the nuts in the photos, but you know the meaning.

You must use a frameless SMT stencil, which you could order from PCBWay or Aliexpress. The PCB size limitation is around 14x14cm, having 1.0mm, 1.6mm, and 2.0mm PCB thickness adaptors. I've tested PETG-CF filament, but I think PLA should work too.

BOM:

  • ~150x M3x3x4.2mm Heat Insert Nut (M3 thread with 4.2mm outer diameter, 3mm length), like the ones in the photo
  • ~20x M3x6mm Hex Socket Head Screw (for block setting)
  • 2x M3x10mm Hex Socket Head Screw (for hinge)
Printables

SMT Solder Paste Stencil Printer Table

Publicado em 24 de dez de 2023

11
Curtidas
92
Downloads
Categoria Electronics
Tags
stencil smt solderpaste
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
v1.STEP 5.1 MB
v1.3mf 3.6 MB
