Descrição

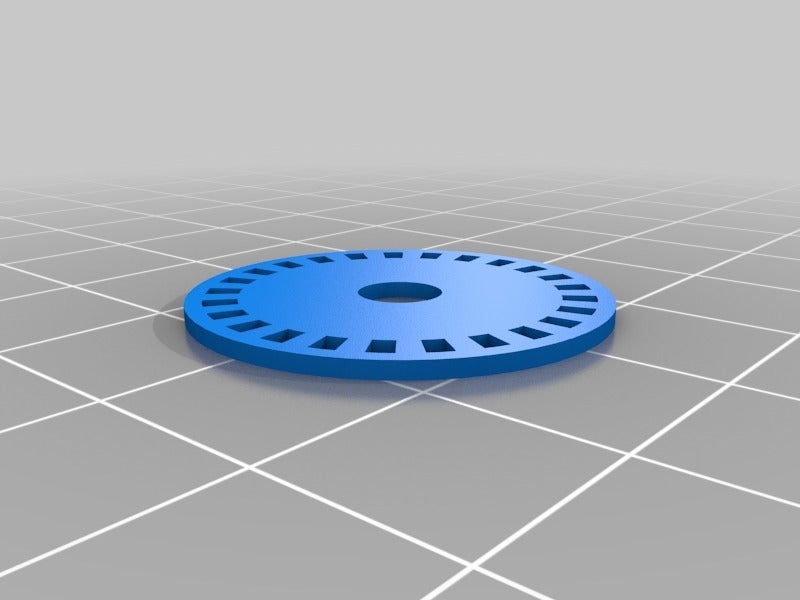

Customizable encoder wheel. in open SCAD
The file can also output a 2d image for export as svg or dxf file. Open file in open scad edit line 21: " SVG = false; " to " SVG = true; "
hit F6 then export; File > Export > Export as DXF...
16/8/2017
I've added a minor fix which when the rim is set to 0 on larger wheels it will now remove any artifacts on the edge.
9
Curtidas
241
Downloads
Categoria
RC & Robotics
Tags
encoder
thingiverse
opticalencoder
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (7)
encoder_wheel_Hex.stl
157 KB
encoder_wheel.scad
2.7 KB
encoder_wheel_Square.stl
155.2 KB
encoder_wheel_Triangle.stl
155.7 KB
Encoder_Wheel_Hole.stl
193 KB
encoder_wheel_2d_Hole.dxf
20.2 KB
encoder_wheel_Oval.stl
164.9 KB
