Descrição
HDD Enclosure with Backplane
This enclosure offers 8 bays for 3.5" drives.

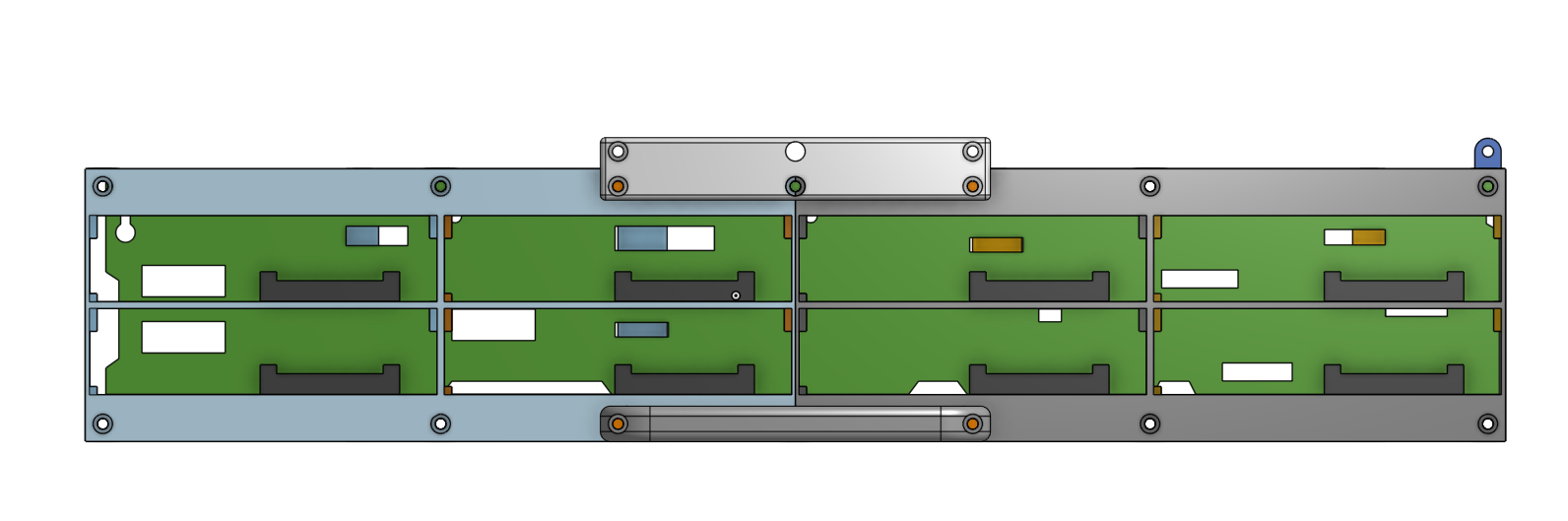

Backplane used Supermicro SAS825TQ(other backplanes might work but this model was created with this one in mind)
Compatible caddies: My Remix of the Dell Server 3.5" Hard Drive Tray & Caddy by cgunz410 (Added speed holes :))
Bill of materials
(Per one 2U unit)
| Part | Description | Quantity |
|---|---|---|
| Backplane(Supermicro SAS825T) | 1 | |
| M3 x 25mm | Used to fasten handles or Fan Grills to fronts | 4/8 |
| M3 x 20mm | Used to fasten walls together with fronts/backs | 28 |
| M3 x 10mm | Used to fasten center walls together | 12 |
| M3 nuts | Used to hold everything together | 44 |
| 120mm Fans/80mm fans | Depending how much units you want to print you will have to chose what fans you want to use. 120mm fans are for 2 units joined together, 80mm fans for single unit. You can use use them together for example if you have 3 units you can use 1 120mm grill and 1 80mm grill or 3 80mm grills. Both versions use 3 fans. | 3 |
Parts
(per one 2U unit)
| Part | Quantity | Comments |
|---|---|---|
| Left Front Frame | 1 | |
| Right Front Frame | 1 | |
| Left Full Side | 1 | |
| Center Right Wall | 3 | |
| Center Left Wall | 3 | |
| Right Full Side | 1 | |
| Left Back Frame | 1 | |
| Center Back Frame | 1 | |
| Right Back Frame | 1 | |
| Left Board Holder | 1 | Used to hold left back frame with center back frame. Also limits movements of the backplane |
| Right Board Holder | 1 | Used to hold center back frame with right back frame. Also limits movements of the backplane |
| Front Handle | 2 | Used to hold fronts together |
| Connector* | 10 | Used to connect 2 or more units together |
| Front connector* | 1 | Used to fasten fronts of two units together |

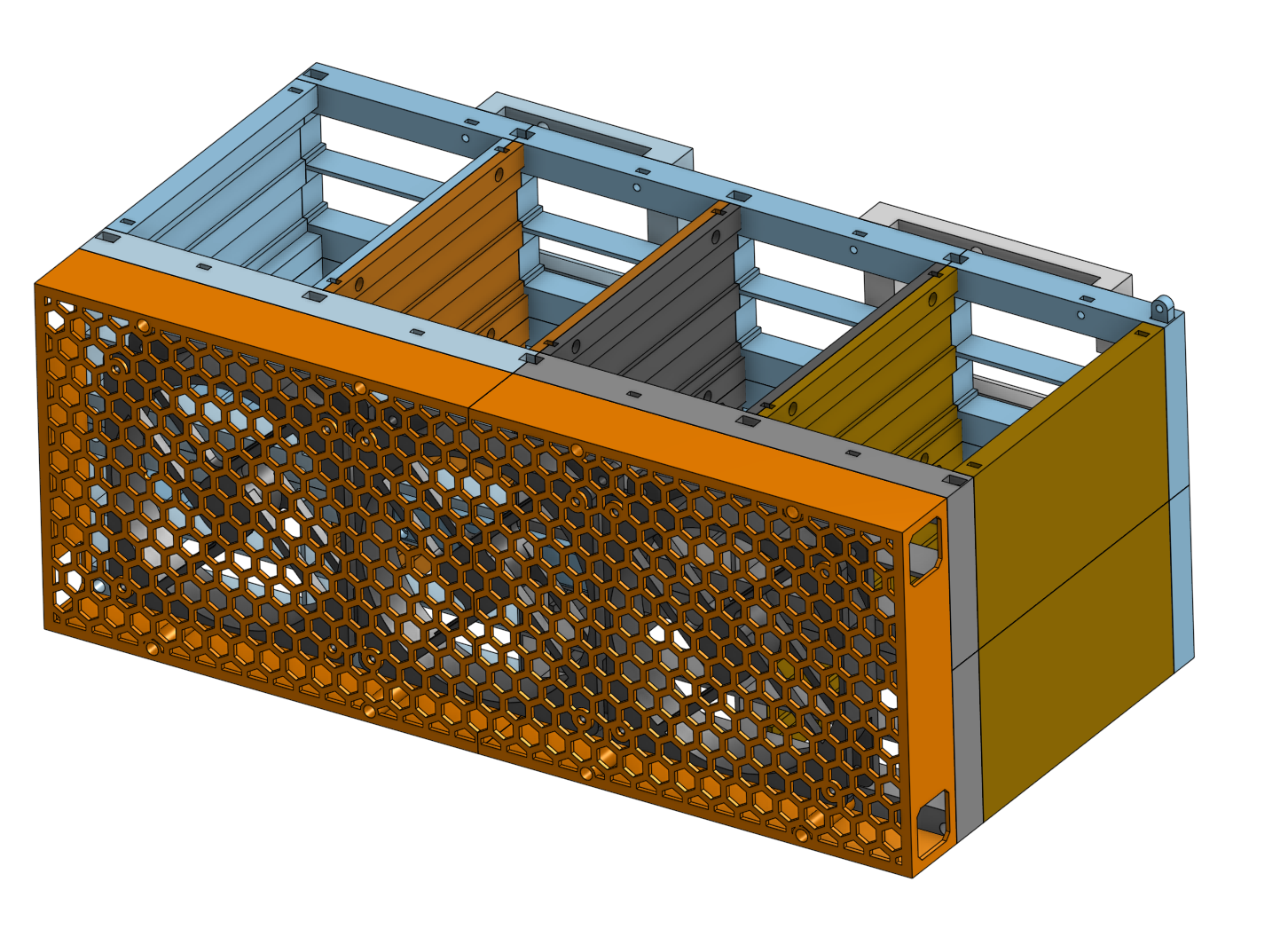

| 120mm Fans Grill - Left | Fits single 2x2U units | |
| 120mm Fans Grill - Right | Fits single 2x2U units | |

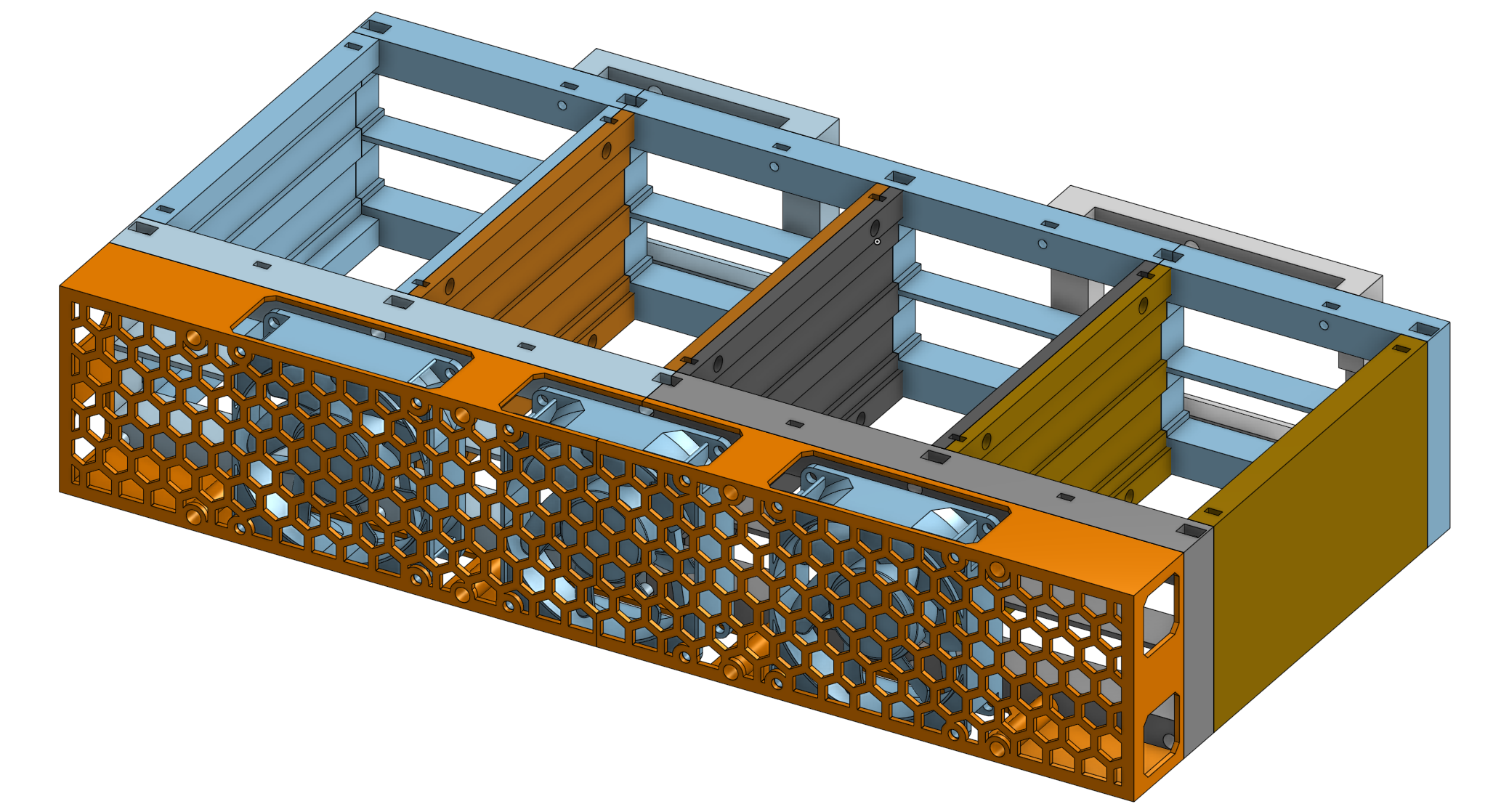

| 80mm Fans Grill - Right | Fits single 2U units | |
| 80mm Fans Grill - Right | Fits single 2U units |
*Necessary when planning to use more that 1 unit
Roadmap
- Rack Mounts - Currently enclosure fits inside 2U space inside the rack but lacks mounts to fix it inside the rack.
- If you have more ideas feel free to share them :)
Change Log
- 24 Sep. 2024 -
- Added additional holes to front frames to fasten Fan Grills to
- Added 120mm fan grills
- Added 80mm fan grills
- Added remixed Caddies for better airflow
- 27 Jan. 2024 -

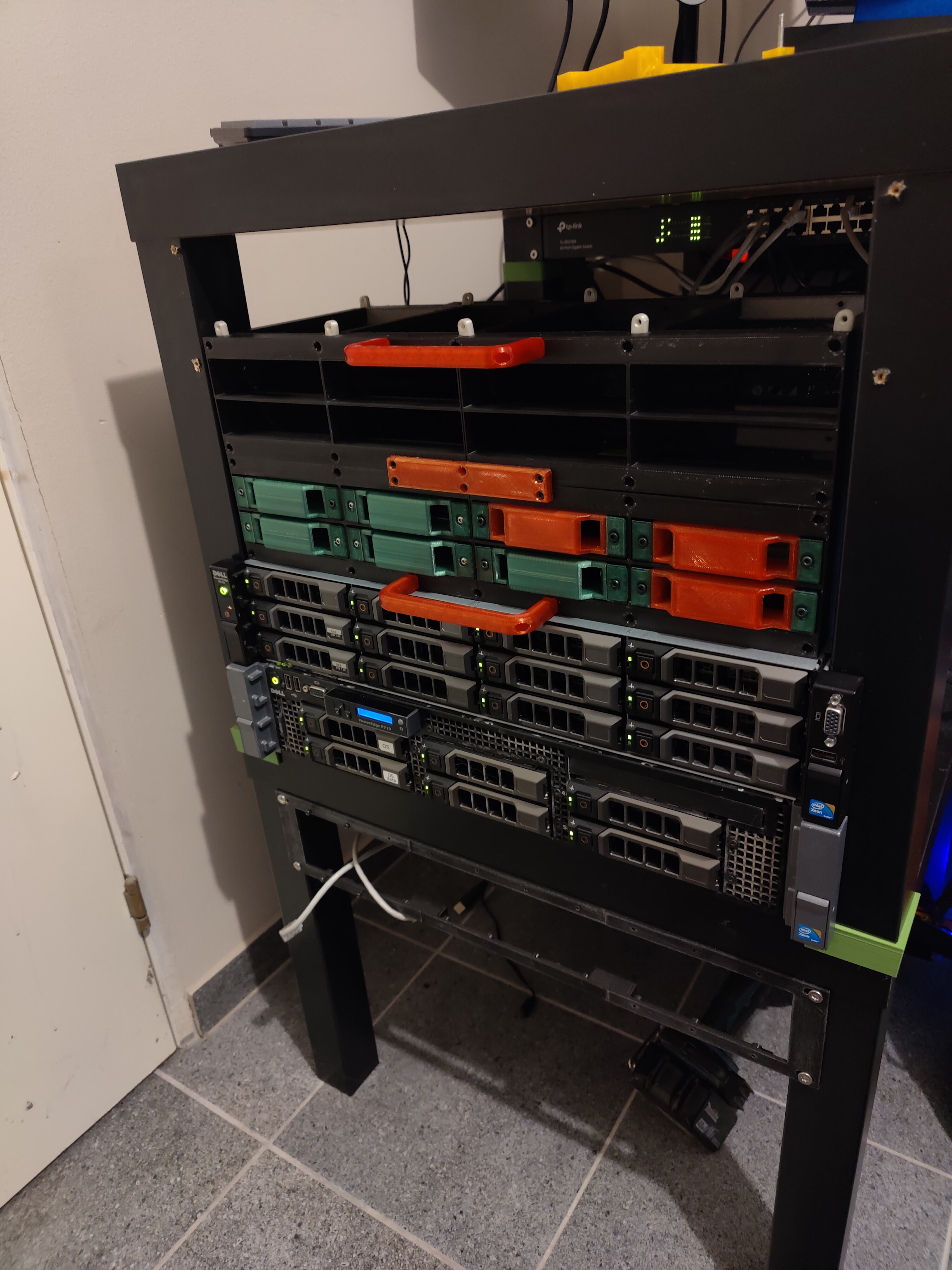

- Added possibility to stack Multiple units together
- Extended Front/Back Frames by 1mm to make caddies flush with front frames
- Moved bottom bolts/nuts locations (inner walls) for easier recognition how to fasten them
- Added Top/Bottom text on right inner side wall
- 22 Dec. 2023 - Initial release
Printables
Stackable HDD Enclosure with Backplane
Publicado em 2 de out de 2024
100
Curtidas
334
Downloads
3
Impressões
Categoria
Electronics
Tags
stackable
rack
rackmount
hddenclosure
hddmount
homelab
backplane
hddcase
jbod
Licença
Creative Commons — Attribution — Noncommercial
