Modelo 3D Scanned Seashell por StargazerSteve no Printables

Descrição

I've been practicing and believe I'm finally achieving results worth sharing. If this appears to be popular I'll add more from my large collection of shells.

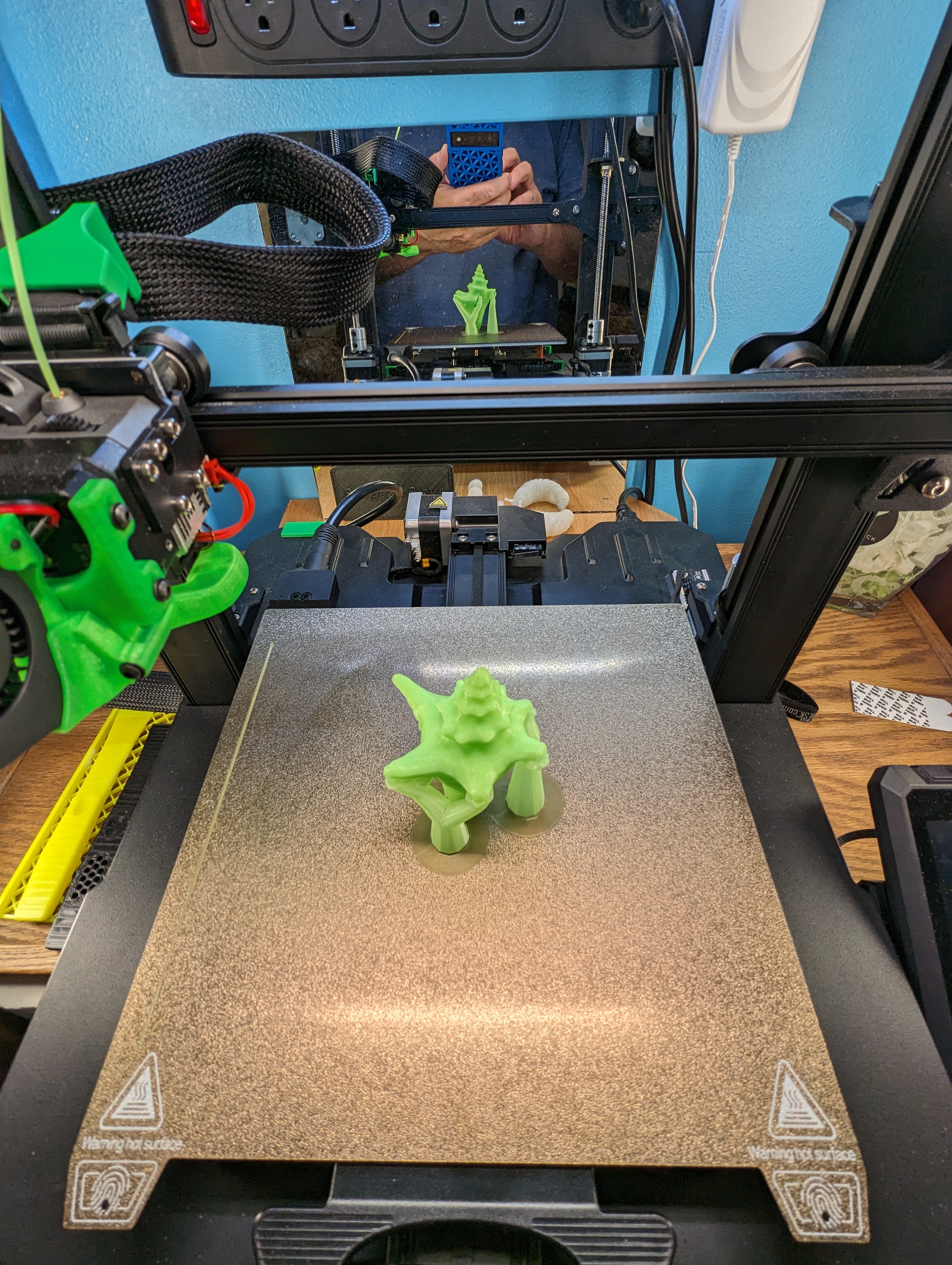

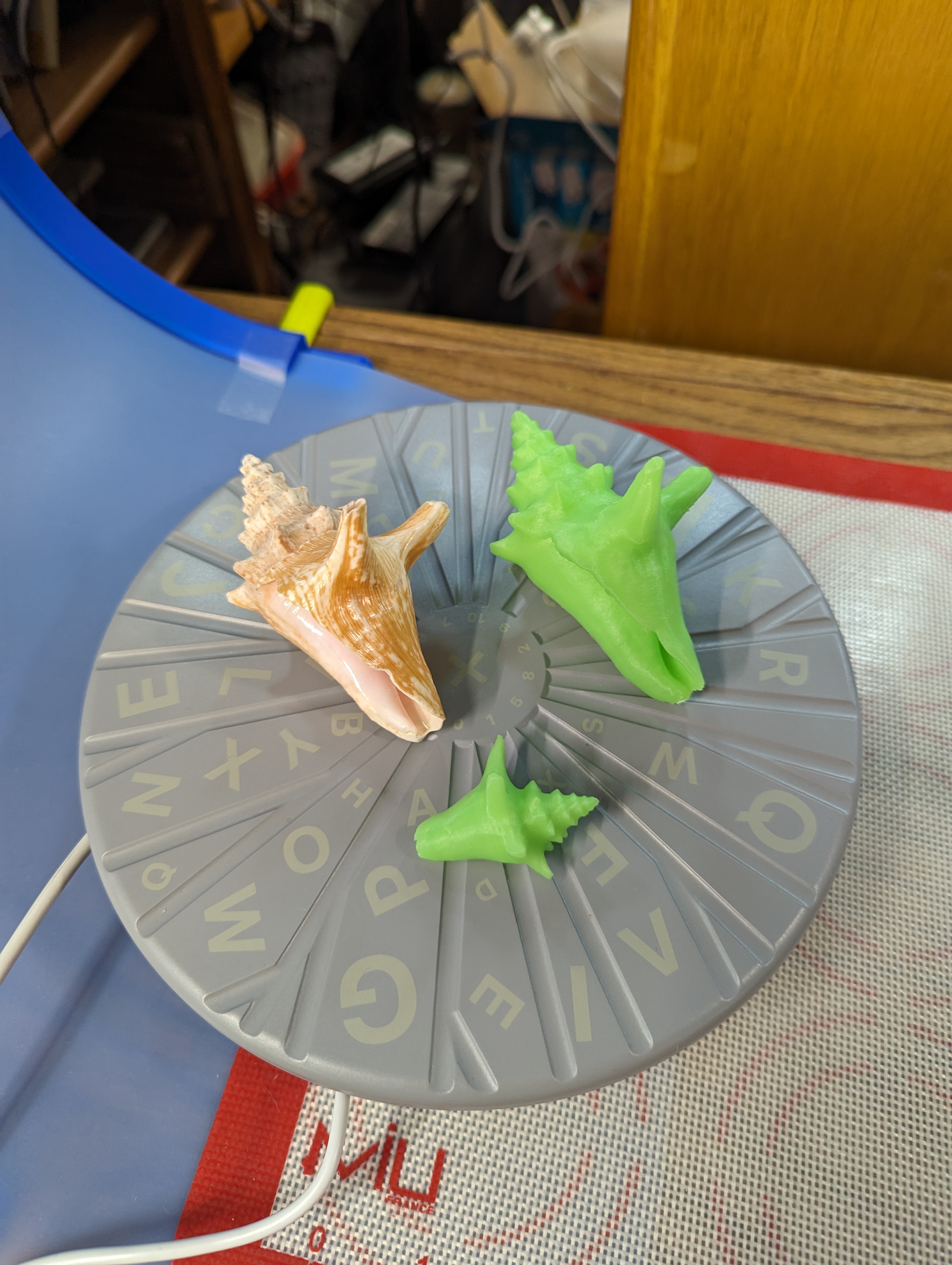

Scanned with a CR Lizard, repaired in Blender 4.0, sliced with Cura 5.6.0, printed on my Ender 3 S1 Pro with Zuff cooling. Printed at full and half scale with Polymaker green glow in the dark PLA.

0.2 mm layer height

3 walls

10% gyroid infill

tree supports

brim

SLOW (overhangs @ 30mm/s)

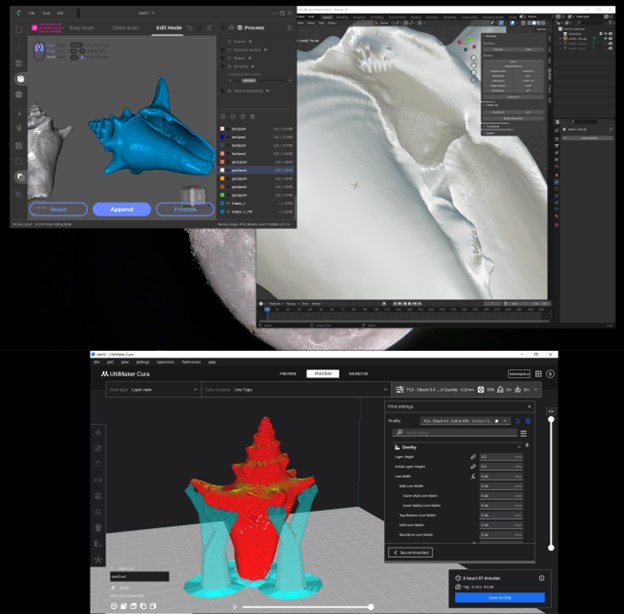

The model naturally lends itself to printing in an upright position, as shown in the screenshot and on the printer. That's a 45d shift on the Y axis. However, I tried a print with supports oriented as the model is in the stl and it was OK, in some ways it was looking better, but it failed thanks to my impatience and I haven't tried another. This ‘vertical’ position is tricky, but I've succeeded with 3 out of four prints so far, and the one that failed was again, due to my impatience and foolish belief that because my prints work out at 60 mm/s doesn't mean I can print at ludicrous speed. You might want to play with which two spurs you want to use as legs of a three-point buildplate touch if you're not comfortable with only a couple of small lines contacting the plate.



Printables

Scanned Seashell

Publicado em 21 de dez de 2023

9
Curtidas
112
Downloads
Categoria Animals
Tags
shell seashell scanned scanning s1pro crscanlizard
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (1)
shell2.stl 8.7 MB
