Descrição

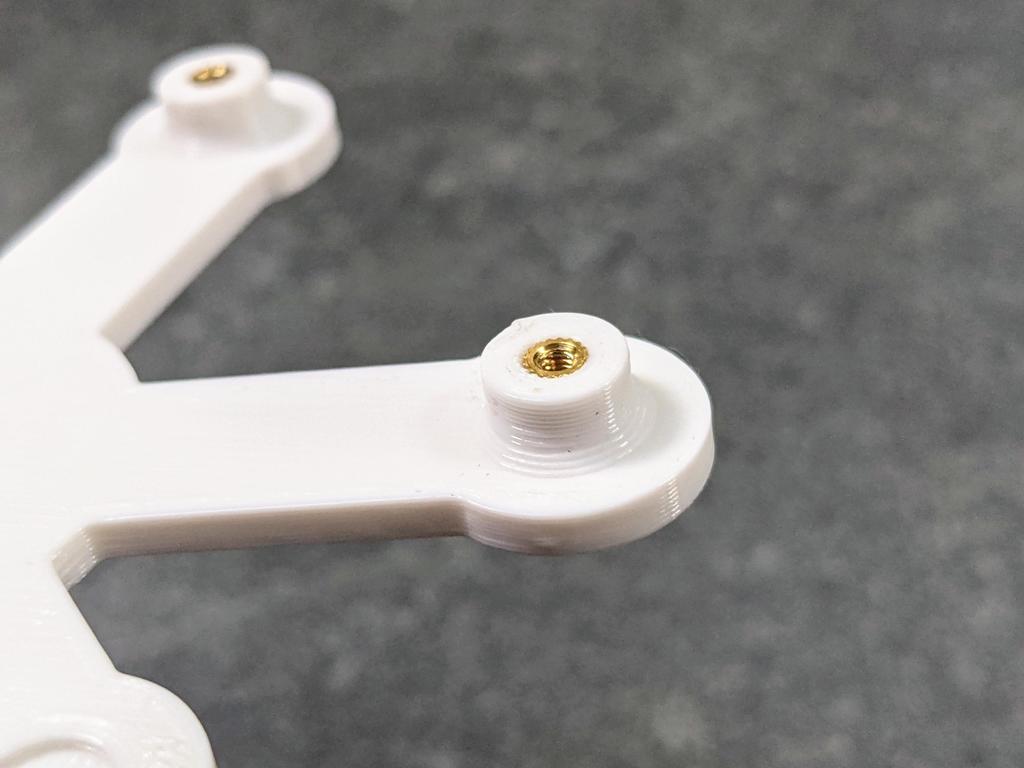

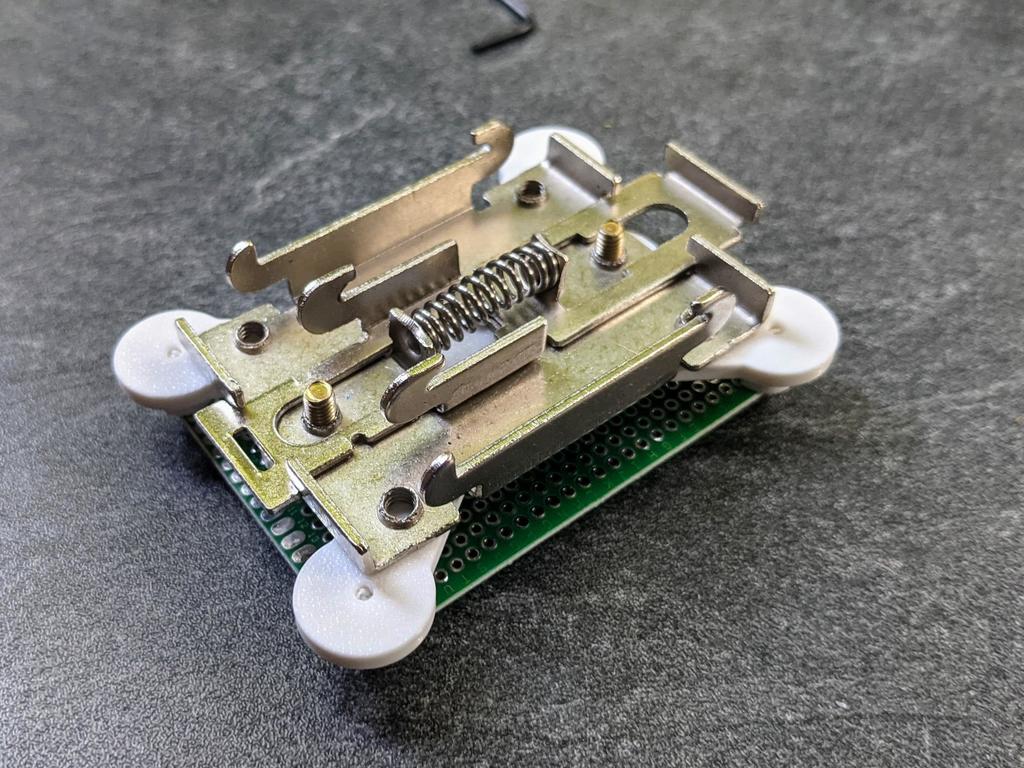

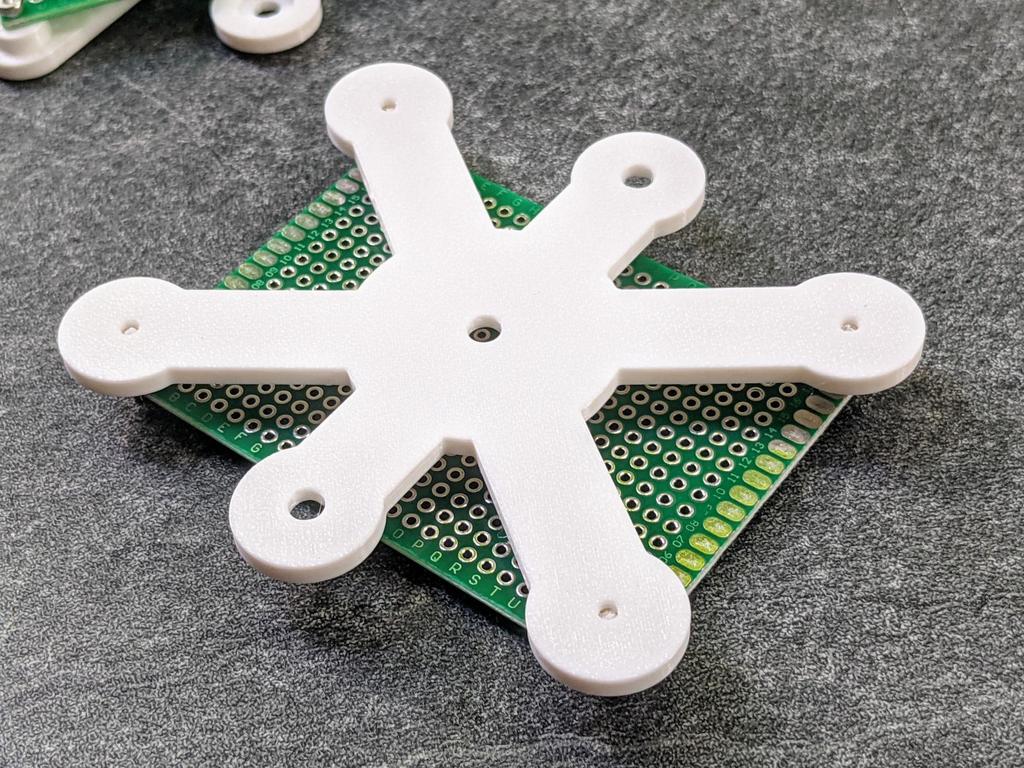

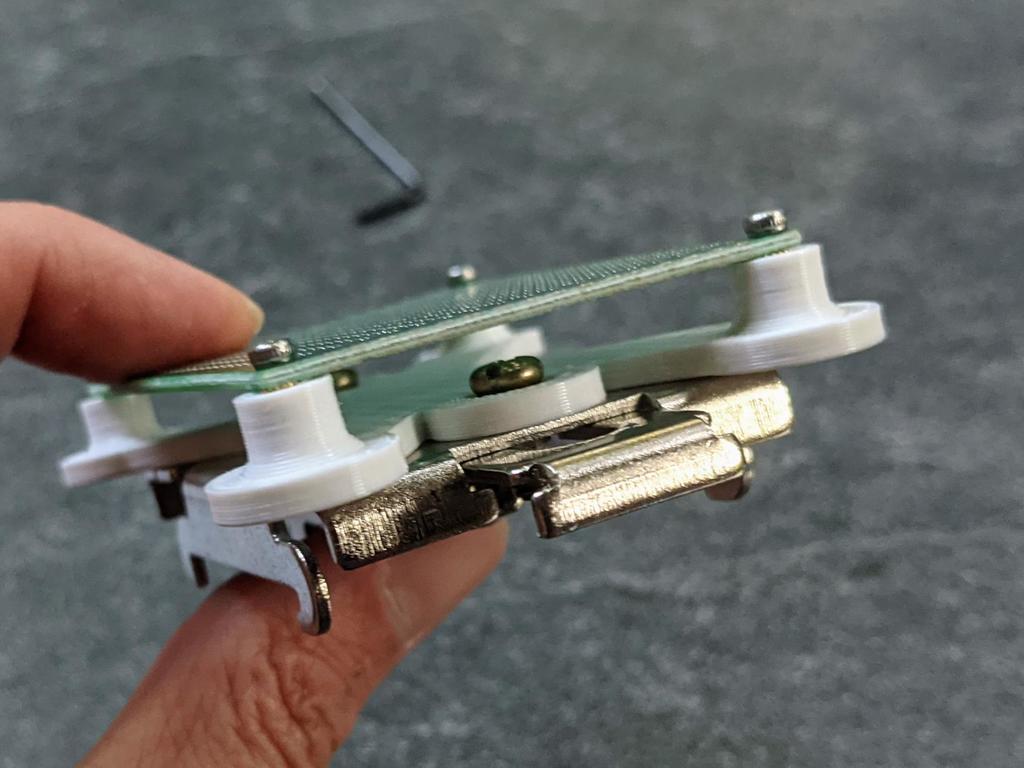

Somewhat parametric mounting bracket for PCBs. The STL is for a 7 cm x 5 cm proto PCB, but you can easily change that in the included OpenSCAD file. I have uploaded two variants: one for a common DIN rail clip, and another one with mounting holes that are not covered by the PCB.
7
Curtidas
32
Downloads
Categoria
Electronics
Tags
pcbmount
thingiverse
mountingbracket
pcbholder
dinrailadapter
Licença
Creative Commons — Attribution
Arquivos (3)
7x5_dinrail.stl
490.9 KB
7x5_wings.stl
533.3 KB
az-pcb.scad
3.5 KB
