Modelo 3D Ender_3_S1_Pro Ring Camera Mount por Toddie no Printables

Descrição

Having been running to & fro the office to check on builds these past few week, I decided to utilise a ring indoor camera & so needed a mount.

I modelled my own to take advantage of the original screws that come fitted to the left hand side corner slot & ensure a perfect fit.

Version#1 was a little tight on the bottom screw, so its tweaked for the uploaded version#2 :)

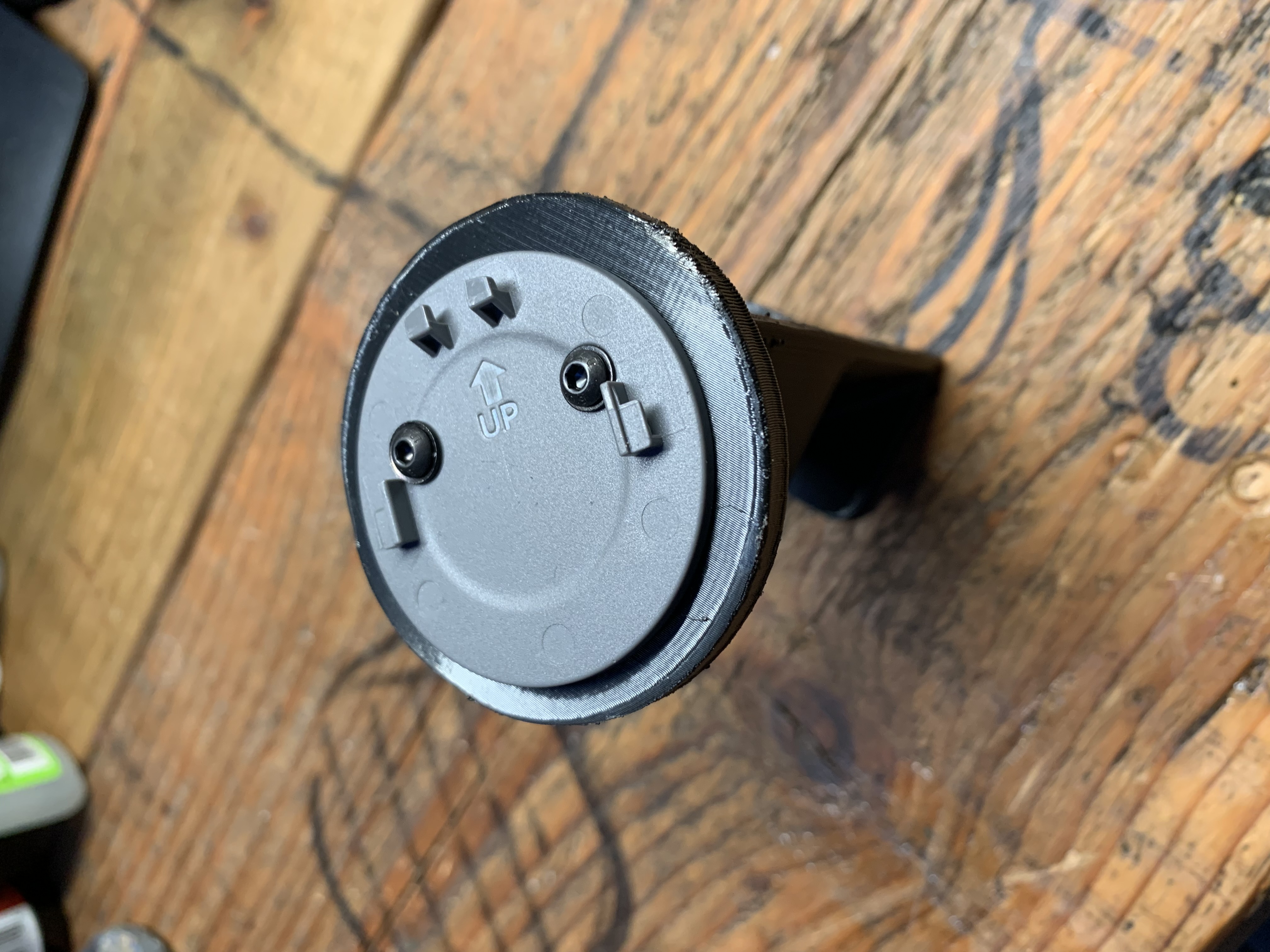

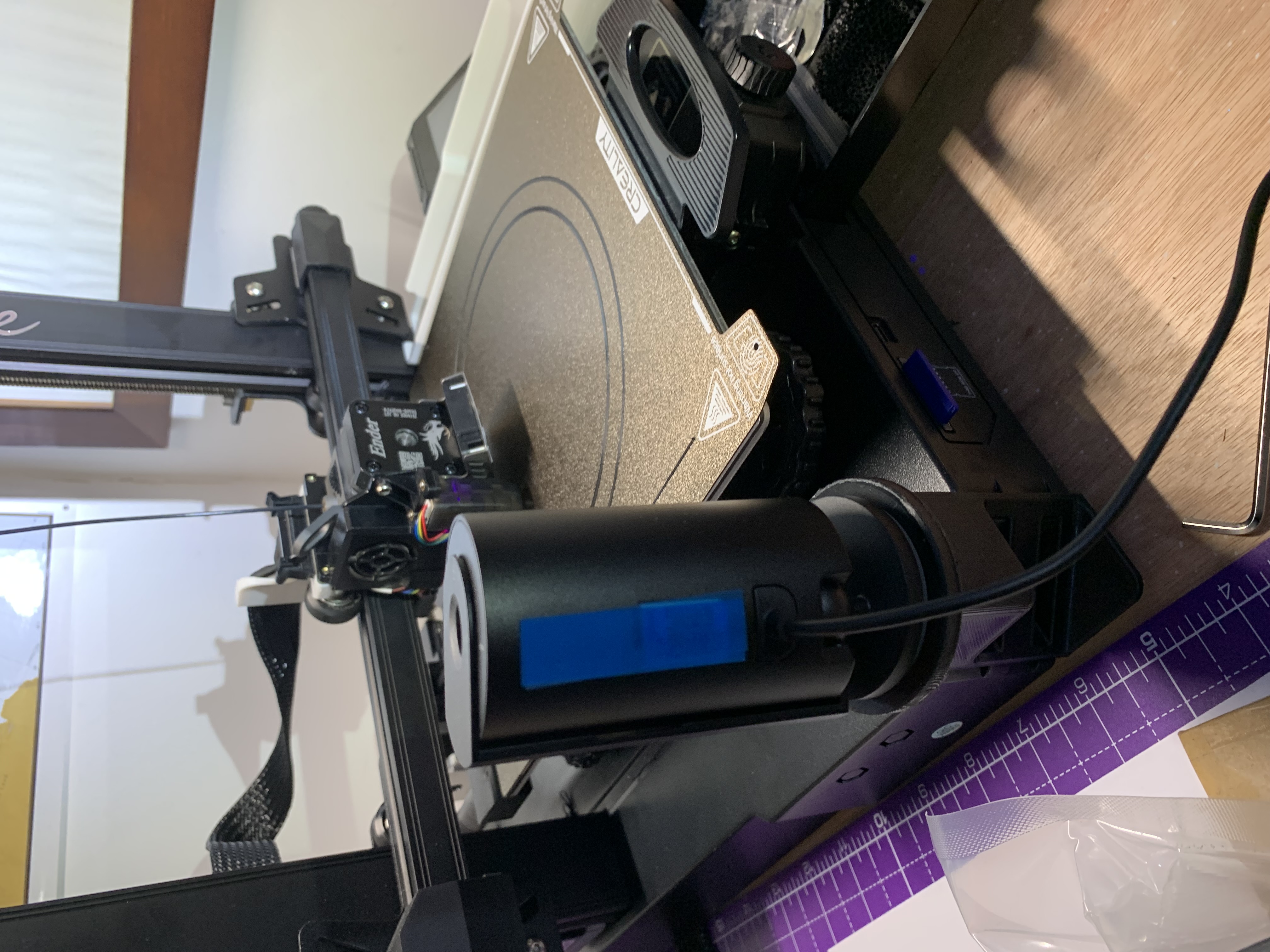

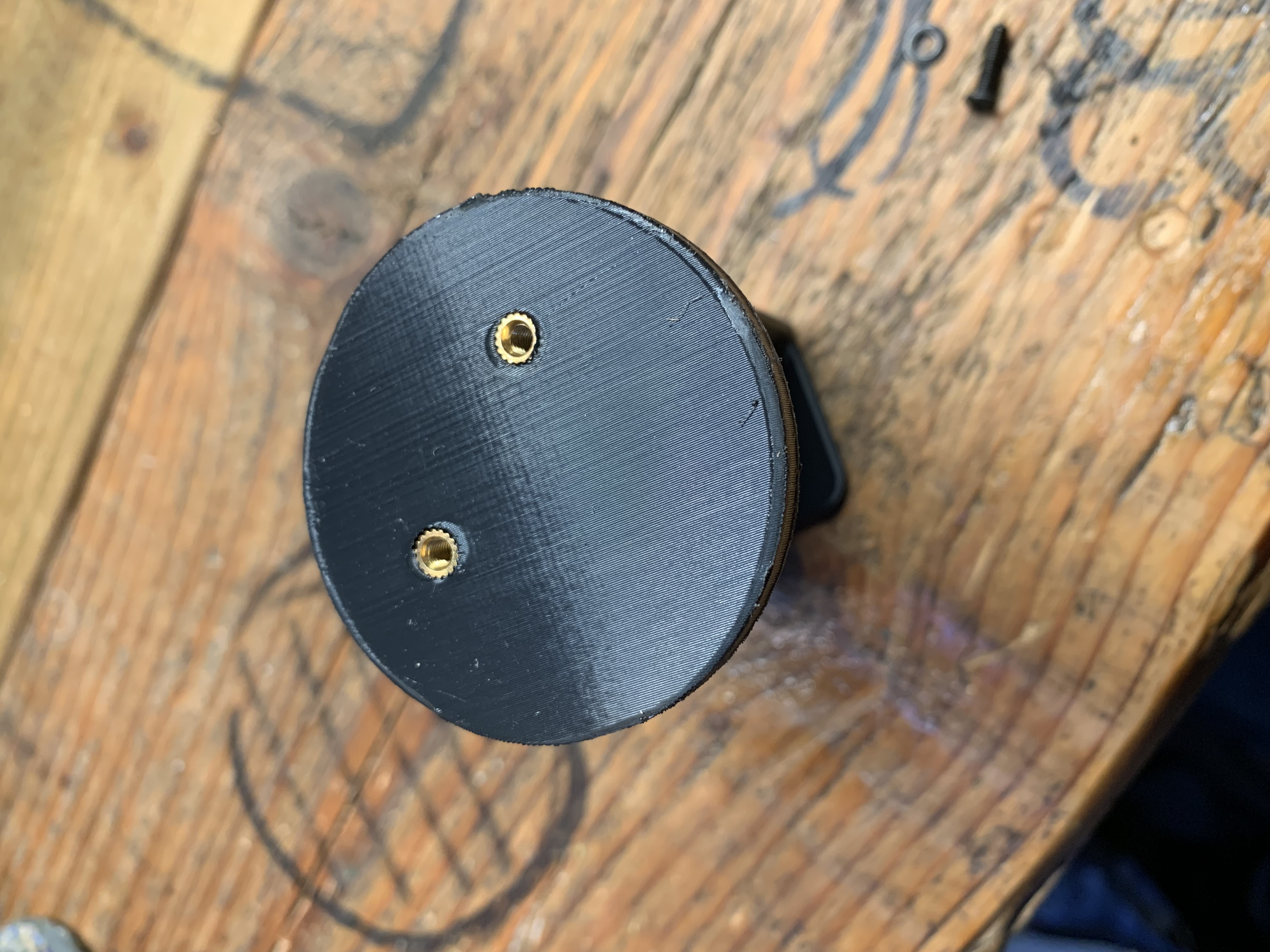

This CCTV mount slips into place to the left hand side chassis slots & is secured via the original button head bolts. The ring mounting bracket that comes with the camera (grey) is fitted to the printed unit via 2x brass inserts (M3 x 7mm) that were in turn heated & pressed home. M3x 15 button head bolts & washers nip it all up & then you slot the camera into position.

(Whilst my LH side tray (see collection) isn't shown fitted, the V2 bracket gives clearance!)



Printables

Ender_3_S1_Pro Ring Camera Mount

Publicado em 21 de dez de 2023

6
Curtidas
47
Downloads
Categoria Creality Parts & Upgrades
Tags
mount cameramount cctv ender3s1pro
Licença Creative Commons — Attribution
Arquivos (1)
Ring_Cam_Holder_Ender_3_S1_Pro.stl 5 MB
