Various boxes i made for ESP32 projects.

i plan on adding all my futures boxes on here so people can quickly browse and choose according to their own projects needs. many ESP32 dont even have screw holes on the PCB so i mostly hot-glue the board gently on the 3D print. be sure to check out the features with the 3D view of each files. my plan is to make the box universal and easy to use. many projects box designs requires very specific parts and tight tolerance so it is hard to use. my plan is to make boxes that are easy to use.

the lid is usually just slightly hot-glued on the box.

Relay Box:

• simply made for a 30pin ESP32 and a 1-2 relay module
• feature a hole for wires- external sensor, or anything else.
• hole for USB cable
• cutout for the relay wires connections
• available with or without mounting posts inside

Antenna Station:

• bulkhead SMA connector for BLE/WiFi antenna
• 2 screw bracket on the side

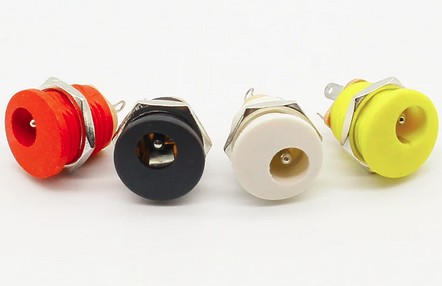

• DC jack for 5.5mm plug.
• hole for wires

Wemos D1:

• fit a standard Wemos D1 mini
• has hole for USB plug
• rectangular hole in the side for ribbon cable (sensors and stuff)

ESP01 Relay:*

• side access for the terminal blocks
• top access to the screws
• hole in the side for the reset? button

*= pictures incoming later

Stevenson screen is from my other design: printables.com/model/601440
