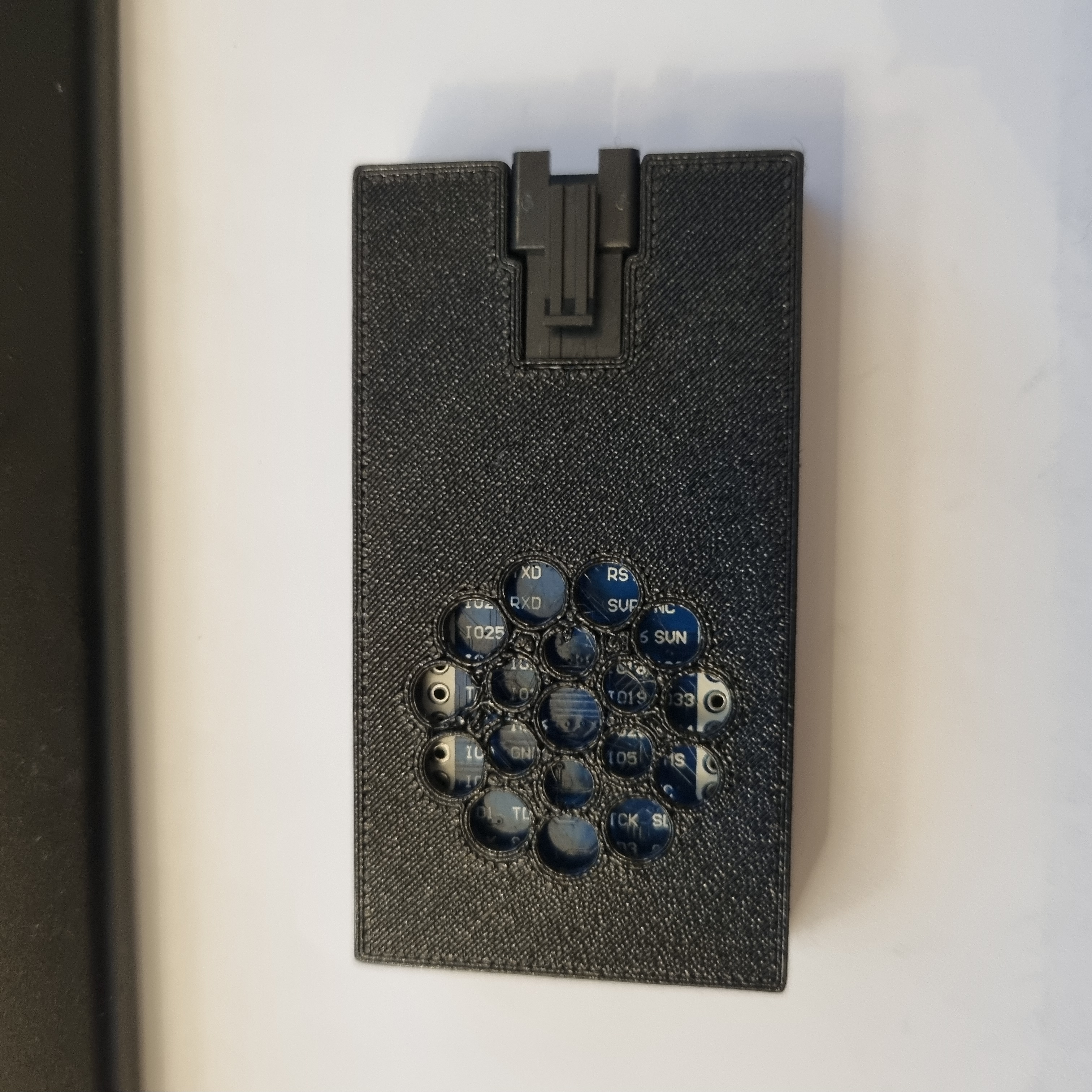

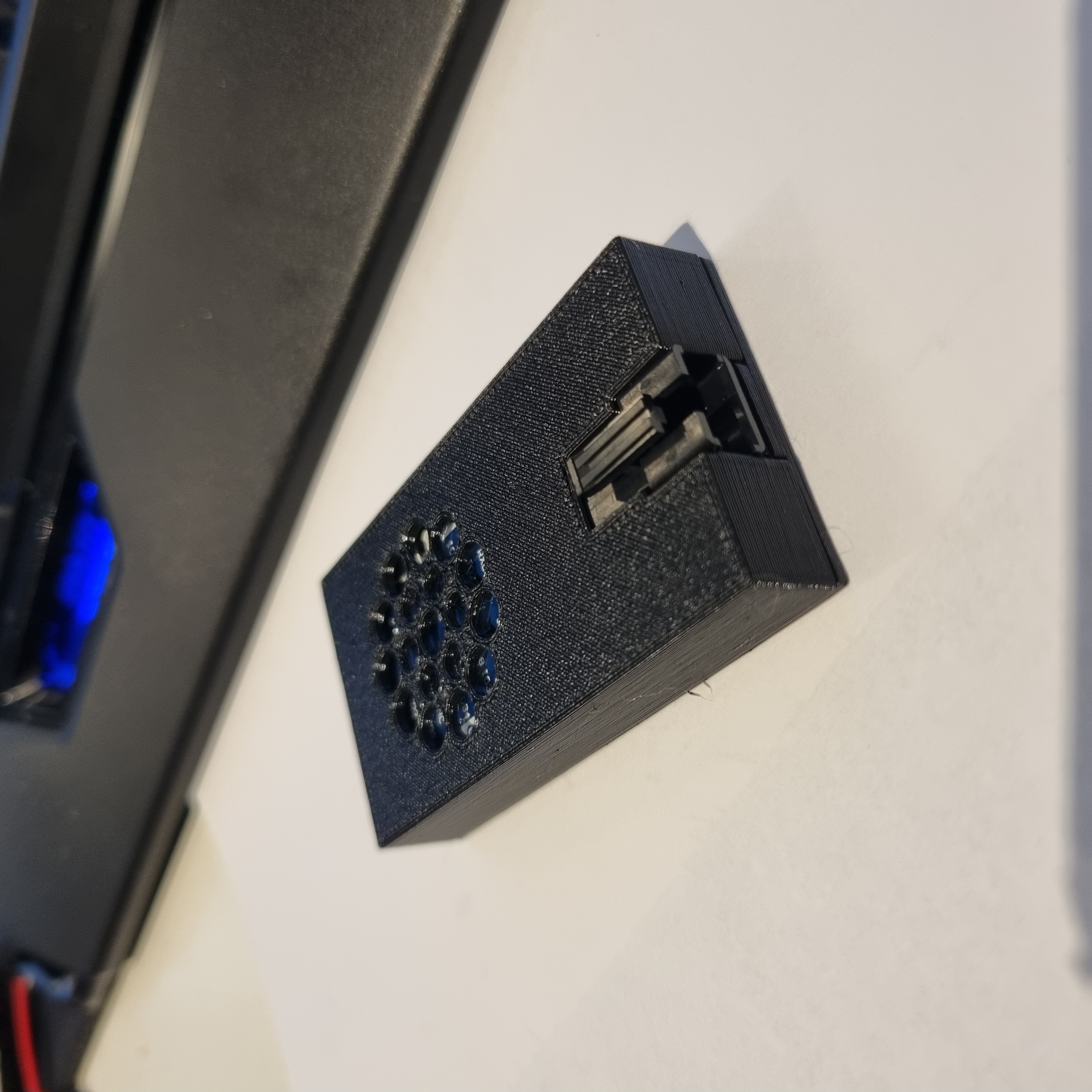

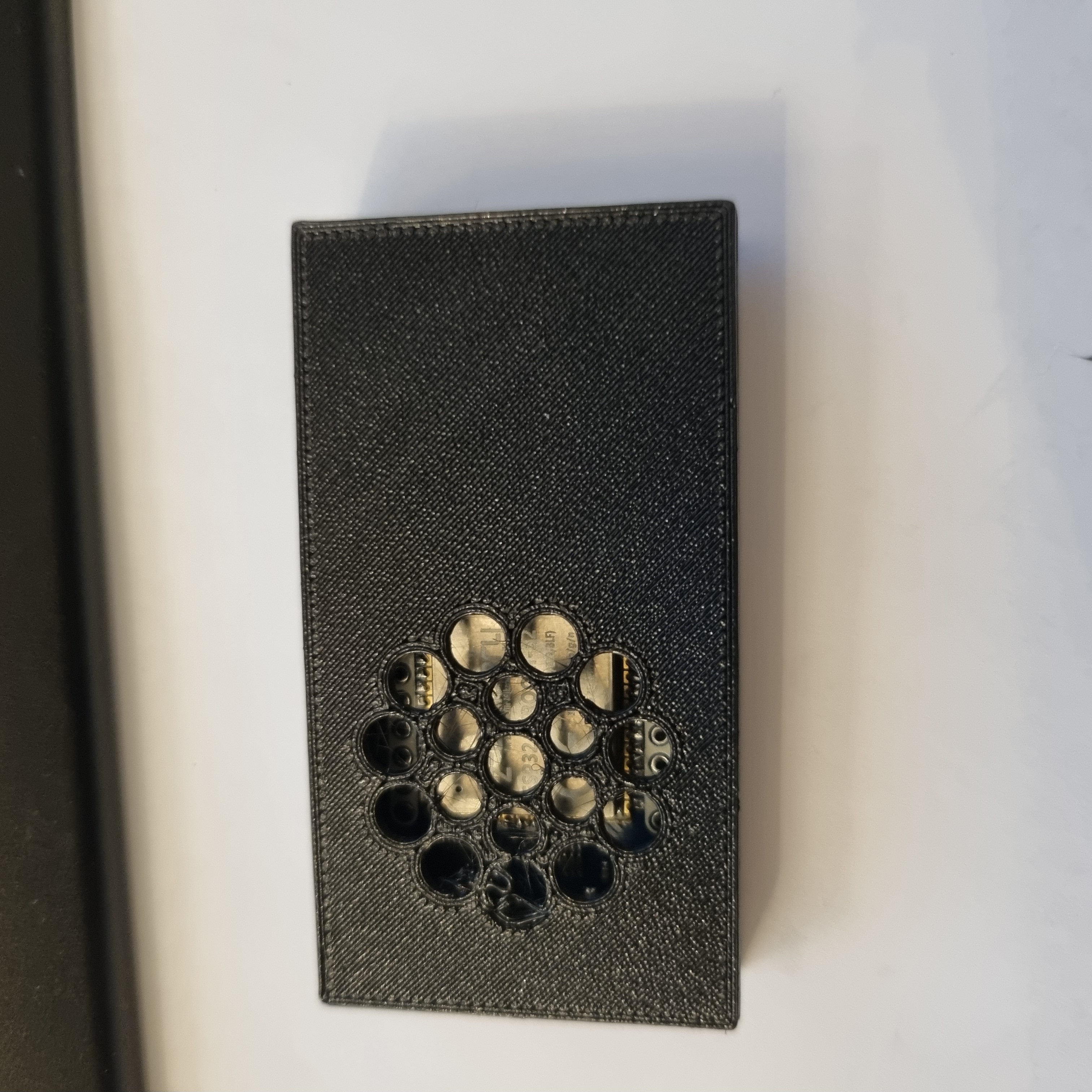

This is a case for a Wemos D1 Mini microcontroller board ESP32 variant.

After printing “checkerd” remix of “trutgers” original i then realised i was using d1 mini esp32 modules which are larger than the d1 mini esp8266 modules so i designed this based on the originals.

The case includes cut out for micro usb (will add USBC variant at some point) also cut out for 3 Pin JST connector, with small added lip and support in the lid to help hold this in place.

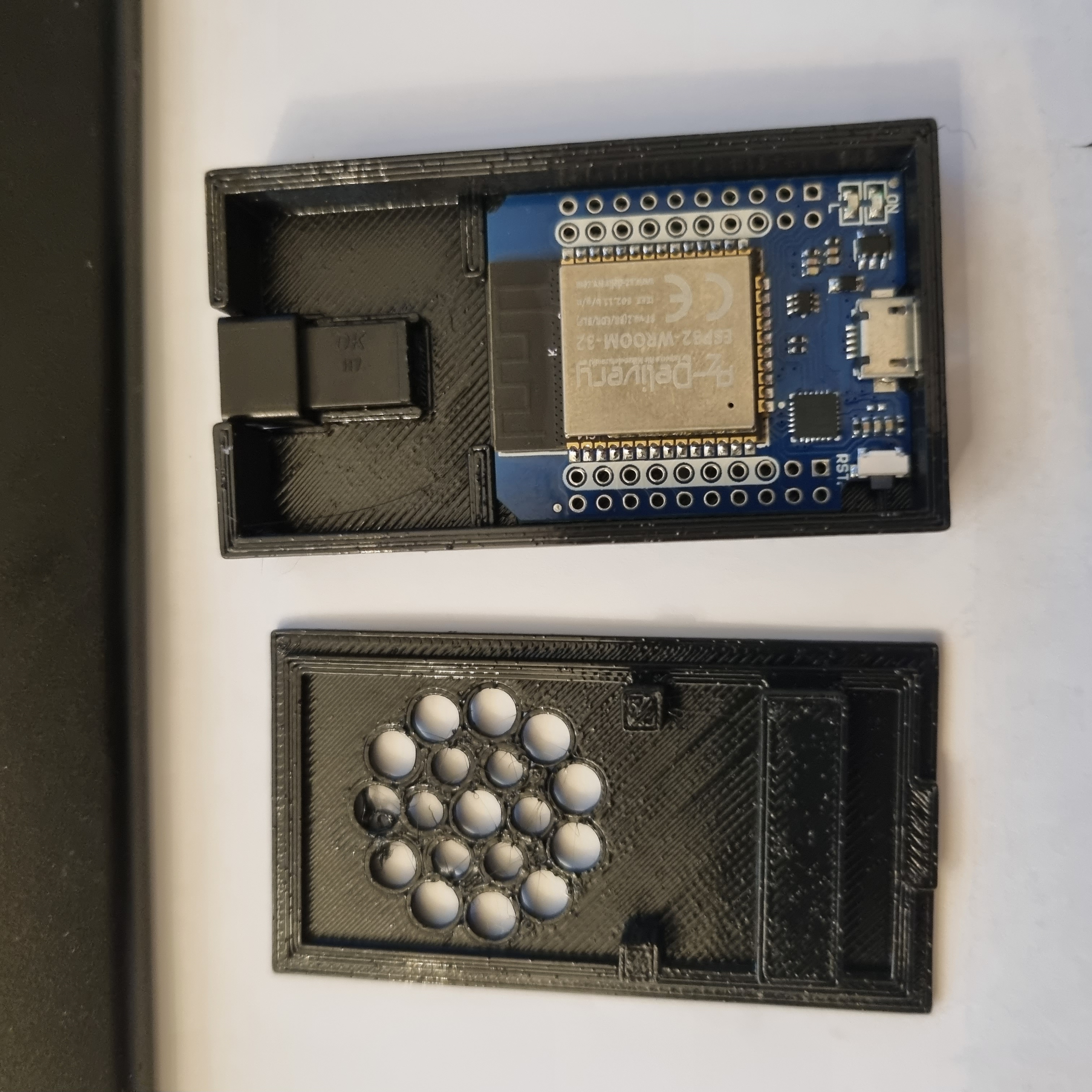

The D1 mini should fit snugly in the case and the lid has pins to help hold in place.

Pushes together fits snug.

I've printed without supports fine.

20.12.23 - Added revised version which should just about allow clearance for the clips on the male rst plug to not catch.
