Generic Stackable Assortment Boxes (Parametric)

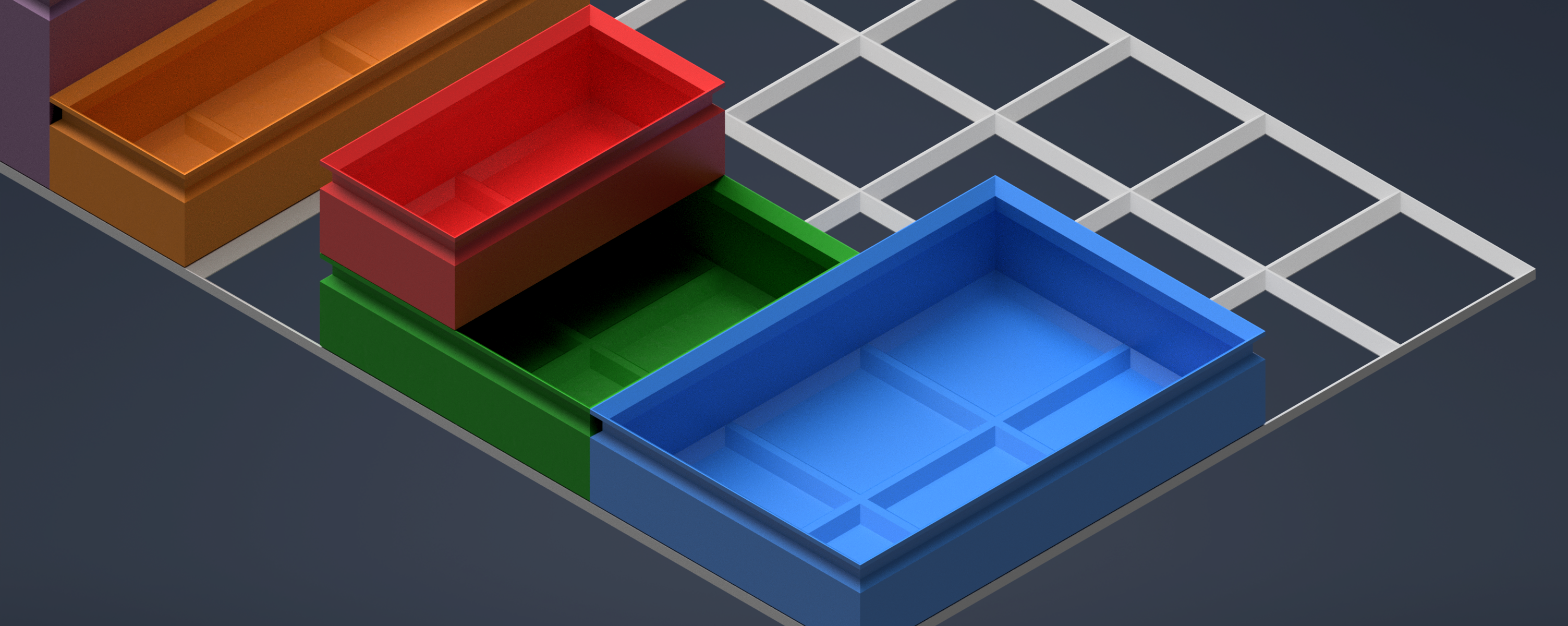

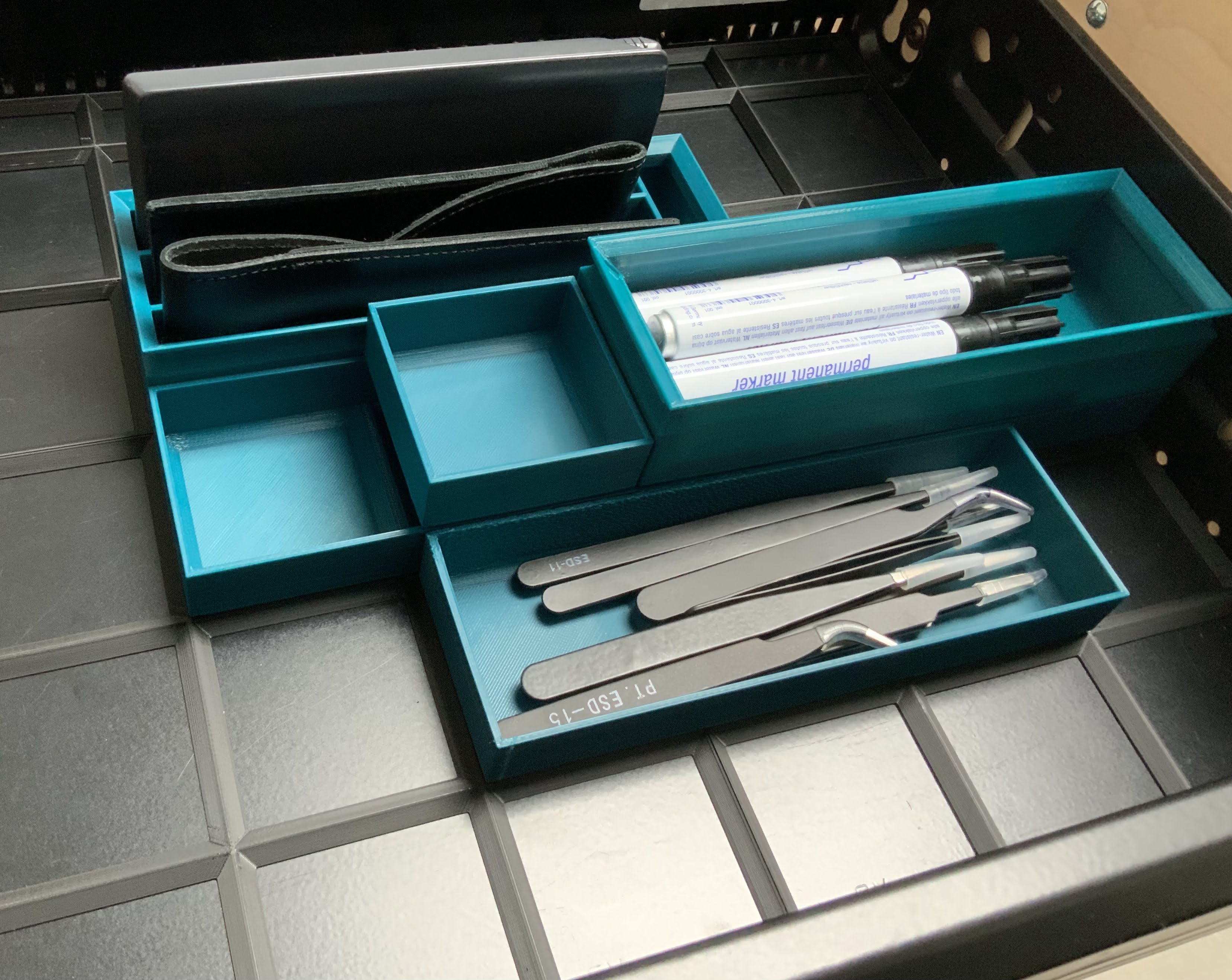

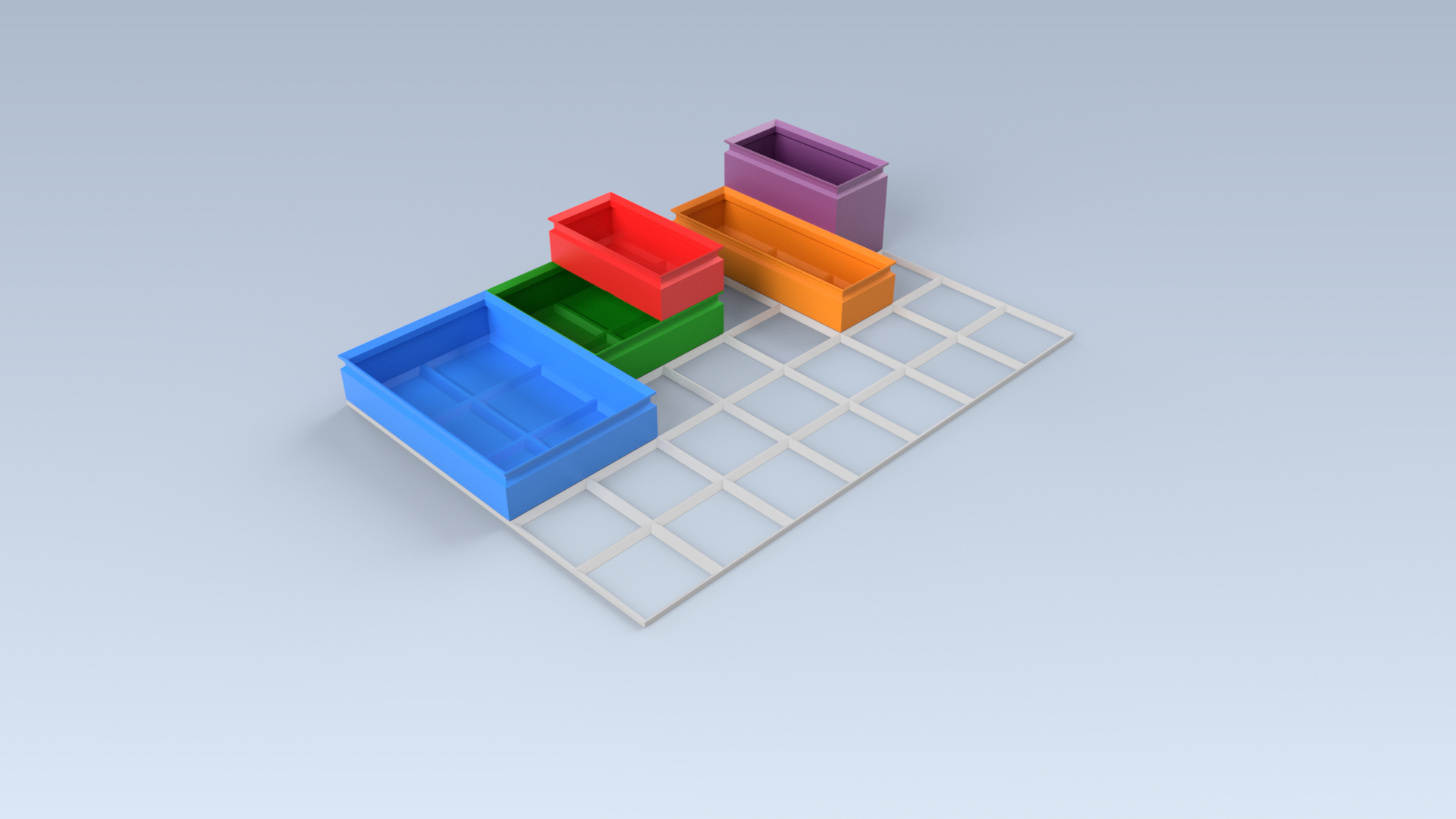

Seems like everyone is re-inventing the wheel. Here is mine. As some people want to get money for the STL files which are quite easy to create without any magic and I do not want to spend my money, here are my designs (from scratch) of stackable assortment boxes for a grid system.

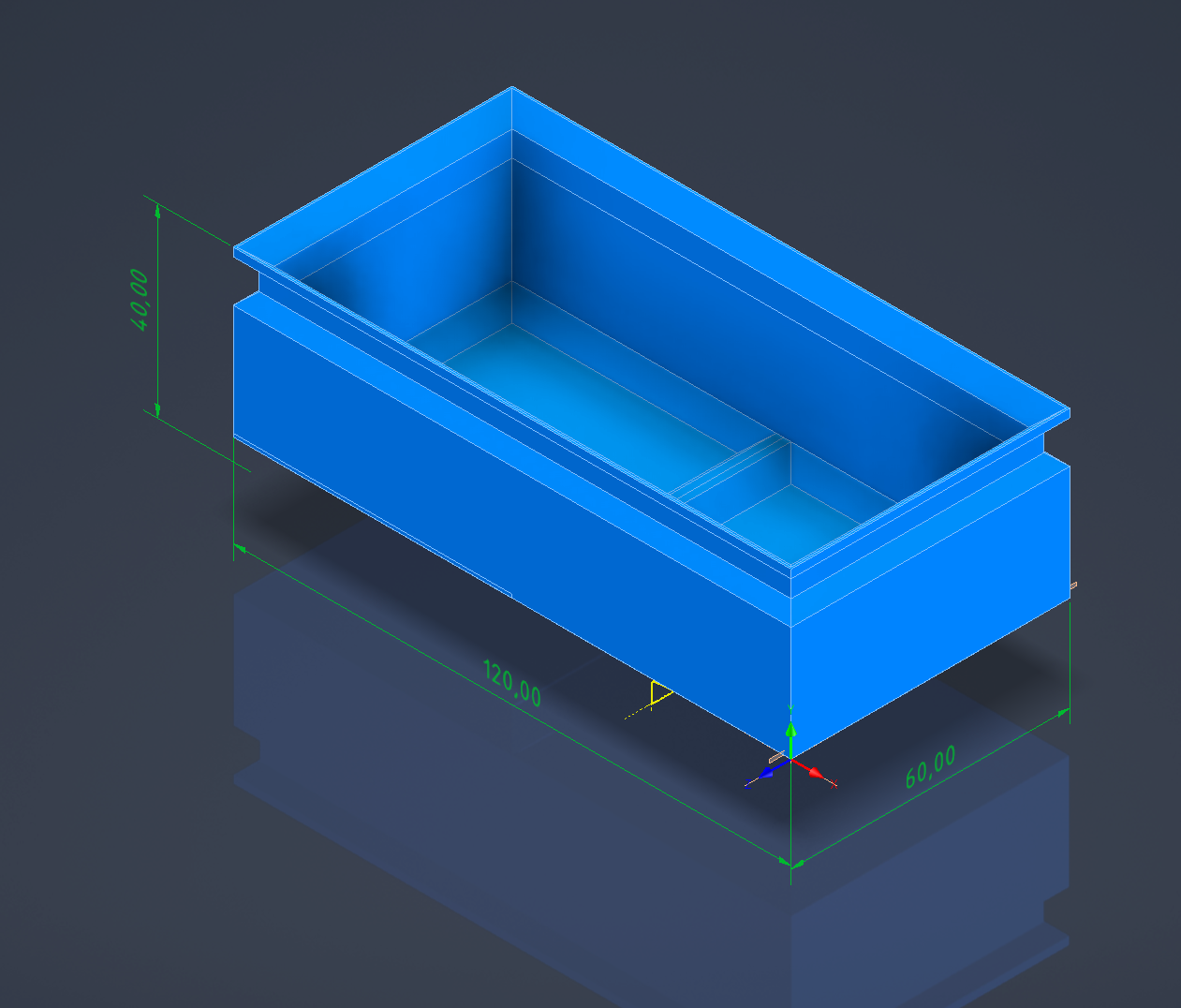

The models are optimized for a 0.2 layer width and a 1x1 box has dimensions 60cm/60cm/40cm width/depth/height. Print without support.

Each box has a dedicated place to stick a label on (12mm for eg. Dymo). Thickness of walls is at least 1.6mm.

These boxes can have different dimensions (eg. 2x3x2) feel free to adjust them to your size.

Use the attached inventor files. You will need to download the parameters.csv file as well and convert it to an Excel file (I cannot upload excel files here).
