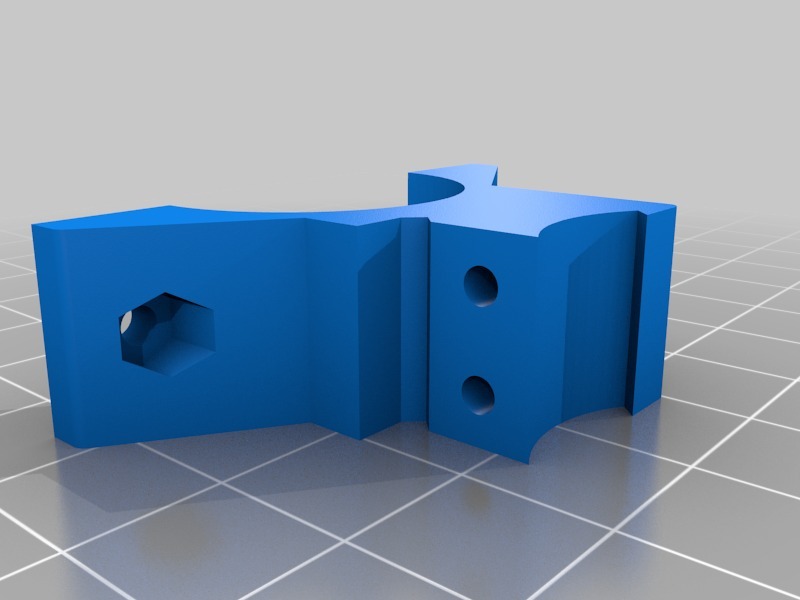

Scope Ring Mount

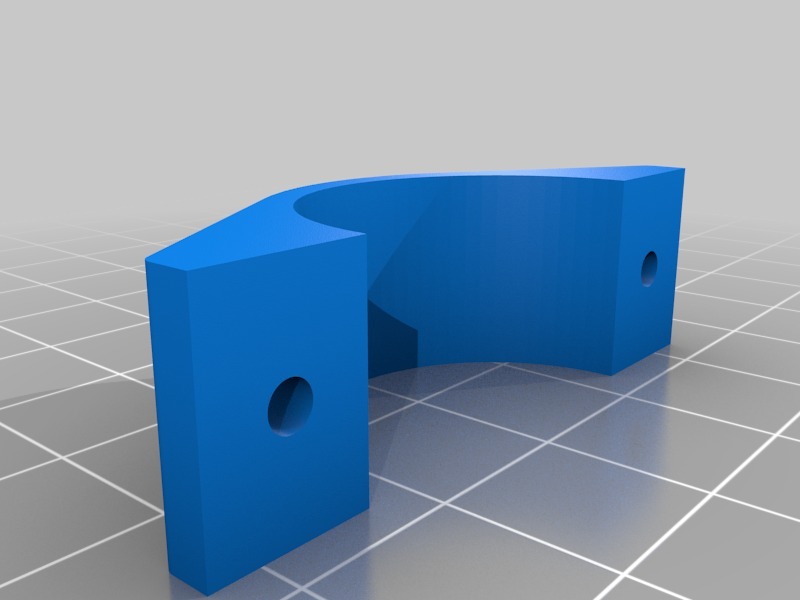

1" Scope ring for weaver 3/8 dovetail or 10mm mount. It should mount for both sizes. I printed it out. Everything lines up great, minimal trimming to get corners true. I printed it @ .15 layer with 80% infill for strength. 5mm brim. PLA @ 200°C, make sure to print the clamp facing up on its side so the corners are crisper. It printed well with my settings. Good luck with yours. Feel free to redisign as you please,

Print Settings

Printer:

Micromake D1 ValueHobby special!!!

Rafts:

Supports:

Resolution:

.10-.20

Infill:

80% for strength

Notes:

Print however you like, I am going for 80% infill, since this will be mounted on my 22lr. So I want as much stability as possible. The ring is slight larger than 1" to accommodate filler material so I dont scratch my scope

Post-Printing =============

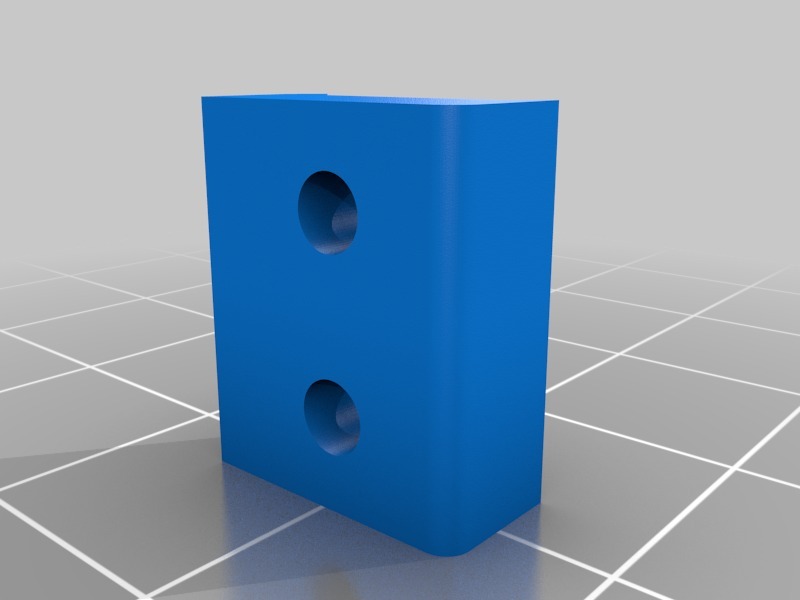

Just Clean up the holes. Made for 3mm/5.5mm hexnut on the top and base. 3mm on clamp holes for base, will need to tap

How I Designed This ===================
