ummary

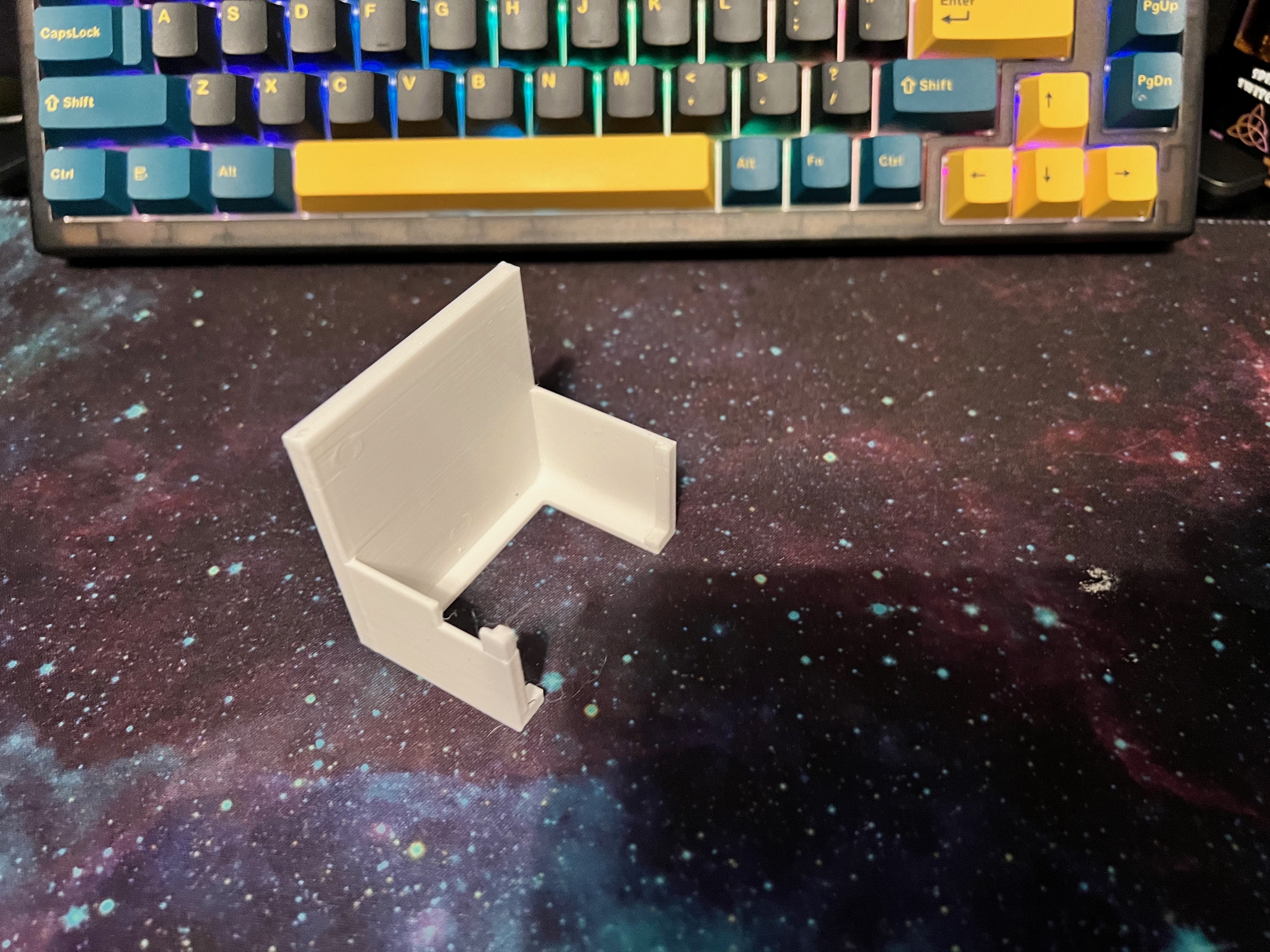

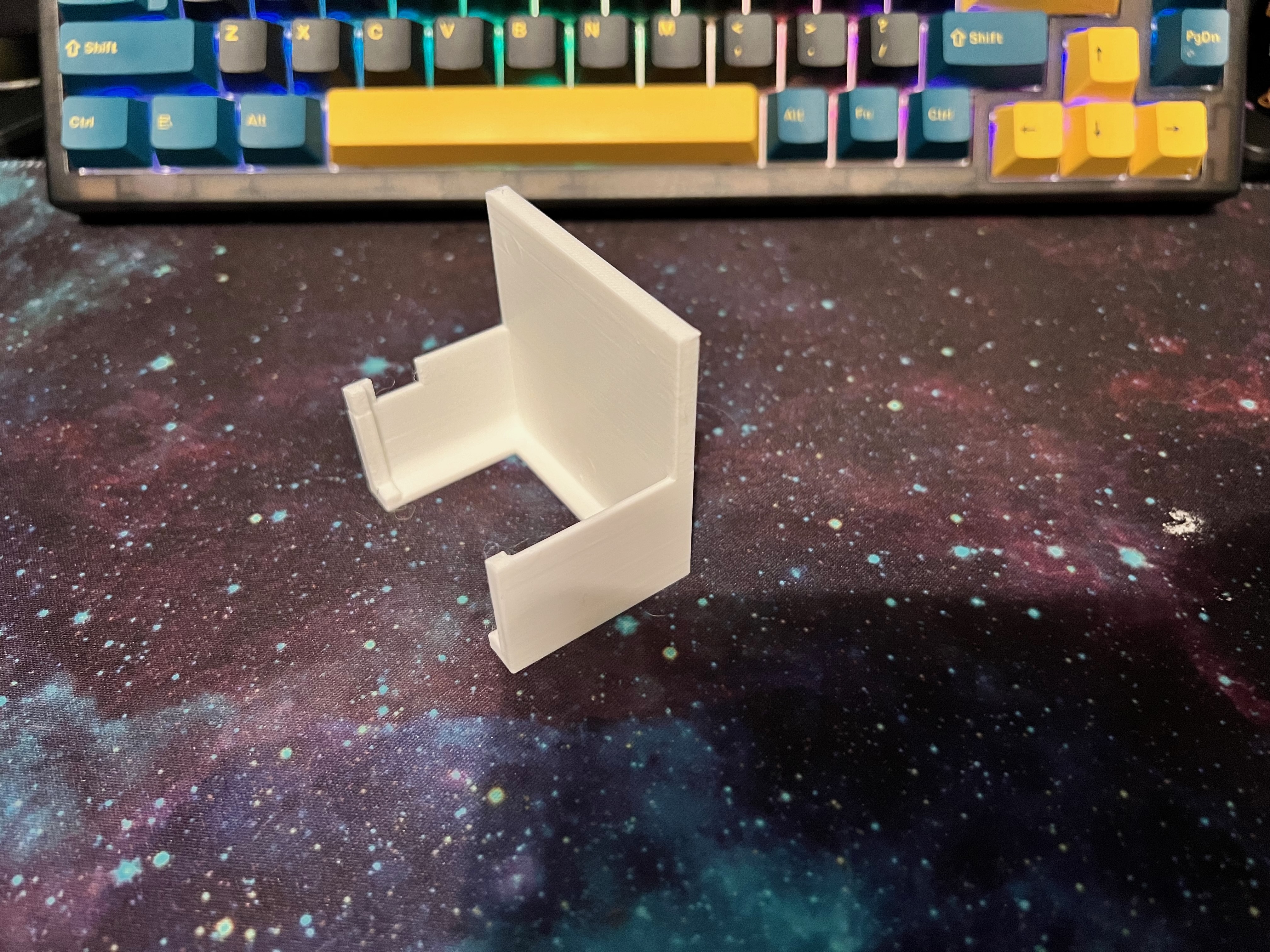

I remixed the very nice M5Stack Wall Mount by Aoshimak. I added a cutout to allow the unit to stay connected to the USB-C port.  I also covered over the screw holes and used basic mounting tape instead. Covering over the screw holes also means no supports are needed to print this mount. The CoreGo version is designed to fit the Core with the M5GO base/charger perfectly.  The Core2/Core3 GO version is designed for a Core2 with the M5GO2 base/charger, or the Core3 with the M5GO3 base/charger.  This will work with any modules or bottoms, just change the Y axis until your unit fits with whatever modules you have attached.  Look forward to some M5Paper stuff from me soon too.

Note:  I am redesigning these so you can use them even with a grove cable attached to port A. So far the Core2/Core3 version is complete.

Print Settings

• Printer brand: Prusa
• Printer: MINI+
• Rafts: No
• Supports: No
• Resolution: 0.20mm Speed
• Infill:  20%

License

CC BY-SA

M5Stack Core Wall Mount
by Meldrak is licensed under the Creative Commons - Attribution - Share Alike license.
