• This is a work in progress.

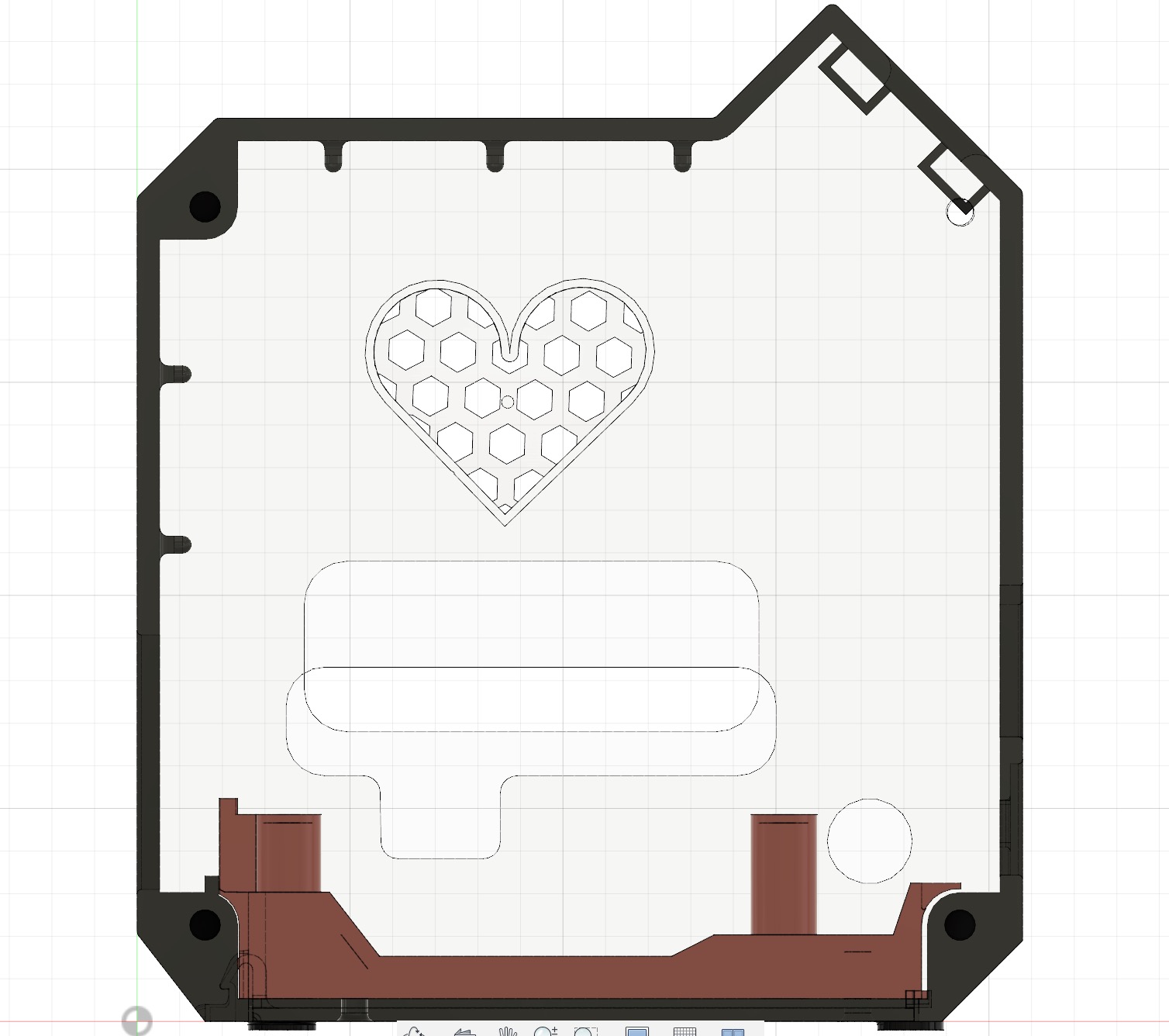

  A Raspberry Pi 4b case that allows you to have a mini desktop. compatible with the 52pi icetower and UPSice tower battery hat. This model is designed to allow you to insert and pull batteries easily instead of disassembling the entire case.

  Print instructions

• Print the main case as a print-in-place model. Use a brim to ensure it sticks well to the build plate and use supports to support the case openings.
• print the interior mount seperately. Supports recommended.

print side panels facing down with fan cutout facing up. no supports needed in this orientation. Also: this is a good candidate for using the rygar1436 how to print glass tutorial

BOM

• This used m2.5 screws throughout the model and you will need 16 of them
• you will also need 12 M2.5x6 heat set inserts for m2.5 bolts.
• Rubber feet
• ice tower
• UPS
• Compatible with 128x64 OLED screens
• Gpio right angle breakout is recommended

If you have any questions feel free to ask. Happy printing :D
