Basic cargo net hook

Replacement hook for common cargo nets. The net side of the hook has an opening just under 0.5mm which should hold on most common nets while allowing easy removal.

V1- large footprint
V2- smaller size

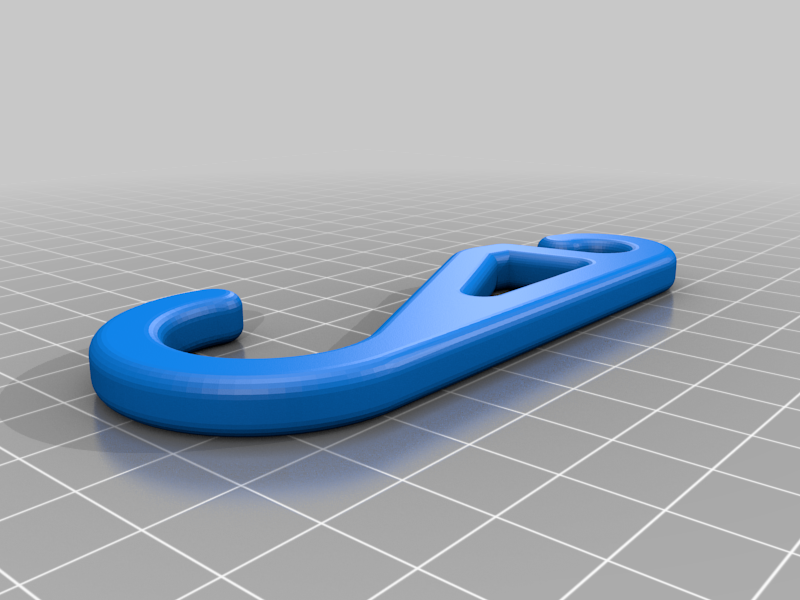

small cutout (V1 & V2)- different sizes of smaller hook opening to accommodate different thicknesses of bungee cord

Print Settings

Rafts:

Doesn't Matter

Supports:

Resolution:

0.28

Infill:

35-50

Filament:

generic PETG

Notes:

This design held just over 60lbs vertically, printed in PETG at 250/70 with 8 walls and 35% infill. Increasing the infill over 50% does give the hook more plastic deformation at the failure point, but does not seem to increase load capacity.

Just as a comparison, the hooks that came with the cargo net held about 10lbs.
