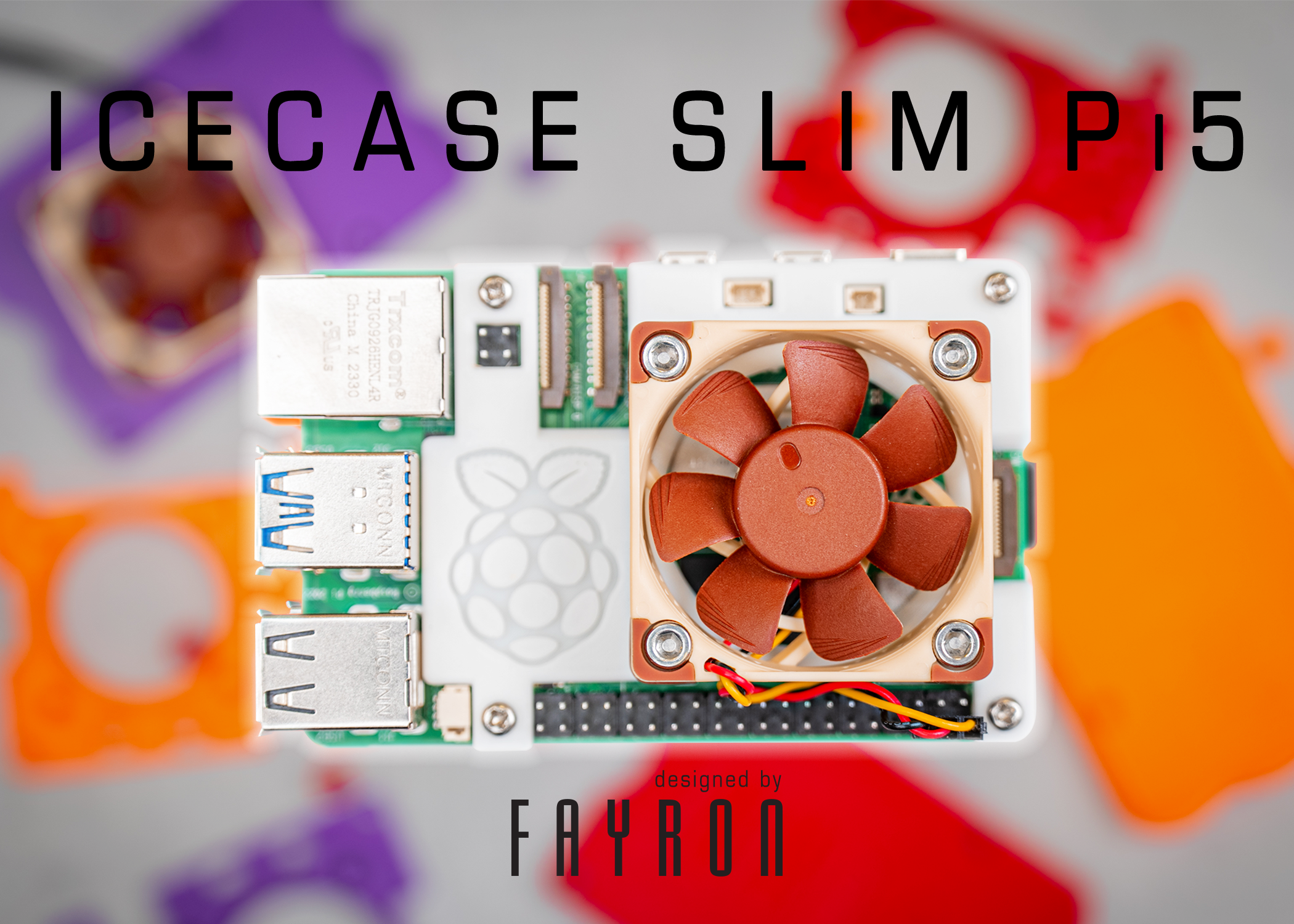

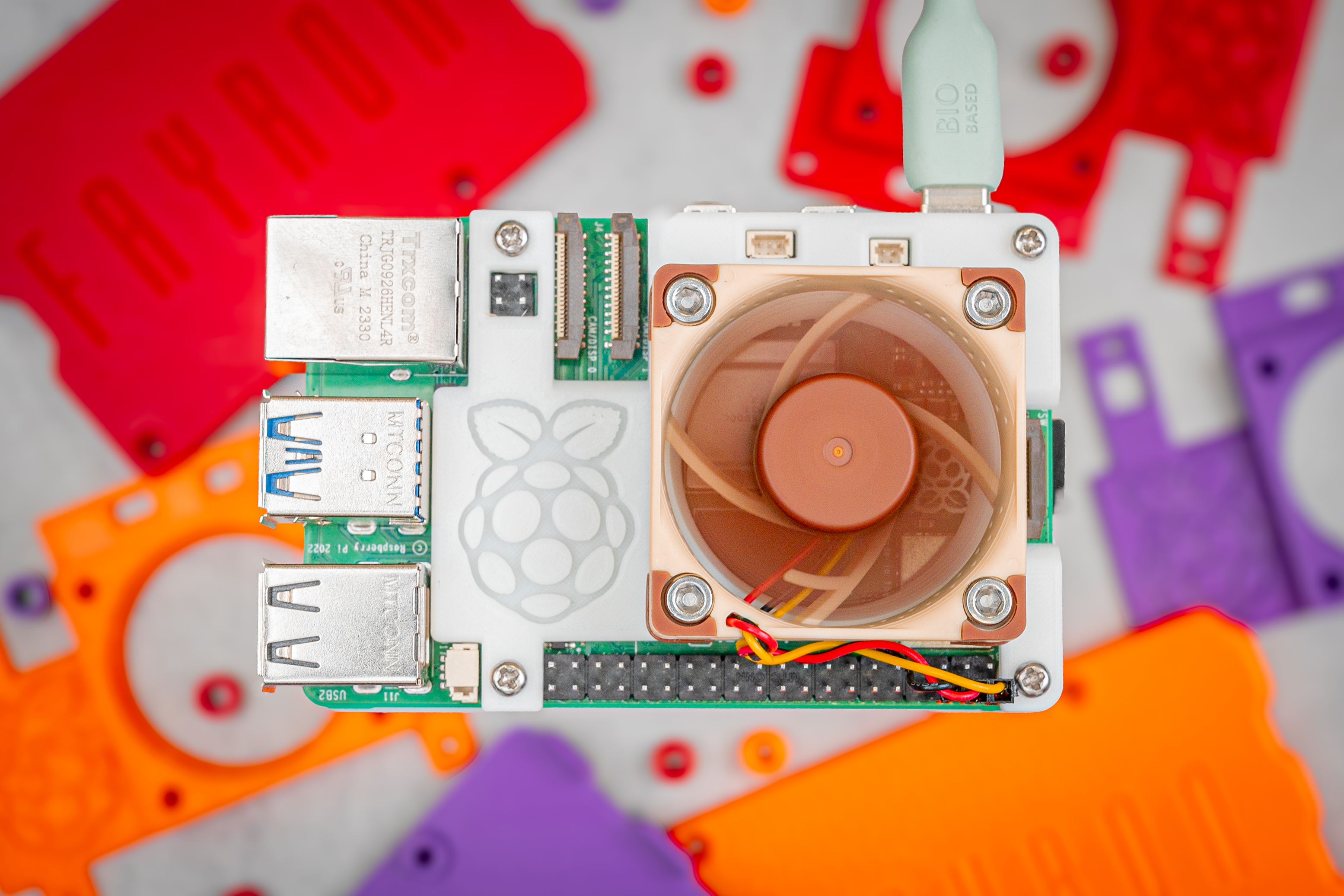

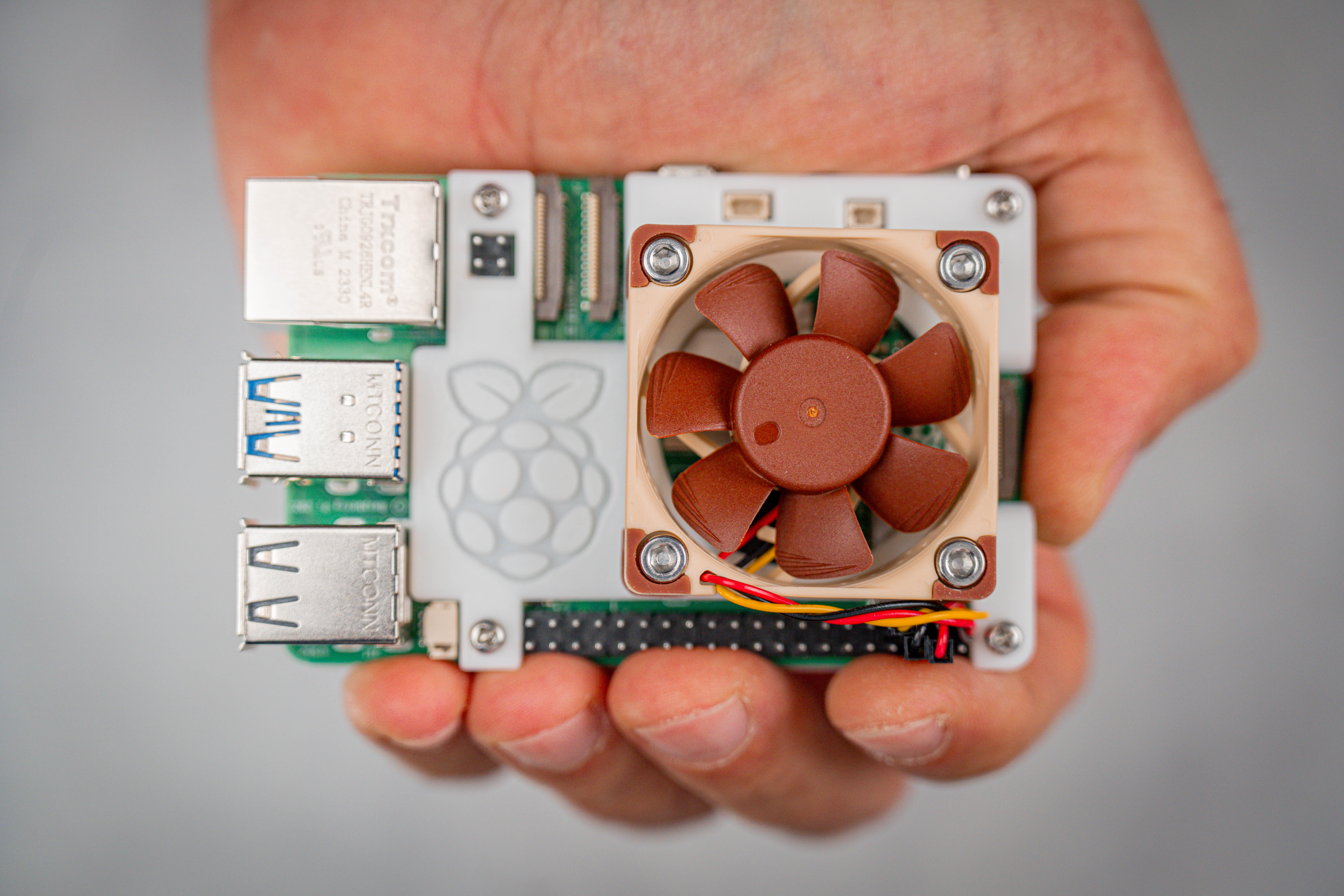

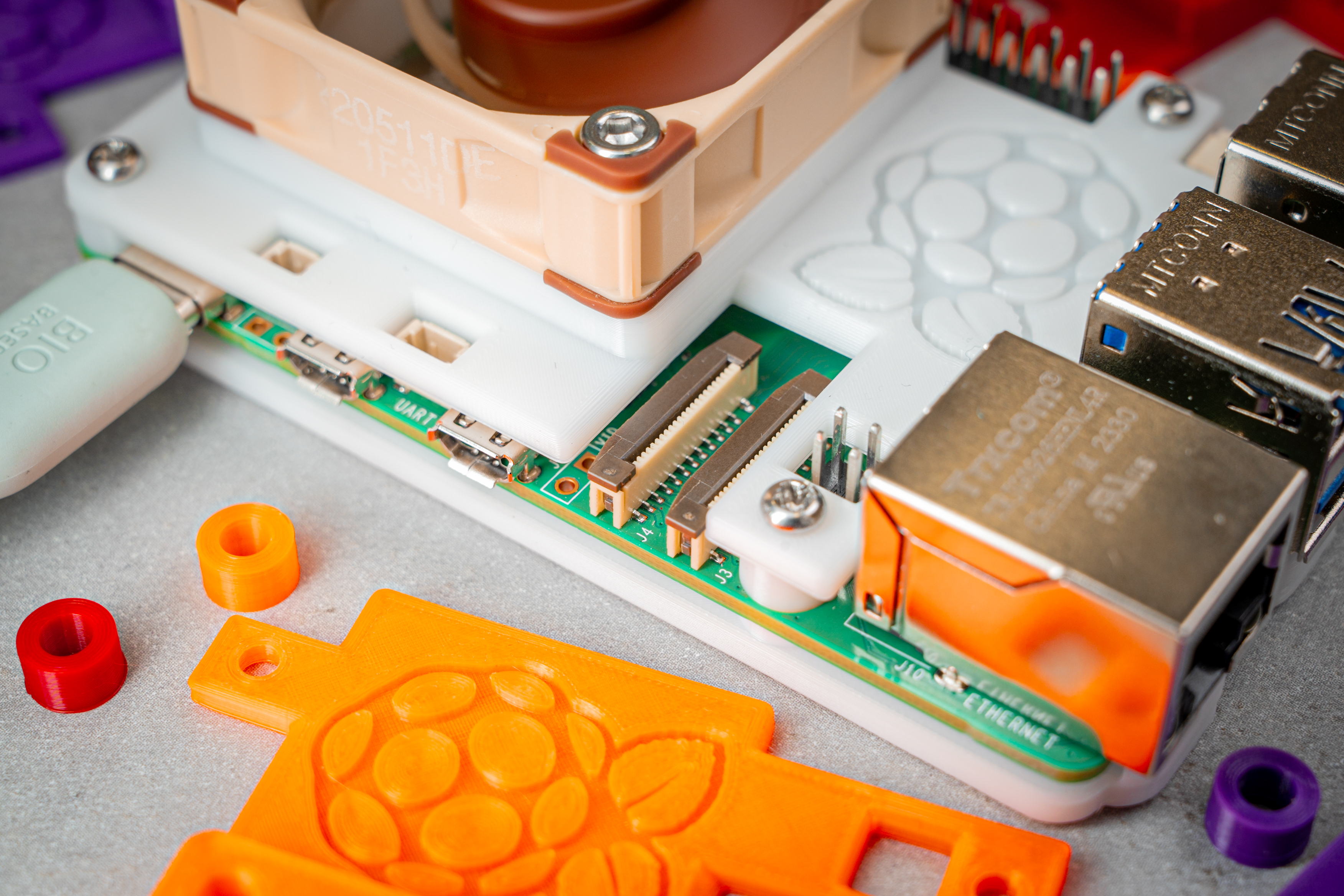

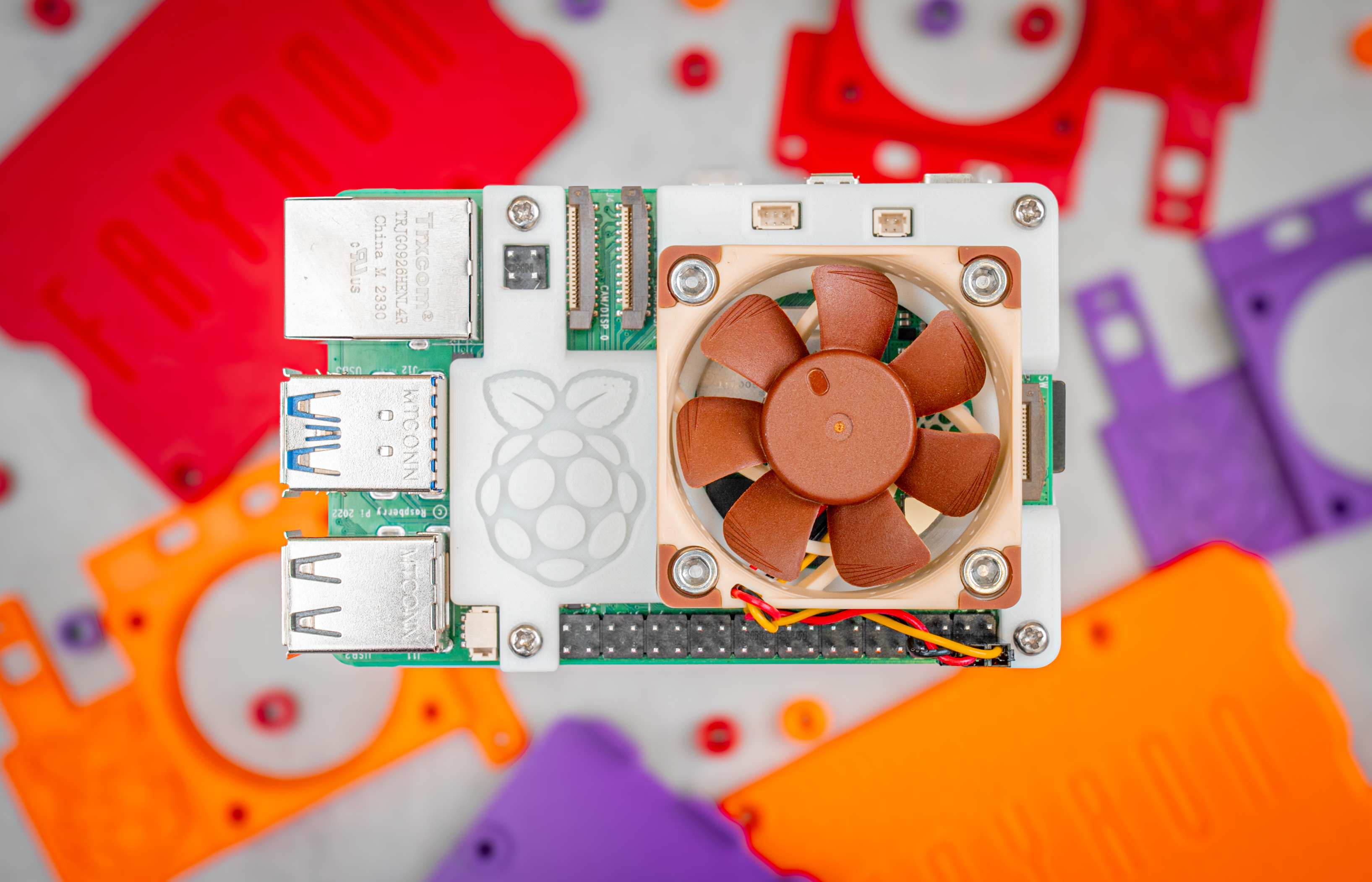

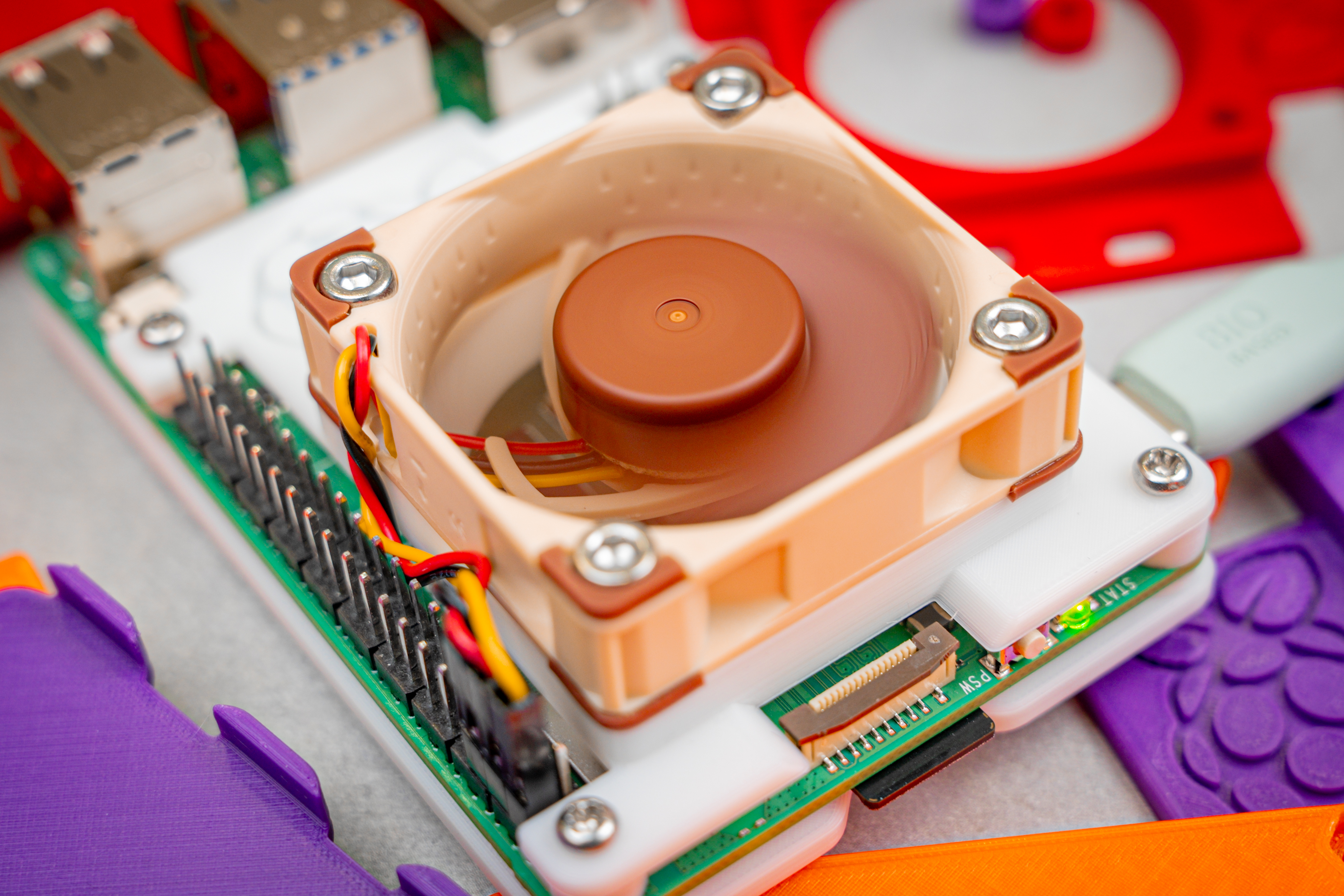

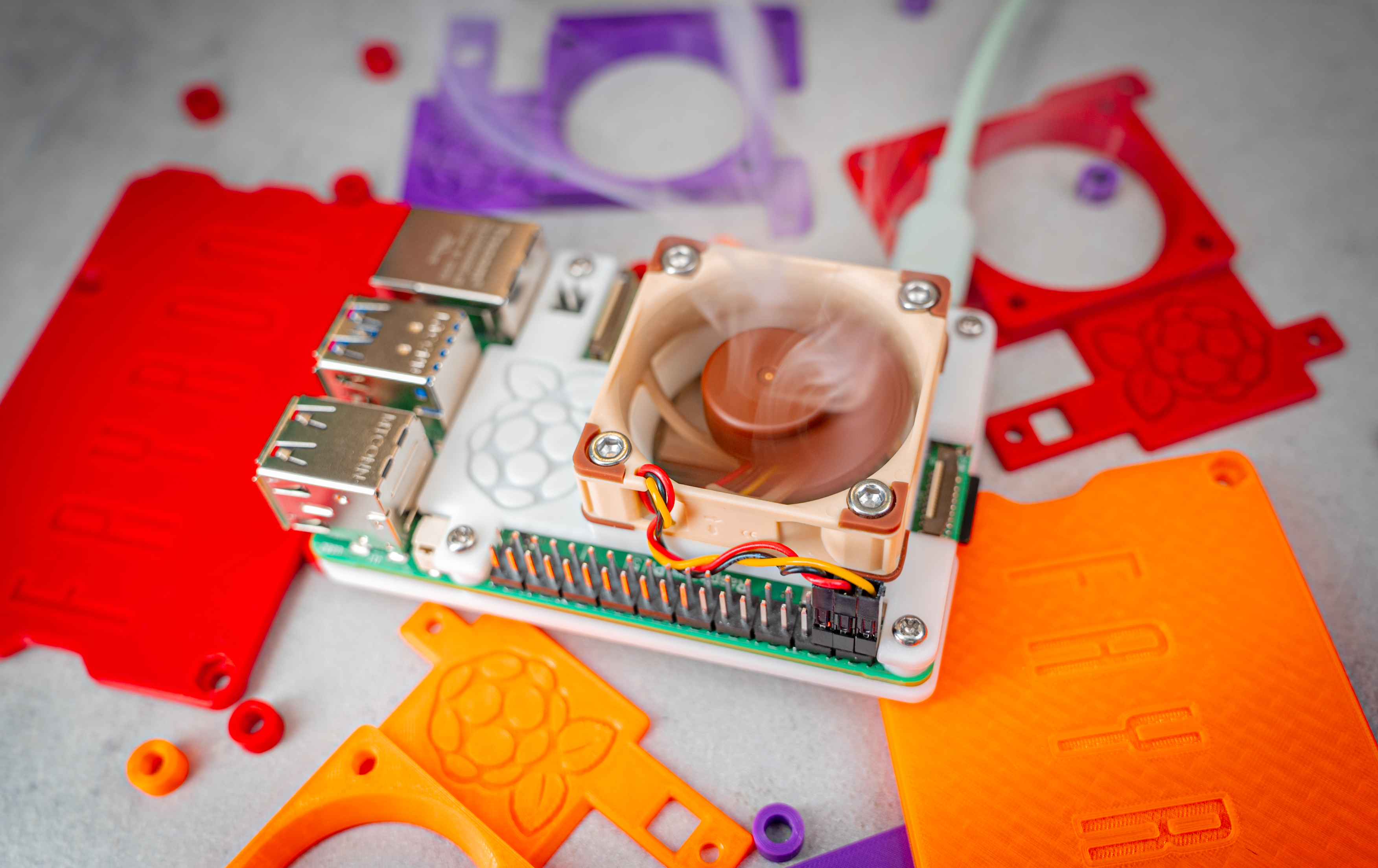

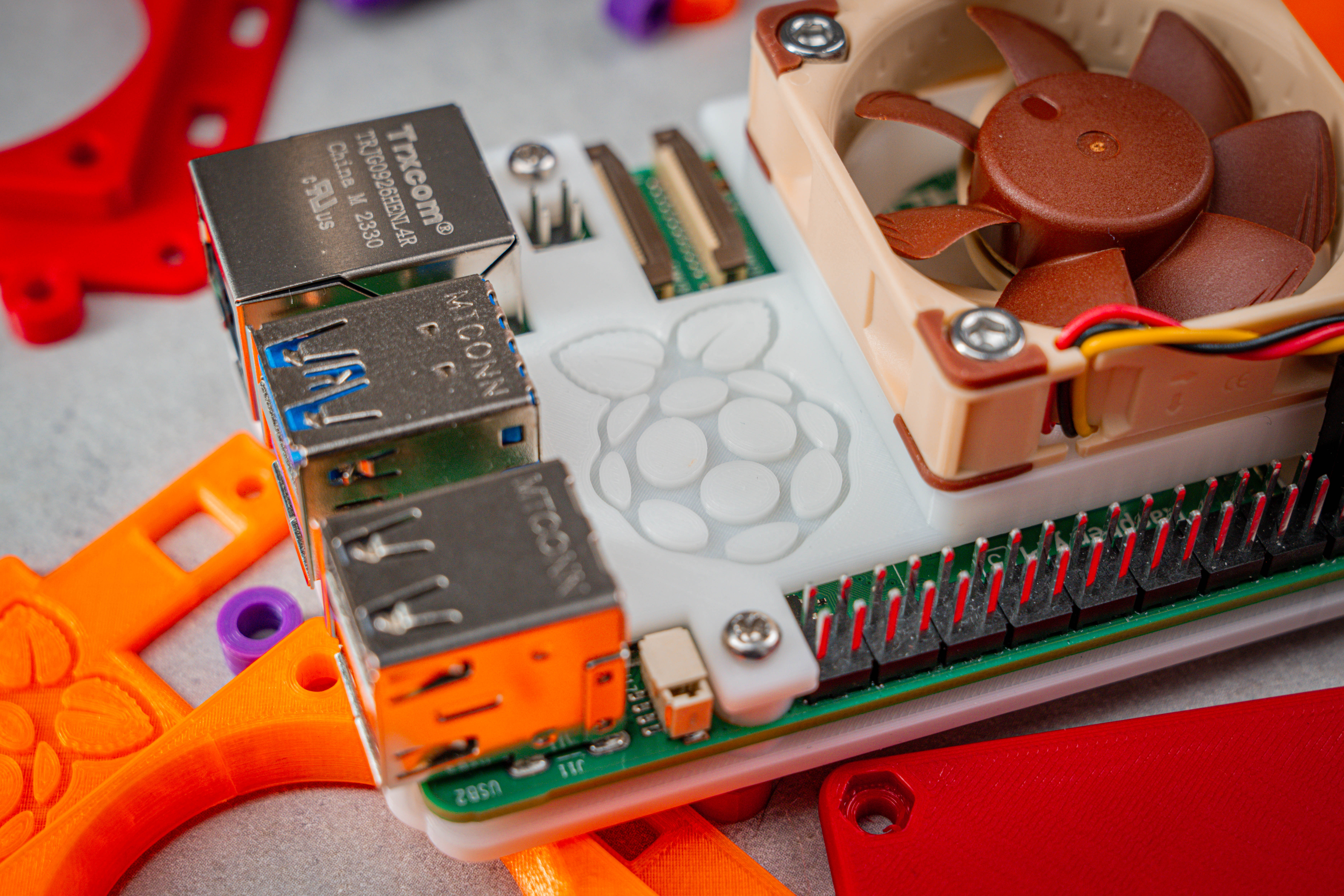

The ICECASE SLIM Pi 5 is a cutting-edge slim case tailored for the Raspberry Pi 5, housing a premium Noctua 4010 5V fan. This sleek enclosure ensures optimal cooling efficiency and sleek aesthetics, without loosing the functionality of your Rasberry Pi 5 by still having access to all the ports and connectors, safeguarding your Pi 5 from overheating while maintaining a compact footprint. Elevate your Raspberry Pi 5 experience with the ICECASE SLIM Pi5 – where superior design meets top-notch cooling performance.

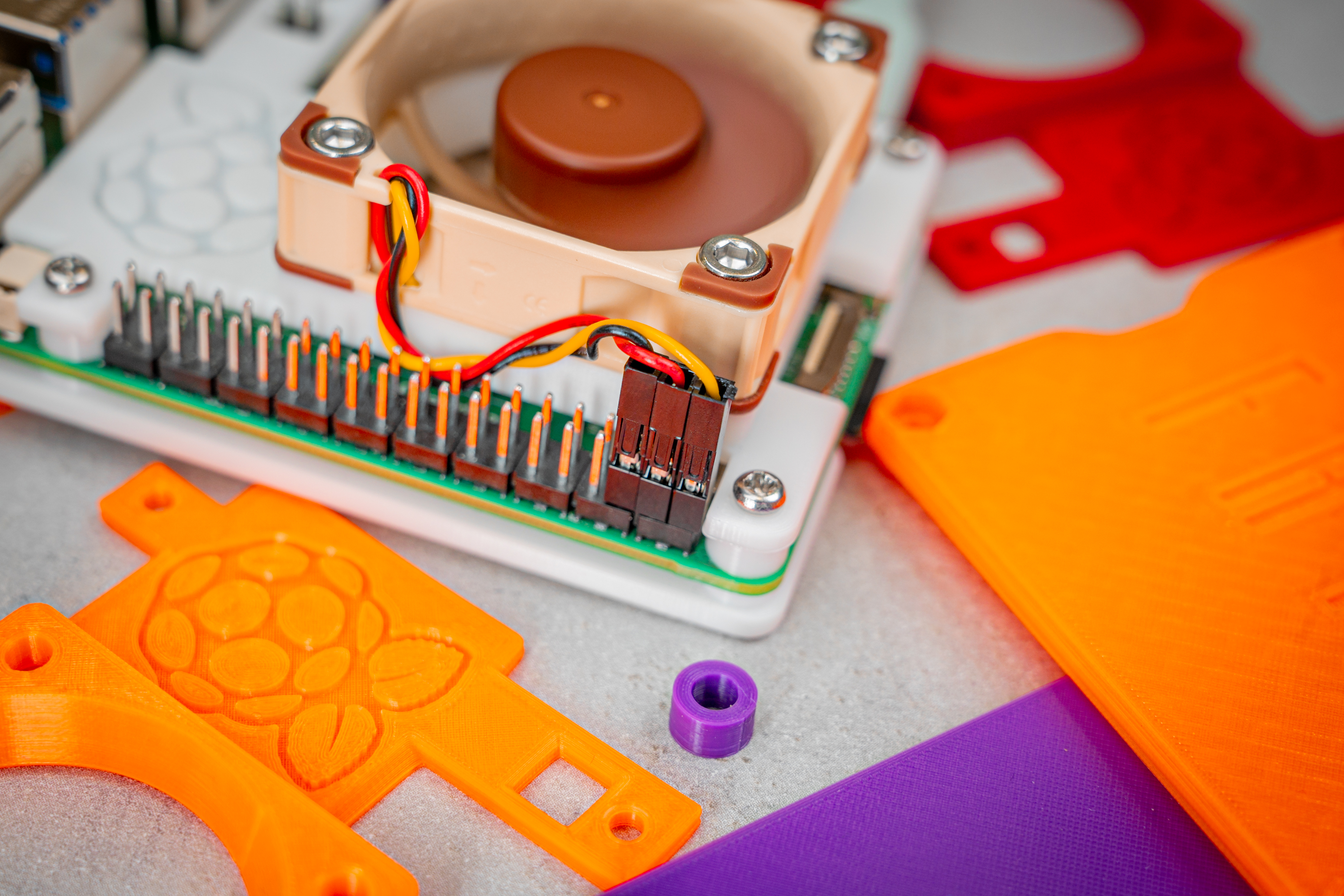

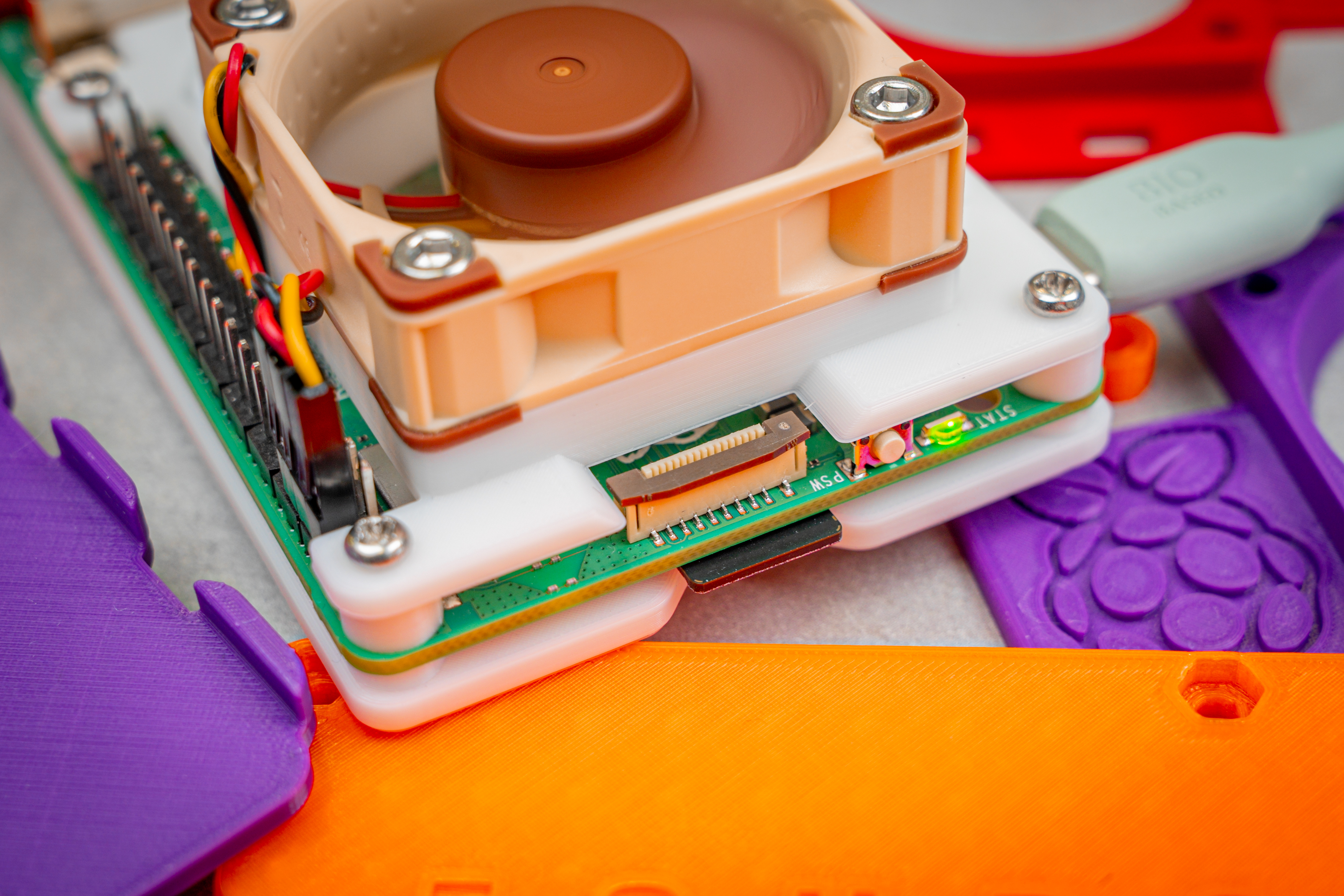

We've designed it to use M2.5 screws to assemble all the parts together and M3 screws to attach the Noctua fan to the Top part while keeping everything as slim and durable as possible.


Link to Installation Video:

RECOMENDATIONS:

• Print with a Nozzle Diameter NOT Bigger than 0.4mm (note that the printed parts in the pictures were printed with a 0.25mm nozzle at 0.15mm layer height Without Input Shaper and with a Gyroid Infill of 20%)
• We Recommend to Print with a Layer Height Not Higher than 0.25mm
• We Recommend at least 10% Infill In the Gyroid Pattern
• We Recommend Printing it with PETG, ABS, ASA etc… if you are going leave it running for a long time in hot environments
