Bambu Labs - A1 Mini - AMS Lite Z Mount

This mount attaches directly to the top of the Z-axis aluminum extrusion and does not require any additional hardware.

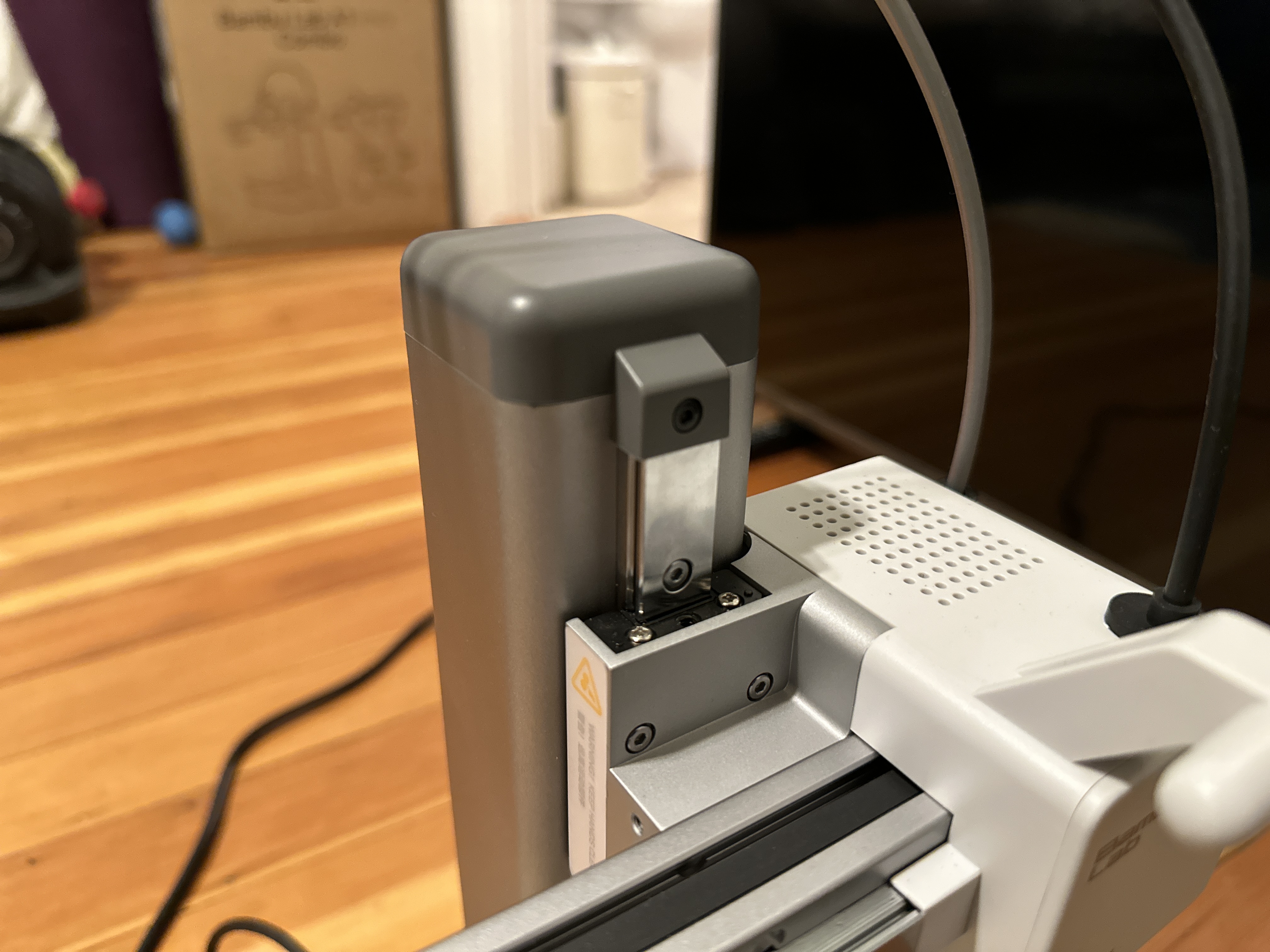

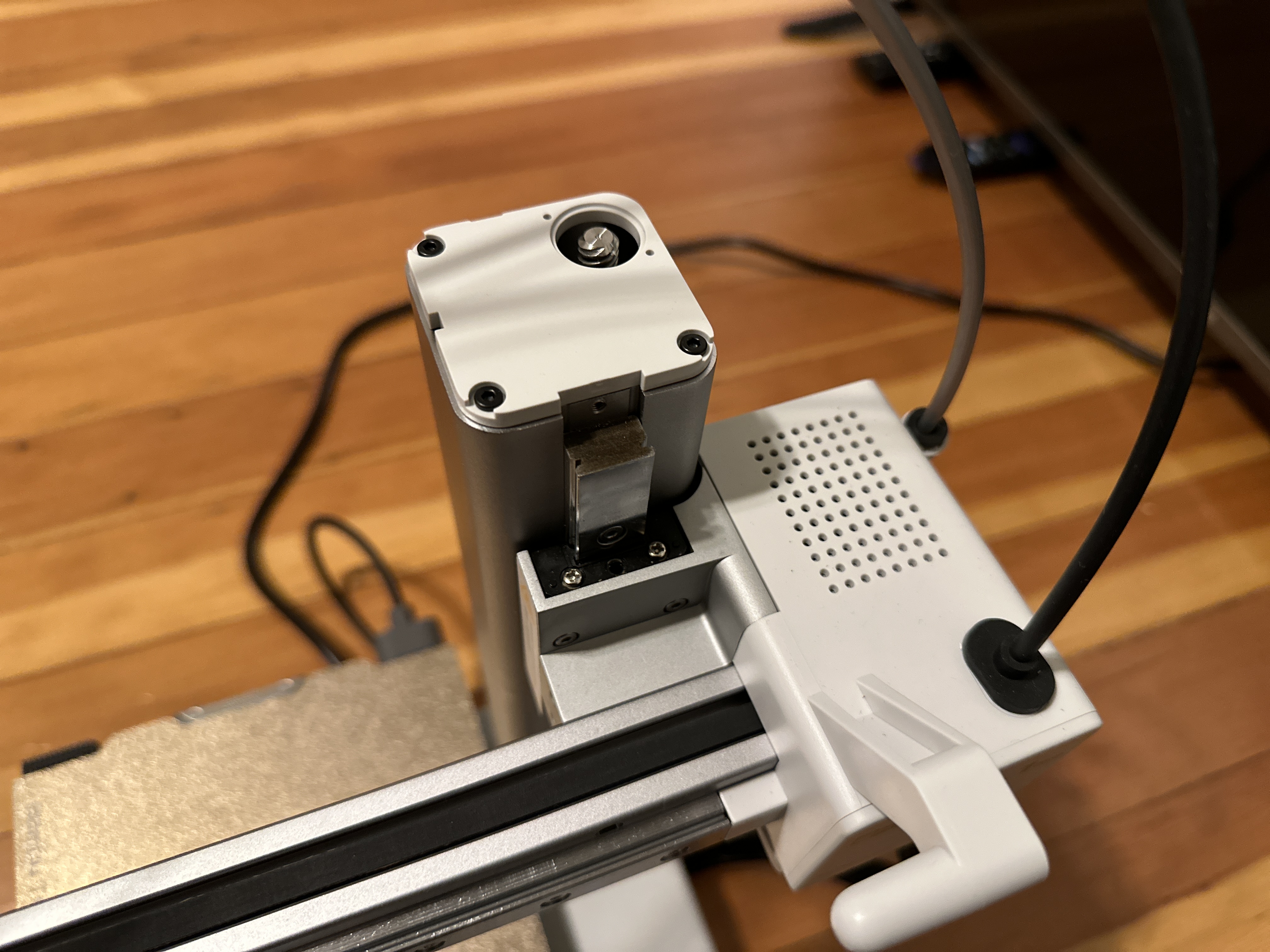

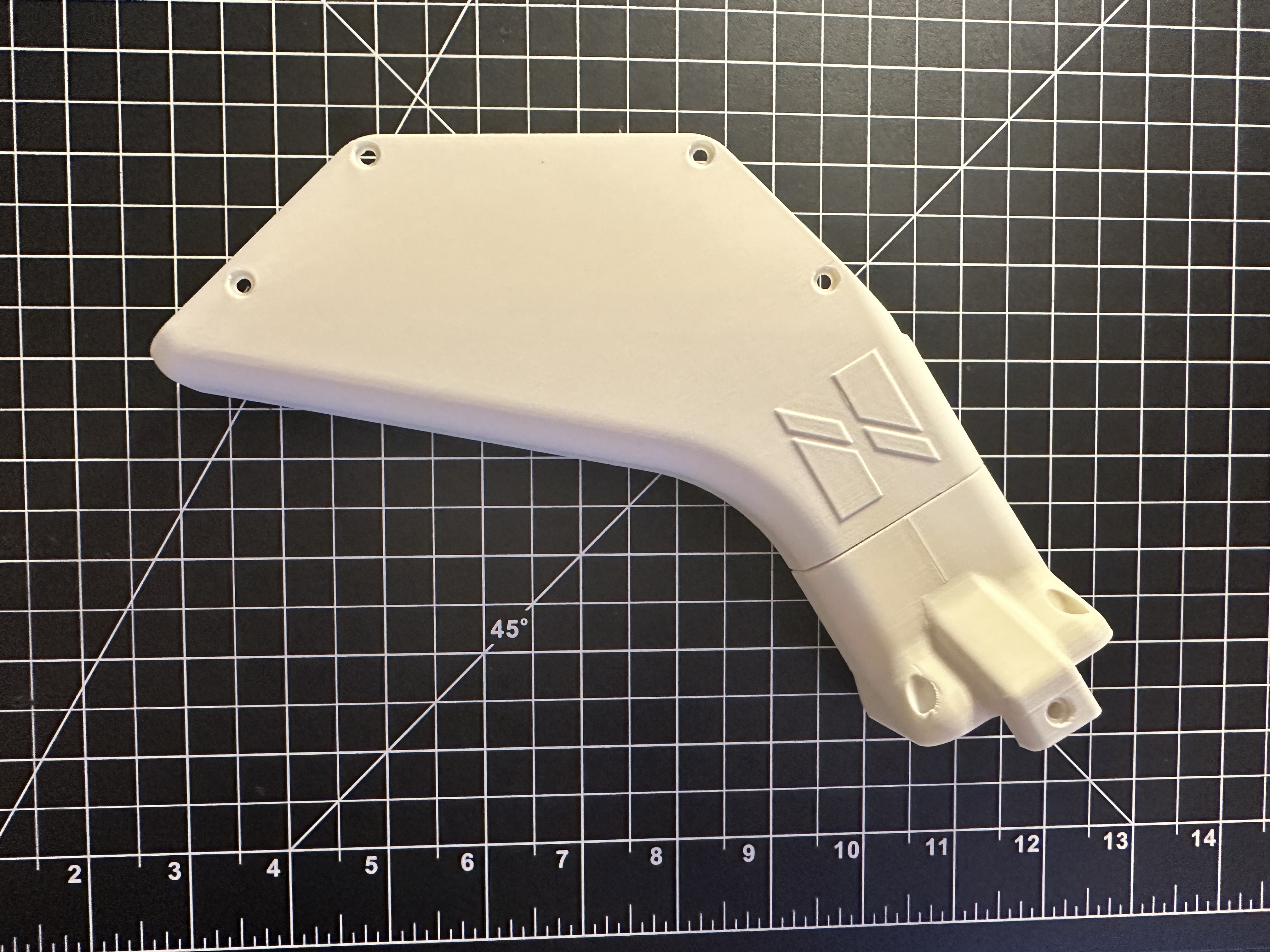

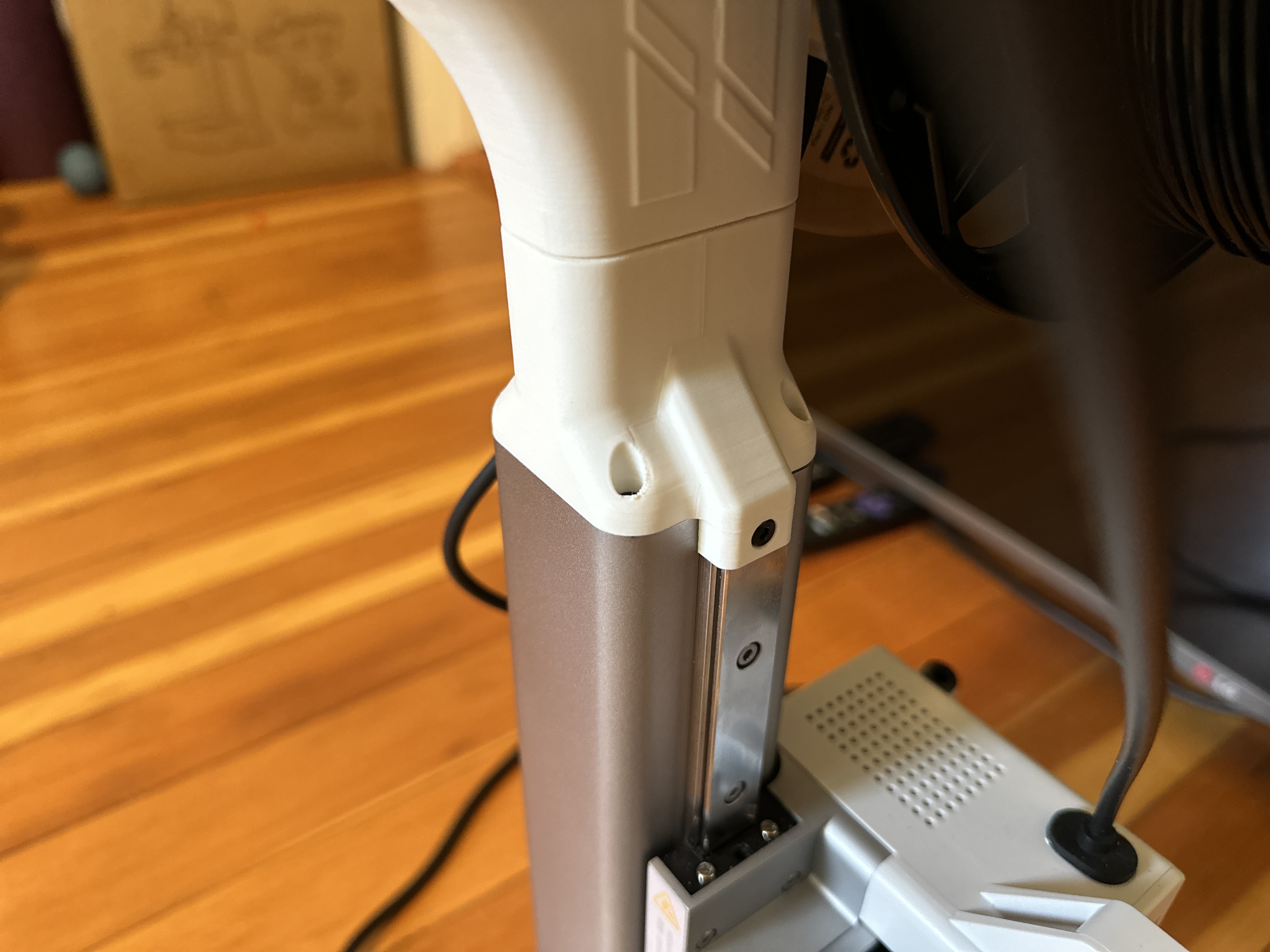

This replaces 2 of the plastic parts on the top of the z axis and uses the same screws to attach the base of the printed riser. A tight tolerance printed rod is inserted into that and the AMS-Lite cradle slides on top.

Important note:

The long filament PTFE tubes need to be switched with the short ones if you followed the assembly instructions that came with the printer.

The #1 and #3 should have the longer filament PTFE tubes (further away from the printer) Also, follow the locations that are in the photo and test the max distances to make the PTFE tubes do not get tangled. They are a close fit so do this carefully!

I'm open to any changes or improvements so if you see something you'd like to change please leave a comment.

WARNING: BUILD AT YOUR OWN RISK. THESE PARTS REPLACE CRITICAL COMPNENTS OF THE PRINTER. I DO NOT TAKE ANY RESPONSIBILITY FOR SUBSEQUENT DAMAGE DONE BECAUSE OF THESE PARTS.
