Modelo 3D Raspberry Pi 3b case por merakrom no Printables

Descrição

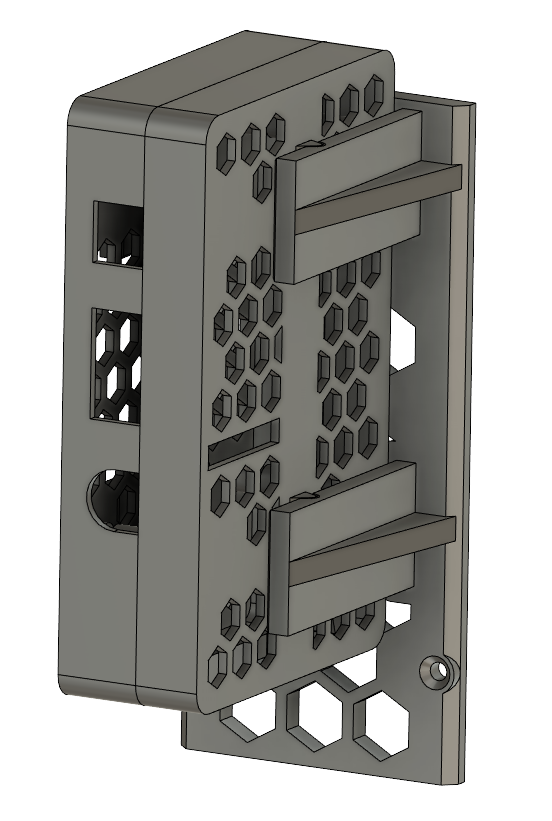

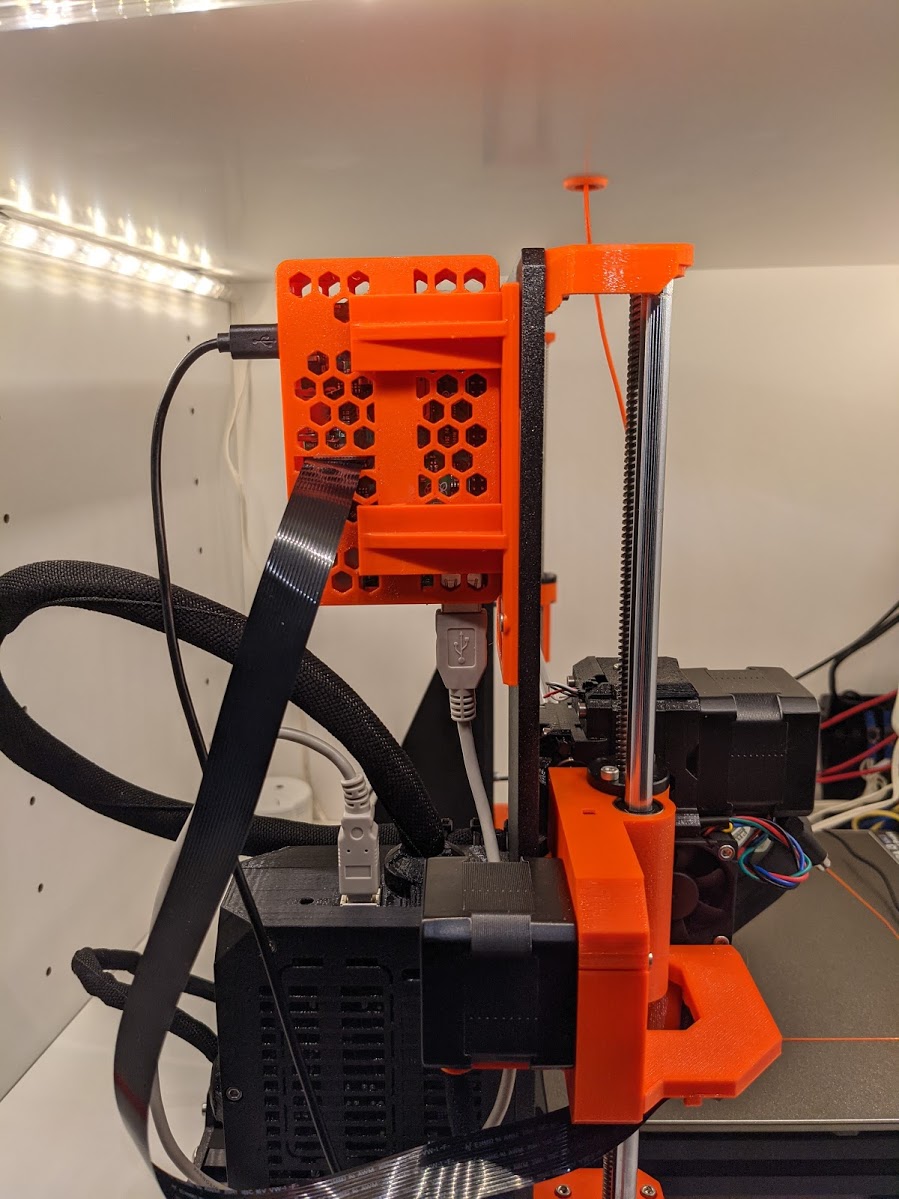

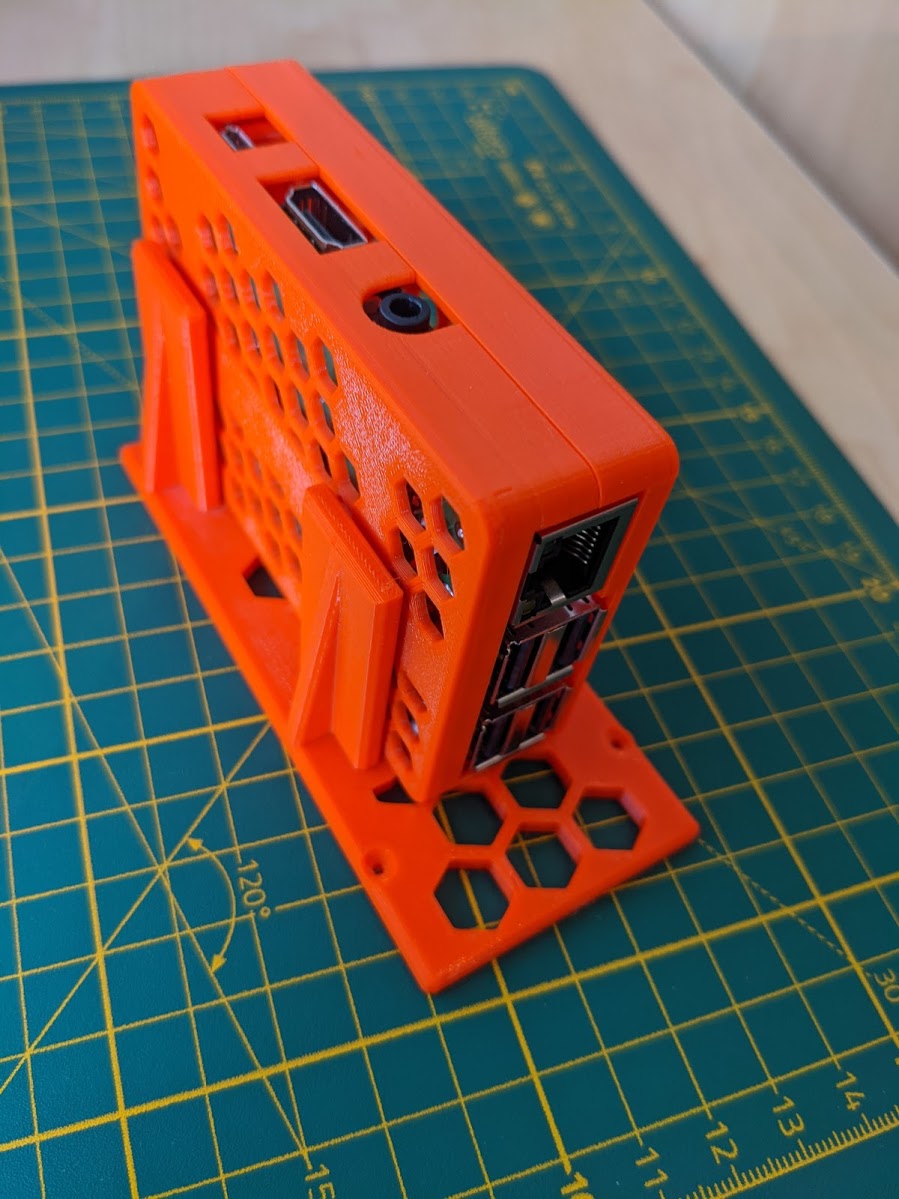

Raspberry Pi 3b case with holder for attaching to the frame of Original Prusa i3 MK3S+. The case has no screws and the case and the pcb inside is held together by placing it in the holder (the case can not be used on its own). The holder is attached to the frame with two M3 bolts.

The case it not suitable for Raspberry Pi 4, possibly for other versions of 3 but I don't have any so can't say for sure.

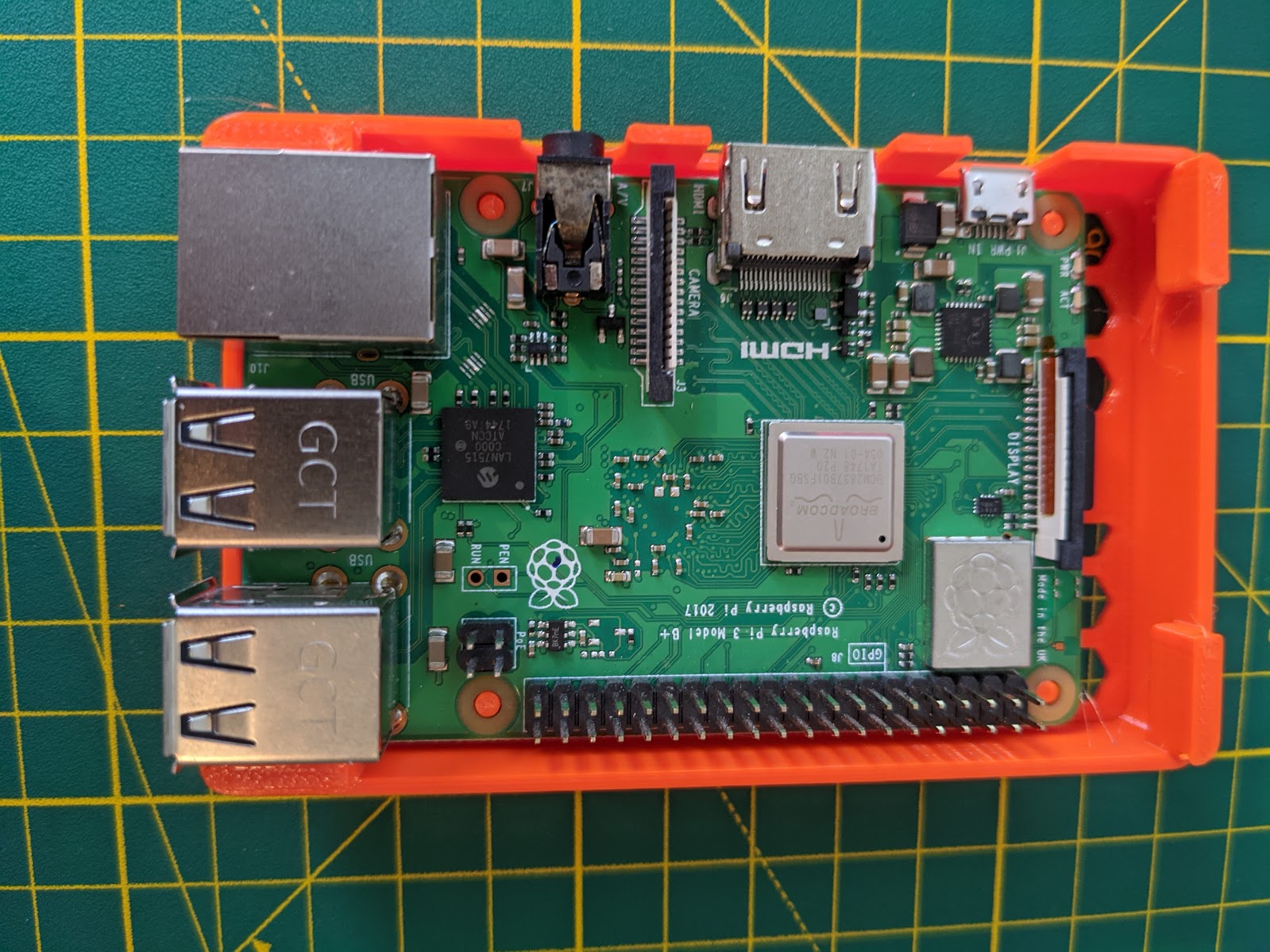

The pcb can easily be accessed by just lifting the case out of the holder. The case ha a slot for the Raspberry Pi Camera flex cable.

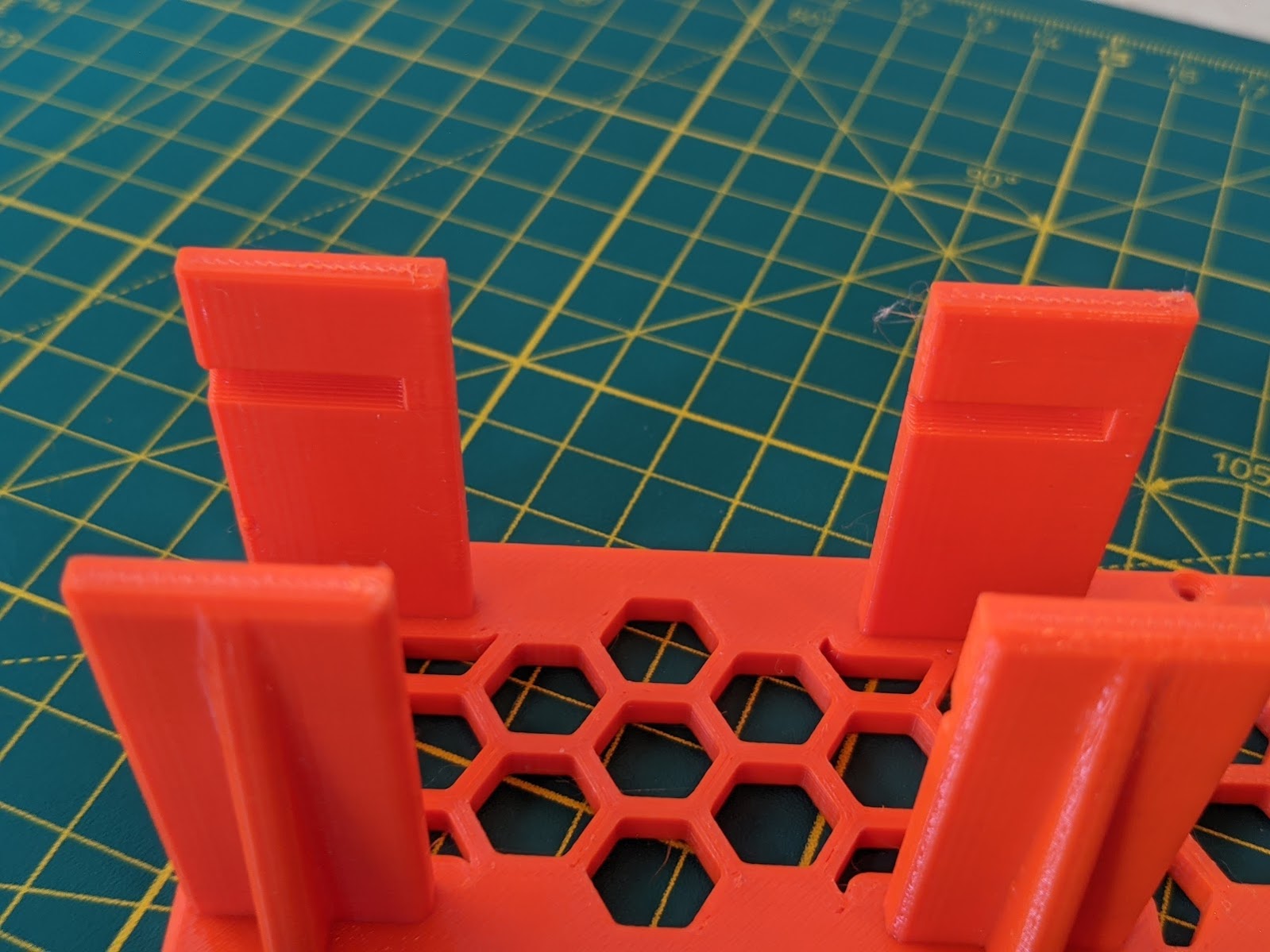

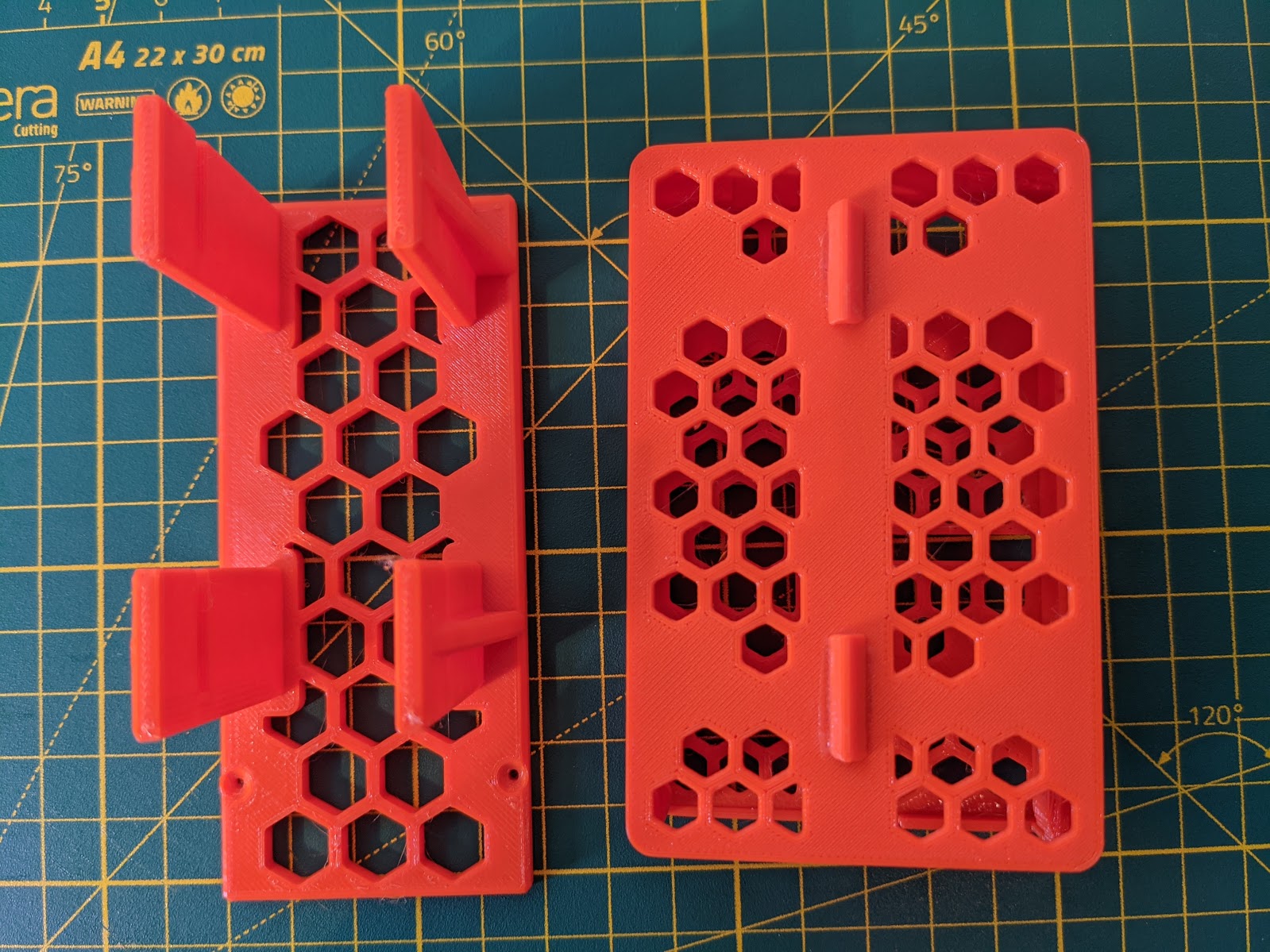

The ridges on the case that fits into the slots in the holder are printed separately and glued on to make the print easier.

They ridges have a right and a wrong orientation, make sure to compare with slots in the holder to get it right and try it before adding any glue. The shorter side of the triangle should be on the side of the holder.



Printables

Raspberry Pi 3b case

Publicado em 24 de jun de 2024

186
Curtidas
1,294
Downloads
30
Impressões
Categoria Accessories
Tags
raspberry raspberrypicase raspberrypi3
Licença Creative Commons — Attribution — Noncommercial
Arquivos (3)
raspberry_pi_3_b_plus.stl 449 KB
raspberry_pi_3_b_plus v19.f3d 41.2 MB
raspberry_pi_3_b_plus v19.step 1.5 MB
