Overview

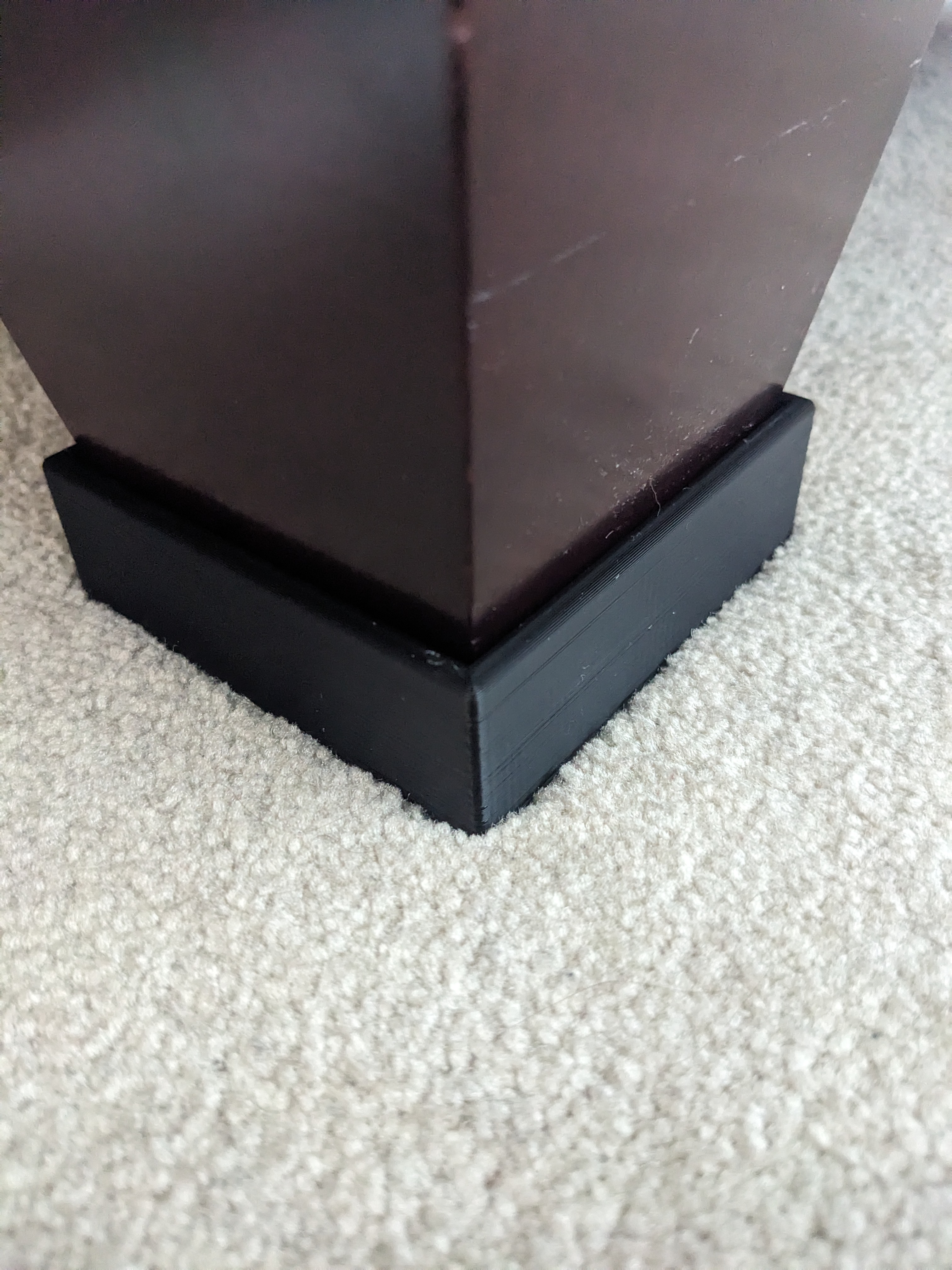

This is an adjustable riser for square legged couches. You can edit the size and height of the riser via parameters in the FCStd file.
I found that for my couch, 88mm was enough for the leg to fit snugly in the riser without putting pressure on the lip.
I found that 25mm was enough height to allow my robot vacuum cleaner to fit under the couch without issue while not dramatically changing its appearance or causing instability.
You will need to remove the small pad nailed into the bottom of the couch leg if it is there. Failure to do so will likely cause cracking of the riser.
If there is interest, I can release models with separate X and Y inner dimensions and/or a recess for the small pad.
Printer Settings
These are the settings that I used, but your values may need to be different:
| Material | PLA+ |
| Brand | eSun |
| Vertical Perimeters | 4 |
| Horizontal Perimeters | 4 |
| Infill Pattern | gyroid |
| Infill Density | 20% |
| Supports | None |
Parameters
Available Parameters
| Parameter | Description |
|---|---|
| riser size | adjusts the inner dimensions of the riser - adjust this to snugly fit the leg of your couch |
| riser height | adjusts the height to elevate the leg by. Note that this is the height from the ground to the pad, not the ground to the lip. |
Adjusting Parameters
- open the FCStd file in Freecad
- select the “parameters” sheet
- input an appropriate riser size
- input an appropriate riser height
- export in a format appropriate for your desired slicer.
