Modelo 3D Hardware sorting tray. Parametric model. por Zombie47 no Printables

Descrição

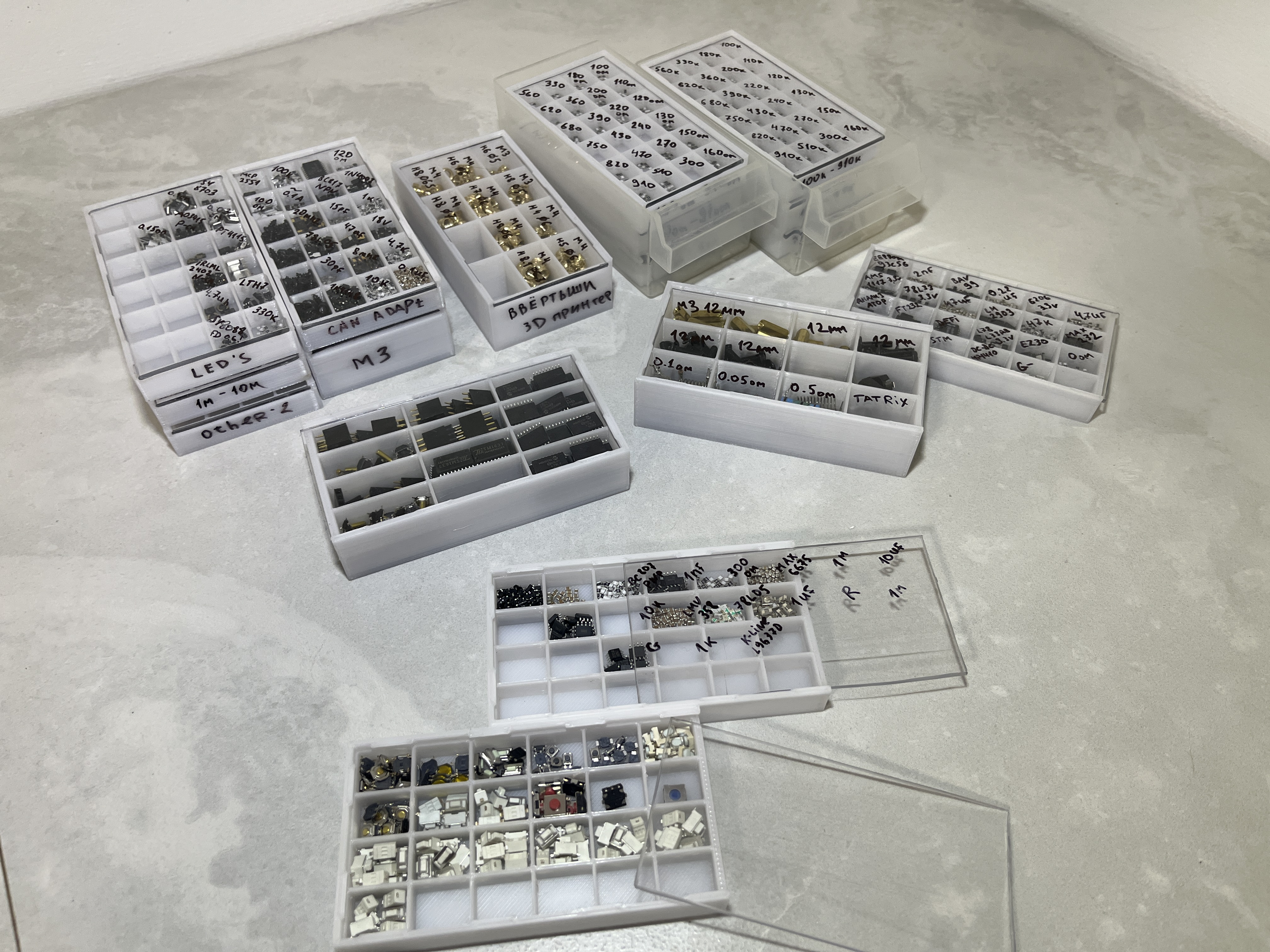

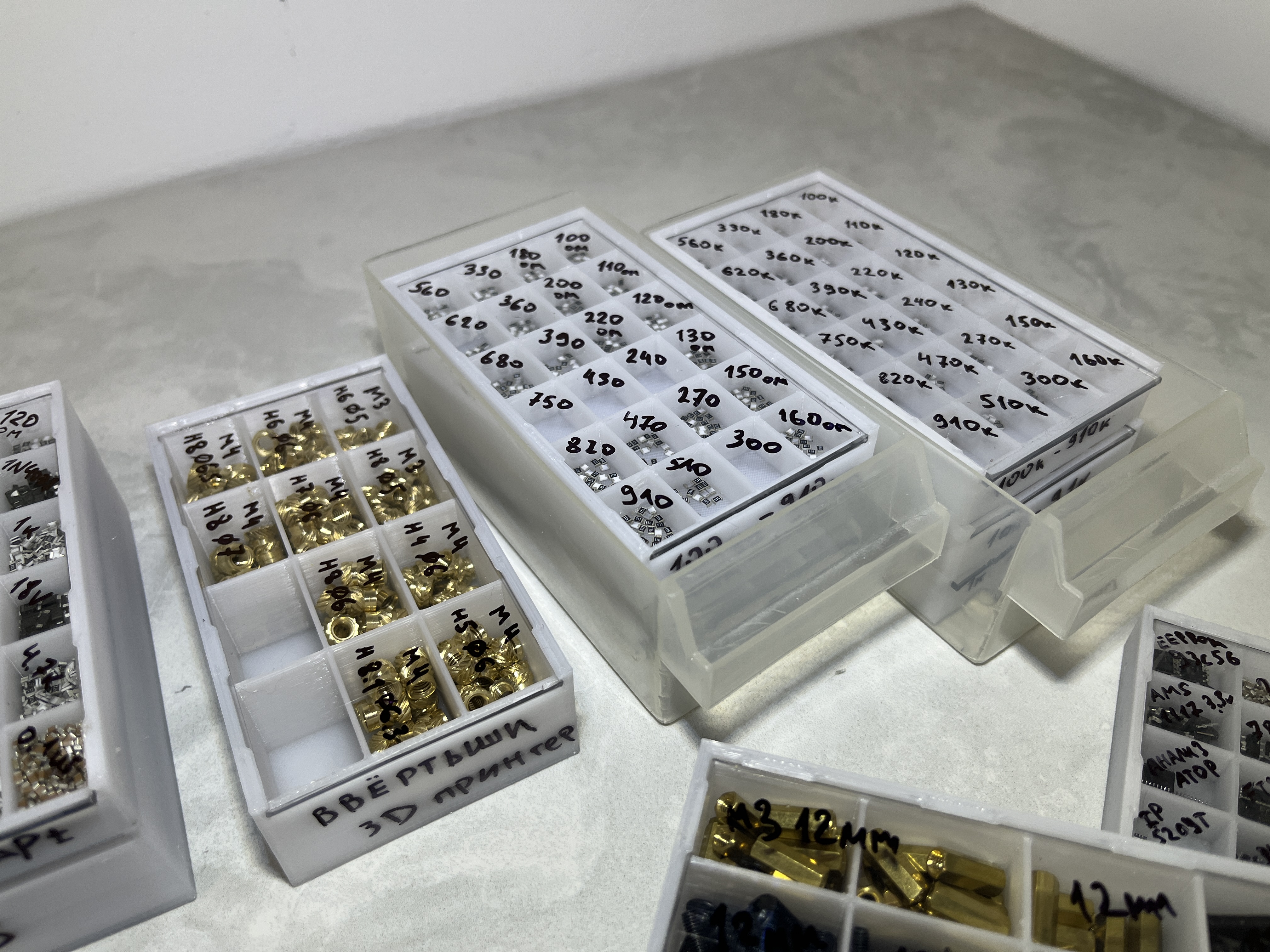

Model for Fusion360. The idea is that you simply enter the required box sizes, height, length, number of cells and the model itself for you to build. It is also indicated what kind of “glass” you need - the retractable lid needs to be sized. In my case, the wall storage system required boxes of a certain size. I made the glass from 2mm polycarbonate.
Download the file, click import into Fusion360. Click modify and there modify parameters. And change all the parameters that interest you. There, for information, see what the height of the box will be and what kind of glass is needed. I printed from PETG without blowing.

Printables

Hardware sorting tray. Parametric model.

Publicado em 6 de dez de 2023

6
Curtidas
37
Downloads
Categoria Electronics
Licença Creative Commons — Attribution
Arquivos (1)
box_for_smd_elements v16.f3d 215.4 KB
