Modelo 3D Modular Hydroponic Tower Garden por chrisebryan no Printables

Descrição

The original Modular Hydroponic Tower Garden 3D model created by boundarycondition is no longer accessible due to the user's account being deleted. To ensure the continued availability of this valuable resource, I am reuploading the model with proper attribution to the original creator.

This model provides a unique and innovative approach to hydroponic gardening, making it a valuable tool for both hobbyists and experienced growers alike.

By reuploading the model, we can preserve this legacy and ensure that others continue to benefit from boundarycondition's ingenuity.

Original model name: Modular Hydroponic Tower Garden
Original uploader/creator: boundarycondition
Original link: [https://www.thingiverse.com/thing:3405964](https://www.thingiverse.com/thing:3405964)

This thing was created by Thingiverse user boundarycondition, and is licensed under cc-nc-sa.


Thank @pandel_595670 for pointing out that “The associated electronics and Arduino programming by boundarycondition can be found here: [https://github.com/laszlodaniel/ModularHydroponicTowerGarden](https://github.com/laszlodaniel/ModularHydroponicTowerGarden)”

Thank @Boysie_66856 for providing the OneDrive link for .STEP files, that can be found here: [https://onedrive.live.com/?authkey…](https://onedrive.live.com/?authkey…)

Thank @naplav for originally providing the .STEP files here on printables.com [https://www.printables.com/model/299866-modular-hydroponic-tower-garden](https://www.printables.com/model/299866-modular-hydroponic-tower-garden)

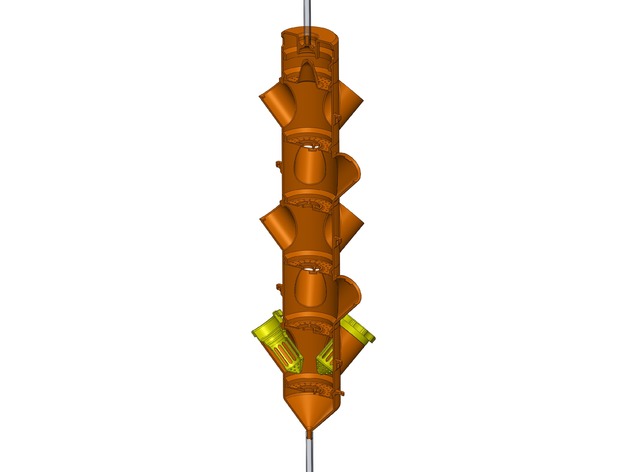

Features

  • Modular structure, easily scalable, put modules together, twist & lock, done

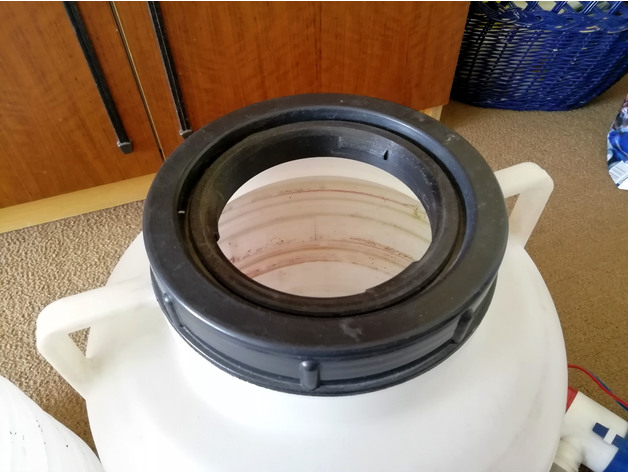

  • Module adapter to be glued into water tank's lid

  • Filling module with cap

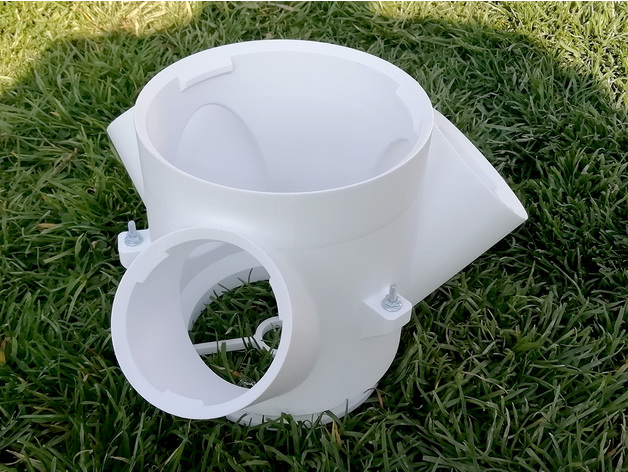

  • 1/2/3/4/5-way planting modules (hollow version recommended)

  • Spacer modules (optional)

  • Internal/external water dispenser modules

  • Cone module for external water circulation systems

  • Lid

  • Custom net pot for Jiffy-7 41 mm grow medium (dry pressed dimensions: diameter 37 mm, thickness: 7.5 mm)

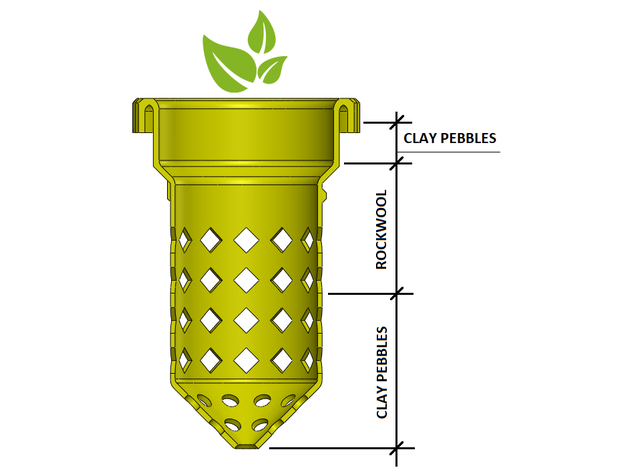

  • Custom net pot with 48 mm internal diameter for other grow medium (rockwool + clay pebbles)

  • M3 screw points on planting modules for plant tagging and general fixture purposes

  • Any kind of water pump works with this system

  • 2" net pots fit into planting ports

Dimensions

  • Outer diameter of planting modules: 115 mm

  • Inner diameter of planting modules: 107 mm

  • Planting module height: 120 mm

  • Spacer module heights: 40/80/120 mm

  • Wall thickness: 4 mm

  • Clear inner diameter of pot trays: 53.5 mm

  • Outer diameter of pot trays: 65 mm

  • Compatible silicone hose: ID 10 mm fixed, OD 18 mm (max),

  • Temperature sensor mounts in the filling module (10k thermistor): 5mm cylindrical shell diameter.


2023-12-04 Original release
2024-03-22 Added a GitHub link to the description for the electronics and Arduino programming
2024-06-05 Added .STEP files, added extra tags, upgraded description, added Features and Dimensions, added extra .STL files shared by @Boysie_66856 and originally provided by @naplav
2026-06-03 Organized printable .stl model files into clearly structured folders.
2026-06-09 Resolved a critical issue where users could scroll past without experiencing curiosity by deploying a new, dangerously clickable cover image.

Printables

Modular Hydroponic Tower Garden

chrisebryan chrisebryan (abre em nova aba)

Publicado em 9 de jun de 2026

1,925
Curtidas
11,261
Downloads
46
Impressões
Categoria Outdoor & Garden
Tags
water 3d herb space printed diy modular organic garden fun educational tower grow free food gardening hydroponics tomato outdoor pepper indoor vertical saving scalable delicious agriculture hydro hydroponic vegetable mint peppermint healthy production strawberry efficient verticalgarden aeroponics culture basil diyhydroponics hydroponicsystem cucumber farming rich urban nutrient verticalgardening pesticide selfsufficiency rewarding gmo
Licença Creative Commons — Attribution — Noncommercial — Share Alike
