Modelo 3D Spool Roller por Stefan no Printables

Descrição

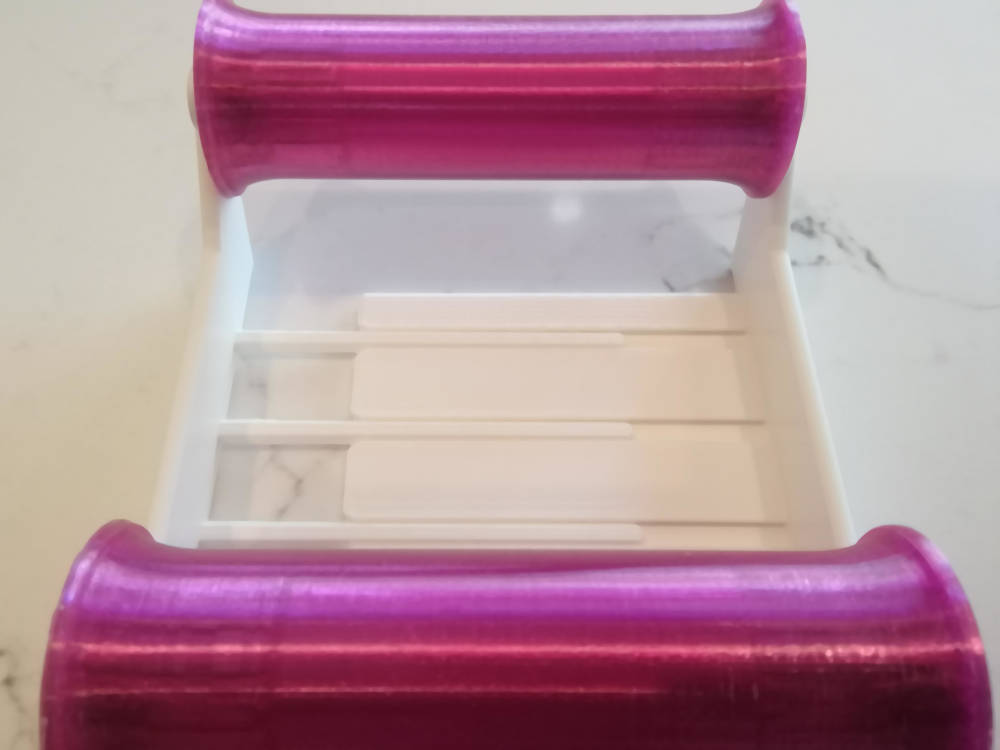

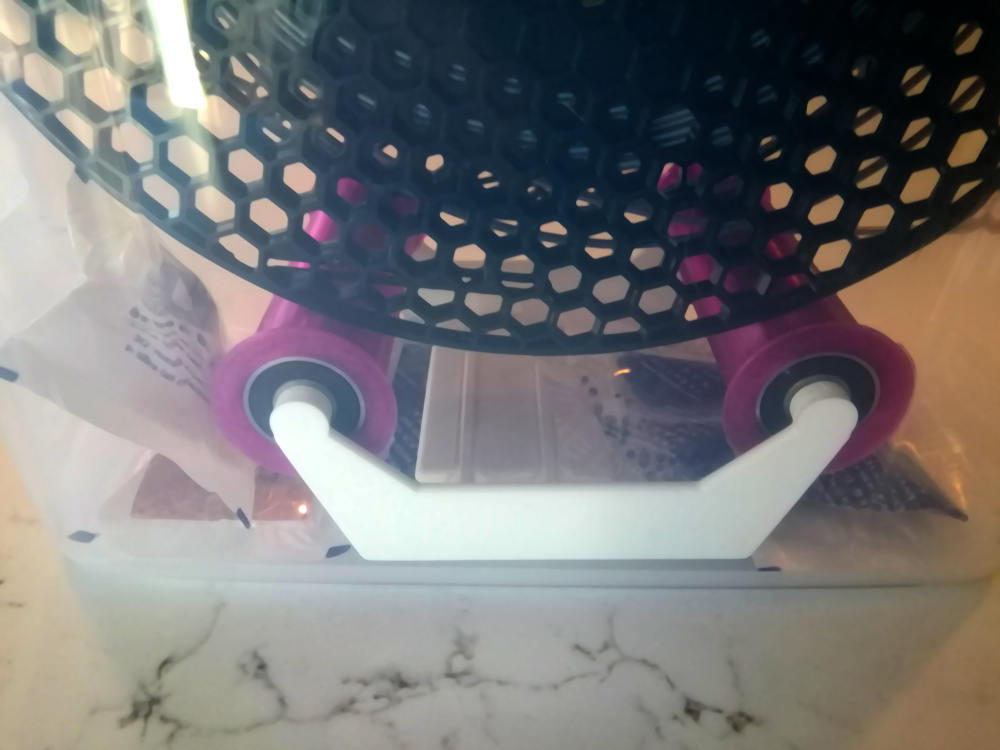

I often don't use my 3d printer for a while and did not want to keep packing away filament between uses. The pre-made versions of this seemed more expensive than I though was necessary so I made this.  This is a filament roller which fits in a Rubbermaid 21-Cup food container with space for desiccant packets in the bottom. This is for a Prusa Mini but should work for other printers as well.

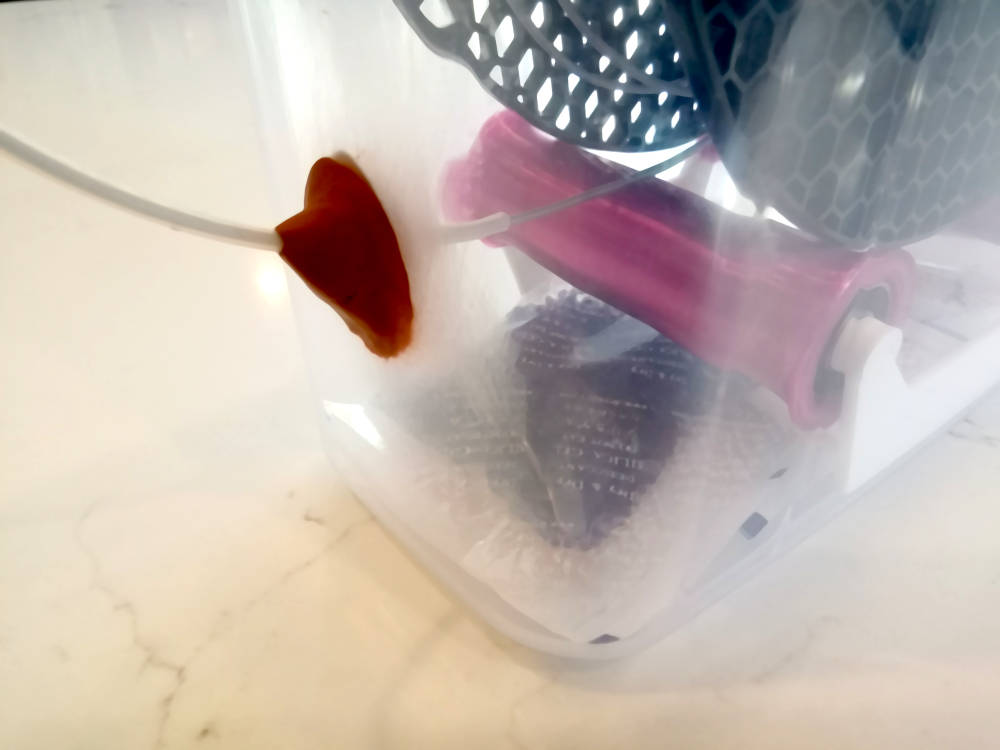

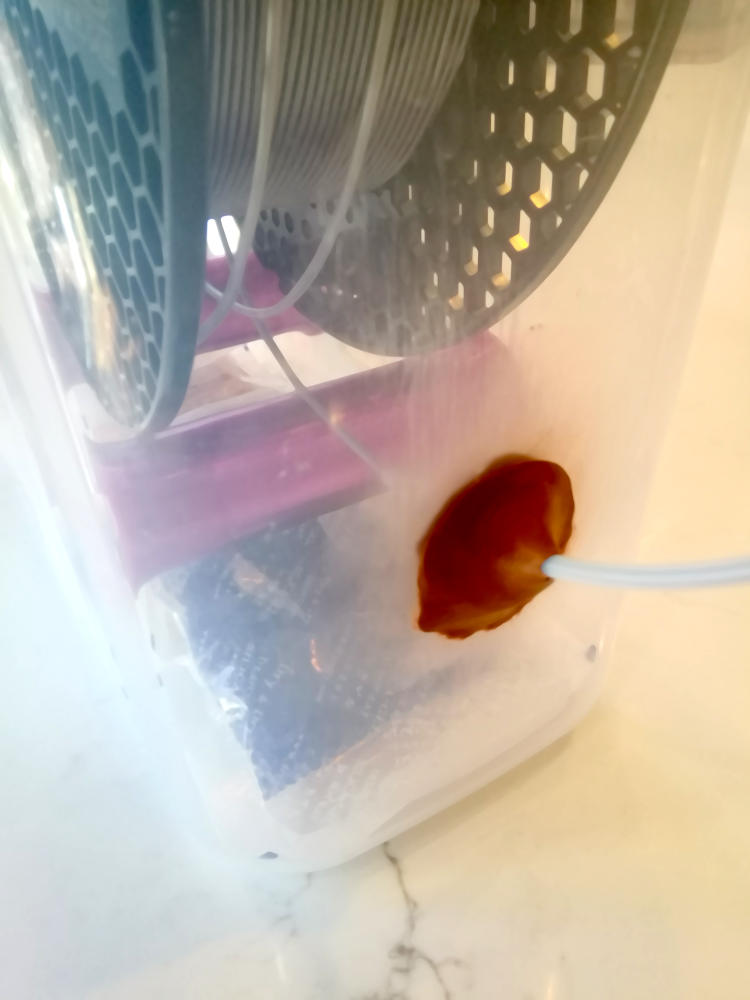

Drill a hole at the 6 cup mark for a short length of bowden ptfe tubing. Fix the tube in place with Sugru moldable glue as an exit for the filament.  I used 608 2RS bearings (8x22x7 mm) from ebay for the rollers. If the fit is to tight, increase BearingSpace to 0.3 or 0.4mm. I had a tight fit with 0.2mm and needed some amount of gentle persuasion with pliers to get it on.

Printables

Spool Roller

Publicado em 16 de mai de 2021

112
Curtidas
569
Downloads
9
Impressões
Categoria Accessories
Tags
spool spoolroller openscad
Licença Creative Commons — Attribution
Arquivos (9)
roller.08.scad 5.4 KB
roller.left.08.stl 1009.8 KB
roller.right.08.stl 896.8 KB
roller.roll.08.stl 843.8 KB
roller.complete.08.scad 5.5 KB
roller.complete.08.stl 3.5 MB
roller.09.scad 5.8 KB
roller.09.stl 1.9 MB

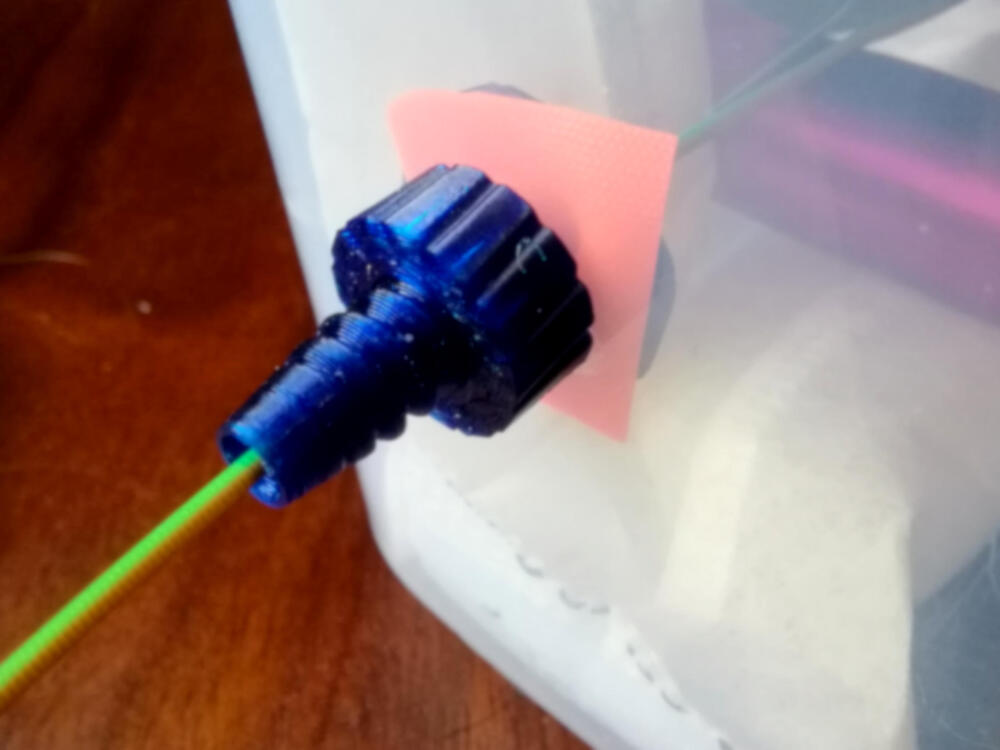

grommet.05.stl 1 MB
