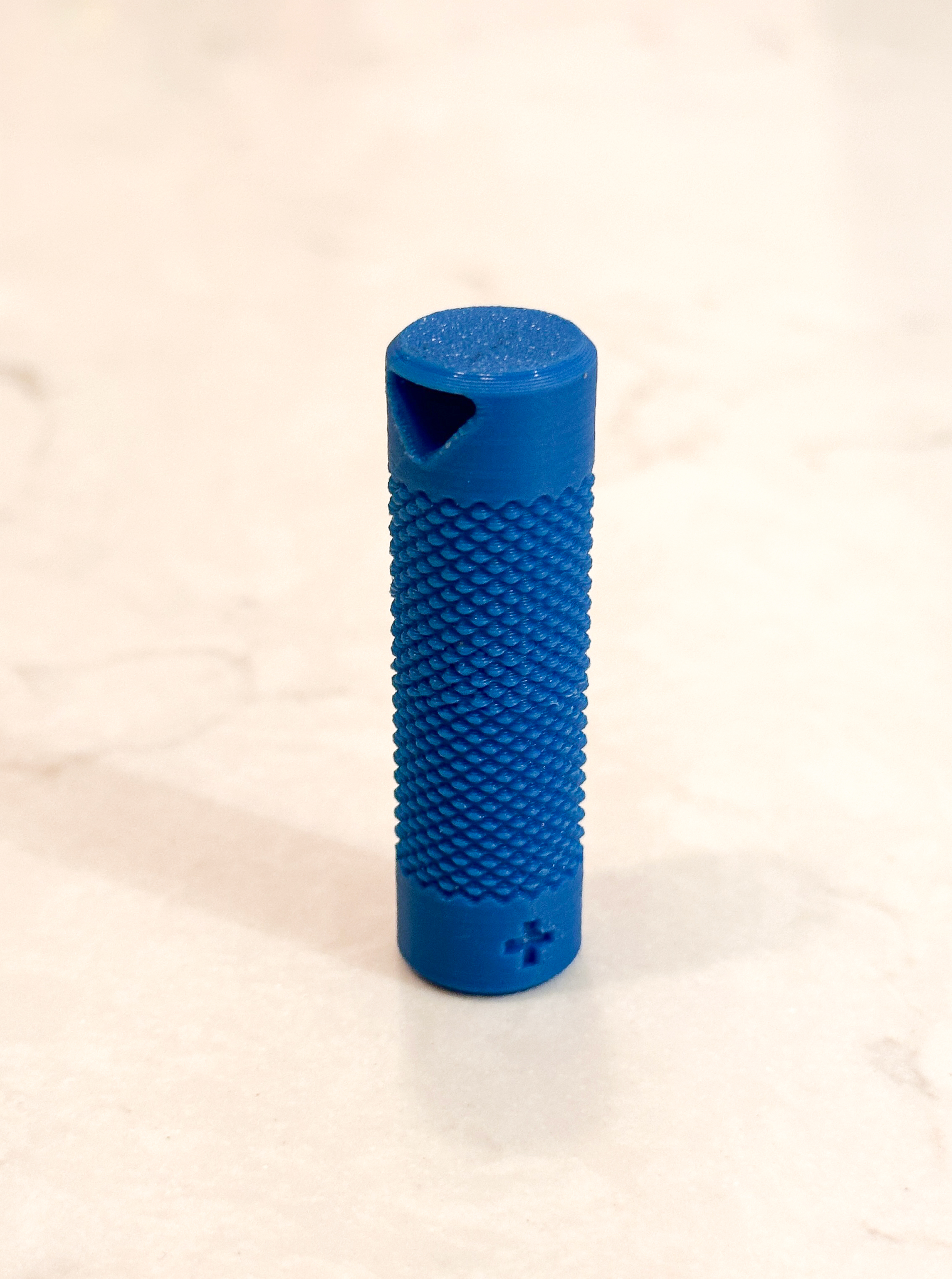

Modelo 3D Mini Screwdrivers V3 por Doug Kremer no Printables

Descrição

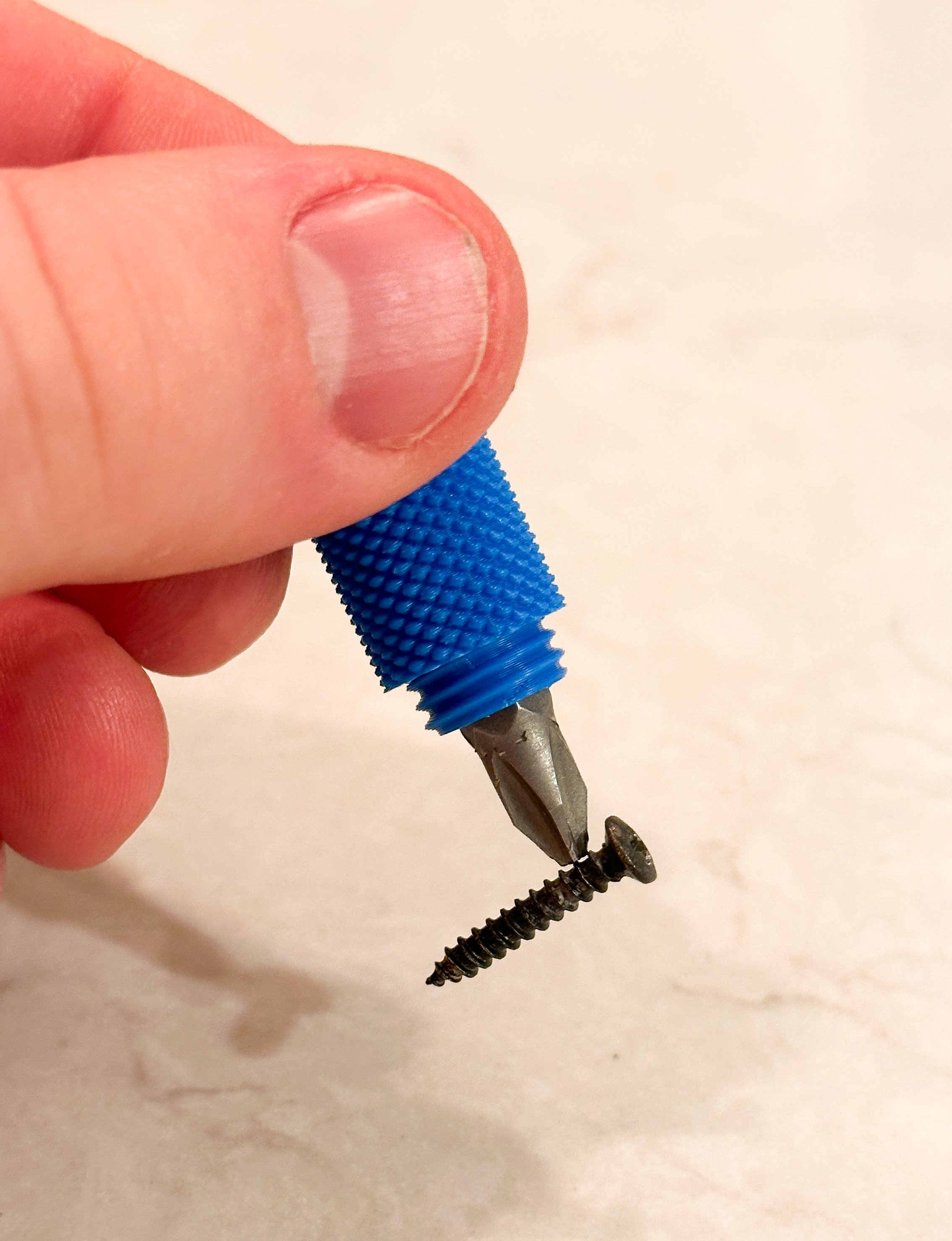

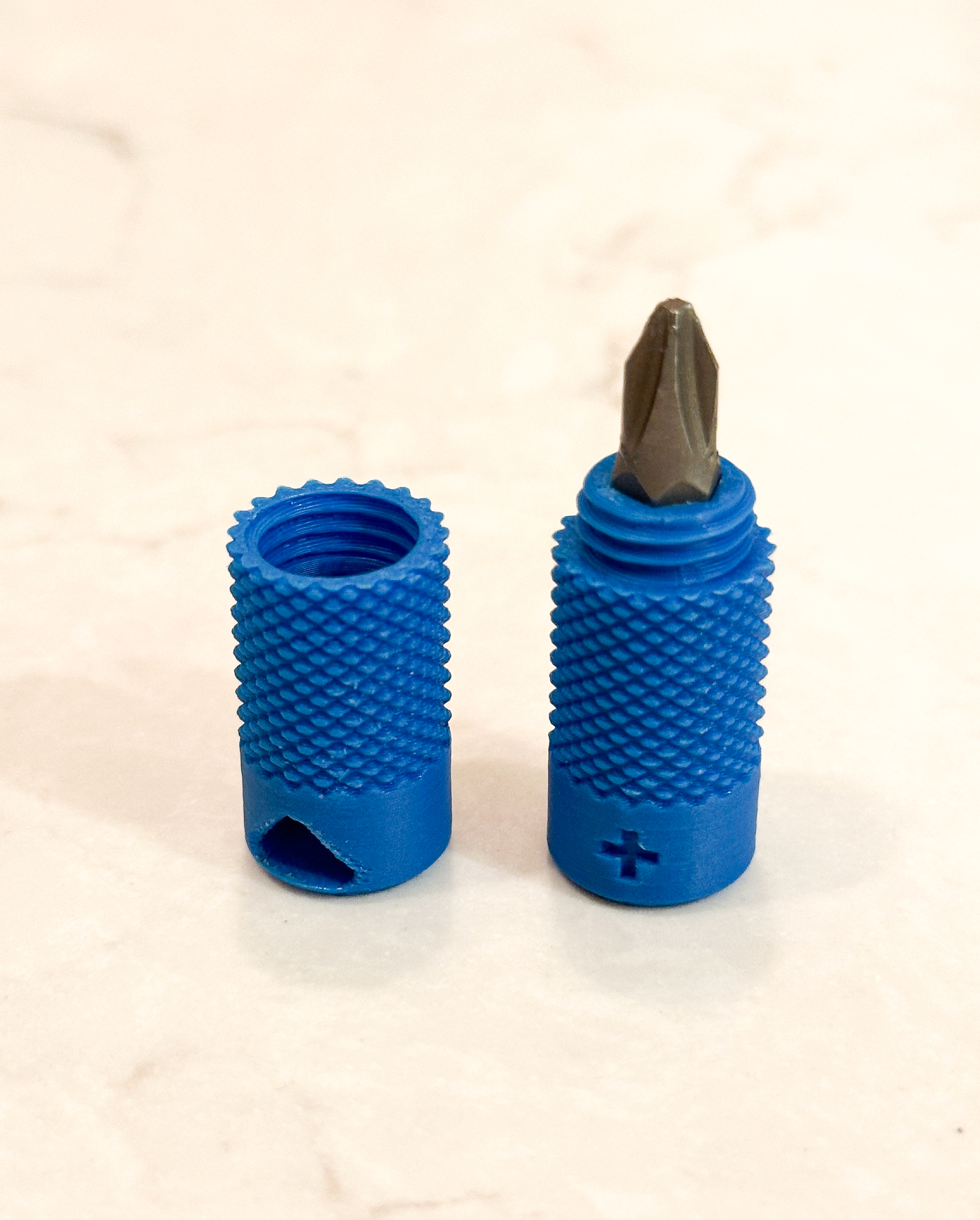

This is my 3rd (and final) version of my Mini Screwdrivers - perfect for stocking stuffers this Christmas, or to have close by to add all the batteries to the new Christmas toys! I fixed the tolerances in the threads and loosened the fit of the ¼" bit. I also added a space for a ¼ (diameter) x 1/16 (thick) magnet. The magnet can be glued in place. It holds the bit secure and also magnetizes the bit to hold the screw.

Magnets (Amazon): [https://a.co/d/d5tjLKo](https://a.co/d/d5tjLKo)

SIZE:  50mm tall and 14.5mm diameter.

FILAMENT:  PETG or PLA

 LAYER HEIGHT:  0.1 or 0.15 (I have not tried 0.2)

INFILL:  15-30% Gyroid

WALLS:  3 or more

If you’re having trouble printing it in PETG, you may need to add a brim or use glue. PLA would probably be strong enough since these are really just for light duty applications.

Printables

Mini Screwdrivers V3

Publicado em 2 de dez de 2023

308
Curtidas
751
Downloads
6
Impressões
Categoria Tools
Tags
christmas hex tools screwdriver stockingstuffer phillips flathead torx roberston
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (7)
Phillips.stl 1.5 MB
Flathead.stl 1.5 MB
Robertson.stl 1.5 MB
Torx.stl 1.5 MB
Hex.stl 1.5 MB
Cap.stl 1.8 MB
Complete Set.3mf 2.2 MB
