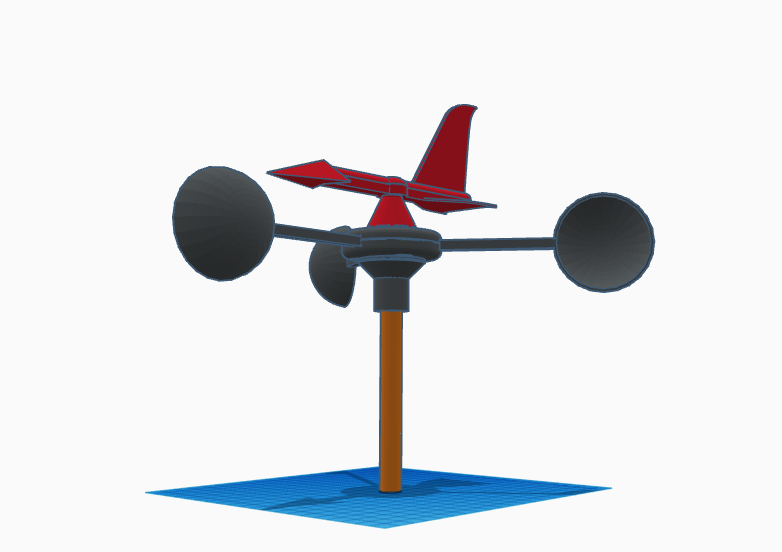

Anemometer with wind direction indicator.
User Creation Mix: neovista85 - Thingverse

I modified the original project to insert bearings and make some mechanical and aesthetic improvements.

Known issues:
-The fitting of the wind spheres still has a gap that needs to be corrected, but it does not interfere with operation. (ADJUSTED 30/11/2023)

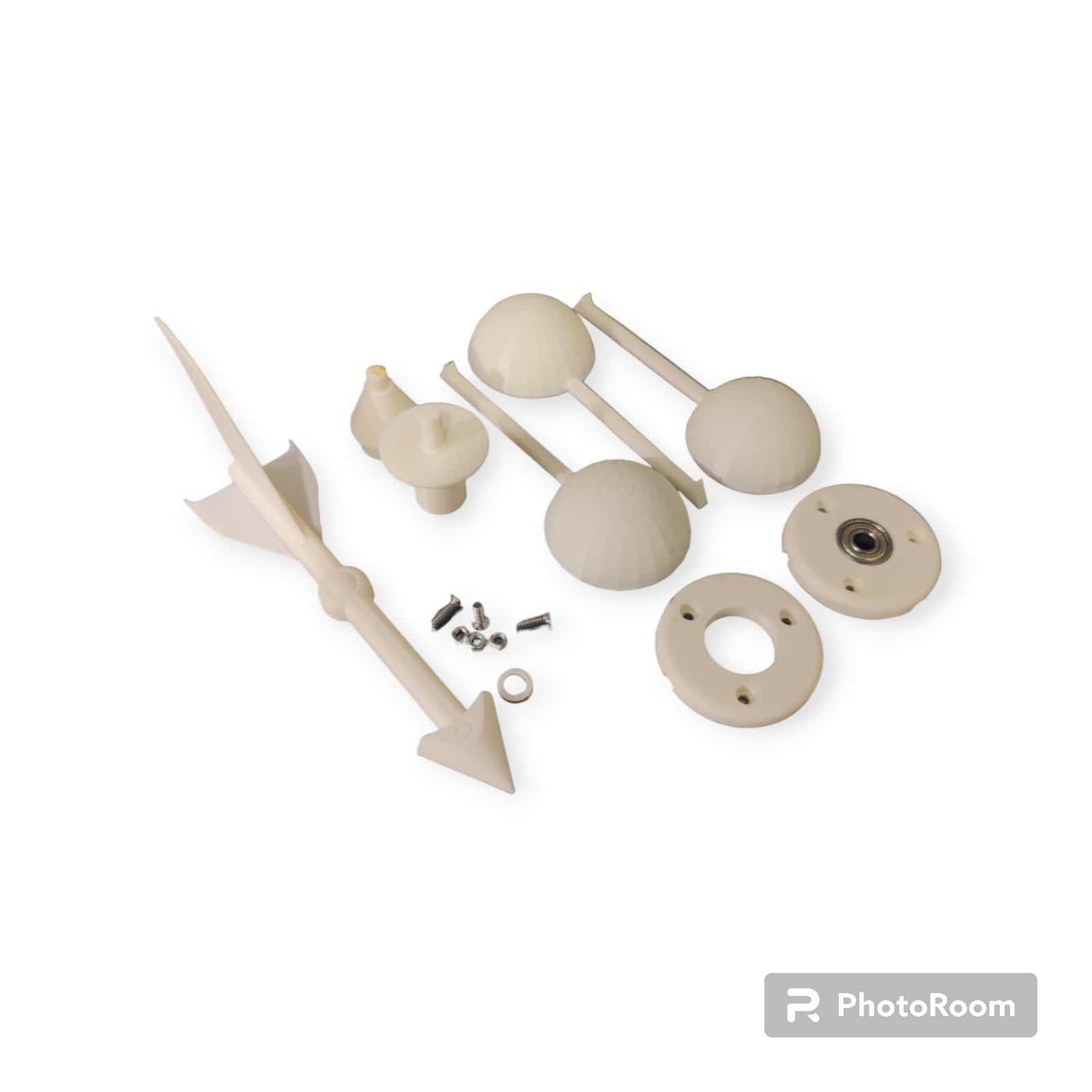

REQUIRED FOR ASSEMBLY
3x M4 x 12mm Screws
3x M4 Nuts
2x Ball bearing R608 d=8 mm D=22 mm B=7 mm
1x fixing rod diameter 12mm

PRINT SETTINGS
-Parts are already in the recommended guidelines

Base_of_cube, Base_of_indicator
Layer: 0.15
Walls: 6
Fill:60%
Support: No
Material: PET-G or ABS

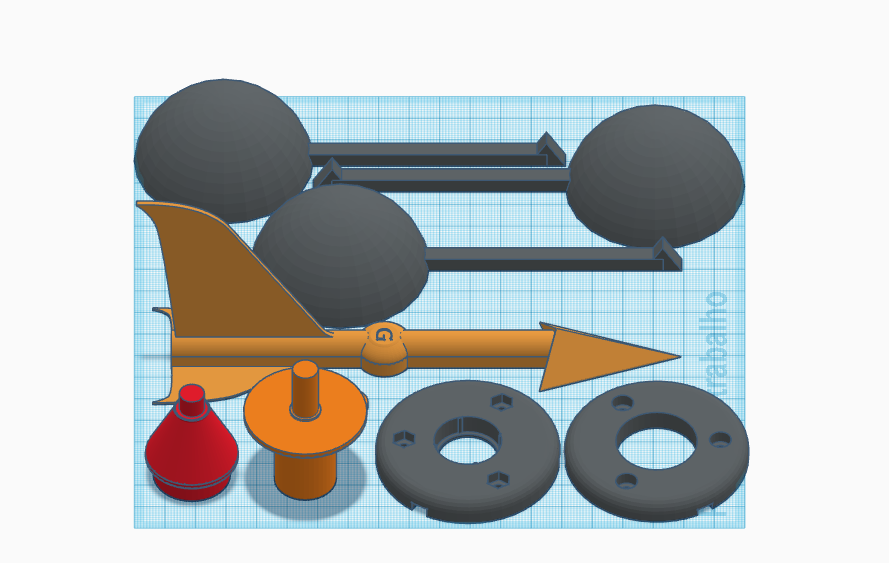

Upper_cube, Lower_cube, Direction_indicator, 3x Wind_sphere
Layer: 0.2
Walls: 3
Fill:30%
Support: No
Material: PET-G or ABS
