Modelo 3D Honeycomb TV Table Storage Bracket por officialdarksheao no Printables

Descrição

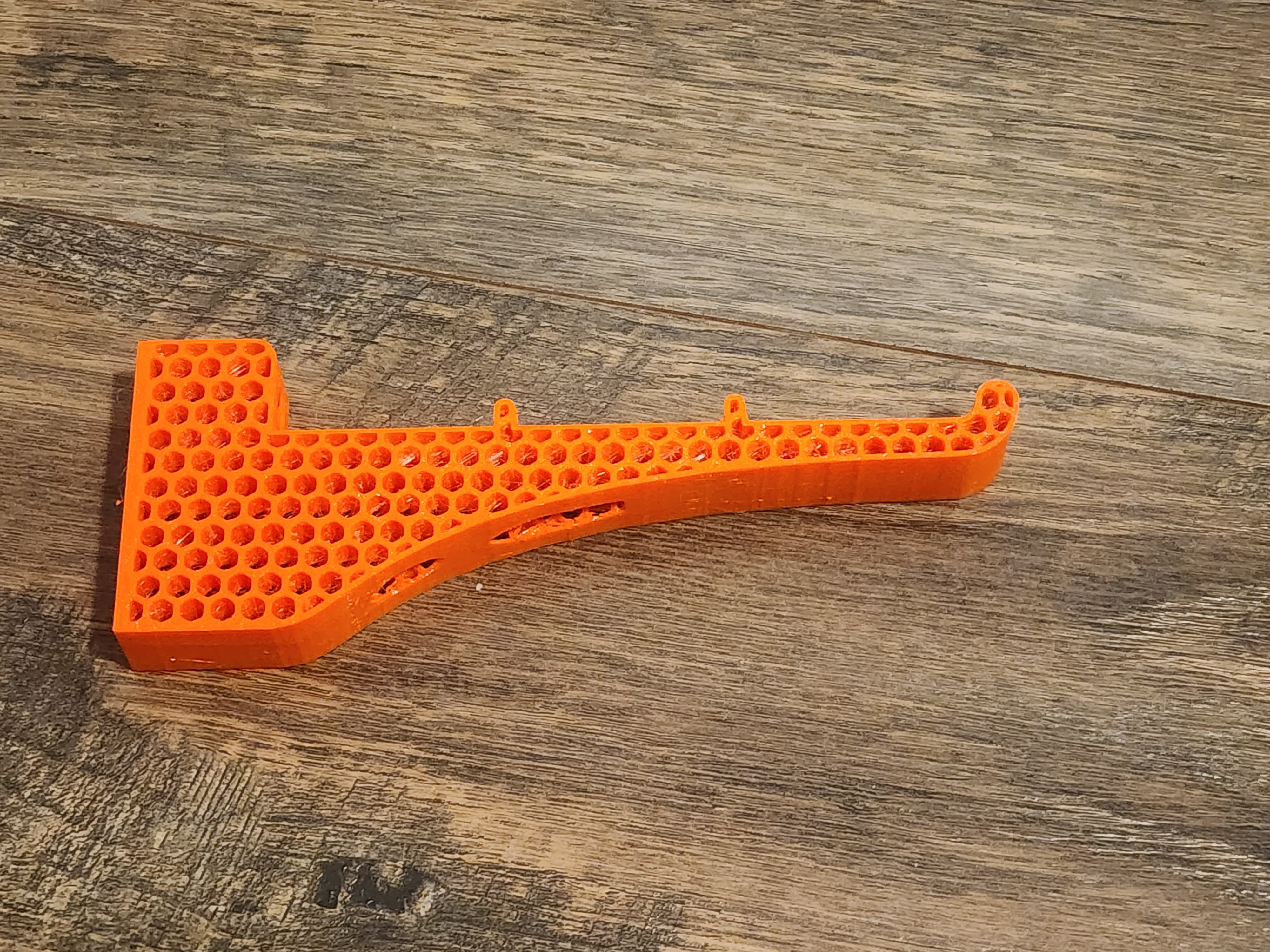

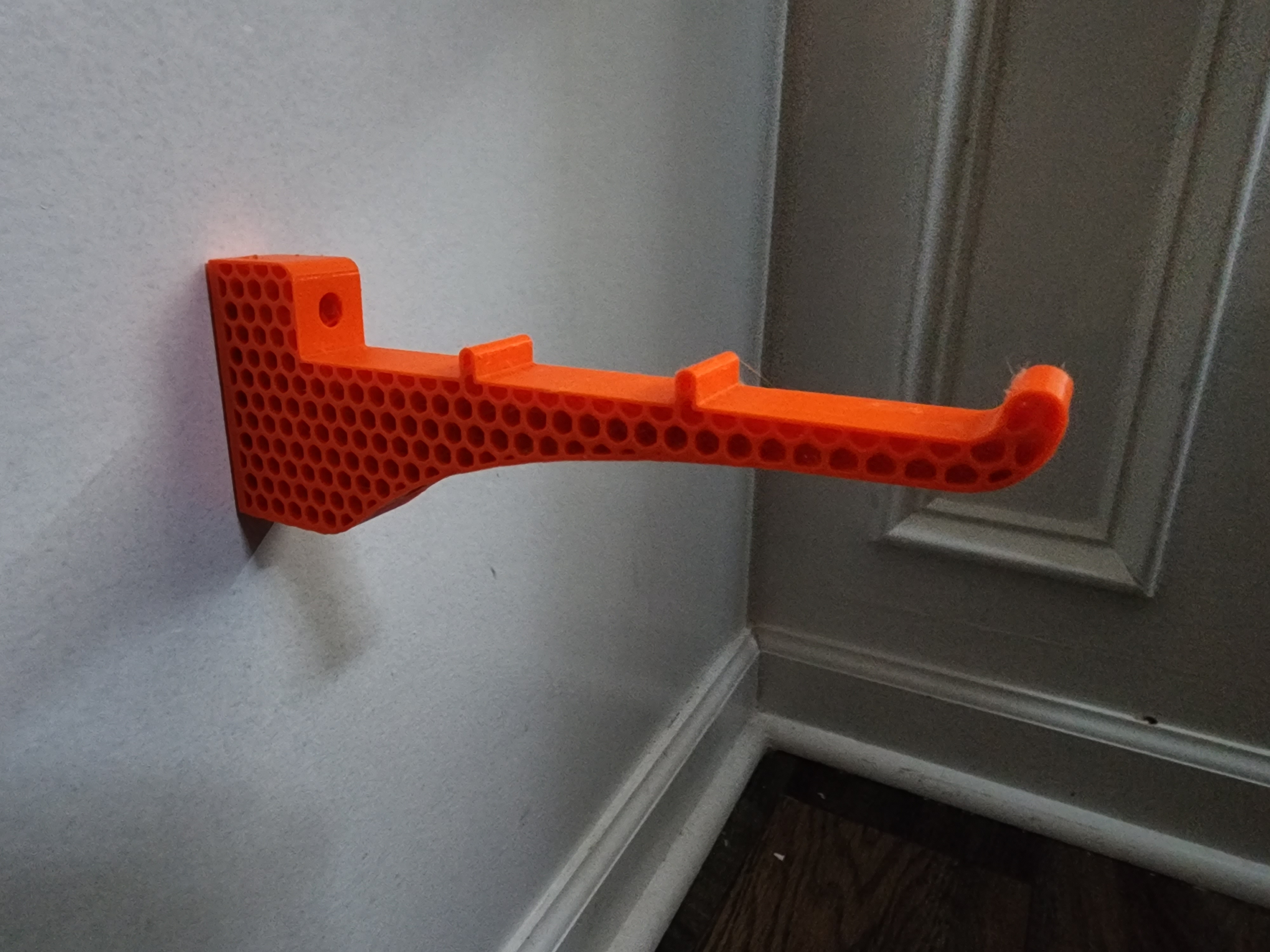

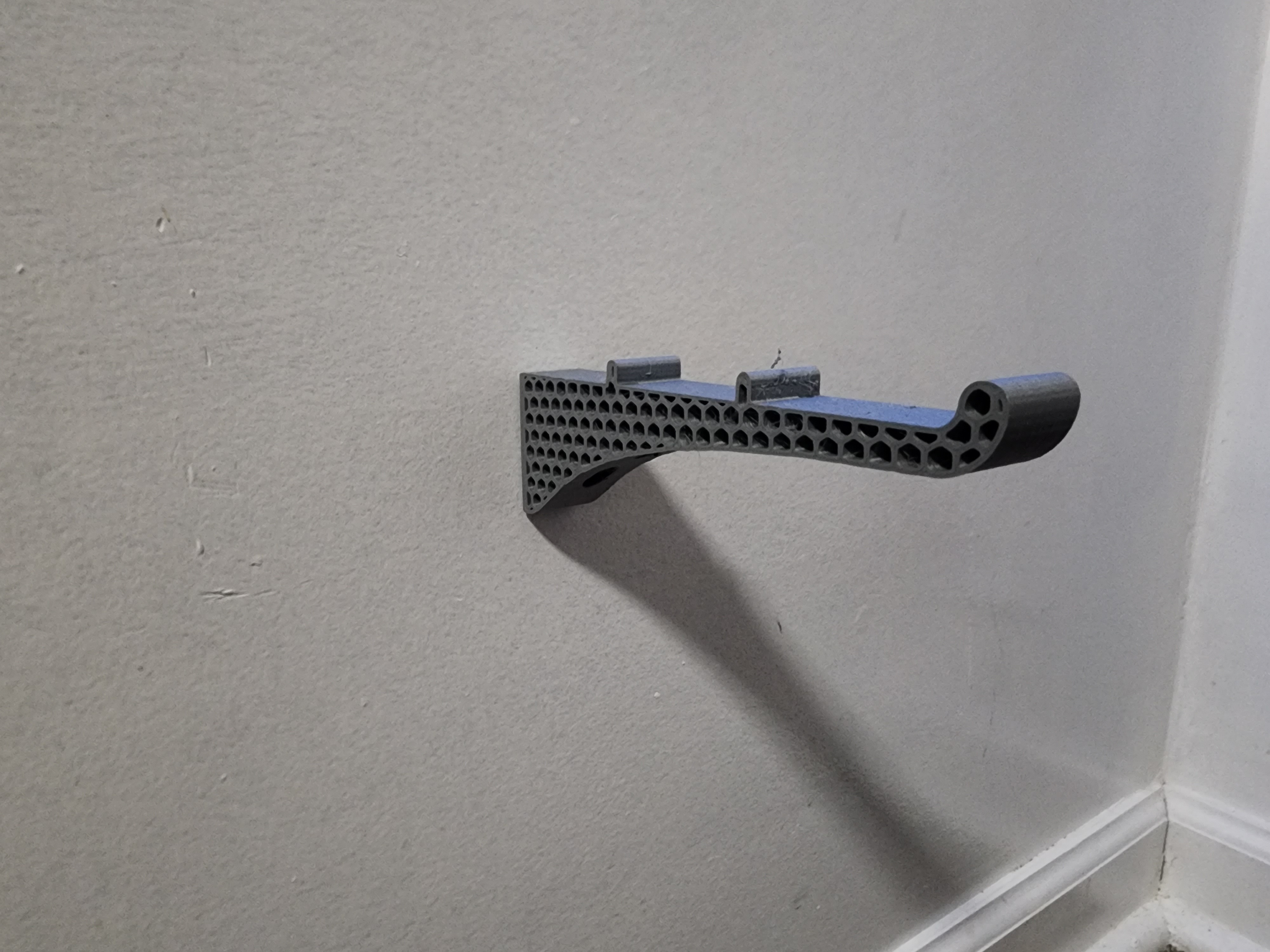

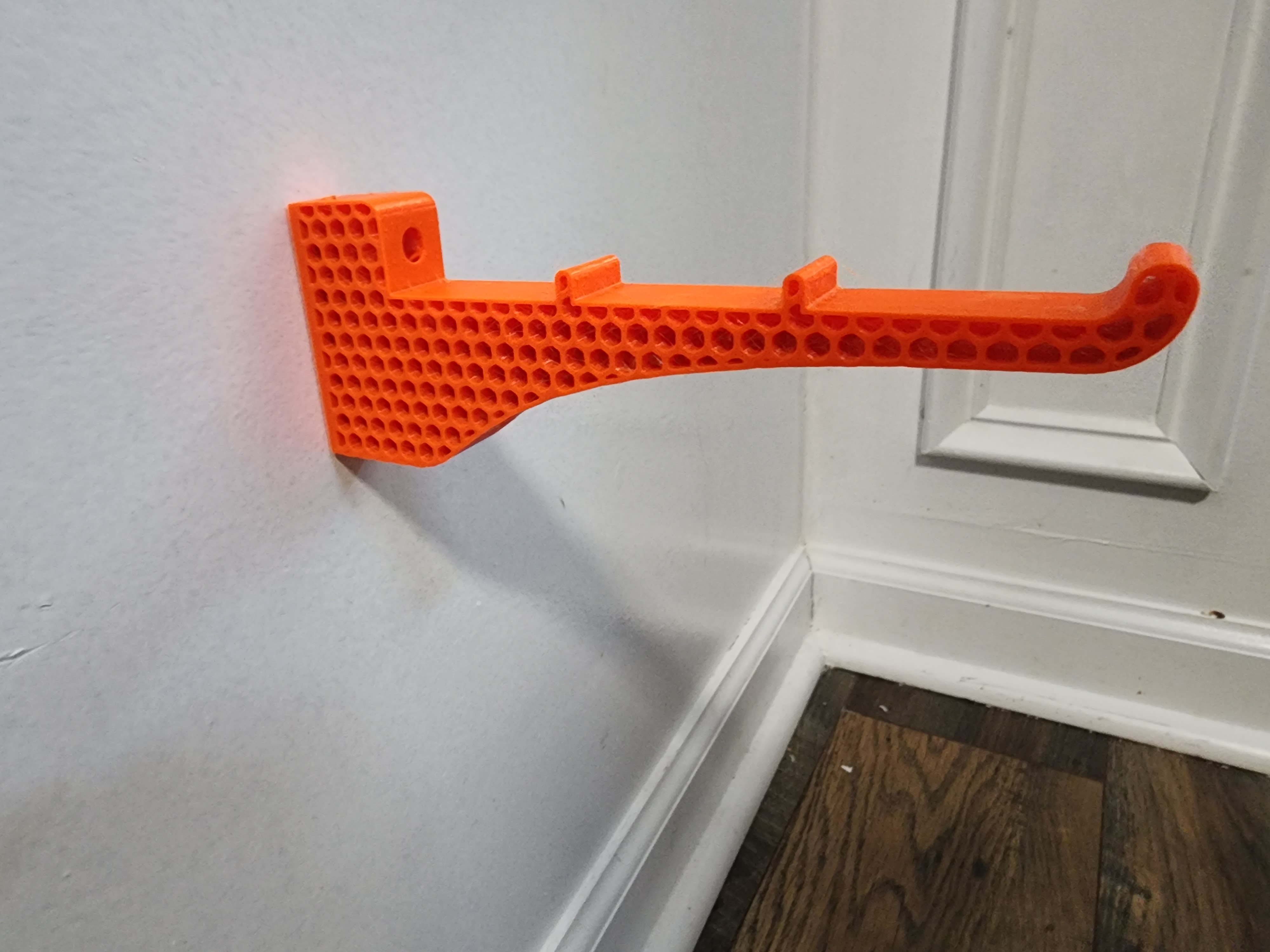

We are always making use of these fold up TV Tables, but storage for multiple becomes a problem. This bracket can be printed to store the tables against the wall.

Holes for #6 screws.

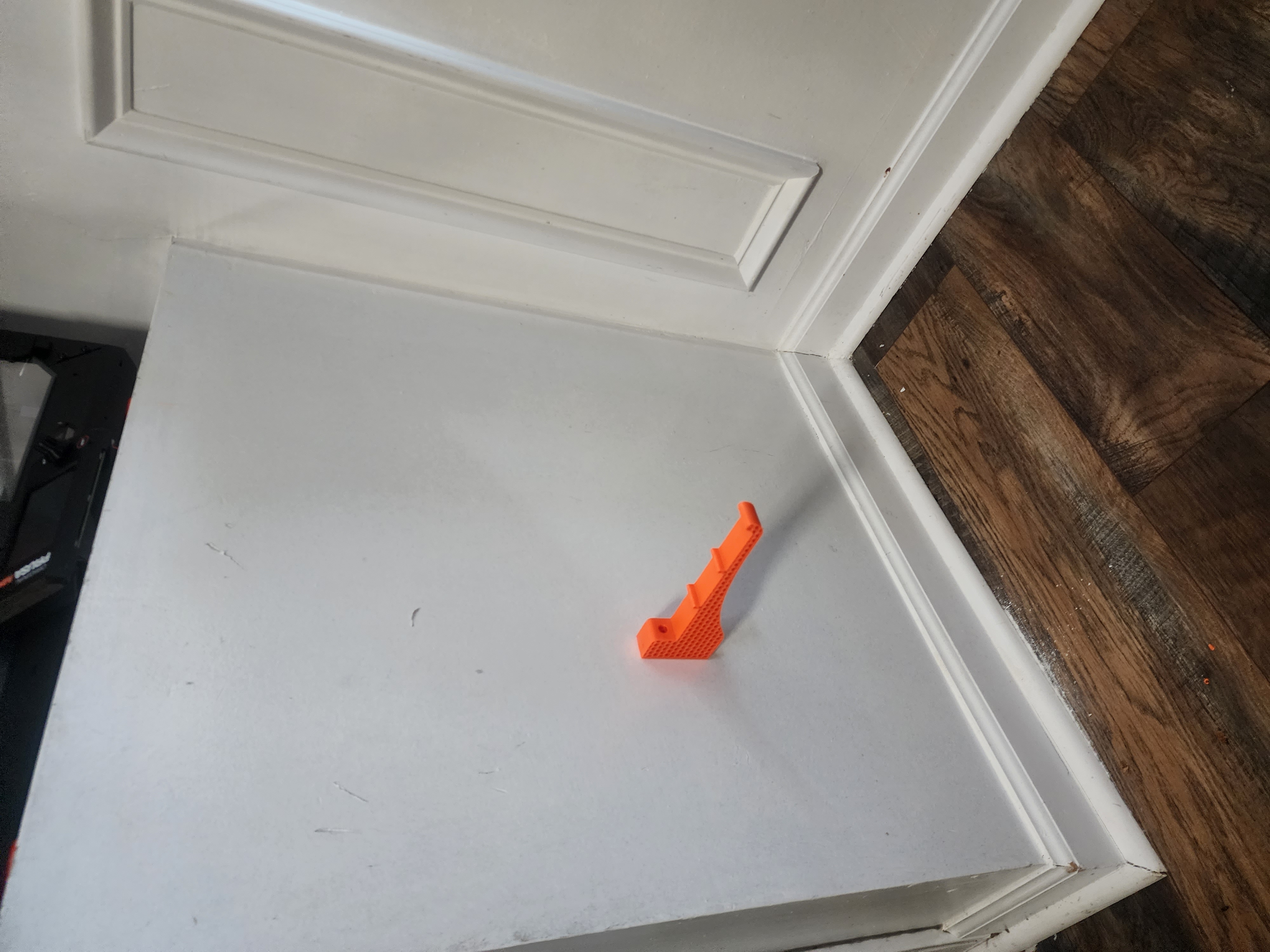

I recommend keeping the wall mount set at a location where the feet of the tables still touch the floor, especially if using one of the variations that are not extended to compensate for baseboards.

I wanted to play around in blender for working out a quick way for doing pattern cutouts programmatically, see the attached blender file. Is this the best way? Unlikely - but it was fun messing around with.

I printed a version in PLA and in PTEG, both work well. If using one of the models without the baseboard extension, if you DO have baseboards, you will need to store some of the tables backward to fit.

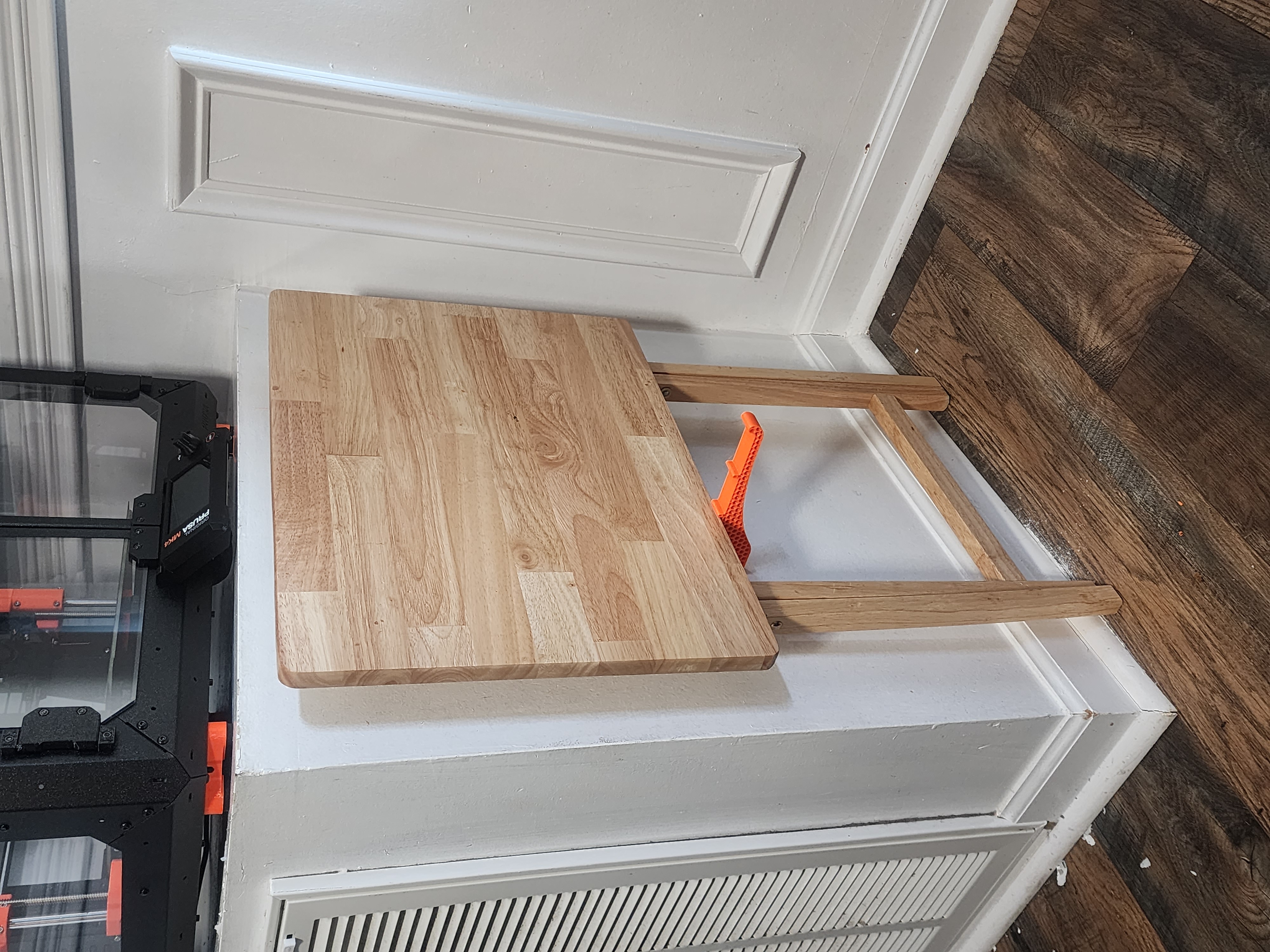

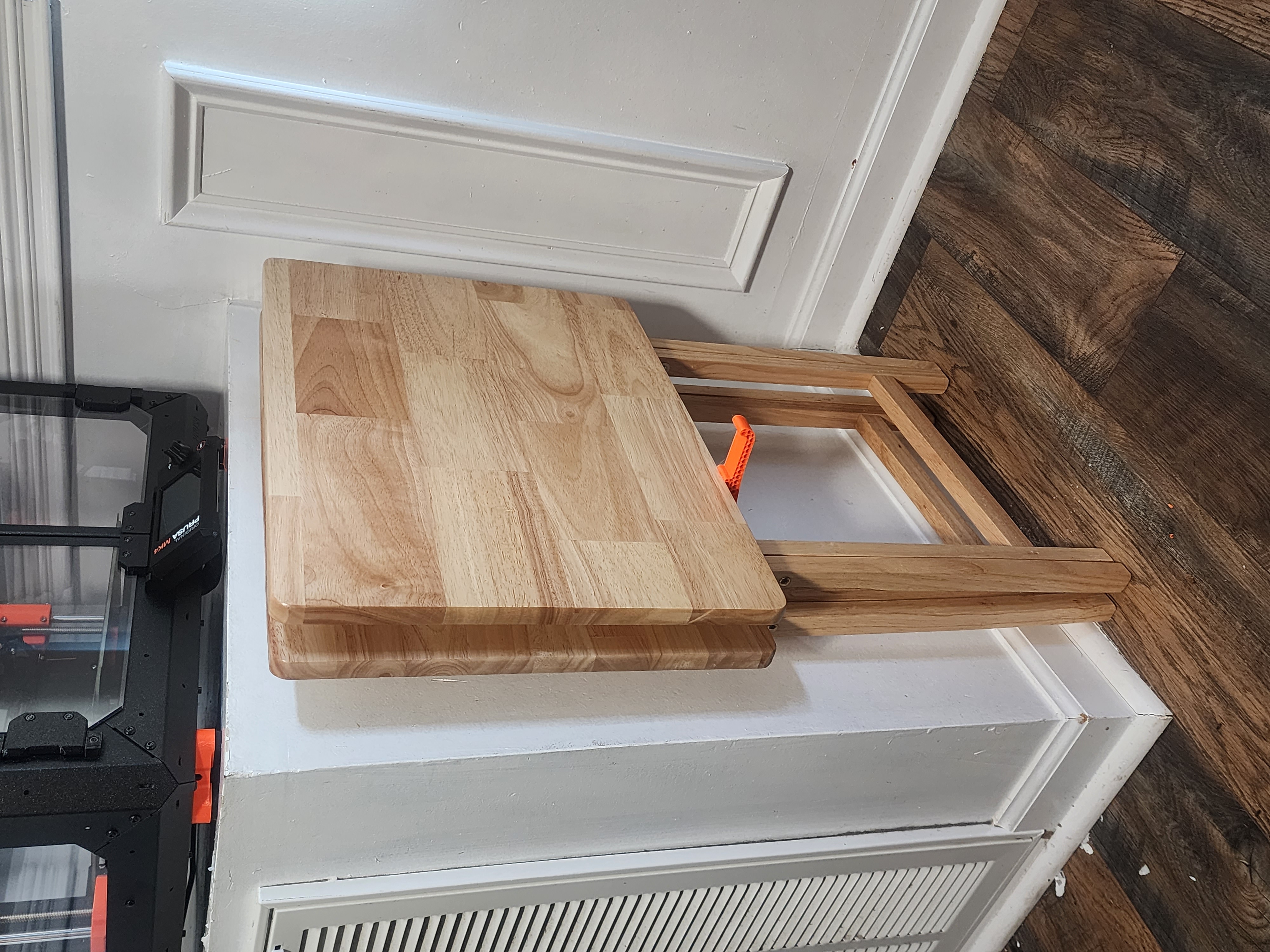

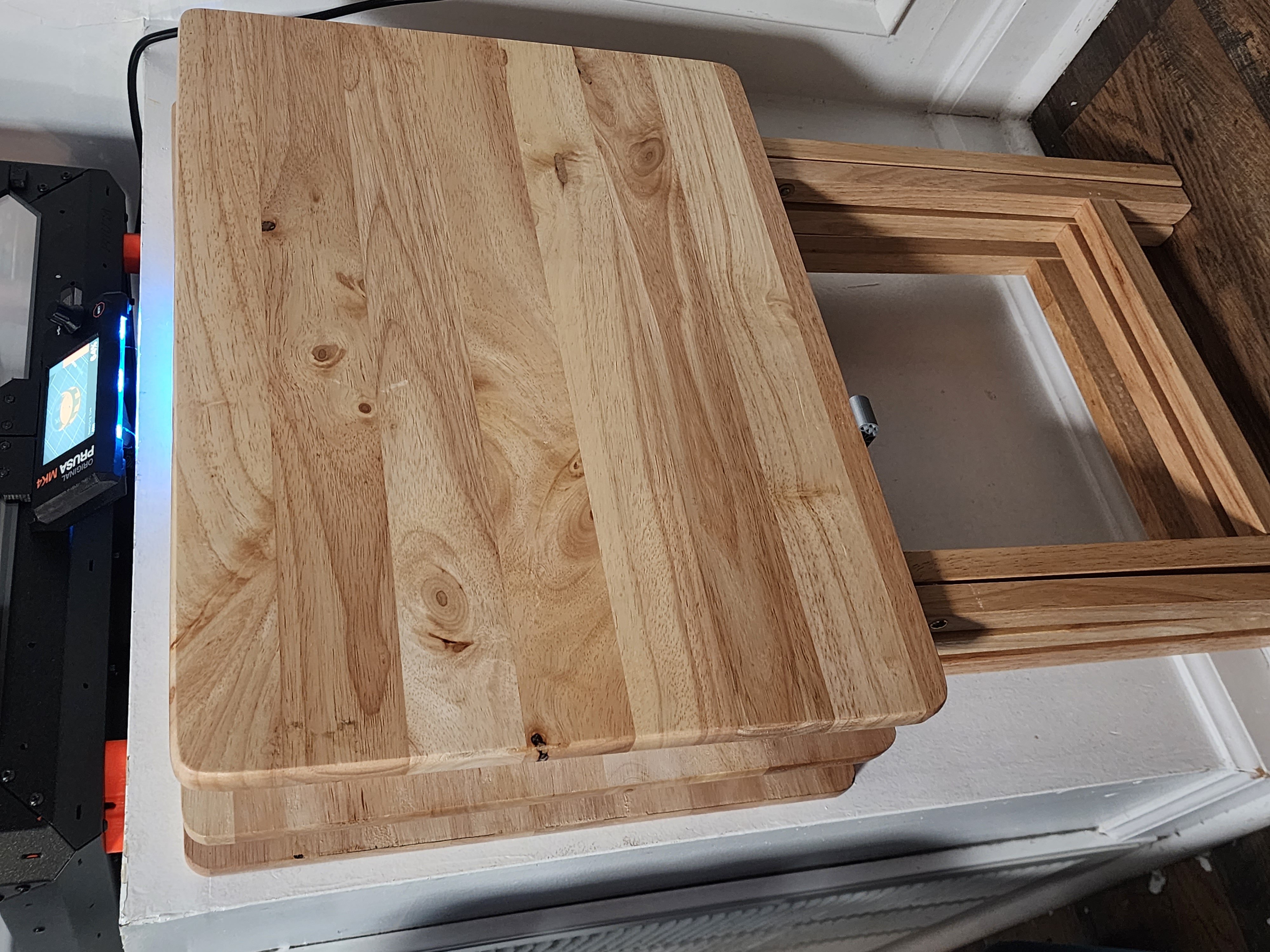

I had good results storing using only 1 printed bracket to hold the three tables.



Printables

Honeycomb TV Table Storage Bracket

Publicado em 29 de nov de 2023

2
Curtidas
16
Downloads
Categoria Other House Equipment
Tags
table hexagon wallmount storage honeycomb hex organization
Licença Creative Commons — Attribution
Arquivos (9)
TV_Tbl_3_Baseboard.3mf 153.5 KB
TV_Tbl_1.3mf 65.1 KB
TV_Tbl_2.3mf 85.9 KB
TV_Tbl_3.3mf 117.1 KB
TV_Tbl_1_Fixed.stl 150.8 KB
TV_Tbl_2_Fixed.stl 208.5 KB
TV_Tbl_3_Fixed.stl 324.4 KB
TV_Tbl_3_Baseboard_Fixed.stl 523.1 KB
Table_Holder.blend 1.6 MB
