PSVR Camera - Rotating TV Stand — STL Grátis

Tracking with the PS Camera for Playstation VR is improved if the camera is elevated.

The included camera stand can be placed on top of your TV but requires you to be directly in front of the stand, in my living room I sit off to the side when playing PSVR so I needed to find a way to point the camera in the right direction.

Instead of having a freely rotating joint I wanted specific angles (trial and error here, the weight of the cord kept tugging and displacing any freely rotating joint I made), thus you set the angle when placing the camera and no matter the tugging it stays in place.

Besides the angle thing, this also provides some extra height. Because why not.

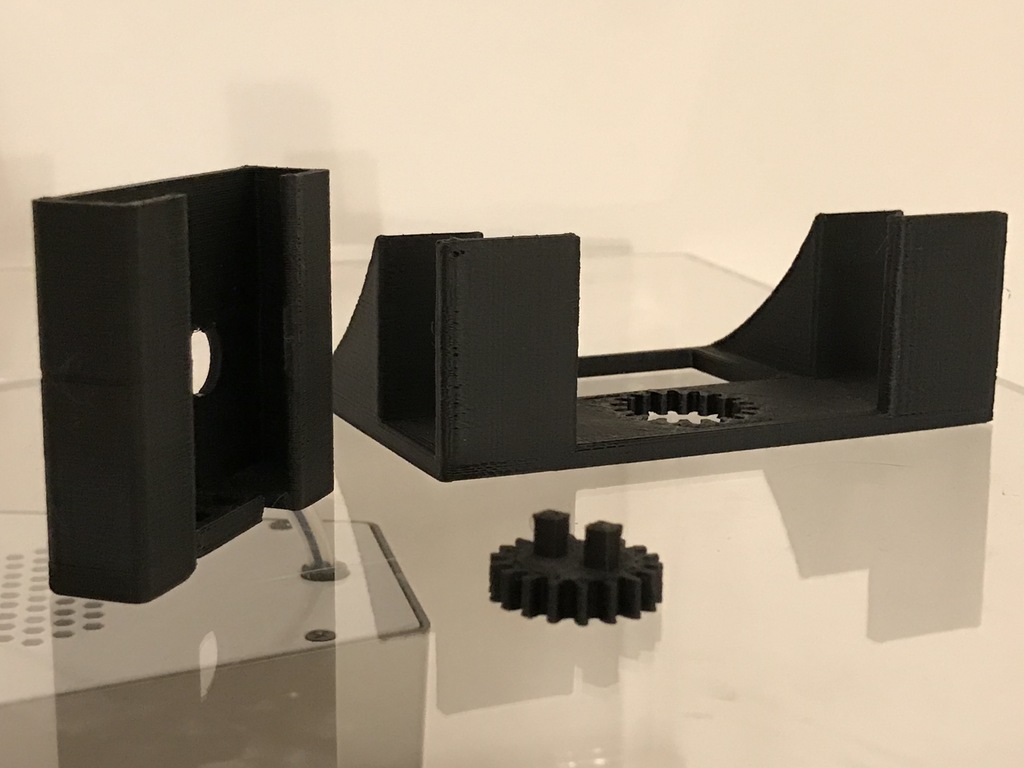

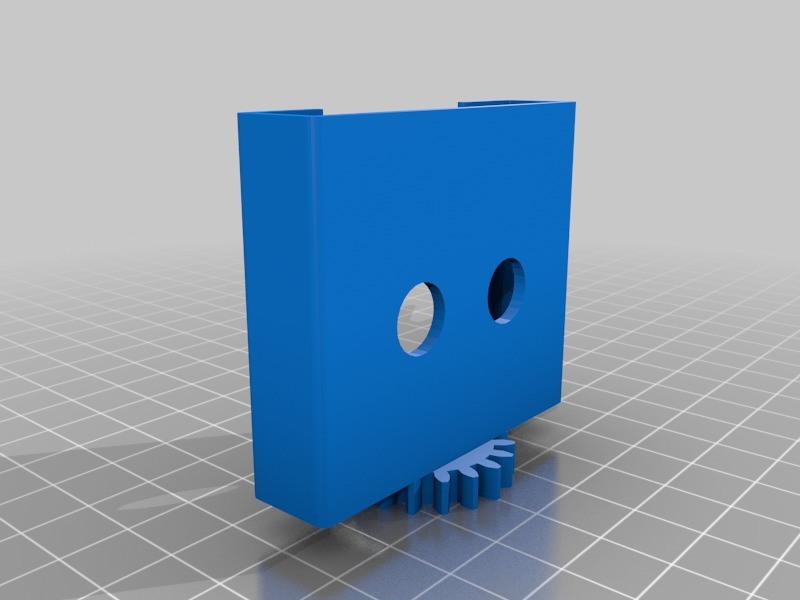

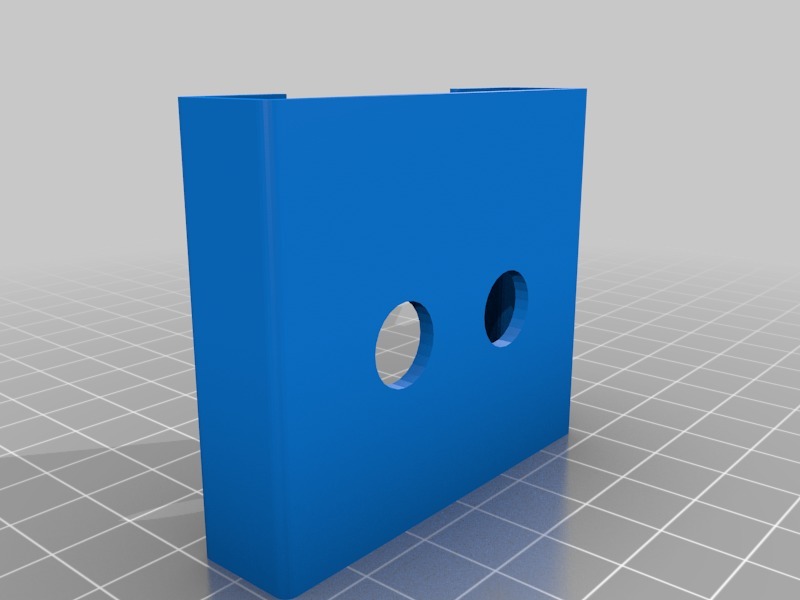

To use this you'll need the original PS Camera stand and you'll need to print the base as well as EITHER Holder A and Holder B OR Holder A+B

Print Settings

Printer:

New Matter Mod-T

Rafts:

Supports:

Resolution:

.1mm

Infill:

15%

Notes:

I printed at .1 mm res with 15% infill. Could probably print rougher.

If you print the Holder A and Holder B separate files you won't need any supports, but you will need to glue them together. Holder A + B combines the two and will need support.

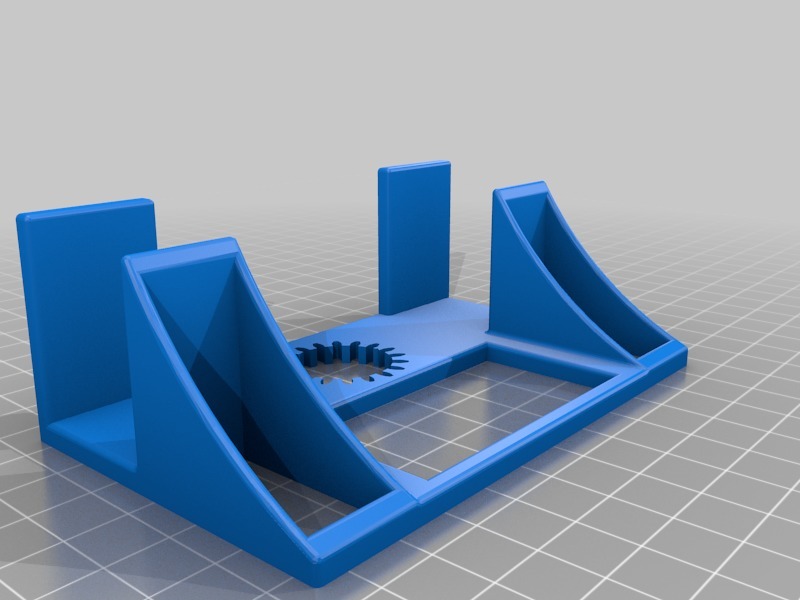

The base does not require support.

Post-Printing

Step 1: Assembly

If you printed the two separate holder parts (A and B respectively), glue them together.

Step 2: Mounting

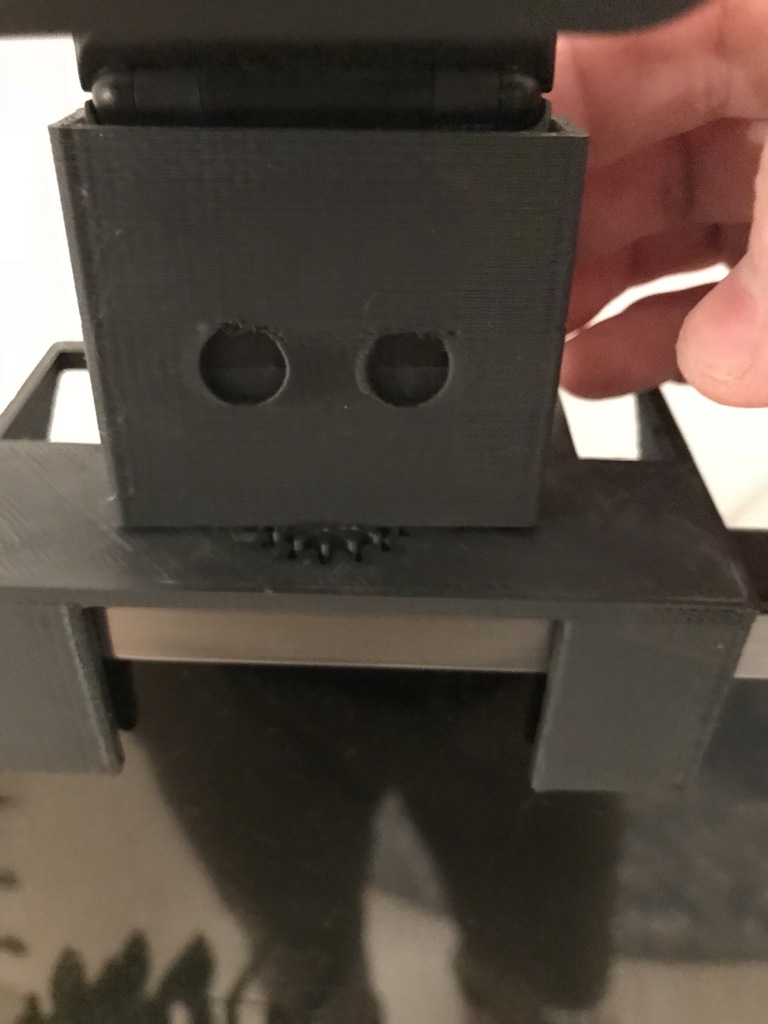

Place the PS camera in the included stand, and place the stand in the holder.

Place the base on your TV and set down the holder at your preferred angle

Step 3: ???

Step 4: Profit

How I Designed This

Basically I didn't.

This is a remix of [https://www.thingiverse.com/thing:191887](https://www.thingiverse.com/thing:191887) and [https://www.thingiverse.com/thing:2428778](https://www.thingiverse.com/thing:2428778)

I pretty much just put them together and added the star shaped protrusion / cutout.
